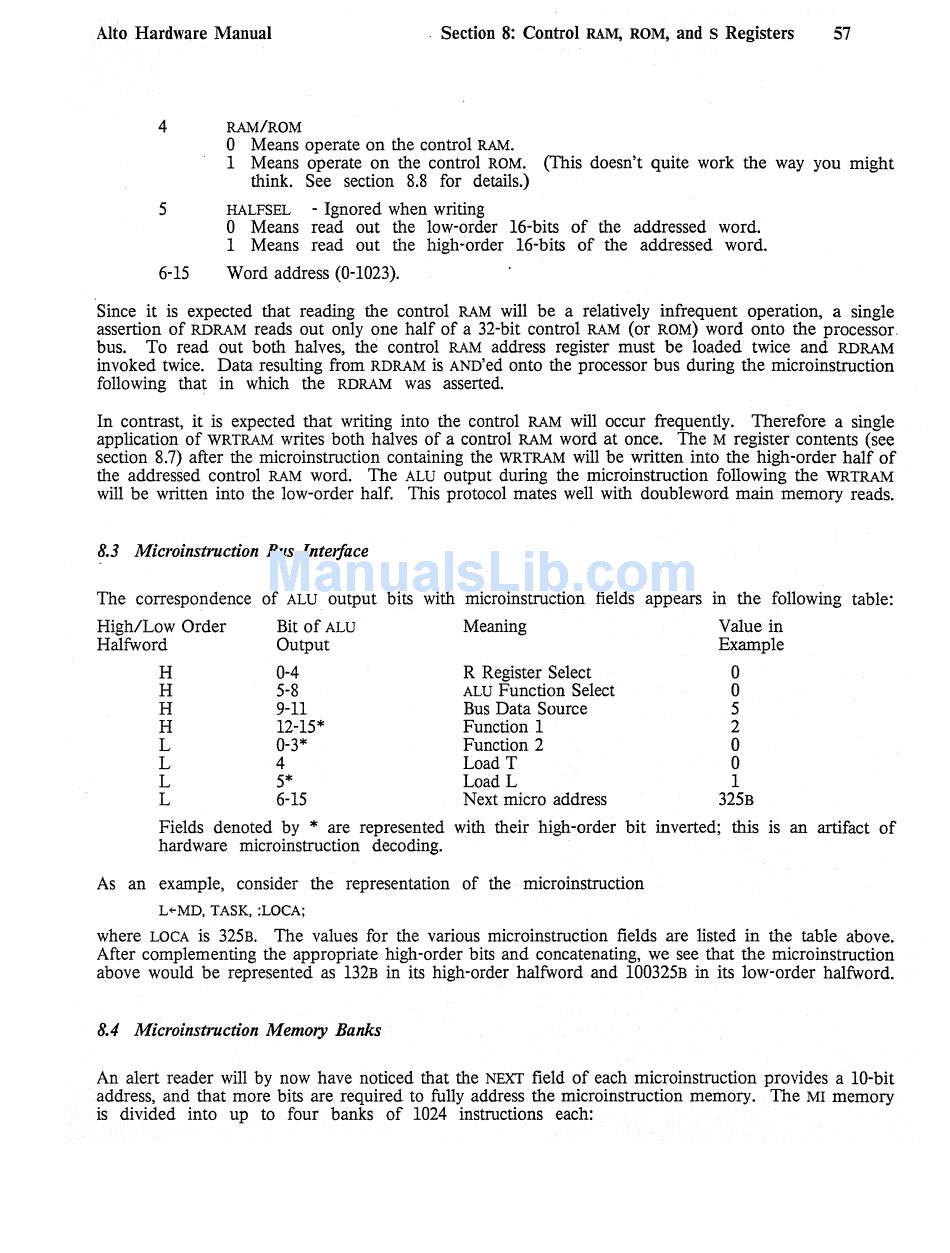

Alto Hardware Manual
. Section 8: Control
RAM,
ROM, and s Registers
57
4
RAM/ROM
o
Means operate on the control RAM.
1 Means operate on the control ROM. (This doesn't quite work the way you might
think. See section 8.8 for details.)
5
HALFSEL
- Ignored when writing
o
Means read out the low-order 16-bits of the addressed word.
1 Means read out the high-order 16-bits of the addressed word.
6-15
Word address (0-1023).
Since it is expected that reading the control RAM will be a relatively infrequent operation, a single
assertion of RDRAM reads out only one half of a 32-bit control
RA.l\1
(or ROM) word onto the processor.
bus.
To read out both halves, the control RAM address register must be loaded twice and RDRAM
invoked twice. Data resulting from RDRAM is AND'ed onto the processor bus during the microinstruction
following that in which the RDRAM was asserted.
In contrast, it is expected that writing into the control RAM will occur frequently. Therefore a single
application of WRTRAM writes both halves of a control RAM word at once. The M register contents (see
section
8.7)
after the microinstruction containing the WRTRAM will be written into the high-order half of
the addressed control RAM word. The ALU output during the microinstruction following the WRTRAM
will be written into the low-order half. This protocol mates well with doubleword main memory reads.
8.3 Microinstruction Bus Interface
The correspondence of ALU. output bits with microinstruction fields appears in the following table:
High/Low Order
Bit of ALU
Meaning
Value in
Halfword
Output
Example
H
0-4
R Register Select
0
H
5-8
ALU Function Select
0
H
9-11
Bus Data Source
5
H
12-15*
Function 1
2
L
0-3 *
Function 2
0
L
4
LoadT
0
L
5*
Load L
1
L
6-15
Next micro address
325B
Fields denoted by * are represented with their high-order bit inverted; this is an artifact of
hardware microinstruction decoding.
As an example, consider the representation of the· microinstruction
L+-MD, TASK, :LOCA;
where LOCA is 325B. The values for the various microinstruction fields are listed in the table above.
After complementing the appropriate high-order bits and concatenating, we see that the microinstruction
above would be represented as 132B in its high-order halfword and 100325B in its low-order halfword.
8.4 Microinstruction Memory Banks
An alert reader will by now have noticed that the NEXT field of each microinstruction provides a lO-bit
address, and that more bits are required to fully address the microinstruction memory. The Ml memory
is divided into up to four banks of 1024 instructions each:
