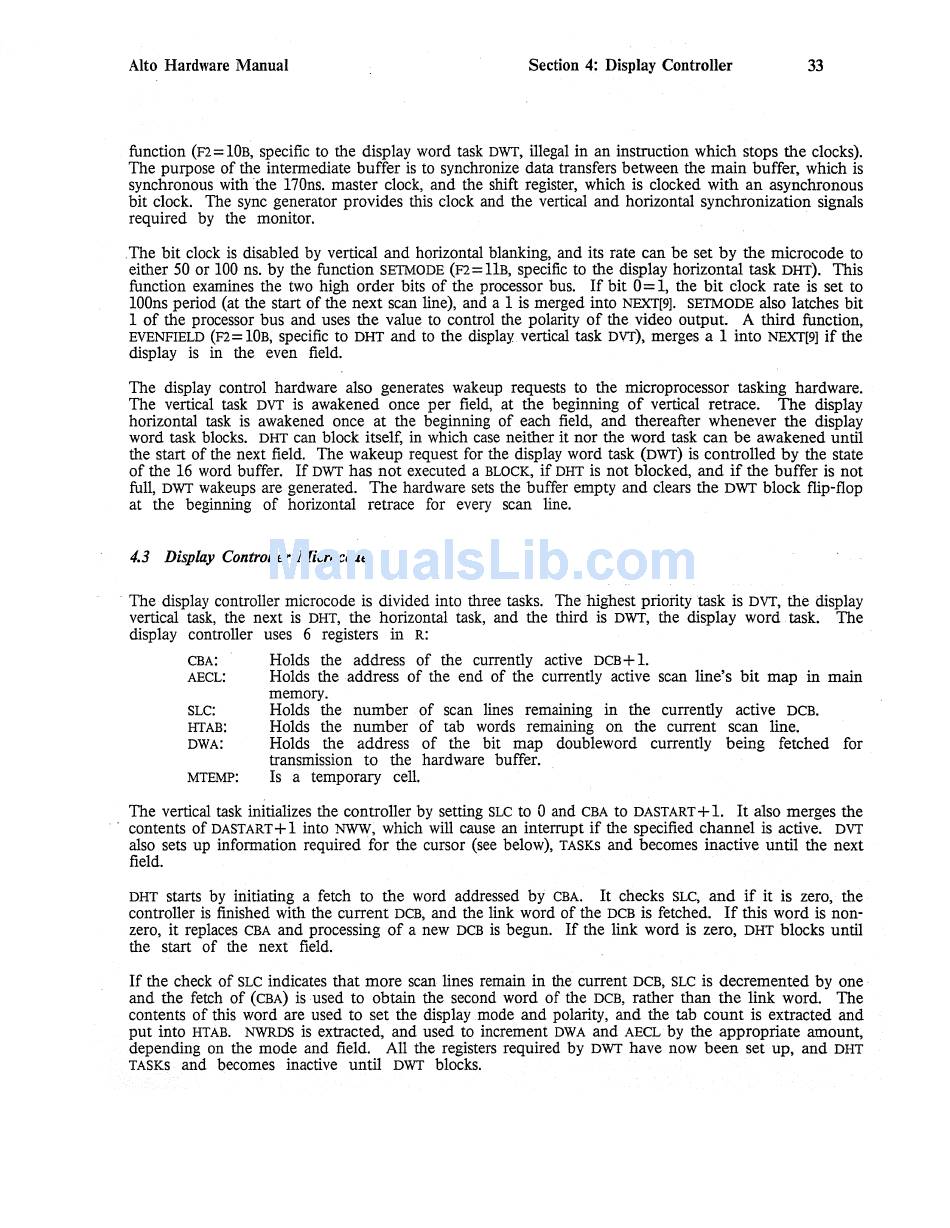

Alto Hardware Manual
Section 4: Display Controller
33
function (F2=10B, specific to the display word task DWT, illegal in an instruction which stops the clocks).
The purpose of the intermediate buffer is to synchronize data transfers between the main buffer, which is
synchronous with ·the 170ns. master clock, and the shift register, which is clocked with an asynchronous
bit clock. The sync generator provides this clock and the vertical and horizontal synchronization signals
required by the monitor .
. The bit clock is disabled by vertical and horizontal blanking, and its rate can be set by the microcode to
either 50 or 100 ns. by the function SETMODE (F2 = llB, specific to the display horizontal task DHT). This
function examines the two high order bits of the processor bus. If bit 0=1, the bit clock rate is set to
lOOns period (at the start of the next scan line), and a 1 is merged into NEXT[9]. SE1MODE also latches bit
1 of the processor bus and uses the value to control the polarity of the video output. A third function,
EVENFIELD (F2 = lOB, specific to DHT and to the display. vertical task DVT), merges a 1 into NEXT[9] if the
display is
in
the even field.
The display control hardware also generates· wakeup requests to the microprocessor tasking hardware.
The vertical task DVT is awakened once per field, at the beginning of vertical retrace.
The display
horizontal task is awakened once at the beginning of each field, and thereafter whenever the display
word task blocks. DHT can block itself, in which case neither it nor the word task can be awakened until
the start of the next field. The wakeup request for the display word task (DWT) is controlled by the state
of the 16 word buffer. If DWT has not executed a BLOCK, if DHT is not blocked, and if the buffer is not
full, DWT wakeups are generated. The hardware sets the buffer empty and clears the DWT block flip-flop
at the beginning of horizontal retrace for every scan line.
4.3 Display Controller Microcode
. The display controller microcode is divided into three tasks. The highest prioiitytask is DVT, the display
vertical task, the next is DHT, the horizontal task, and the third is DWT, the display word task. The
display controller uses 6 registers in R:
CBA:
Holds the address of the currently active DCB+ 1.
AECL:
Holds the address of the end of the currently active scan line's bit map in main
memory.
SLC:
Holds the number of scan lines remaining in the currently active DCB.
HTAB:
Holds the number of tab words remaining on the current scan line.
DWA:
Holds the address of the bit map doubleword currently being fetched for
transmission to the hardware buffer.
MTEMP:
Is a temporary cell.
The vertical task initializes the controller by setting SLC to 0 and CBA to DASTART+ 1. It also merges the
contents of DASTART+ 1 into
NWW,
which will cause an interrupt if the specified channel is active. DVT
also sets up information required for the cursor (see below), TASKS and becomes inactive until the next
field.
DHT starts by initiating a fetch to the word addressed by CBA.
It
checks SLC, and if it is zero, the
controller is finished with the current DCB, and the link word of the DCB is fetched. If this word is non-
zero, it replaces CBA and processing of a new DCB is begun. If the link word is zero, DHT blocks until
the start of the next field.
If the check of SLC indicates that more scan lines remain in the current DCB, SLC is decremented by one·
and the fetch of (CBA) is used to obtain the second word of the DCB, rather than the link word. The
contents of this word are used to set the display mode and polarity, and the tab count is extracted and
put into HTAB. NWRDS is extracted, and used to increment DWA and AECL by the appropriate amount,
depending on the mode and field. All the registers required by DWT have now been set up, and DHT
TASKS and becomes inactive until DWT blocks.
