Summary of Contents for FUTABA T6L SPORT

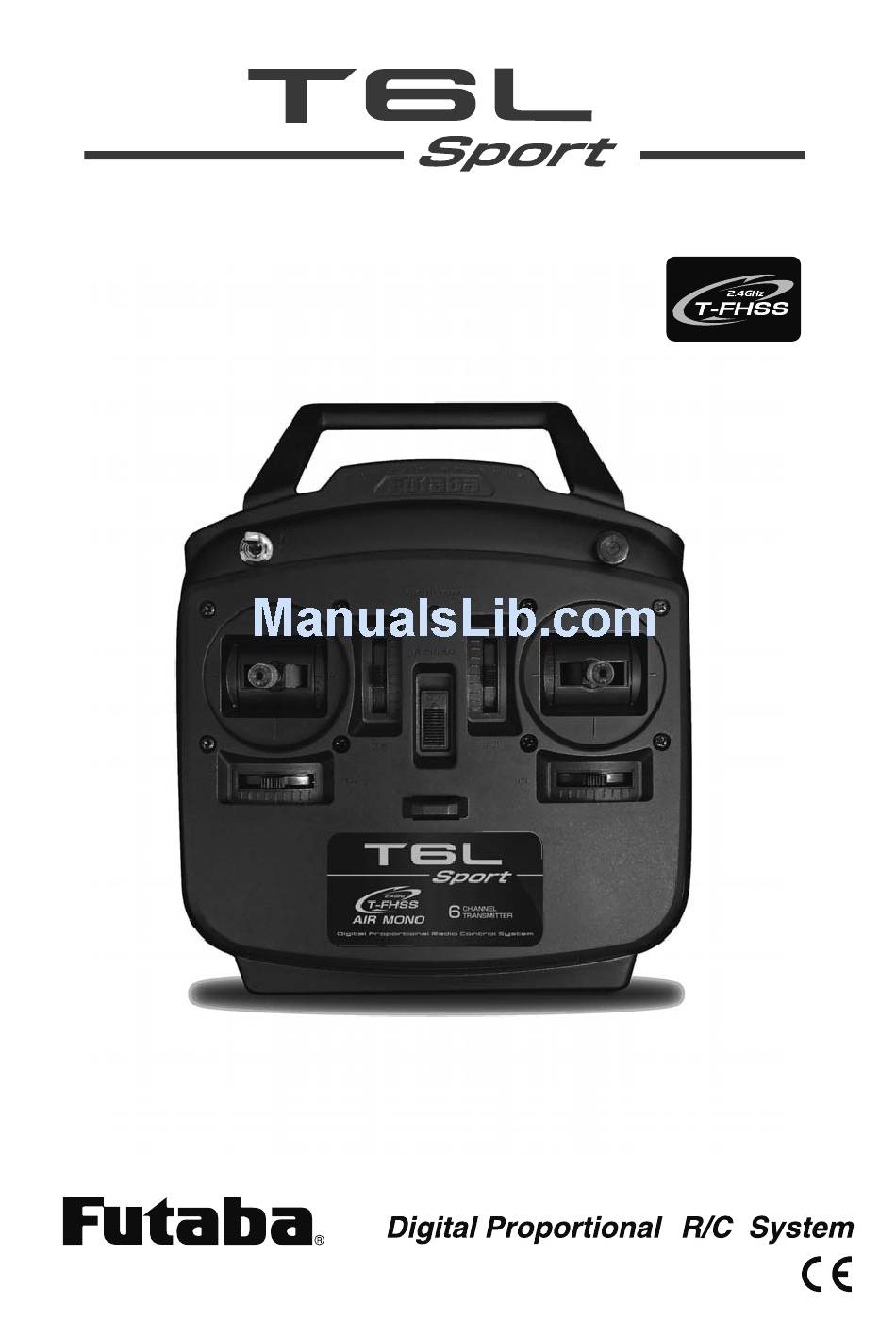

- Page 1 6-Channel Digital Proportional R/C System INSTRUCTION MANUAL 1M23N32701...
-
Page 2: Table Of Contents
● Mounting the receiver switch ・・・・・・・・・・・ 22 ● Safety precautions when you install receiver and servos 22 ● Change to mode1 ・・・・・・・・・・・・・・・・・ 23 ● Technical specifications ・・・・・・・・・・・・・・ 24 Technical updates and additional programming examples available at: http://www.futaba-rc.com/faq Entire Contents © 2017... -
Page 3: Introduction
T-FHSS Air-2.4GHz 6L Sport series digital proportional R/ or the Futaba Service Center. Support and Service: It is recommended to have your Futaba equipment serviced annually during IN NORTH AMERICA information on the 6L Sport radio system and is updated regularly. Any technical updates and for the most rapid and convenient response. -
Page 4: Application, Export, And Modification
The responsible party for the compliance of this device is: Futaba Service Center The RBRC. SEAL on the nickel-cadmium battery contained in Futaba products convenient alternative to placing used nickel-cadmium batteries into the trash or Corporation involvement in this program is part of its commitment to protecting our environment and conserving natural resources. - Page 5 NOTE: device. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un cm de distance entre la source de rayonnement et votre corps. Name Gain(Peak) Remark Internal pattern 2.14dBi 1/2 λ pattern type antenna CAUTION: To assure continued FCC compliance: user's authority to operate the equipment.
-
Page 6: Definitions Of Symbols
Use of this product with other than models may be restricted by Export and Trade Control Regulations. 3. Modification, adjustment, and parts replacement Futaba is not responsible for unauthorized modification, adjustment, or replacement of parts on this product. ■ No part of this manual may be reproduced in any form without prior permission. - Page 7 Do not fly at the following places: Always check operation of each control surface and perform a range test before each flying ■ Near another radio control flying field. session. Also, when using the trainer function, ■ Near or above people. check the operation of both the teacher and student transmitter. ...
-
Page 8: Storage And Disposal Precautions
■ If left in such an environment, the plastic may be dam- aged. ■ Futaba is not responsible for damage sustained by combination with parts other than Futaba Genuine Parts. ■ Since the metal parts of the case may corrode, always Use the parts specified in the instruction manual and keep them clean. -
Page 9: Features
The Fail Safe function is recommended to use for safety reasons in the event of radio interference. ● Transmitter T6L Sport ● Receiver R3106GF ● Instruction manual The T6L uses Futaba's 2.4GHz T-FHSS Air transmission system. Usable Receivers Communications System R3006SB, R3008SB, R3001SB... -
Page 10: Transmitter Controls
T6L Sport Transmitter Built-in Antenna Carrying handle Monitor LED CH5 Switch CH6 Dial Throttle Elevator Stick Stick Rudder Aileron Stick Stick Throttle Elevator Trim lever Trim lever Rudder Aileron Trim lever Trim lever Hook Power Switch (for optional neckstrap) (Up position: ON) -
Page 11: Receiver R3106Gf
R3106GF Receiver The R3106GF receiver has 6 PWM channel outputs. R3106GF is T-FHSS Air system, but the Connection example telemetry function isn't equipped. LED Indication Green Status Solid No signal reception Solid Receiving signals Alternate blink Unrecoverable error (EEPROM, etc.) Receiver installation precaution Antenna installation for carbon fuselage... -
Page 12: Installation Of The Battery
batteries are available at any local hobby shop or grocery store and need to be purchased separately. Check: the monitor LED. If the LED is blinking contact or incorrect battery polarity. Disposal of the Dry Cell Batteries: Push The method to dispose of used dry cell you reside. -
Page 13: Transmitter Power On/Off (And Fail-Safe)
upper part of the front of a transmitter. Throttle Stick Low ON the Power Switch (F/S position) If the power switches are turned off in the opposite order, the model may unexpectedly run out of control and cause a very dangerous situation. Always be sure the motor/engine is stopped. -
Page 14: Stick Control : Airplane Example
Stick control : Airplane Example A general model example. (It depends on each plane types.) Roll axis Control Pitch axis Control Right roll Nose Up The right aileron is up. Elevator stick The left aileron Aileron stick is down. To the right (moved to the bottom) Elevator is up. -
Page 15: Trim
CH3 Throttle Trim CH2 Elevator Trim the transmitter. These trims are for adjusting the neutral position of the servos and for setting the idle r.p.m. of the engine intended use of the trims is to make small servo CH4 Rudder Trim CH1 Aileron Trim ◆When the airplane goes up while the ◆When the airplane dives while the... -
Page 16: Channel-5・Switch
This dial operates the servo connected to channel six in the control used to operate them. Trainer cord available separately by connecting the T6L Sport-2.4GHz to the instructor’s Futaba transmitter. usually best for the instructor to hold the radio that has been setup for the... -
Page 17: Link Procedure
Place the transmitter and the receiver Less than 20 inches close to each other within 20 inches (half meter). To activate the "Link Mode". Transmitter in "Link Mode" Transmitter LED blinking Once 1s ON - Once 1s OFF Enters the link mode for 15 seconds Turn on the power switch. -
Page 18: Power Down Mode
T6L Sport. To activate the "Power Down Mode" Transmitter in "Power down Mode" Transmitter LED blinking Once 0.5s ON - Once 0.5s OFF Keep the throttle stick low. If the throttle stick is up, power down mode will stop. -
Page 19: Servo Reverse
on the model to be certain they are operating in the correct direction and that you did not crash! *Note that the direction of the aileron servo is easily mistaken. Push Battery Cover Slide the battery cover off the transmitter in the direction of the arrow in the figure. -
Page 20: Elevon Mixing
Elevator operated by a separate servo. Aileron 7th switch, the top 8th switch, the bottom combine the elevator and rudder functions. function to achieve the correct direction CH2 (CH4) CH4 (CH2) Elevator UP Elevator DOWN Rudder Right Rudder Left (Stick mode 2) 7th switch, the bottom 8th switch, the top... -
Page 21: Flaperon Mixing
The ability to use separate servos to function in the to be used both as ailerons and as flaps. Flap control Channel 6 must be used as the additional aileron/flap Dial operation aileron stick accordingly. function to achieve the correct 2 ailerons are down in same. -
Page 22: Mounting The Receiver Switch
WARNING Connecting connectors Be sure to insert the connector until it stops at the deepest point. How to protect the receiver from vibration and water Wrap the receiver with something soft such as foam rubber to avoid vibration. If there is a chance of getting wet, put the receiver in a waterproof bag or balloon to avoid water. -
Page 23: Change To Mode1
The ratchet mechanism must be changed to so if in doubt please contact your local Futaba Service center. MODE 1 MODE 2 Open the battery cover on the back of the transmitter and remove the transmitter battery. Remove the four transmitter rear case This part is cut screws and remove the rear case. -
Page 24: Technical Specifications
Transmitter T6L Sport Transmitting frequency: 2.4GHz band System: T-FHSS Air Receiver R3106GF T-FHSS Air Compliance Information Statement (for EU) Declaration of Conformity internet address:...
