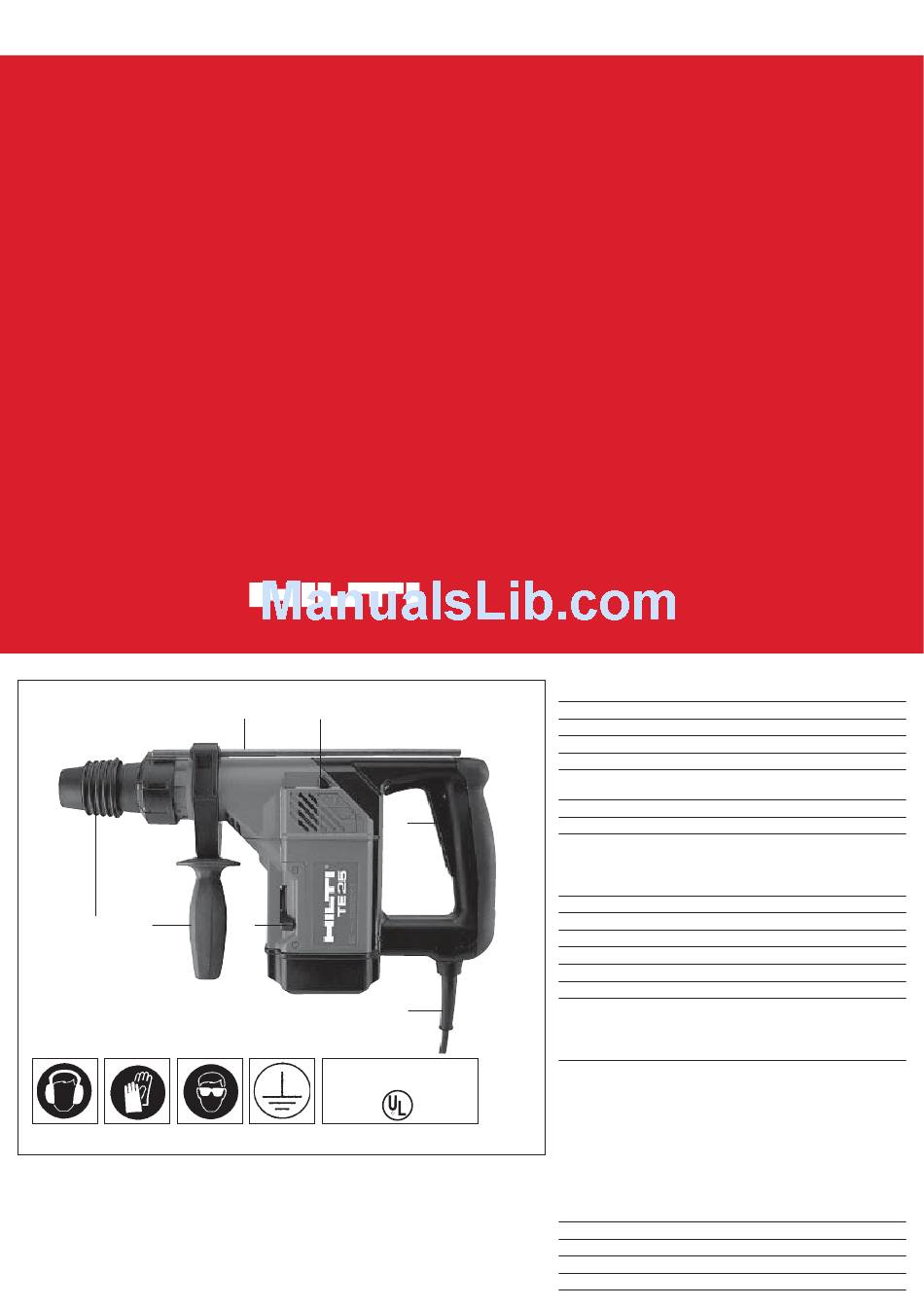

Hilti TE25 Instruction Manual

*308341*
308341
➀ ➁
➀ Chuck locking sleeve
➁ Adjustable side handle
➂ Adjustable depth gauge
➃ 3 Wire Power Cord
➄ Selector
➅ Variable speed switch
➆ Speed selector lever
Always wear ear Always wear pro- Always wear safety
protectors. tective gloves. glasses.
Safety Instructions
Warning:
When using electric tools,
basic safety precautions
should always be followed to
reduce the risk of fire, electric
shock, and personal injury,
including the following:
Printed: 07.07.2013 | Doc-Nr: PUB / 5070809 / 000 / 00
Instruction Manual TE25
Rotary Hammer Drill
3 Wire Grounded Construction
➂ ➄
➆
This Product is
Protective earthing
Do not use this product in any way other than as directed by
these operating instructions.
The respective regulations of your trade association and the
enclosed safet precautions must be observed.
The operating instructions should always be kept with the machine!
➅
➃
UL listed
R

Technical Data

Input power:
Voltage:
Current:
Frequency:
Full-load speed:
Percussion:
Single impact energy:
Dimensions
Length without bit:
Height:
Width:
Closest hole to corner:
Weight:
Cord Length:
Features
● Grounded Construction with 3 Wire Power Cord
● Slip Clutch
● Two drilling modes: hammer drilling and drilling only
● " keyless chuck accepts twist bits for drilling into wood and
1 /
2
steel
● Permanent Lubrication
● Three-finger variable speed switch
● Keyless chuck
Capacity
Drill Bit Range:
Concrete / Masonry:
Wood / Plastic:
Steel:
830 W
120 Volts AC
7.0 Amps
50/60 Hz
1 st speed 0–310/min.
2 nd speed 0–640/min.
0–3720 impacts/min.
3.8 Joule / 2.2 ft lbs.
"
13 1 /
8
"
7 3 /
4
"
3 1 /
2
"
1 1 /
8
11 lbs.
12 feet
"
3 / –1 1 /
16 2
"
3 / –1 1 /
16 4
"
3 / – 1 /
16 2
