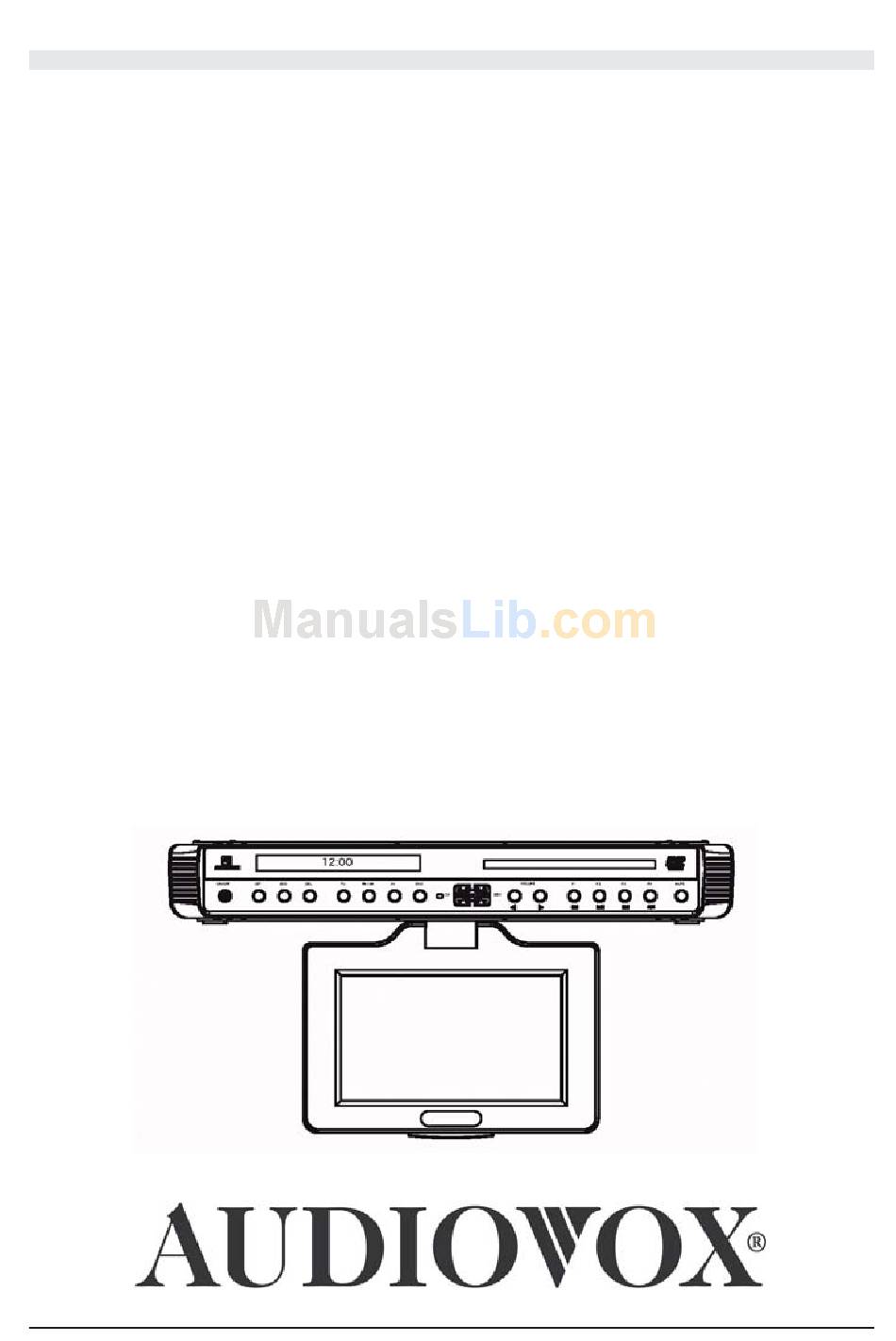

- Page 1 VE720E/VE920E 7”/9” UNTERBAU TFT LCD FERNSEHER INKLUSIVE DVD-PLAYER 7”/9” UNDER THE COUNTER TV INCLUDING DVD-PLAYER BEDIENUNGSANLEITUNG/GARANTIEURKUNDE OWNER’S MANUAL/WARRANTY CARD...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important safety information Contents of package Installation Panel Controls Battery installation Remote Control Functions Operation - Initial Setup - Channel Tuning Setup - Positioning the screen - Setting time/ alarm - Modes of operation Using the DVD Player Setup Menu Technical specification Troubleshooting... - Page 3 Record model number and serial number in the space provided below. Refer to these numbers whenever you call upon your Audiovox dealer regarding this product. Model No. Serial No. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION 1. Read Instructions – All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to. - Page 5 If you are unable to insert the plug into the outlet, try rotating the plug 180 degrees. If the plug still cannot be inserted, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug, doing so will void product warranty. 13.
- Page 6 D. If the product does not operate normally as defined by the operating instructions. Adjust only those controls that are covered by the operating instructions, as an impro- per adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to it’s normal operation.
- Page 7 - Cable System Installation: Note to CATV system installer: “This reminder is provided to call the CATV (CABLE-TV) system installer’s attention to article 820-40 of the NEC, that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possi- ble”...
-
Page 8: Contents Of Package
CONTENTS OF PACKAGE 1. VE720E/VE920E 2. Hardware Bag A. 2” mounting screws (4) B. 2-1/2” mounting screws (4) C. 3” mounting screws (4) D. Foot (4) E. Hole cap (4) 3. Remote Control 4. Multi Height Spacer (4) 5. Batteries (AAA) 6. -
Page 9: Installation
COUNTERTOP/DESKTOP INSTALLATION Please take care that the AC Power cable is not connected at the AC outlet! NOTE: Use caution to avoid damaging the LCD screen and the main unit when con- verting this unit from an under-counter unit to a countertop unit. Leave the protective pla- stic on the screen until this procedure is completed. - Page 10 TV antenna or cable connection will facilitate a neat, easy installation. Do not mount the VE720E/VE920E above a range or oven. Be sure that the location chosen will provide adequate access to the electrical connections on the rear of the unit before continuing.
-
Page 11: Front Panel Controls
FRONT PANEL CONTROLS 1) ON/OFF BUTTON – Power ON/OFF 2) SET BUTTON – Press this button to set the TIME, ALARM, TV Mode or Speaker Mode. 3) ADD BUTTON – Press this button to add a selected TV channel. 4) DEL BUTTON – Press this button to delete a selected TV channel. 5) TV BUTTON –... - Page 12 3) SPEAKER OUT TERMINAL – Connect to external speakers (min. 8ohms) 4) FM ANTENNA – Allows the VE720E/VE920E to be connected to a 75-Ohm external antenna for the reception of FM broadcast signals. 5) AM ANTENNA – Allows the VE720E/VE920E to be connected to an external antenna for the reception of AM broadcast signals.
-
Page 13: Battery Installation
BATTERY INSTALLATION (Rear View, 2x Batteries Size AAA) Battery disposal: At the end of the product´s useful life, please dispose of it at appropriate collection points provided in your country. -
Page 14: Remote Control Functions
REMOTE CONTROL FUNCTIONS (1) EJECT (2) DVD (3) TV (4) SETUP (5) SEEK DN, SEEKUP (6) MENU (7) FR ( ) (8) STOP ( ) (9) PREV ( ) (10) Digit 0-9 Select (11) TITLE (12) DISPLAY (13) SUB TITLE (14) AUDIO (15) SCREEN (16) ANGLE (AP) - Page 15 DVD REMOTE FUNCTION (1) EJECT: Press this button to Eject and Load the disc tray. (2) DVD: Press this button to select DVD mode of operation. (4) SETUP: Displays setup menu for initial user settings. (5) SEEK DN/UP (21) CH+/-: For selecting item on menu. (6) MENU: For displaying the menu contained in the disc.
- Page 16 (5) SEEK DN/UP: Use these buttons to advance to the next higher or lower active station. (19) AM/FM: Each time this button is pressed, the VE720E/VE920E will alternate between the AM and FM radio bands. (21) CH +/-: Use these buttons to advance to the next higher or lower channel.
-
Page 17: Operation
The screen may also be rotated from side to side. Do not force the screen beyond its rotational limit. The VE720E/VE920E is now ready for use. Pressing the ON/OFF button on the unit or the remote will turn the system on or off. - Page 18 SETTING and ACTIVATING the ALARM NOTE: The VE720E/VE920E must be turned “OFF” when performing the following pro- cedure. 1) Press the SET button twice to enter the alarm mode, press the P3 button to toggle bet- ween the active and deactivated mode.
-
Page 19: Modes Of Operation
SETTING THE CABLE TV MODE 1) Press the SET button three times to enter the TV/Cable configuration mode. 2) CABLE or AIR will appear on the display. 3) Press the SEEK button to select Cable mode. 4) Press the CH UP/DOWN button(s) to select the desired cable mode (STD/IRC/HRC). 5) When the desired mode is reached, press the ON/OFF button to confirm. -
Page 20: Using The Dvd Player
USING THE DVD PLAYER Inserting and Ejecting the Disc 1. Set the unit to DVD mode (press source button until (-----------) appears on the dis- play. 2. Insert the disc with the label facing up. 3. The disc will begin playing automatically. If this is a DVD it will go to the DVD root menu. -
Page 21: Changing The Subtitle Language
Repetitive Playback – To Repeat a Specific Section 1. Press the REPEAT button once to enable the REPEAT selection screen, follow by pres- sing the REPEAT button until REPEAT CHAPTER is displayed, the current chapter or track will be replayed repetitively (CHAPTER REPEAT ON). 2. - Page 22 Viewing Different Angles Angle indicator appears on the upper part of the LCD display. When the Angle indi- cator appears, press the ANGLE button to view the screen from various angles. * This function may not be incorporated in some titles. Viewing the Main Disc Menu A DVD is divided into sections called titles and chapters.
- Page 23 During playback press DISPLAY to display the current disc playback information. Press display again to remove the display. 1. The type of disc. 2. The number of current title. 3. The number of total titles. 4. The number of current chapter. 5.
- Page 24 PLAYING AUDIO CDS When playing an audio CD the display will automatically display the disc playback information. The options below show you what information is displayed. Press the ‘DISPLAY’ button to remove the display. 1. The current track. 2. The number of total tracks. 3.
- Page 25 1. Press the ¸ button to choose a folder from the folder list on the left side of the screen. 2. Press ENTER to select the highlighted folder. All songs available under the selected folder will be listed. 3. Use ¸...
-
Page 26: Setup Menu
NOTICE sign in front of a file name indicates that this is a folder, not a MP3 file. sign in front of a file name indicates that this is a MP3 file. NOTE: During MP3 playback, you cannot access “PLAY MODE”, folders or songs. PLAYING A JPEG FILE 1. -
Page 27: Language Menu
LANGUAGE Menu 1. Press the SETUP button to display the main menu. The following Menu will appear. 2. Press ENTER, the following screen will appear. 3. Use the ¸ buttons to highlight the desired menu item. 4. Press ENTER button to display the sub-menu. 5. - Page 28 6. Press the ENTER button to select the option item. 7. Press the button to highlight the next sub-menu item for setup and repeat steps 3 and 6. 8. Press the SETUP button to exit the SETUP mode. VIDEO Menu 1.
- Page 29 * 4:3 PS: When the player is connected to a normal TV, and a wide picture is shown on the full screen. * 4:3 LB: When the player is connected to a normal TV, and a wide picture is shown on the screen with a black strip at both the top and bottom of the screen.
- Page 30 NOTE: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual.
-
Page 31: Technical Specification
TECHNICAL SPECIFICATIONS VE720E GENERAL Power Supply: Operating Temperature: Operating Humidity: Body Size: Weight: DISPLAY LCD illumination: Backlighting Life Expectancy: Resolution: Screen: Pixel: DISC AVAILABLE DVD: MISC TV Channels: TV Channels: Radio Frequency Range: Audio output: SUBJECT TO TECHNICAL CHANGE AC100-240V ~50/60 Hz 40 watts 0°~40°C / 32°~104°F... - Page 32 VE920E GENERAL Power Supply: Operating Temperature: Operating Humidity: Body Size: Weight: DISPLAY LCD illumination: Backlighting Life Expectancy: Resolution: Screen: Pixel: DISC AVAILABLE DVD: MISC TV Channels: TV Channels: Radio Frequency Range: Audio output: SUBJECT TO TECHNICAL CHANGE AC100-240V ~50/60 Hz 40 watts 0°~40°C / 32°~104°F 10% ~ 75% 400 x 280 x 56mm / 15.8”...
-
Page 33: Troubleshooting
TROUBLESHOOTING CHECK LIST Problem Power does not turn on Disc fails to play Camera angles cannot be changed Subtitles cannot be changed Vocal languages (AUDIO) cannot be changed No sound output Remote control doesn´t work Setup menu does not operate TV MODE functions don´t work •...
