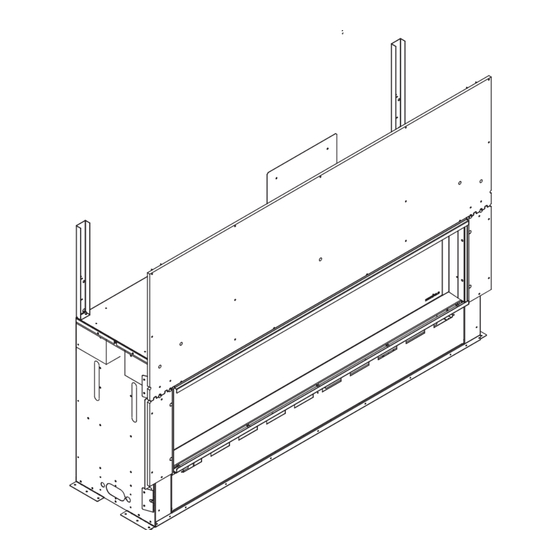

Majestic ECHEL36IN Installation Manual

Echelon ii series
Hide thumbs Also See for ECHEL36IN:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
ECHELON II
SERIES
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17
Installation Manual
Installation and Appliance Setup
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading

Related Manuals for Majestic ECHEL36IN

Summary of Contents for Majestic ECHEL36IN

  • Page 1 See Table of Contents for location of additional Commonwealth of Massachusetts requirements. gases, unless a certifi ed kit is used. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 2: Table Of Contents

    C. Securing and Leveling the Appliance ....35 D. Installing Non-Combustible Facing Material ..36  = Contains updated information. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 3: Installation Standard Work Checklist

    Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective action needed _____________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date) = Contains updated information. 2406-972 9/16 Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 4: Product Specifi C And Important Safety Information

    4500 feet (1370 m). Check with your local gas utility to determine proper orifi ce size. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 5: Non-Combustible Materials Specifi Cation

    • A 110-120 VAC circuit for this product must be pro- tected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 6: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 7: Getting Started

    30 degrees or more depending on the thermometer settings and material characteristics being measured. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 8: Tools And Supplies Needed

    Call a qualifi ed service technician to inspect the appliance and to replace any part of the control system and/or gas control which has been under water. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 9: Framing And Clearances

    1600 1600 7-1/4 7-1/4 8-9/16 8-9/16 8-7/8 8-7/8 2-3/4 2-3/4 46-3/16 1173 1473 23-3/4 23-3/4 17-1/8 17-1/8 30-1/2 30-1/2 Figure 3.1 Appliance Dimensions - ECHEL36IN, ECHEL48IN Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 10 24-1/2 1600 1905 7-1/4 7-1/4 8-9/16 8-9/16 8-7/8 8-7/8 2-3/4 2-3/4 1778 2083 23-3/4 23-3/4 17-1/8 17-1/8 30-1/2 30-1/2 Figure 3.2 Appliance Dimensions - ECHEL60IN, ECHEL72IN Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 11 1905 1905 7-1/4 7-1/4 8-9/16 8-9/16 8-7/8 8-7/8 2-3/4 2-3/4 46-3/16 1173 1473 23-3/4 23-3/4 17-1/8 17-1/8 30-1/2 30-1/2 Figure 3.3 Appliance Dimensions - ECHEL36STIN, ECHEL48STIN Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 12 The PFF decorative front has an installed depth of 3/4 in. (19 mm), measured from the front of the non-combustible fi nishing material to the front of the decorative front. Figure 3.4 Picture Frame Front Dimensions Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 13 13-1/8 13-1/8 37-3/16 49-3/16 1249 61-3/16 1554 73-3/16 1859 40-5/16 1024 52-5/16 1329 64-5/16 1634 76-5/16 1938 Figure 3.5 Clean Face Trim Front Decorative Front Dimensions Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 14: Clearances To Combustibles

    10.16 and ECHEL60IN Millimeters 2019 1835 2854 10.17. Inches 84-1/4 124-3/8 35-1/4 18-3/4 ECHEL72IN Millimeters 2235 2140 3159  Figure 3.6 Appliance Locations: ECHELON Single-Sided Models Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 15 MODEL Inches 48-1/4 17-1/8 ECHEL36STIN Millimeters 1226 1219 Inches 60-1/4 17-1/8 ECHEL48STIN Millimeters 1530 1219 Figure 3.7 Appliance Locations: ECHELON See-Through Models Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 16 ***= If appliance is installed off of fl oor, maintain required clearances to combustibles. Construct platform in accordance with local building codes. Figure 3.8 Clearances to Combustibles: ECHELON Single-Sided Models Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 17 ***= If appliance is installed off of fl oor, maintain required clearances to combustibles. Construct platform in accordance with local building codes. Figure 3.9 Clearances to Combustibles: ECHELON See-Through Models Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 18: Constructing The Appliance Chase

    fl oor provided that the fi replace is properly supported by framing materials and the ceiling clearances are maintained. Figure 3.10 Floor Protection Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 19: Termination Location And Vent Information

    Over 20/12 to 21/12 ..........8.0 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof To Lowest Discharge Opening Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 20: Chimney Diagram

    2 sides beneath the fl oor. • Vinyl siding shield is required for use with vinyl siding. Figure 4.3 Minimum Clearances for Termination See Service Parts list for information. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 21: Approved Pipe

    WARNING! Risk of Fire or Asphyxiation. This appli- ance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 22: Use Of Elbows

    Figure 4.5 Vertical and Horizontal Offset for DVP and SLP Elbows DVP36 25-1/2 DVP48 1219 DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.4 Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 23: Measuring Standards

    MEASURE TO SHADED SURFACE (OUTSIDE MOUNTING SURFACE) Figure 4.8 Figure 4.6 Measure to Outside Mounting Surface Figure 4.7. Measure to Top of Last Section of Pipe Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 24 WARNING! Risk of Fire! DO NOT attach elbow directly to the appliance. • The ECHEL36IN, ECHEL48IN and ECHEL60IN require a minimum of 24 inches of vertical venting before attaching any elbow to the appliance. • The ECHEL36STIN, ECHEL48STIN and ECHEL72IN require a minimum of 36 inches of vertical venting before attaching any elbow to the appliance.
  • Page 25 WARNING! Risk of Fire! DO NOT attach elbow directly to the appliance. • The ECHEL36IN, ECHEL48IN and ECHEL60IN require a minimum of 24 inches of vertical venting before attaching any elbow to the appliance. • The ECHEL36STIN, ECHEL48STIN and ECHEL72IN require a minimum of 36 inches of vertical venting before attaching any elbow to the appliance.
  • Page 26 WARNING! Risk of Fire! DO NOT attach elbow directly to the appliance. • The ECHEL36IN, ECHEL48IN and ECHEL60IN require a minimum of 24 inches of vertical venting before attaching any elbow to the appliance. • The ECHEL36STIN, ECHEL48STIN and ECHEL72IN require a minimum of 36 inches of vertical venting before attaching any elbow to the appliance.
  • Page 27 Note: If installing a vertical vent/termination off the top of the appliance, the optional exhaust restrictor may be needed. Note: Use DVP Series components only. Figure 4.12 Vertical Vent Maximum Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 28 NOTICE: Before painting, contact your dealer for information on the appropriate high temperature paint. Figure 4.15 Set the Exhaust Restrictor Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 29 WARNING! Risk of Fire! DO NOT attach elbow directly to the appliance. • The ECHEL36IN, ECHEL48IN and ECHEL60IN require a minimum of 24 inches of vertical venting before attaching any elbow to the appliance. • The ECHEL36STIN, ECHEL48STIN and ECHEL72IN require a minimum of 36 inches of vertical venting before attaching any elbow to the appliance.
  • Page 30 WARNING! Risk of Fire! DO NOT attach elbow directly to the appliance. • The ECHEL36IN, ECHEL48IN and ECHEL60IN require a minimum of 24 inches of vertical venting before attaching any elbow to the appliance. • The ECHEL36STIN, ECHEL48STIN and ECHEL72IN require a minimum of 36 inches of vertical venting before attaching any elbow to the appliance.

  • Page 31: Vent Clearances And Framing

    * Shows center of vent framing hole for top venting. The center of the hole is one (1) in. (25.4 mm) above the center of the horizontal vent pipe. Figure 5.2 Wall Penetration Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 32: Install The Ceiling Firestop

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.4 Installing the Attic Shield Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 33: Installing The Optional Heat-Zone ® Gas Kit

    Kit instructions for the ® remaining installation steps. HEAT ZONE ® LOCATION LEFT AND RIGHT SIDES HEAT ZONE ® ADAPTER BOX  Figure 5.5 Heat Zone Adapter Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 34: Appliance Preparation

    ROPE RING attach to header with two screws. WARNING! Risk of Fire! Pipe heat shield must be fas- tened to header. Figure 6.4 Fiberglass Rope Ring Installed Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 35: Securing And Leveling The Appliance

    • Optional: Secure the appliance to the fl oor by inserting two screws through the pilot holes at the bottom of the appliance. NAILING TABS BOTH SIDES Figure 6.5 Nailing Tab Locations Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 36: Installing Non-Combustible Facing Material

    • Use a wet or dry towel or soft brush to remove dust or dirt from facing material. • See Section 10 for fi nishing materials guidelines. Figure 6.8 Install Factory-Included Non-Combustible Facing Material Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 37: Venting And Chimneys

    Use screws no longer than 1/2 INCORRECT in. (13 mm). If predrilling screw holes, DO NOT penetrate Figure 7.4 Seams inner pipe. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 38: Assemble Slip Sections

    • Only outer pipes are sealed, sealing the inner fl ue is not required. • All unit collar, pipe, slip section, elbow and cap outer fl ues shall be sealed. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 39: Disassemble Vent Sections

    Figure 7.10 • Pull carefully to separate the pieces of pipe. Figure 7.9 Rotate Seams for Disassembly Figure 7.10 Align and Disassemble Vent Sections Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 40: Vertical Termination Requirements

    • Caulk the perimeter of the fl ashing where it contacts the roof surface. See Figure 7.12. • Caulk the overlap seam of any exposed pipe sections that are located above the roof line. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 41: Horizontal Termination Requirements

    • Rest the small leg on the extended heat shield on top of the pipe section to properly space it from the pipe section. Important Notice: Heat shields may not be fi eld constructed. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 42 1-1/2 IN. (38 MM) MIN. HEAT SHIELD OVERLAP WALL SHIELD FIRESTOP SLIP SECTION CAN BE EXTENDED INNER VENT SHEATHING OUTER VENT INTERIOR EXTERIOR Figure 7.15 Venting Through the Wall Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 43: Electrical Information

    3. Remove screws on left and right sides of component SUPPLY SUPPLY heat shield and lift it out of the control cavity. Figure 8.3. Valve Cavity (Lower Access Panel Removed) Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 44: Wiring Requirements

    CORD ADAPTER BLACK BROWN ORANGE GREEN (PILOT) (MAIN) GROUND LED CONTROL BATTERY PACK 6V DC LED LIGHT TRAY Figure 8.4 IntelliFire™ Plus Wiring Diagram with Remote Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 45: Gas Information

    3. Unplug the 6V transformer from the junction box. pressure testing gas line at test pressures equal to or less than 1/2 psig. This will turn the power off to the appliance. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 46 BURNER ASSEMBLY (ECHEL72IN) BURNER ASSEMBLY ECHEL36IN/ECHEL36STIN ECHEL48IN/ECHEL48STIN Figure 9.3. Media Tray with Burner and Pilot Shield Figure 9.5. Media Tray with Burner and Pilot Shield (ECHEL36IN/ECHEL36STIN/ECHEL46IN/ECHEL48STIN) (ECHEL72IN) Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 47: Gas Connection

    2000 feet. • In CANADA: Reduce burner orifi ce 10% for elevations between 2000 feet and 4500 feet. Above 4500 feet, consult local gas utility. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 48: Air Shutter Setting

    Full Open ECHEL72IN GLASS REFRACTORY Full Open Full Open LOG KIT Full Open Full Open STONE KIT Full Open Full Open DETAIL Figure 9.8 Air Shutter Location Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 49: Finishing

    Vertical Tube Furnace at 750 ºC. WARNING! Risk of Fire! Maintain specifi ed air space clearances to combustibles. Inadequate air space could cause overheating and fi re. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 50 WARNING! Risk of Fire! DO NOT install drywall or other combustible materials directly onto the installed non-combustible board. Overlapping materials could ignite. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 51 0-1 inch Included & Used Picture Frame Front (PFF) Overlap Fit 0-1 inch Not included Picture Frame Front (PFF) Inside Fit 1-4 inches Not included Table 1. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 52 INSIDE FIT = 1-4 IN. THICK INSIDE FIT = 1-4 IN. THICK FINISHING FINISHING GUARDS GUARDS BOTTOM FINISHING TEMPLATE BOTTOM FINISHING TEMPLATE Figure 10.3 Finishing Materials - See-Through Models Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 53: Decorative Fronts

    39-1/8 IN. ECHEL36IN/ECHEL36STIN 51-1/8 IN. ECHEL48IN/ECHEL48STIN 63-1/8 IN. ECHEL60IN 15-3/4 IN. FIREPLACE VIEWING AREA Figure 10.4 Minimum Finished Opening Dimensions - Clean Face Trim Front Method Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 54 3. Follow Inside Fit section of the instructions provided with decorative front. SHOULDER BOLTS (4) BOTTOM PANEL BOTTOM GLASS SHIELD RECTANGULAR HOLE Figure 10.6. Install Shoulder Bolts Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 55 12 IN. MAX Inch Thick Inside Fit Method Using Trim Ring (Option #2) Figure 10.8 Finishing and Facing Materials - Inside Fit CFT Decorative Front Only Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 56 51-1/8 IN. ECHEL48IN/ECHEL48STIN 63-1/8 IN. ECHEL60IN 15-3/4 IN. FIREPLACE VIEWING AREA Figure 10.9 Non-Combustible Finish Material Diagram for 0-1 Inch Thick Overlap Fit Method (Picture Frame Front) Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 57 1/2 IN. (TOP & BOTTOM) BETWEEN FINISHING MATERIAL & PFF SURROUND FOR AIR FLOW Figure 10.10 Minimum Finished Opening Dimensions - Picture Frame Front - Inside Fit 0-4 Inch Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 58: Mantel And Wall Projections

    Measurement from top edge opening to bottom of appliance = 24-1/2 IN. Figure 10.12 Minimum Vertical and Maximum Horizontal Dimensions of Combustibles - ECHEL36IN and ECHEL48IN Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 59 Figure 10.17 Mantel Leg or Wall Projections (Acceptable on both sides of opening) Figure 10.16 Mantel Leg or Wall Projections (Acceptable on both sides of opening) Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 60: Appliance Setup

    An optional log set and/or stones kit is available for use with the ECHELON models. Install the accessories per instruc- tions included with kit. BOTTOM RETAINING LIP Figure 11.1 Fixed Glass Assembly Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 61: Install Media (Included)

    4. Place an even layer of media around the media tray as shown in Figure 2. DO NOT place media on media placement jig. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 62 8. DO NOT allow media to fall between the media tray and the back of the fi rebox. Remove any fallen media before proceeding. See Figure 6. Figure 3. Remove Media Placement Jig Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 63 See Figure 6. 13. Reinstall glass assembly. 14. Install bottom glass shield between glass and glass frame. See Figure 8. 15. Reinstall mesh front. Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 64: Reference Materials

    6 in. (152 mm) 14 IN. (356 MM) 12 IN. DVP-WS (Wall Shield Firestop) (305 MM) DVP-RDS ROOF DECK INSULATION SHIELD Figure 12.1 DVP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 65 117 mm DVP-TRAP 5-3/8 in. 9-3/8 in. Horizontal Termination Cap Trap2 137 mm 238 mm DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 DVP-HPC1 DVP-HPC2 Figure 12.2 DVP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 66 9-1/2 in. 26 in. (352 mm) (241 mm) 660 mm 14 in. (356 mm) DVP-HSM-B Extended Heat Shield DRC-RADIUS Cap Shield Figure 12.3 DVP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 67 146 to 213 mm 140 mm 213 mm 3° 87° 15 in. (381 mm) 10-1/2 in. 267 mm 10-7/8 in. 276 mm DVP-HRC-SS DVP-HRC-ZC-SS Figure 12.4 DVP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 68 Adapter 7-3/8 IN. 187 mm 17-7/8 IN. 454 mm 14 IN. 356 mm 12 IN. 305 mm SLP-TB1 Basement Vent Cap Figure 12.5 PVI-SLP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
  • Page 69 Use if the PVLP-SLP is installed in a high traffi c 100 FT PV Wire Harness PVI-WH100 area. PVLP-HS PVLP-BEK Heat Shield Brick Kit Figure 12.6 PVLP-SLP Vent Components Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...

  • Page 70: Accessories

    Please contact your Majestic dealer with any questions or concerns. For the location of your nearest Majestic dealer, please visit www.majesticproducts.com. Printed in U.S.A. - Copyright 2017 Majestic • ECHEL36IN/STIN, ECHEL48IN/STIN, ECHEL60IN, ECHEL72IN Installation Manual • 2406-970 Rev. C • 1/17...
