Majestic SHR36 Homeowner's Installation And Operating Manual

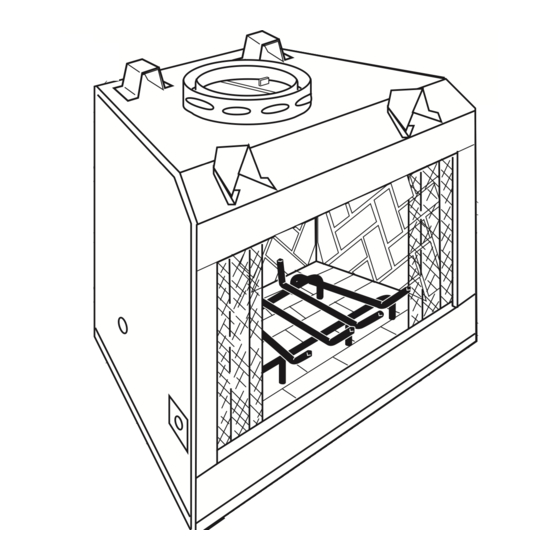

Shr series woodburning fireplace
Hide thumbs Also See for SHR36:

Advertisement

Table of Contents

See also: Homeowner's Installation and Operating Manual , Owners Installation and Operating Manual
1384
Underwriter's Laboratories Report No. MH6018
SHR cover
5/27/99 djt
DO NOT DISCARD THIS MANUAL: Retain for future use.
SHR Series

Woodburning Fireplace

Homeowner's Installation
and Operating Manual
For Models:
SHR36
SHR42A
SHR48
SHR52
20001384 12/06 Rev. 18

Advertisement

Table of Contents
loading

Related Manuals for Majestic SHR36

Summary of Contents for Majestic SHR36

  • Page 1: Woodburning Fireplace

    1384 Underwriter's Laboratories Report No. MH6018 SHR cover 5/27/99 djt DO NOT DISCARD THIS MANUAL: Retain for future use. SHR Series Woodburning Fireplace Homeowner's Installation and Operating Manual For Models: SHR36 SHR42A SHR48 SHR52 20001384 12/06 Rev. 18...

  • Page 2: Table Of Contents

    fire hazard and will void the warranty. Description The SHR Series fireplaces are solid fuel, woodburn- ing fireplaces. The SHR36/42A/48 (Super Hearth) are clean-face fireplaces. Precautions CFM Corporation fireplaces and component parts have...

  • Page 3: Specifications And Framing

    SHR36 Series Woodburning Fireplace 57�����" (1472mm) ���" ���" Outside 13���" (349mm) 7���" (197mm) (368mm) Fig. 1 SHR36 Series specifications and framing. SHR42A Series Woodburning Fireplace 65���" (1654mm) ���" ���" 19���" Outside (489mm) 14���" (362mm) 9" (229mm) 10����" (258mm) Fig. 2 SHR42A Series specifications and framing.
  • Page 4 SHR48 Series Woodburning Fireplace 66���" (1686mm) ���" ���" Outside 13���" 7���" (349mm) (197mm) Fig. 3 SHR48 Series specifications and framing. SHR52 Series Woodburning Fireplace 74���" (1886mm) ���" ���" Outside 13���" 9���" (343mm) (235mm) Fig. 4 SHR52 Series specifications and framing. ���"...

  • Page 5: Parts Identification

    (cut out around firestop) Firestop Ceiling Level Gas Line Access (both sides) Outside Air Cover Plate Fig. 5 Fireplace and chase parts identification. (SHR48 shown) 20001384 SHR36 SHR42A SHR48 SHR52 FP1531 FP554A SH Series 1/28/99 SHR Series Woodburning Fireplaces Front Width Back Width 35³⁄₄"...

  • Page 6: Chimney Requirements

    Illustration Key The following safety rules apply to offset installations (letters correspond with illustra- tion above): A. Height of the chimney is measured from the hearth to the chimney exit. SHR36 SHR42A SHR48 SHR52 Max.: Min.: 0 Elbows 14'6" 14'6"...

  • Page 7: Planning Information

    Preplanning an installation is very important to ensure safety and to save time and money. An installer must predetermine where a fireplace will be set and how the chimney system will be run. Mounting the Fireplace A fireplace may only be mounted on the following sur- faces: 1.

  • Page 8: Installation

    Chimney Supports The chimney system is supported by the fireplace for vertical chimney heights less than 30 feet above the hearth. Chimney supports are required if the vertical height exceeds 30 feet with 11CF chimneys. Locate chimney supports at ceiling holes or other structural framing at 30 foot heights.
  • Page 9 Fig. 10 Insulating between platform and fireplace. Framing Framing can be constructed before or after the fireplace is set in place, however, most installers build the frame before setting the fireplace. Frame fireplace with 2 x 4 lumber or heavier materials. Refer to framing dimensions in Figures 1 - 4 for basic fireplace specifications.
  • Page 10 CAUTION: REPORT TO YOUR DEALER ANY PARTS DAMAGED IN SHIPMENT, SPECIFICALLY CHECK THE END CONNECTION OF CHIMNEY SECTIONS AND ELBOWS. NOTE: SHR Series Fireplaces must use CFM Corpora- tion model 11CF, 11 inch, 2 wall chimney systems. The installation procedure described in this manual applies only to the 11CF system, chimney components may not be mixed.
  • Page 11 The inside dimension of the frame must be the same as the hole size selected from Figure 11 in order to provide the required 2 inches of air space between the outside diameter of the chimney and the edges of the framed ceiling hole.
  • Page 12 Open Closed Fig. 18 Outside air operation. Installing the Chimney System Start by attaching the first chimney section to the collar on top of the fireplace. FP710a Install the pipe as pictured in Figure 19. When you SHR OUTSIDE AIR LEVER WOOD FIREPLACES get a good lock, you will hear the pipe clearly snap 10/21/99...
  • Page 13 Attic Installation Nails (4) Firestop Spacer Flange Down Into Hole Fig. 21 Installing firestop spacer. Continue Installing Pipe to Complete Run Continue attaching pipe sections to complete system to next level always being careful that the pipe is firmly snap locked in place before proceeding to next pipe section.
  • Page 14 Installing Chimney in a Chase Refer to Page 5, Figure 4 for an illustration of a typical chase installation. CAUTION: Treatment of firestop spacers and construc- tion of chase may vary with type of building. These instructions are not a substitute for local building codes. You must check your local building codes to determine specific requirements for your city or state.
  • Page 15 Mantel Clearance - No Noncombustible Facing Material (305mm) Combustible Mantel and Trim Max. 12" (305mm) min. * Minimum width from top of surround to bottom of screen rail Ledge Bracket Fig. 23 Mantel clearance. Framing Shield Fig. 24 SHR52 framing shield may be used to attach finish material.
  • Page 16 Finished Wall Noncombustible Decorative Fac- Must be Sealed with Noncombustible Material Surround Fig. 26 Facing on fireplace surround flush with finished wall. FP1167 facing flush with finished wall 12/20/01 djt 1���" Ref. * 12" from top of fireplace opening. ** 6" from top of fireplace opening. (Noncom- bustible material must separate the black face surround of the fireplace and any combustible mantel material)
  • Page 17 Side Wall Protection Adjacent combustible side walls that are within dimen- sions shown in Figure 29 of fireplace opening must be protected with Wall Shield Model SP40 or a specifically built wall shield described in Figure 28. The special wall shield design described in Figure 26 is an alternate method of adding protection to side walls and can be used in place of the SP40 with the same wall clearances specified for the SP40.
  • Page 18 EH2416 insulation (minimum R Value = 1.85) between decorative noncombustible rigid covering and combustible wall. Minimum height and width is 40" x 40". ** Dimension/degree of angle will vary depending on thickness of noncombustible surround facing. SHR36 20" 12" (508 mm) (305 mm) SHR42A 22"...
  • Page 19 Wall Covering Fig. 22 or 23 Hearth Extension Hearth Extension Insulation Molding used to Fasten Hearth Extension in Place Majestic Safety Strips Must be Overlapped 1/2" Min. FP1171 Fig. 33 Sealing detail. Wall Covering Noncombustible Decorative Facing Seal All Cracks FP1171 Between Fireplace sealing detail...

  • Page 20: Replacement Parts

    CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. SHR36/42A/48/52 Woodburning Fireplace For units FH30RO, GH40RO, HH30RO, IH10RO Item/Model Number 1. Damper Weld Assembly 2. Damper Handle 3.

  • Page 21: Accessories

    The following accessories for this appliance are available from your local Majestic Fireplaces distributor. Should you need additional information beyond what your distributor can furnish, contact: CFM Corporation, 2695 Meadowvale Blvd., Mississauga, Ontario, Canada L5N 8A3 Attn: Technical Services. CAUTION: This fireplace and chimney assembly is a highly engineered system, and, as such, must be oper- ated only with CFM Corporation approved components.
  • Page 22 Accessory Contemporary Flashing Contemporary Chase Top Termina- tion Contemporary Round Top Termina- tion Extended Round Top Chimney Sections Chimney Elbows Top Housing with Upper Baffle Attic Insulation Shield Description Required for contemporary top termination on the roof to prevent rain entry. Used to terminate chimney at the top of a chase.
  • Page 23 LIMITED WARRANTY & 30 YEAR PROTECTION PLAN For MAJESTIC FIREPLACES CFM Corporation warrants its MAJESTIC FIREPLACES® Pre-En- gineered Fireplace (“Fireplace”) and the CFM Corporation supplied firegrate, glass doors, outside air system, fan motor, and liners to be free from defects in material or workmanship, as follows: A.
  • Page 24 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com © CFM Corporation...
