N-P-12DSFA connector
Attach the connector to the antenna cable as shown below.
Outer Sheath
Armor
Clamp Nut

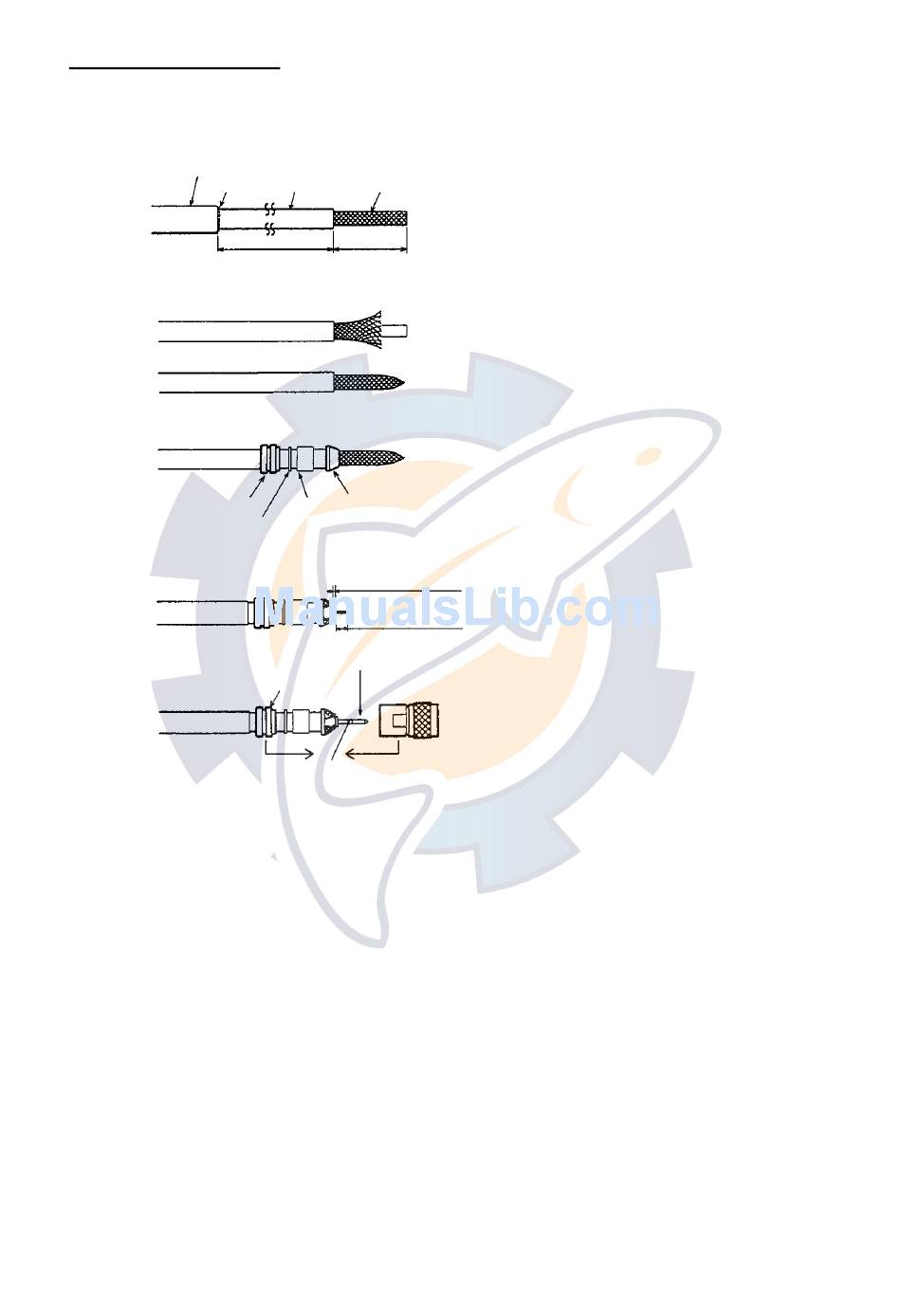

How to attach the antenna cable connector N-P-12DSFA
(Dimensions in millimeters.)
Inner Sheath Shield
12
80
1.8
4.5
Pin
Shell
Solder through the hole.
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the
dimensions shown left.
Twist shield end.
Slip on clamp nut, gasket and clamp
as shown left.
Expose the insulator by 1.8 mm.
Expose the core by 4.5 mm.
Slip the pin onto the conductor.
Solder them together through the hole
on the pin.
Insert the shell into the pin.
Screw the clamp nut into the shell.
(Tighten by turning the clamp nut.
Do not tighten by turning the shell.)
