N-P-8DFB connector

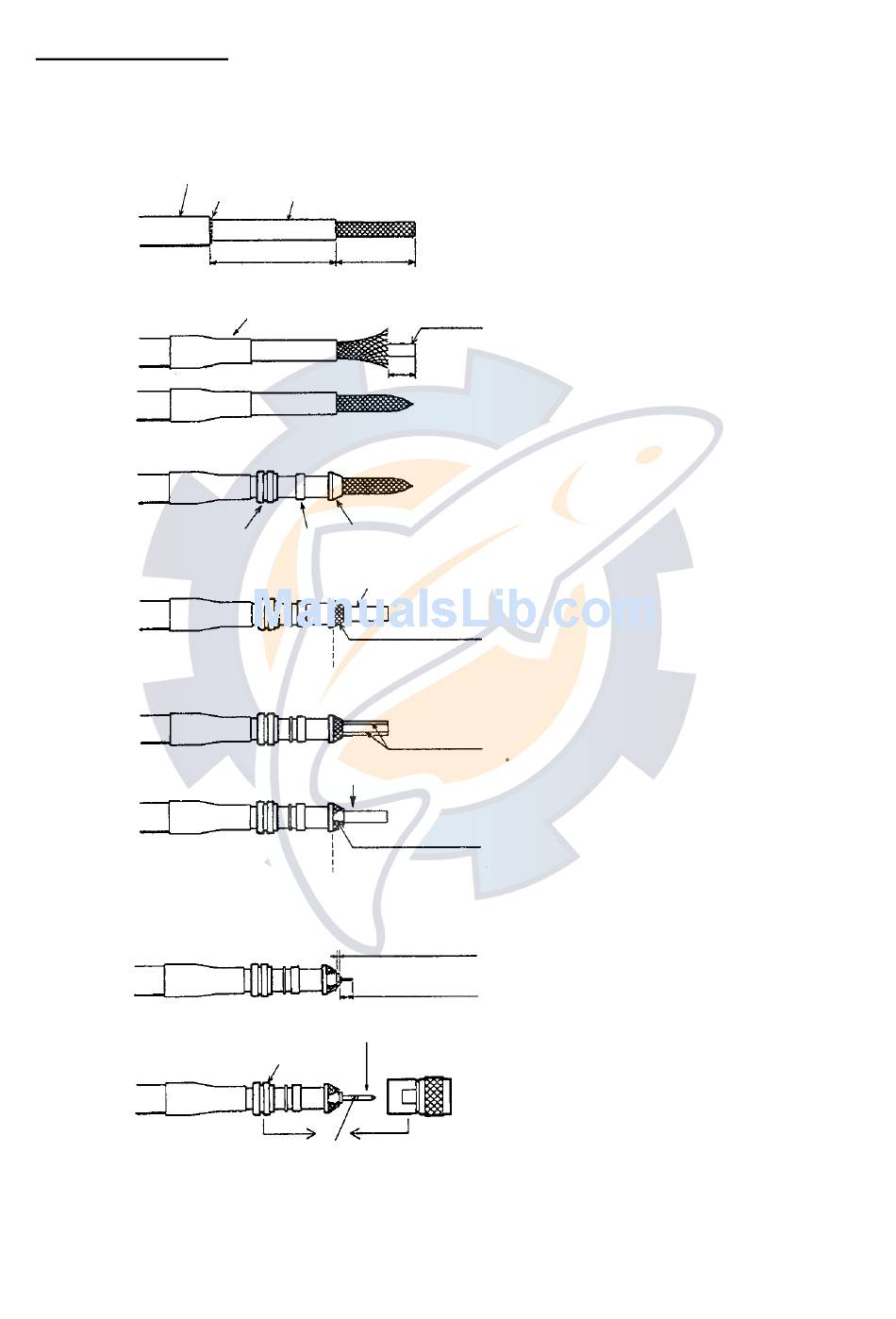

Attach the connector to the antenna cable as shown below.
Outer Sheath
Cover with heat-shrink tubing and heat.
Clamp Nut
How to attach the antenna cable connector N-P-8DFB
Inner Sheath Shield
Armor
30
50
Clamp
Gasket
(reddish
brown)
Aluminum Foil
Trim shield here.
Insulator
Trim aluminum
tape foil here.
1
5
Pin
Clamp Nut
Solder through
the hole.
(Dimensions in millimeters.)
Cut off insulator and core by 10 mm.
10
Twist shield end.
Slip on clamp nut,
gasket and clamp as shown left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places,
90 from one onother.
Fold back aluminum foil onto shield
and trim.
Expose the insulator by 1 mm.
Expose the core by 5 mm.
Shell
Slip the pin onto the conductor.
Solder them together through the
hole on the pin.
Insert the shell into the pin.
Screw the clamp nut into the shell.
(Tighten by turning the clamp nut.
Do not tighten by turning the shell.)
24
