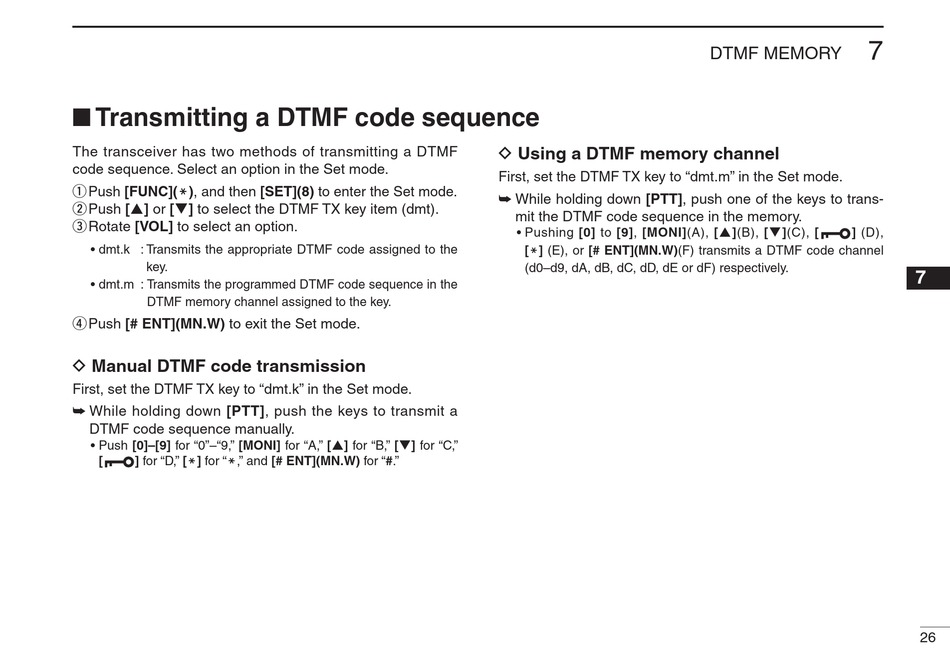

■ Transmitting a DTMF code sequence

The transceiver has two methods of transmitting a DTMF
code sequence. Select an option in the Set mode.
q Push [FUNC](M), and then [SET](8) to enter the Set mode.
w Push [ ] or [ ] to select the DTMF TX key item (dmt).
e Rotate [VOL] to select an option.
• dmt.k : Transmits the appropriate DTMF code assigned to the
key.
• dmt.m : Transmits the programmed DTMF code sequence in the
DTMF memory channel assigned to the key.
r Push [# ENT](MN.W) to exit the Set mode.
D Manual DTMF code transmission
First, set the DTMF TX key to "dmt.k" in the Set mode.
➥ While holding down [PTT], push the keys to transmit a
DTMF code sequence manually.
• Push [0]–[9] for "0"–"9," [MONI] for "A," [ ] for "B," [ ] for "C,"
[ ] for "D," [M] for "M," and [# ENT](MN.W) for "#."
D Using a DTMF memory channel
First, set the DTMF TX key to "dmt.m" in the Set mode.
➥ While holding down [PTT], push one of the keys to trans-
mit the DTMF code sequence in the memory.
• Pushing [0] to [9], [MONI](A), [
[M] (E), or [# ENT](MN.W)(F) transmits a DTMF code channel
(d0–d9, dA, dB, dC, dD, dE or dF) respectively.
7
DTMF MEMORY
](B), [ ](C), [ ] (D),
