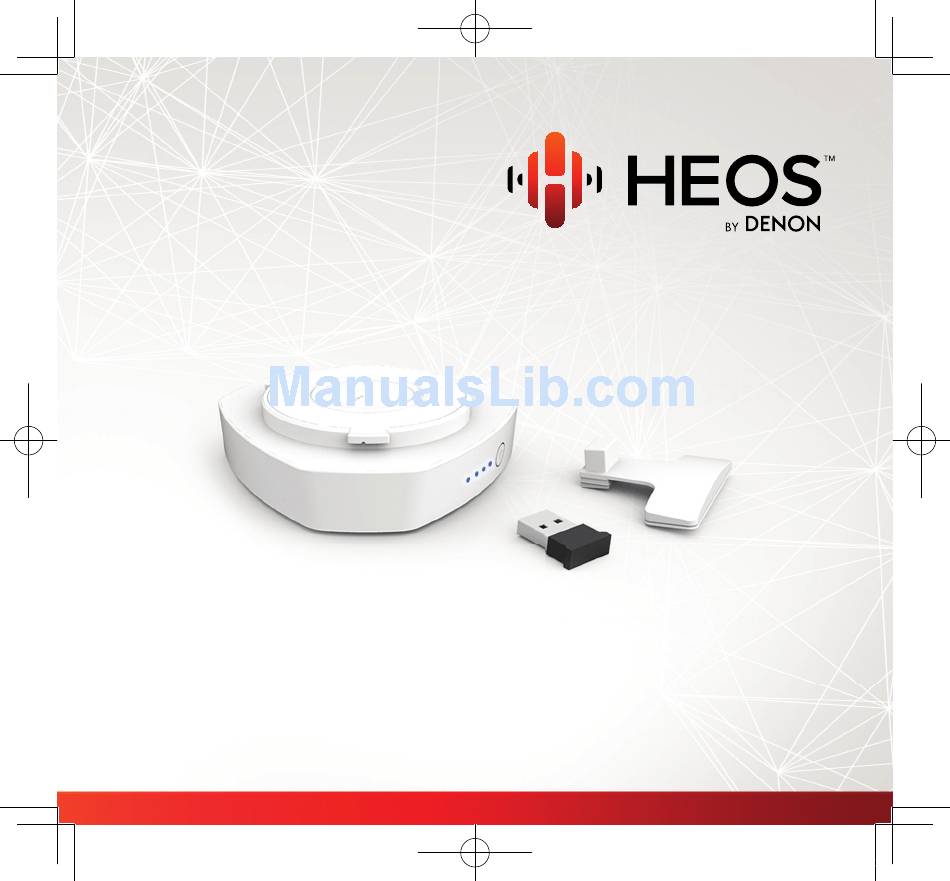

HEOS 1 Go Pack
QUICK START GUIDE
HEOS 1 GP EM QSG WT 150317.indd
1
2015/03/17
17:58:15

Advertisement

loading

Related Manuals for Denon HEOS 1

Summary of Contents for Denon HEOS 1

  • Page 1 HEOS 1 Go Pack QUICK START GUIDE HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:15...

  • Page 2: Before You Begin

    HEOS 1 Speaker Before using a new HEOS 1 speaker with Bluetooth, we recommend you fi rst connect your HEOS 1 Speaker to your home network to get the latest speaker updates and newest features. A home network is not required for every day Bluetooth functionality.
  • Page 3 HEOS 1 Go Pack QUICK START GUIDE STEP 1: UNPACK Carefully unpack your HEOS 1 Go Pack. Verify that the following items are included in the box. HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:17...
  • Page 4 STEP 2: PREPARE Remove the cap from the bottom of the HEOS 1 speaker by turning the cap counter-clockwise and pulling it away from the speaker. HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:17...
  • Page 5 STEP 3: ATTACH Align the red dots on the top of the battery and bottom of the speaker. Turn the battery clockwise so that it is aligned with the shape of the speaker. HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:18...
  • Page 6 STEP 4: CHARGE To charge the battery, connect the HEOS 1 power adapter between the speaker and a wall outlet. Four blue LEDs indicate a full charge. HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:19...
  • Page 7 HEOS 1 Go Pack QUICK START GUIDE STEP 5: GO WIRELESS Once your battery is fully charged, attach the Bluetooth Adapter to the back of the speaker. HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:20...
  • Page 8 Pairing the HEOS 1 with your Devices Activate the Bluetooth setting on your mobile device. Press and hold the Connect button located on the back of the HEOS 1 speaker (under the right side of the cap) for 3 seconds and release the button when you see a pattern of two fl...
  • Page 9 HEOS 1 Go Pack QUICK START GUIDE Select “HEOS 1“ from the list of available Bluetooth devices. In a few seconds your mobile device will indicate that it is connected to your speaker. Play music using any app on your device. The sound will now play from the HEOS 1 speaker.

  • Page 10: Step 7: Close Splashguard

    Remove the power connector from the speaker. Press in the Splashguard so that it is fi rmly and evenly attached. Properly attaching the splashguard will make your HEOS 1 speaker waterproof to the IPX4 standard. DO NOT submerge the speaker in water! HEOS 1 GP EM QSG WT 150317.indd...
  • Page 11 HEOS 1 is not plugged in to AC power. To turn the battery back on, press and hold the button again for 2 seconds. Note: while the battery is disconnected from HEOS 1, it is always off . HEOS 1 GP EM QSG WT 150317.indd...
  • Page 12 OWNER'S MANUAL • For more information, visit www.HEOSbyDenon.com • Refer to the Online Manual for other functions information and operation procedure details. manuals.denon.com/HEOS1/ALL/EN HEOS 1 GP EM QSG WT 150317.indd 2015/03/17 17:58:23...

  • Page 13: Basic Troubleshooting

    Your Bluetooth mobile device is not paired with HEOS 1. Follow the pairing procedure. • HEOS 1 is off . Connect HEOS 1 to AC power or turn on the HEOS 1 battery by pressing battery power button for 2 seconds. •...
  • Page 14 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following tow conditions: (1)this device may not cause interference, and(2) this device must accept any interference, includinginterference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.

  • Page 15: Fcc Statement

    FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
