ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Model DF330D has been developed as a sister tool to Model DF030D,
featuring 10mm (3/8") single sleeve keyless chuck instead of
6.35mm (1/4") Hex bit holder.
This product is available in the following variations.
Housing
Model No.
Makita-blue
DF330D
DF330DW
DF330DWE
Makita-blue
DF330DWEW
Makita-blue
DF330DWLE
The models also includes the accessories listed below in "Standard equipment".
S
pecification
Type of cell
Voltage: V
Battery
Capacity: Ah
Charging time (approx.): min.
Max. output: W
No load speed: min-1 = rpm
Capacity of drill chuck: mm (")
Capacities: mm (")
Max. fastening torque: N.m
Torque adjustment
Clutch torque setting: N.m (in.lbs)
Lock torque: N.m (in.lbs)
Electric brake
Variable speed control by trigger
Mechanical 2-speed
Reverse switch
LED job light
Net weight [with battery BL1013]: kg (lbs)
S
tandard equipment
Phillips bit 2-50 (double-end) ........ 1 pc (for countries using M-type spindle)
Phillips bit 2-45 (double-end) ........ 1 pc (for countries using N-type spindle)
Holster ............................................ 1 pc
Note: The standard equipment may vary by country or model variation.
O
ptional accessories
Driver bits, Socket bits, Hex shank drill bits for wood, Hex shank drill bits for steel,
Charger DC10WA, Battery BL1013
DF330D
10.8V Cordless Driver Drill
Battery
color
type
quantity
white
BL1013
2
(Li-ion
white
1.3Ah)
High
Low
Steel
Wood
Soft joint
Hard joint
Charger
Rechargeable
flash light
Model
Color
Makita-blue
black
Makita-blue
DC10WA
black
Makita-blue
Li-ion
10.8
1.3
50
with DC10WA
115
0 - 1,300
0 - 350
0.8 (1/32) - 10 (3/8)
10 (3/8)
21 (13/16)
14
24
18 stages + drill mode
0.5 - 3.5 (4 - 30)
22 (200)
Yes
Yes
Yes
Yes
Yes
1.0 (2.2)
W
Dimensions: mm (")
Length (L) 189 (7-7/16)
Width (W)
53 (2-1/16)
Height (H)
183 (7-1/4)
Plastic
carrying case
No
Yes
All countries except
the four listed above
ML100
OFFICIAL USE
for ASC & Sales Shop
PRODUCT
P 1/ 6
L
H
Offered to
USA, Canada
Mexico, Panama
Germany

Advertisement

loading

Related Manuals for Makita DF330D

Summary of Contents for Makita DF330D

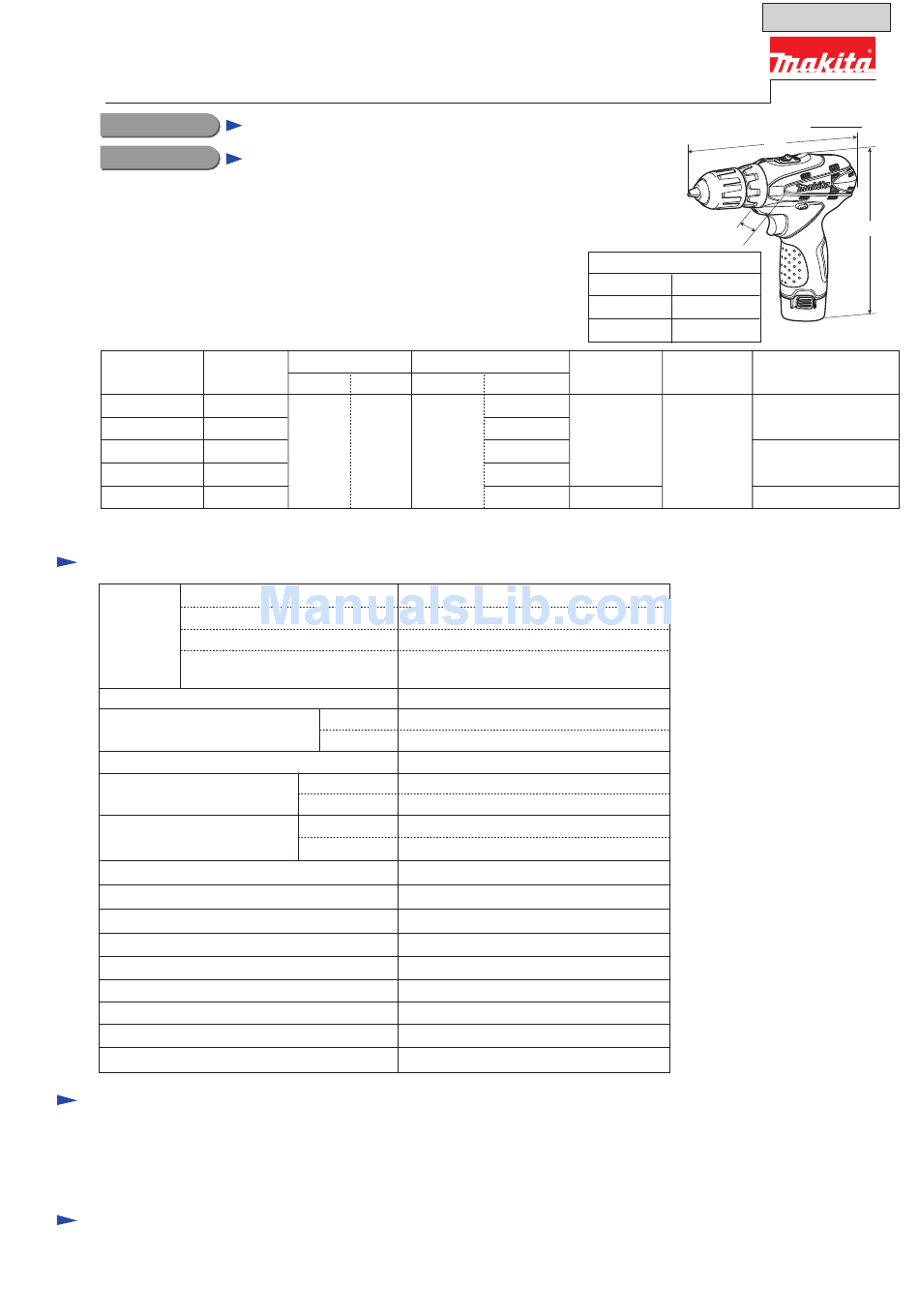

  • Page 1 DF330D Description 10.8V Cordless Driver Drill ONCEPT AND MAIN APPLICATIONS Model DF330D has been developed as a sister tool to Model DF030D, Dimensions: mm (") featuring 10mm (3/8") single sleeve keyless chuck instead of Length (L) 189 (7-7/16) 6.35mm (1/4") Hex bit holder.
