Chapter 5 Printer Setup
Printer Setup with
Bar Code Wand
36
In addition to using Intermec Direct Protocol setup strings, the fol-
lowing setup parameters can also be entered by scanning pre-printed
bar codes with an optional Bar Code wand:
• Serial port setup
• Print setup
• Paper setup
To use a Bar Code wand with the EasyCoder E4 LinerLess:
1 Open the side and front covers.
2 Plug the Bar Code wand into its socket, to the left of the printhead
area.
3 Touch the Bar Code wand on the paper containing the bar code
to be scanned: the Power LED turns yellow.
4 Pass the Bar Code wand over the bar code and lift it off the paper.
If the bar code has been read correctly, the Power LED turns
green. If the bar code has not been read correctly, the Power LED
flashes red before turning green, when you lift the wand.
5 If the bar code has not been read correctly, check that the Bar Code
wand is correctly connected and try again.
• Baudrate
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1

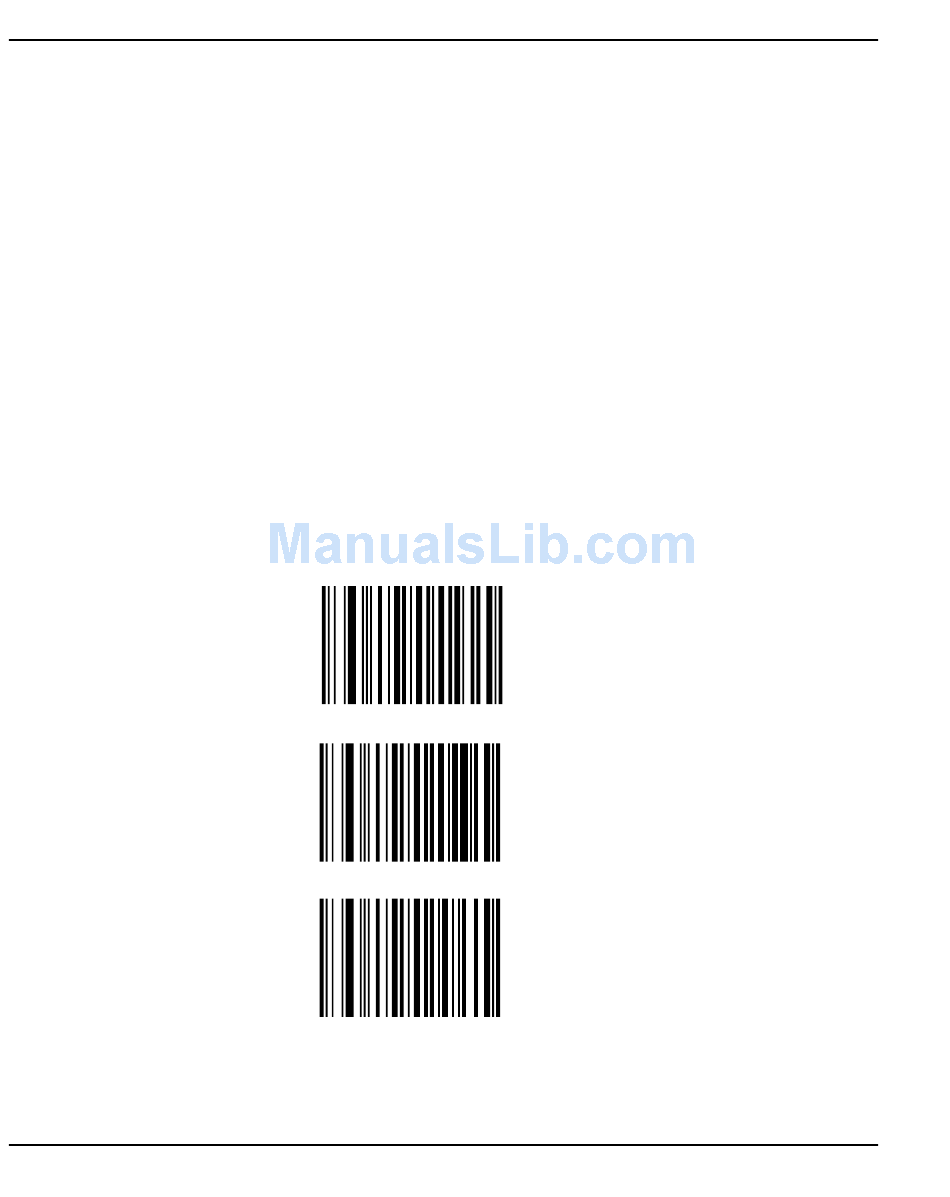

Baudrate = 300
Baudrate = 600
Baudrate = 1200
