Summary of Contents for Audiovox SIR- CK2

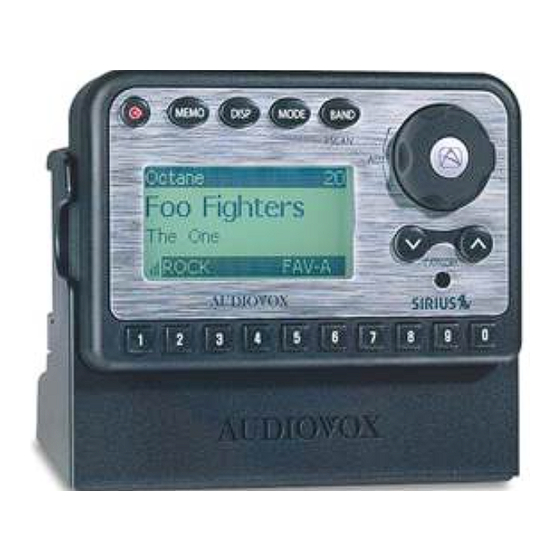

- Page 1 SHUTTLE Vehicle Installation Guides SIR-CK1 and SIR- CK2...
- Page 2 ESPN, ABC, CNBC, Bloomberg, Discovery and Radio Disney are developing news, sports and entertainment programming. Your Audiovox Shuttle must be used with an adapter kit, such as the Audiovox Home kit or Vehicle/ Boat Kit as required by your specific installation needs. These kits are available at retailers where Audiovox main units are sold.
-
Page 3: Cautions And Warnings
Cautions and Warnings 1. Do not install the Shuttle in a position that hinders your view through the windshield, or obstructs view ing of the dashboard indicators and displays. 2. Do not install the unit where it may obstruct the operation or deployment of safety devices, such as airbags, etc. -
Page 4: Hardware Kit
Contents SIR-CK1 and SIR-CK2 HARDWARE KIT - Install Manual Base Audio Cable P/N 150-1519 P/N 1286813 P/N 112B3293 P/N 136C3484 Phillips Machine Split Lock Washer, M4 Screw (M4 x 8mm) 1 pc. 1 pc. 1 pc. 4 pcs 4 pcs. Antenna Cradle CK1 P/N 136D3471... -
Page 5: Installation/Wiring Precautions
Mount the unit firmly in place, using as the Shuttle and Vehicle Kit installation are complete. the supplied hardware. Set up your Audiovox Shuttle using the following 4. Be careful not to damage the vehicle wiring. installation instructions, or enlist the help of a 5. -
Page 6: Interconnect Diagram
Interconnect Diagram Interconnect Diagram FM Option FM FREQUENCY SELECTION SWITCH. AUDIO SELECT 1 OF 4 AVAILABLE FREQUENCIES VEHICLE CABLE AND SET YOUR EXISTING CAR RADIO TO VEHICLE RADIO SHUTTLE CRADLE THE SAME FREQUENCY. FM RADIO ANTENNA CK1 OR CK2 SHUTTLE CRADLE CK1 ONLY TO AUXILIARY AUDIO INPUT OF RADIO OR... - Page 7 d. The cradle contains two mounting plates, CAUTION: Do not install the mounting base one on the rear and one on the bottom. on a leather or fabric surface, or After deciding which configuration to use, in a position that could impair loosen and remove two flat-head screws your vision, block air bag(s) or securing the plate to the cradle and remove...
- Page 8 h. If the outside air temperature is cold, it may f. Insert the end of the ball strut into the keyed be beneficial to warm the adhesive backing opening on the cradle mounting plate, and on the base using a portable hair dryer, or secure the plate to the ball strut using the by holding the backing surface in front of a flatwasher, lockwasher and flat-head screw...
- Page 9 4. Using Other Manufacturer’s Mounts NOTE: Allow a 72-hour period for the adhesive backing to cure completely. The Shuttle Cradle can also be installed using other k. Using the star nut, attach the cradle assembly manufacturer’s mounts; the mounting plate to the base threaded socket;...
- Page 10 16-PIN SYSTEM (Part No. 112C3159) is available and provides a TOP RETAINING CONNECTOR CLIP hard-wired FM output when connected to the FM OUT SAT. (MAIN) connector on the left side of the cradle; the other end RF CONNECTOR of the switching box plugs into the antenna jack of your TERR.
- Page 11 7. Mounting the Vehicle Antenna The antenna should be placed on a relatively flat surface on the vehicle exterior, preferably on the SHUTTLE (TYPICAL) roof (high point) or on the trunk (convertible). To mount the antenna: a. Plug the antenna into the SAT. (MAIN) connector on the back of the cradle.
- Page 12 e. Plan the routing of the antenna cable to the Shuttle RF input. Make sure you avoid any obstructions that could crimp, kink or twist the cable; use protective grommets wherever rough openings are encountered. f. Route the cable from the antenna position to the interior of the vehicle, working the cable under the rear window molding;...
- Page 13 i. Plug the antenna cable into the SAT (MAIN) connector on the back of the cradle; then plug the cigarette lighter adapter into the lighter receptacle. The integral power LED of the power button ( ) will light red. j. You are now ready to enjoy Sirius programming within your vehicle.
-
Page 14: 12 Month Limited Warranty
12 MONTH LIMITED WARRANTY AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
