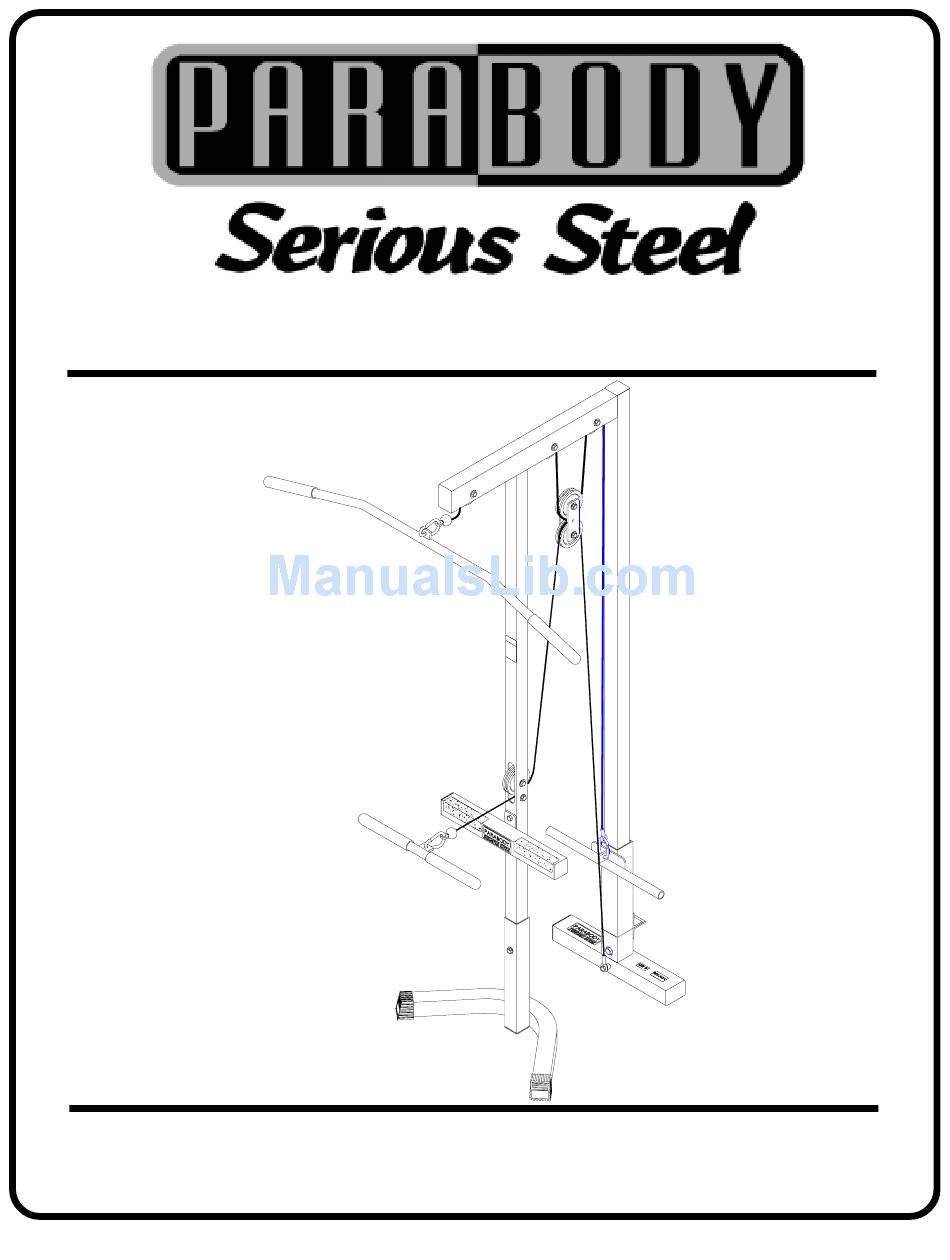

848101 LAT OPTION ASSEMBLY INSTRUCTIONS Revision: 5/26/99 Part # 6826701... -
Page 2: Tools Required For Assembly
2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714. -
Page 3: Parts List
PART # DESCRIPTION 6824303 BASE 6823703 UPRIGHT 6825403 STAND 6824103 CROSS BRACE 6825502 CARRIAGE 6275302 LAT BAR 6274402 LOW ROW BAR 6542402 3/16 X 1-3/4 X 5-1/4” PLATE 6824801 CABLE 3103102 1 X 8” GRIP 3116201 3-1/2” PULLEY 6177001 2-1/2 X 5-1/2” NON-SKID STRIP 6405201 2”... - Page 4 3/8 X 2-3/4” 25 FIGURE 1 STEP 1: • Assemble two 2” SQ. COVER CAPS (14) onto the ends of the STAND (3) as shown in FIGURE 1. • SECURELY assemble the one 3/8 X 2-3/4” BOLT (25), two 3/8” WASHERS (19), and one 3/8” LOCK NUT (20) to the STAND (3) as shown in FIGURE 1.
- Page 5 FIGURE 3 STEP 3: • Insert two 2” SQ. END CAPS (13) into the ends of the CROSS BRACE (4) as shown in FIGURE 3. • Assemble two 2-1/2 X 5-1/2” NON-SKID STRIPS (12) to the CROSS BRACE (4) as shown in FIGURE 3. •...
- Page 6 STEP 5: • Assemble the STAND (3) to the UPRIGHT (2) as shown in FIGURE 5. • Slide the CARRIAGE (5) over the UPRIGHT (2) as shown in FIGURE 5. • Assemble the BASE (1) to the UPRIGHT (2) as shown in FIGURE 5.
- Page 7 3/8 X 2-3/4” 25 FIGURE 6 STEP 6: • SECURELY assemble the BASE (1) to the UPRIGHT (2) using one 1/2 X 3” BOLT (27), two 1/2” WASHERS (21) (slide front washer INSIDE of tube), and one 1/2” LOCK NUT (22). See FIGURE 6. •...
- Page 8 3/8 X 2-3/4” 25 FIGURE 7 STEP 7: • Route the CABLE (9) through the UPRIGHT (2) as shown in FIGURE 7. • SECURELY assemble three 3-1/2” PULLEYS (11) into the slots of the UPRIGHT (2) using three 3/8 X 2-3/4” BOLTS (25), six 3/8” FLANGE SPACERS (31), and three 3/8”...
- Page 9 FIGURE 8 STEP 8: • Attach the CABLE (9) from the UPRIGHT (2) to the CARRIAGE (5) using one 1/4” QUICK LINK (29) as shown in FIGURE 8. (IMPOR- TANT! Securely tighten QUICK LINK.) • Place one 3-1/2” PULLEY (11) into the loop of the CABLE (9) below the second and third PULLEY of the UPRIGHT (2) as shown in FIGURE 8.
- Page 10 FIGURE 9 STEP 9: • Route the end of the second CABLE (9) through the slot on the UPRIGHT (2) then SECURELY assemble one 3-1/2” PULLEY (11) to the UPRIGHT (2) using two 3/8 X 2-1/2” BOLTS (24), two 3/8 X 3/8” SPACERS (30), four 3/8” WASHERS (19), and two 3/8” LOCK NUTS (20).
- Page 11 26 3/8 X 4-1/2” FIGURE 10 STEP 10: • SECURELY assemble the CABLE (9) to the BASE (1) using one 3/8 X 4-1/2” BOLT (26), one 3/8 X 1” SPACER (32), and one 3/8” LOCK NUT (20) as shown in FIGURE 10.
- Page 12 FIGURE 11 STEP 11: • Slide two 1 X 8” GRIPS (10) on the LOW ROW BAR (7) and two 1 X 8” GRIPS (10) on the LAT BAR (6) as shown in FIGURE 11. • Attach the LAT BAR (6) to the ball end of the upper CABLE (9) using one 5/16” SNAP HOOK (28) as shown in FIGURE 11. •...
- Page 13 FIGURE 12 STEP 12: • To use the 848101 LAT OPTION: (NOTE: LAT OPTION MUST BE USED WITH A BENCH. LAT OPTION CANNOT BE USED WHILE STAND IS ATTACHED. STAND MUST BE ATTACHED WITH THE FEET OUT AS SHOWN.) • Tilt the 848101 back and remove the STAND (3) as shown in FIGURE 12.
- Page 14 • Insert the UPRIGHT (2) of the 848101 into the bench as shown in FIGURE 13. Thank you for purchasing the Parabody 848101 LAT OPTION. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
