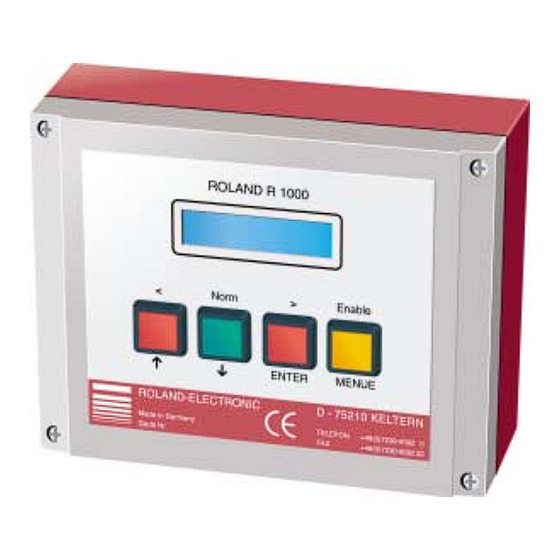

R O L A N D

Double Sheet Detector

R1000 Series E20

Electro magnetic principle -

microcontroller based

One - sided contact double sheet control of ferrous materials

No force after measurement

6 exchangeable linearized sensors for double sheet control

of 0.1 to 6.5 mm (.004 to 0.250 in.) sheet thickness

Optional version 4P allows the connection of up to four sensors

•

Digital display of sheet thickness and operations parameter

•

Programmable for 255 different sheet thicknesses

•

Monitoring of over gauge and under gauge limits

•

Monitoring of operating voltage and measuring time

•

Opto coupled 9 respectively 11-Bit PLC input interface

•

Selectable interfaces:

- opto coupled RS232 interface

- Relay or opto coupled output for under gauge, nominal gauge, over gauge and enable

- all common fieldbus technologies

DOUBLE SHEET CONTROL R1000 E20

N O W A V A I L A B L E :

> Panel mount

> Fieldbus technology

System with one Sensor

Page 1 R O L A N D DOUBLE SHEET CONTROL R1000 E20 Double Sheet Detector N O W A V A I L A B L E : R1000 Series E20 > Panel mount > Fieldbus technology Electro magnetic principle -...
Page 2 R O L A N D DOUBLE SHEET DETECTOR E20 Description: When sheets are fed automatically, two or more sheets may be fed inadvertently into a processing machine. This can damage tools, cause halt in production or result in expensive repairs. The double sheet detector E20 can reliably prevent this from occuring. In addition to the connection of one sensor an option is available to connect four sensors of the same type (E20-4P).
Page 3 R O L A N D DOUBLE SHEET DETECTOR E20 Sensors: It is recommended to use the sensors P30GS, P42AGS and P75VGS with the control unit E20. The connection of the older P36GS, P42GS and P75GS sensors is also possible. P30GS P42AGS / P42GS* P75VGS / P75GS...
Page 4 Rubber lips for vacuum suction cup PWS E10 Program selection box, also for E20 suitable Software for parameter back up on a PC (Version C only) ROLAND INDUSTRIAL ELECTRONICS, L.P. R O L A N D 20126 Jefferson Court Cleveland OH 44149 •...
