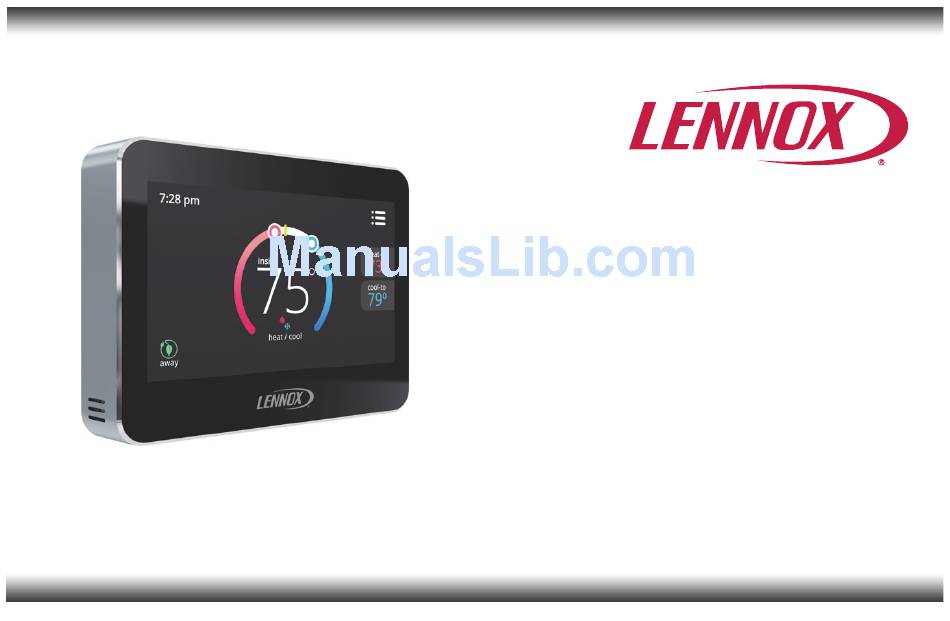

User Guide Color Touchscreen Programmable Residential Thermostat ® ComfortSense 5500 Model: 13H13 507500-01 10/2015 Supersedes 7/2015... -
Page 2: Table Of Contents
TABLE OF CONTENTS Large, clear color display that shows the current and set temperatures and time. Features ........Ergonomic design. -
Page 3: Temperature Dial Indicator
Temperature Dial Indicator A. This is the heating set point indicator on the 2:31 am Ⓐ Ⓒ dial. This object will be red in color. Ⓑ B. This is the cooling set point indicator on the Ⓕ Dial. This object will be blue in color. heat−to inside Ⓓ... -
Page 4: Home Screen
Home Screen 2:31 am Ⓓ Ⓒ Ⓗ Ⓔ Ⓕ Schedule hold until 12:30 pm heat−to Ⓘ Ⓖ inside Ⓔ 62° waiting cool−to Ⓕ 76° Ⓑ schedule 1 away Ⓐ Figure 2. Home Screen... - Page 5 Touch the screen anywhere - the first touch turns C. Displays current time. on the backlight. D. Menu - Touch the screen here to access A. OPERATING MODES - Touch the screen to notifications, performance report, edit see a list available modes. Selectable modes schedules and settings screens.
- Page 6 H. System Status Icons - Equipment operation information appears along the left side of the home screen. The displayed icons will indicate cooling or heating demand, cooling compressor delay, or cooling demand. I. This icon and the text that follows it indicate that the schedule is on hold either until the next time period or permanently.
- Page 7 2. To continue touch on any blank area of the NOTE: For the 1 or 2 hour setting the home screen. screen will indicate schedule hold until time indicated (i.e., 11:57 pm). 3. From the override setting screen, the NOTE: When in any hold status, the mode options are 1 hour, 2 hour or Permanent.
- Page 8 Table 1. System Status Icons Screen Icon Description The red flame icon is displayed when the system is in heating mode. The blue flame icon is displayed when the system is cooling mode. The snow flake icon indicates that the next mode of operation will be cooling. The waiting words waiting next to the icon indicate that system operation is waiting for the comple...
-
Page 9: Accessing Mode Screen
Accessing Mode Screen Touch the screen in the area indicated below to access the mode screen. 2:31 am heat−to inside 72° cool−to 78° schedule 1 away Figure 4. Home Screen (Accessing Mode Screen) -
Page 10: Select Modes
SELECT MODES Table 2. Fan Operation 1. HEAT/COOL allows the thermostat to switch Fan is NOT following between heating and cooling automatically. the schedule and runs 2. HEAT ONLY allows only heating demand. continuously until it is 3. COOL ONLY allows only cooling demand. changed from the se... -
Page 11: Menu
Menu Touch the three lines in the upper right-hand corner of the screen to access the menu. Selectable options under menu are notifications, performance report, edit schedules and settings. menu notifications heat−to performance report 72° cool−to edit schedules 78° settings Figure 5. - Page 12 NOTIFICATIONS When a system error or reminder occurs, a pop-up screen will appear indicating the condition. Error code notification — Press the back button to dismiss a pop-up error notification. Contact your dealer to resolve the issue. Reminder notification -- Make a selection to either clear the notification or set a future reminder.
- Page 13 Table 3. Reminders Error Message Screen Text Action to Clear / Recovery Condition Code Type replace media filter replace UV lamp replace humidity pad routine system check-up reminder Touch either done to clear the reminder or remind later button. replace metal insert for pure air user editable user editable...
- Page 14 PERFORMANCE REPORT From the HOME screen touch the MENU and touch edit schedules option. Select performance report to display the total number of hours that the system has been running NOTE: See Select Modes on page 9 to select each month. Touch the house icon in the upper and run a specific schedule.
- Page 15 > select days • individual days • week/weekend • all 7 days edit schedules schedule x To navigate to the next ( rename ) select mode • schedule1 screen in the selection • schedule2 • select days process, always touch •...
-
Page 16: User Settings
USER SETTINGS User Settings - Selection Descriptions Any schedule can be selected by touching the Tables 4 through 7 provides information for options right-arrow next to the option that can be selected for each setting. user settings < Table 4. User Settings (Fan) Setting Function Description... - Page 17 Table 5. User Settings (Heat / Cool and Cool Only) Setting Selection Function Description Heats home to desired tempera normal ture setting. Options are on or off. heat / cool (gas or electric heat Heating limit with a default of ing is selected) 90°F.
- Page 18 Table 6. User Settings (General) Setting Selection Function Description Displays information concerning thermostat about model number, serial number, hardware and software revisions. Setting options are unlocked, partially, and locked. To set partially lock, create a three digit code. Partial lock restricts access to menu. general - provides To set locked option, create a three digit code.
- Page 19 Table 7. User Settings (Display) Setting Selection Function Description Outdoor temperature display None or sensor Options are enable and disable. Default is enabled. When enable is selected, only the time, inside temperature and outside temperature (if outdoor sensor is installed and enabled) are displayed on the screen.
- Page 20 INDEX Temperature Dial Indicator, 3 Notifications, 12 Critical, 12 Away, 5 Reminders, 12 User Settings, 16, 17 Cool Only, 17 Set Point Range, 17 Backlight, 19 Operating Modes, 5 Display, 19 Clean Screen, 19 Outdoor Temperature Error Codes, 13 Performance Report, 14 Display, 19 Screen Brightness, 19 Screen Saver, 19...
