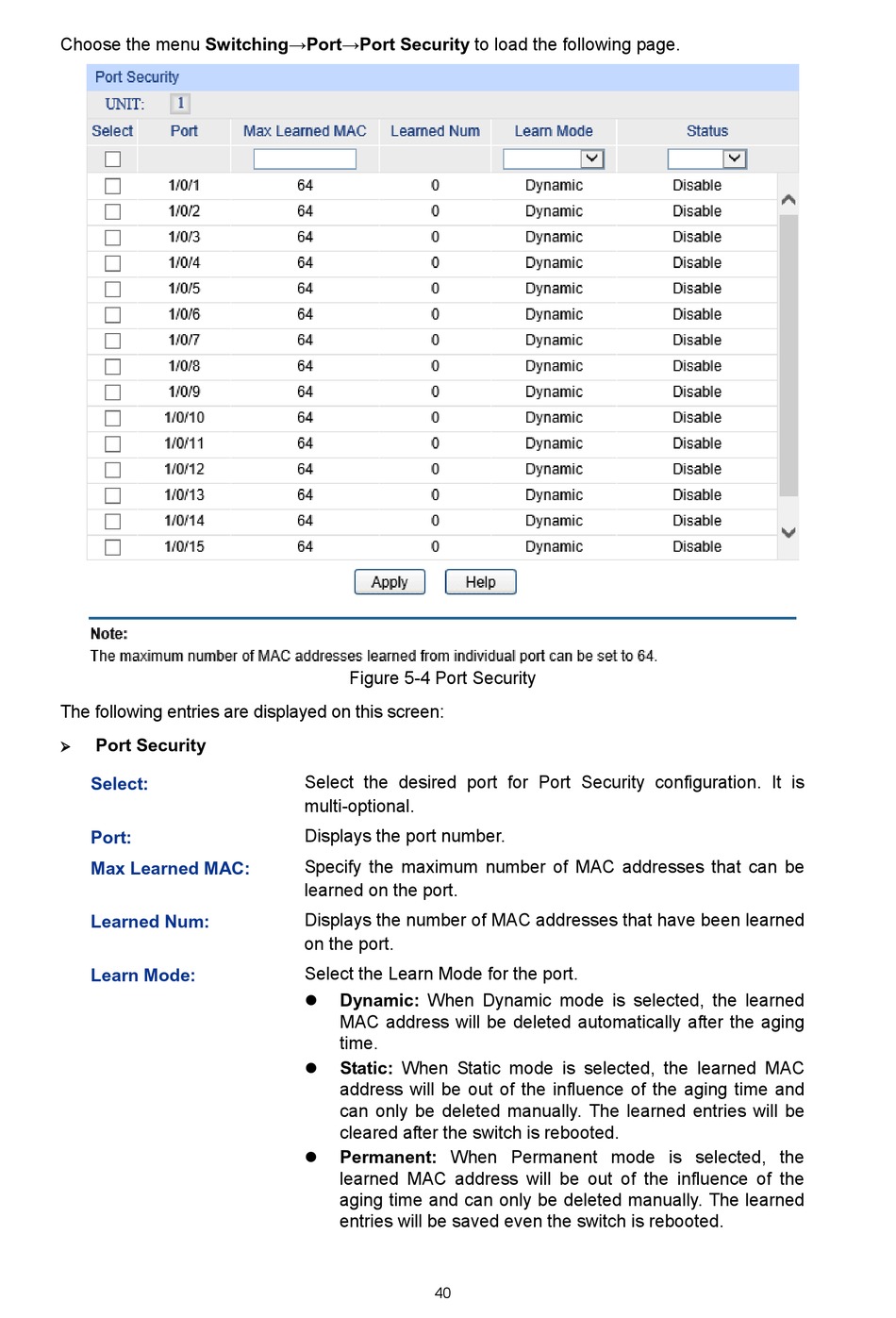

Choose the menu Switching→Port→Port Security to load the following page.
The following entries are displayed on this screen:
Port Security

Select:
Port:
Max Learned MAC:
Learned Num:
Learn Mode:
Figure 5-4 Port Security
Select the desired port for Port Security configuration. It is
multi-optional.
Displays the port number.
Specify the maximum number of MAC addresses that can be
learned on the port.
Displays the number of MAC addresses that have been learned
on the port.
Select the Learn Mode for the port.
Dynamic: When Dynamic mode is selected, the learned

MAC address will be deleted automatically after the aging
time.
Static: When Static mode is selected, the learned MAC

address will be out of the influence of the aging time and
can only be deleted manually. The learned entries will be
cleared after the switch is rebooted.
Permanent: When Permanent mode is selected, the

learned MAC address will be out of the influence of the
aging time and can only be deleted manually. The learned
entries will be saved even the switch is rebooted.
40
