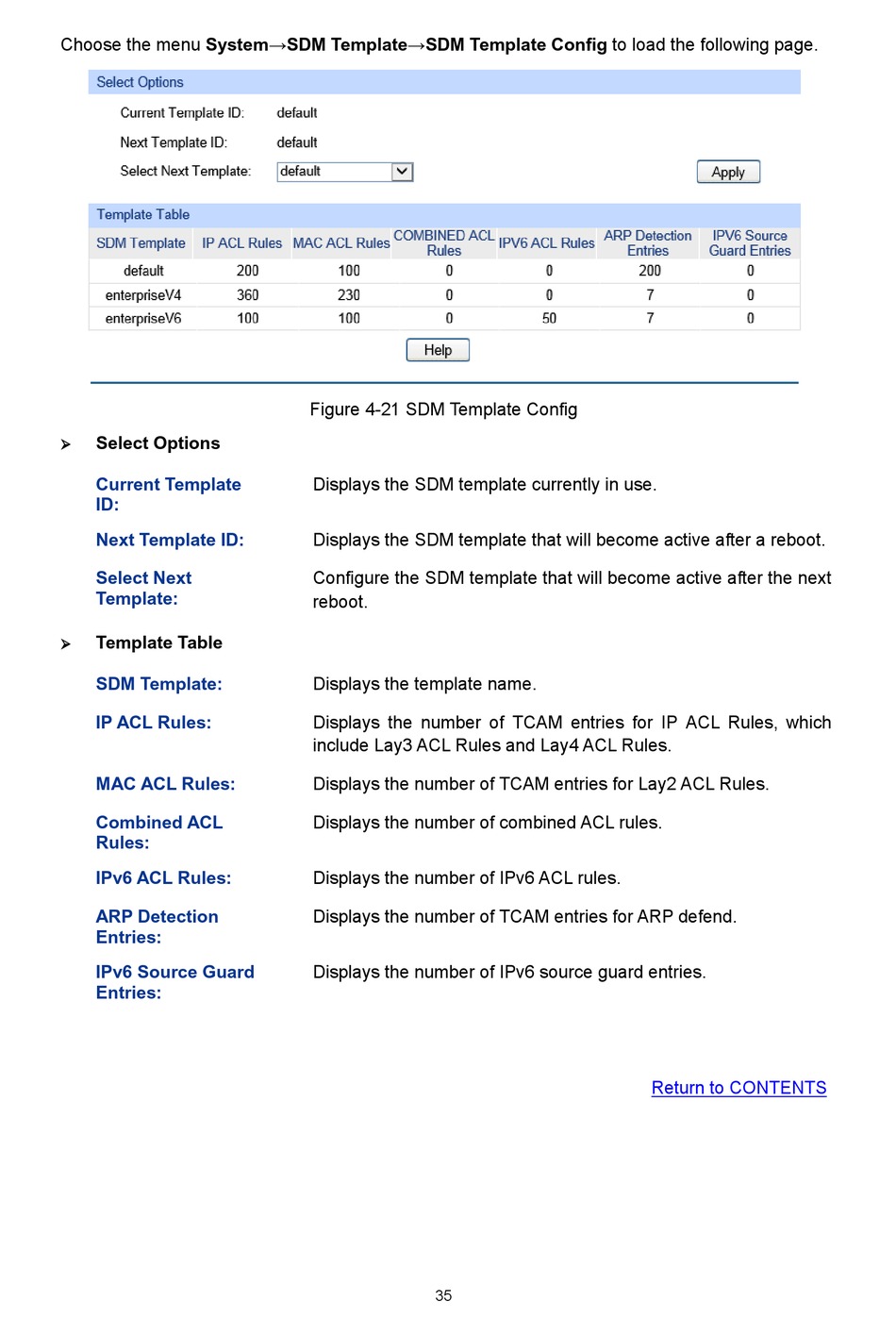

Choose the menu System→SDM Template→SDM Template Config to load the following page.
Select Options

Current Template
ID:
Next Template ID:
Select Next
Template:
Template Table

SDM Template:
IP ACL Rules:
MAC ACL Rules:
Combined ACL
Rules:
IPv6 ACL Rules:
ARP Detection
Entries:
IPv6 Source Guard
Entries:
Figure 4-21 SDM Template Config
Displays the SDM template currently in use.
Displays the SDM template that will become active after a reboot.
Configure the SDM template that will become active after the next
reboot.
Displays the template name.
Displays the number of TCAM entries for IP ACL Rules, which
include Lay3 ACL Rules and Lay4 ACL Rules.
Displays the number of TCAM entries for Lay2 ACL Rules.
Displays the number of combined ACL rules.
Displays the number of IPv6 ACL rules.
Displays the number of TCAM entries for ARP defend.
Displays the number of IPv6 source guard entries.
35
