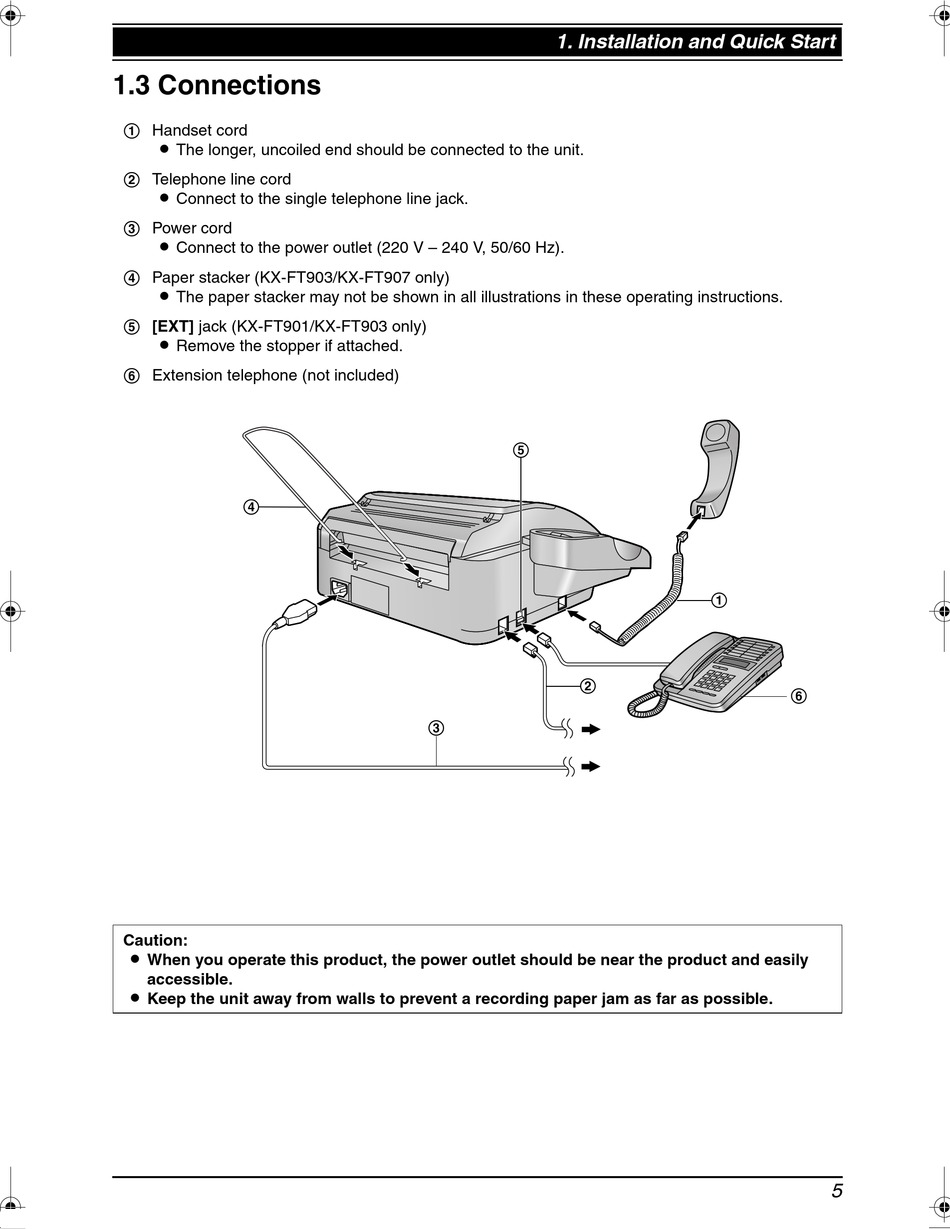

1.3 Connections

1 Handset cord
L The longer, uncoiled end should be connected to the unit.
2 Telephone line cord
L Connect to the single telephone line jack.
3 Power cord
L Connect to the power outlet (220 V – 240 V, 50/60 Hz).
4 Paper stacker (KX-FT903/KX-FT907 only)
L The paper stacker may not be shown in all illustrations in these operating instructions.
5 [EXT] jack (KX-FT901/KX-FT903 only)
L Remove the stopper if attached.
6 Extension telephone (not included)
4
Caution:
L When you operate this product, the power outlet should be near the product and easily
accessible.
L Keep the unit away from walls to prevent a recording paper jam as far as possible.
1. Installation and Quick Start
5
2
3
1
6
5
