Chapter 7
• Channel Width
• MAC Address
• Traffic Statistics - The router's traffic statistics.
• Received (Bytes)
• Received (Packets)
• Sent (Bytes) - Traffic in bytes sent out from the WAN port.
• Sent (Packets)
• System Up Time - The length of the time since the router was last powered on or reset.
Click Refresh to get the latest status and settings of the router.
7. 2.

Network

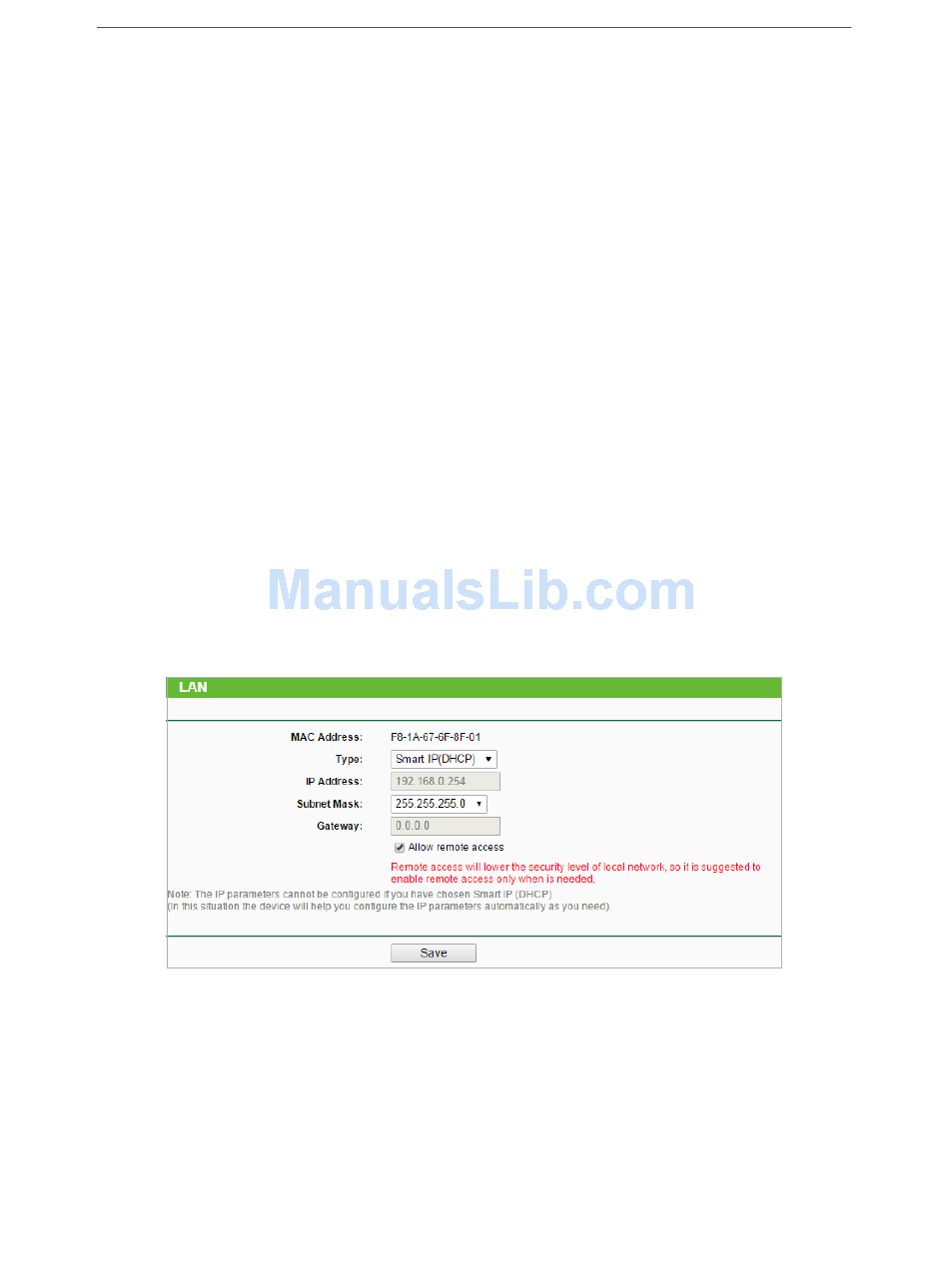

7. 2. 1. LAN
1. Visit http://tplinkwifi.net, and log in with the username and password you set for
the router.
2. Go to Network > LAN.
3. Configure the IP parameters of the LAN and click Save.
• MAC Address - The physical address of the LAN ports. The value can not be changed.
• Type - Either select
configure IP address manually.
• IP Address - Enter the IP address in dotted-decimal notation if your select
(factory default - 192.168.0.254).
• Subnet Mask - An address code that determines the size of the network. Normally
255.255.255.0 is used as the subnet mask.
• Gateway - The gateway should be in the same subnet as your IP address.
- The current wireless channel width in use.
- The physical address of the router.
- Traffic in bytes received from the WAN port.
- Traffic in packets received from the WAN port.
- Traffic in packets sent out from the WAN port.
Smart IP(DHCP) to get IP address from DHCP server, or
Configure the Router in Client Mode
Static IP to
Static IP
110
