This unit is compatible with Caller ID. To use this feature, you must subscribe to
the appropriate service offered by your service provider.
Charge the handset battery for 6 hours before initial use.
Please read these Operating Instructions before using the unit and save for
future reference.

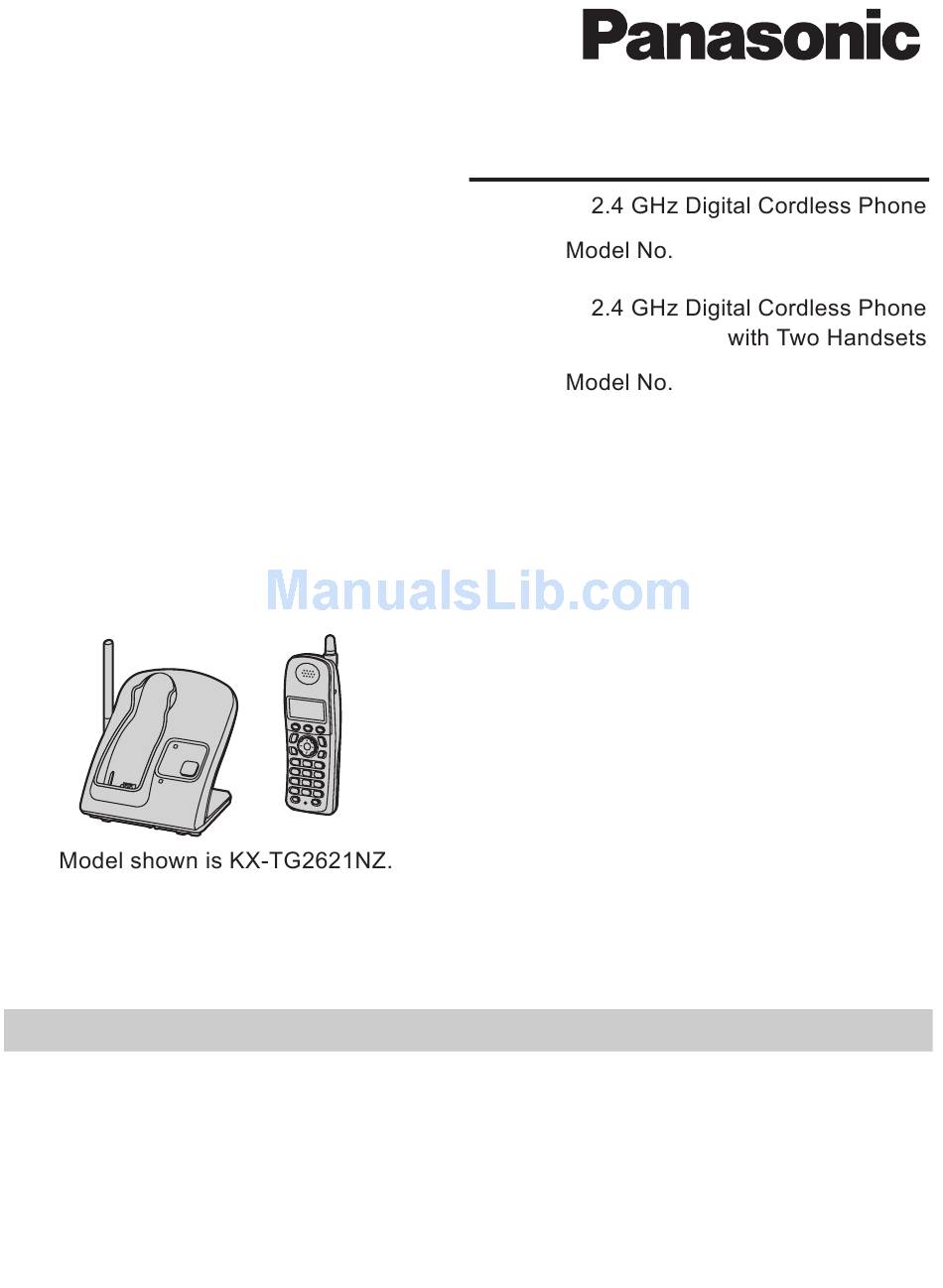

Operating Instructions
KX-TG2621NZ
KX-TG2622NZ
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TG2621NZ
Summary of Contents for Panasonic KX-TG2621NZ
-
Page 1: Operating Instructions
This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate service offered by your service provider. Charge the handset battery for 6 hours before initial use. Please read these Operating Instructions before using the unit and save for future reference. Operating Instructions KX-TG2621NZ KX-TG2622NZ... -
Page 2: Table Of Contents
Table of Contents Introduction Introduction..... . . 3 About these operating instructions ..4 Accessory information ....5 Important safety instructions . -
Page 3: Introduction
Introduction Introduction Thank you for purchasing a Panasonic cordless telephone. We recommend keeping a record of the following information for future reference. Serial No. Date of purchase (found on the bottom of the base unit) Name and address of dealer... -
Page 4: About These Operating Instructions
Introduction About these operating instructions These operating instructions can be used for KX-TG2621/KX-TG2622. Descriptions of the multiple handsets and charger KX-TG2622 includes 2 handsets and a charger. Descriptions of the multiple handsets and charger in these operating instructions are for KX-TG2622 only. KX-TG2622 Symbols used in these operating instructions Symbol... -
Page 5: Accessory Information
Accessory information Included accessories No. Accessory item AC adaptor Telephone line cord Battery Handset cover Charger *1 The handset cover comes attached to the handset. Additional/replacement accessories Accessory item Rechargeable nickel metal hydride (Ni-MH) battery Belt clip Quantity KX-TG2621 Order number HHR-P105 PQKE10393Z1 Introduction... -
Page 6: Important Safety Instructions
Introduction Important safety instructions When using the product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1. Read all instructions carefully. 2. Follow all warnings and instructions marked on the product. 3. - Page 7 CAUTION: Installation L Never install telephone wiring during a lightning storm. L Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. L Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
- Page 8 Introduction immediately and return the product to an authorised service centre. L Disconnect the telecom connection before disconnecting the power connection prior to relocating the equipment, and reconnect the power first. L No “111” or other calls can be made from this device during a mains power failure.
-
Page 9: For Best Performance
For best performance Base unit location/avoiding noise The base unit and other compatible Panasonic units use radio waves to communicate with each other. For maximum distance and noise-free operation, we recommend the following: L Placing the product away from electrical appliances. -
Page 10: Preparation
Connect the telephone line cord until it clicks into the base unit (A) and telephone line jack (B). Connect the AC adaptor cord by pressing the plug firmly (C). L Use only the included Panasonic AC adaptor PQLV19AL. Note: L The AC adaptor must remain connected at all times. -
Page 11: Setting Up The Handset
– Noise is heard during conversations. – Caller ID features (page 24) do not function properly. Setting up the handset Connecting the charger Available model(s): KX-TG2622 L Use only the included Panasonic AC adaptor PQLV19AL. Preparation... -
Page 12: Battery Charge
Insert the battery (A), and press it down until it snaps into position (B). Then close the handset cover. Important: L Use only the rechargeable Panasonic battery noted on page 5. Battery charge Place the handset on the base unit or charger for 6 hours before initial use. - Page 13 Flashing: needs to be recharged. Empty Note: L When the battery needs to be charged, the handset beeps intermittently while it is in use. Panasonic battery performance Operation Operating time While in use Up to 5 hours (talking) While not in use...
-
Page 14: Controls
Preparation Controls Base unit KX-TG2621 KX-TG2622 A Antenna B IN USE indicator C Charge contacts D CHARGE indicator E {HANDSET LOCATOR} F {1} (HANDSET LOCATOR) G {2} (HANDSET LOCATOR) - Page 15 Handset A Speaker B Soft keys C Headset jack D {C} (TALK) E Navigator key ({^} {V} {<} {>}) F {s} (SP-PHONE) G {PAUSE} {REDIAL} H Microphone I Charge contacts J Ringer indicator K Receiver L Display M {MENU} N {OFF} O {MUTE} {CLEAR} P {HOLD} Q {HOLD} {INTERCOM}...
-
Page 16: Displays
Preparation Handset soft keys The handset features 2 soft keys. By pressing a soft key, you can select the feature shown directly above it on the display. {Select}, {Save}, {OK}, {Recall} and additional other functions are assigned to soft keys, pay attention to soft keys to find functions you need during handset operation. -
Page 17: Making/Answering Calls
Making calls Lift the handset and dial the phone number. L To correct a digit, press {CLEAR}. Press {C} or {Call}. When you finish talking, press {OFF} or place the handset on the base unit or charger. Note: L “Line in use” is displayed when someone is talking on another handset (KX-TG2622) or another phone. -
Page 18: Answering Calls
Making/Answering Calls Answering calls When a call is being received, the ringer indicator flashes rapidly. Lift the handset and press {C} or {s}. L You can also answer the call by pressing any button except {^}, {V}, {<}, {>}, or {OFF}. (Any key talk feature) When you finish talking, press {OFF}. - Page 19 After 4 additional minutes on hold, the call is disconnected. Mute While mute is turned on, you can hear the other party, but the other party cannot hear you. To mute your voice, press {MUTE}. L To return to the conversation, press {MUTE} or {C}.
-
Page 20: Dial Lock
To turn dial lock off {MENU} i {6} Enter the same password that was entered when dial lock was turned on. {Save} i {Yes} i {OFF} Note: L If you forget the password, consult your nearest Panasonic service centre. -
Page 21: Phonebook
Handset phonebook You can add up to 50 items to the handset phonebook and search for phonebook items by name. Adding items to the phonebook {Phonebook} {Add} Enter the name (max. 16 characters). i {Next} Enter the phone number (max. 32 digits). -
Page 22: Editing Items In The Phonebook
Phonebook Finding and calling a phonebook item Phonebook items can be searched for alphabetically by scrolling through the phonebook items or by entering the first initial. Searching for a name alphabetically by scrolling through all items {Phonebook} i {Search} Press {^} or {V} to select the desired item. -
Page 23: Copying Handset Phonebook Items
Copying handset phonebook items Available model(s): KX-TG2622 You can copy one or all of the phonebook items from one handset to another. Copying an item {MENU} i {#}{1} Press {^} or {V} to select the desired item. i {Send} Press {OFF} after the long beep. Copying all items {MENU} i {#}{2} Press {OFF} after the long beep. -
Page 24: Caller Id Service
Caller ID Service Using Caller ID service Important: L This unit is Caller ID compatible. To use Caller ID features, you must subscribe to your telephone company’s Caller ID service. For all local and national incoming calls, your display will show the area code (e.g. 09 for Auckland) or the cellular prefix (e.g. -
Page 25: Caller List
Caller list Viewing the caller list and calling back Press {^} or {V} to enter the caller list. Press {V} to search from the most recent call, or {^} to search from the oldest call. Note: L KX-TG2622: Each handset has its own caller list. If you viewed the caller list or answered a call on one handset, the same information in the other handset is... -
Page 26: Storing Caller Information Into The Phonebook
Caller ID Service Editing a caller’s phone number before calling back You can edit a phone number in the caller list. Press {^} or {V} to enter the caller list. Select the desired item. i {Edit} Add or erase digits to the beginning of the number as necessary. -
Page 27: Programming
Programmable settings You can customise the unit by programming the following features using the handset. To access the features, there are 2 methods: scrolling through the display menus (page 27) or using the direct commands (page 29). L Mainly the direct command method is used in these operating instructions. Programming by scrolling through the display menus {MENU} Press {^} or {V} to select the desired menu. - Page 28 Programming Main menu Initial setting *1 If you programme these settings using one of the handsets, you do not need to programme the same item using another handset (KX-TG2622). *2 KX-TG2622 Sub-menu 1 LCD contrast Key tone Auto talk Set area code Set tel line Registration Sub-menu 2...
- Page 29 Programming using the direct commands {MENU} Enter the desired feature code. Enter the desired setting code. L This step may vary depending on the feature being programmed. {Save} i {OFF} Feature Auto talk Copy phonebook (1 item) Copy phonebook (All items) Dial lock Interrupt tone Key tone...
- Page 30 Programming Feature Set line mode Set recall time Voice enhancer *1 If you subscribe to Caller ID service and want to view the caller’s information after lifting up the handset to answer a call, turn off this feature. *2 KX-TG2622 *3 This tone lets you know when you receive a call while you are on an intercom call.
-
Page 31: Multi-Unit Operation
Handset locator KX-TG2621 Base unit: {HANDSET LOCATOR} L The handset beeps for 1 minute. Base unit: To stop paging, press {HANDSET LOCATOR}. Handset: To stop paging, press {OFF}. KX-TG2622 Base unit: {1} or {2} L The handset beeps for 1 minute. Base unit: To stop paging, press {1} or {2}. -
Page 32: Transferring Calls Between Handsets, Conference Calls
Multi-unit Operation Transferring calls between handsets, conference calls Available model(s): KX-TG2622 Outside calls can be transferred between 2 handsets. 2 handsets can have a conference call with an outside party. During an outside call, press {INTERCOM} to put the call on hold. Press the right soft key. -
Page 33: Registering A Handset
Registering a handset The included handset and base unit are preregistered. If for some reason the handset is not registered to the base unit, register the handset. KX-TG2621 Handset: {MENU} i {0}{0} Base unit: Press and hold {HANDSET LOCATOR} until the CHARGE indicator flashes. -
Page 34: Useful Information
Useful Information Wall mounting Base unit Connect the telephone line cord. Drive the screws (not included) into the wall using the wall mount template as a guide. Mount the unit, then slide it down. Connect the AC adaptor to power outlet (page 10). -
Page 35: Headset (Optional)
Charger Available model(s): KX-TG2622 Drive the screws (not included) into the wall using the wall mount template as a guide. Mount the charger (A), then slide it down (B) and to the right (C) until it is secure. Headset (optional) Connecting a headset to the handset allows hands-free phone conversations. -
Page 36: Error Messages
Useful Information Error messages If the unit detects a problem, one of the following messages is shown on the display. Display message Busy Dial locked Error!! ---Incomplete--- Phonebook full Invalid No items stored No link to base. Move closer to base, try again. - Page 37 Display message System is busy. Please try again later. *1 KX-TG2622 Cause/solution L Other units are in use and the system is busy. Try again later. Useful Information...
-
Page 38: Troubleshooting
Useful Information Troubleshooting General use Problem The unit does not work. I cannot hear a dial tone. Programmable settings Problem While programming, the handset starts to ring. Battery recharge Problem I charged the battery fully, but 7 continues to flash, or 8 is displayed. - Page 39 Making/answering calls, intercom Problem Static is heard, sound cuts in and out. Interference from other electrical units. The handset does not ring. I cannot make a call. I cannot redial by pressing {REDIAL}. I cannot have a conversation using the headset.
- Page 40 Useful Information Phonebook Problem Copying stopped with an item displayed. *1 KX-TG2622 Caller ID Problem The handset does not display the caller’s phone number. *1 KX-TG2622 Cause/solution L The destination handset may have lost communication with the base unit, or the destination unit user may have pressed {C} or {s}.
-
Page 41: Specifications
Specifications General Operating environment Frequency Base unit Dimensions Mass (Weight) Power consumption Power output Power supply Handset Dimensions Mass (Weight) Power output Power supply Charger Dimensions Mass (Weight) Power consumption Power supply *1 KX-TG2622 Note: L Design and specifications are subject to change without notice. L The illustrations in these instructions may vary slightly from the actual product. - Page 42 Index Index A Answering calls: 18 Area code: 25 Auto talk: 18 B Battery Charge: 12 Installation: 12 Level: 13 Performance: 13 Replacement: 12 Booster (Clarity booster): 19 C Call share: 20 Call Waiting: 19 Caller ID service: 24 Caller list Calling back: 25 Editing: 26 Erasing: 26...
- Page 43 Notes...
- Page 44 #46, Dalian Development Area, Liaoning, P.R.China Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
