Overview
HP ProLiant DL380 Generation9 (Gen9)
The HP ProLiant DL380 Gen9 Server delivers the best performance and expandability in the HP 2P rack portfolio. Reliability, serviceability and
near continuous availability, backed by a comprehensive warranty, make it ideal for any environment. Deploy the data center standard.

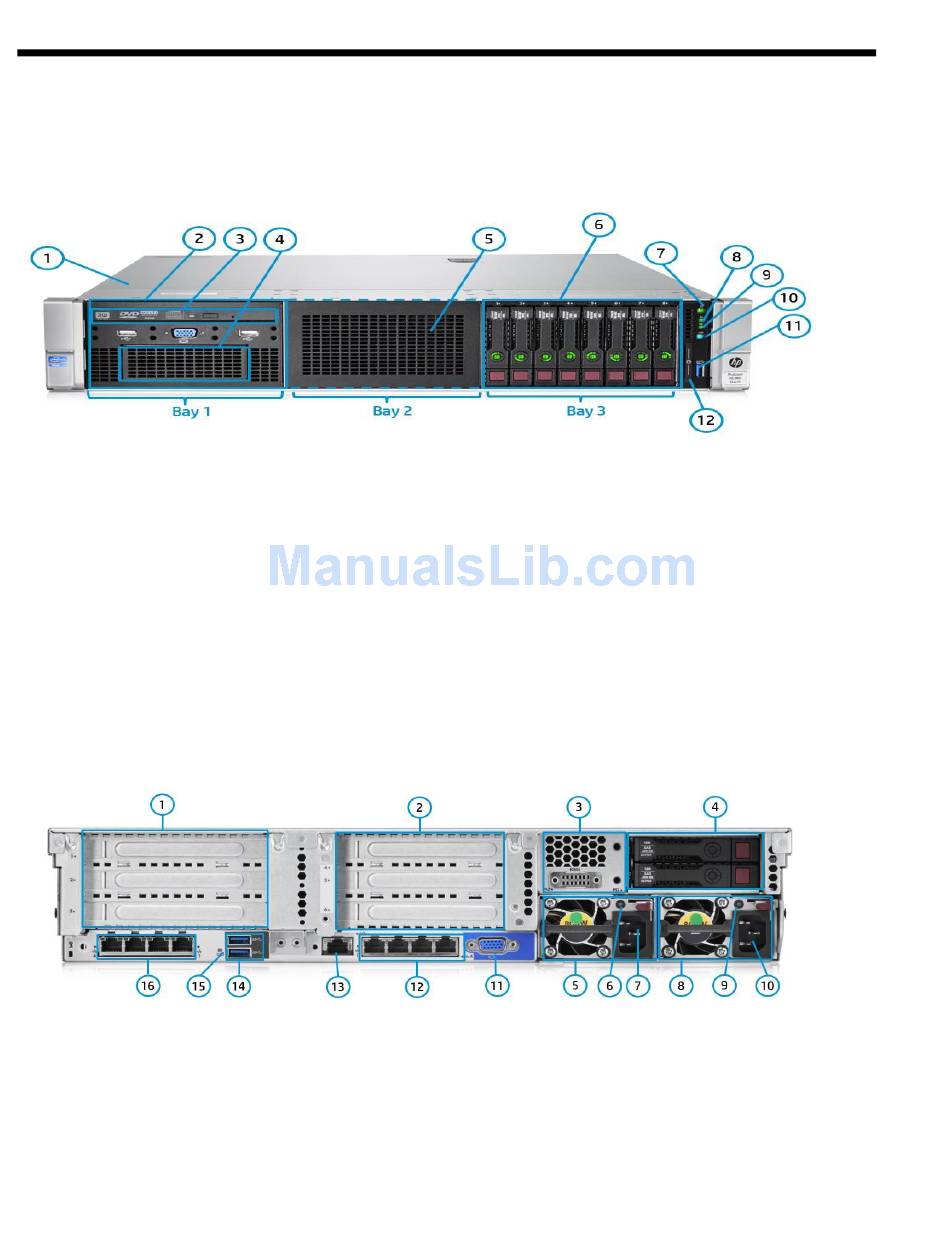

Front View - 8SFF Chassis with Optional Universal Media Bay shown
1.
Quick removal access panel
2.
Universal Media bay. 2 USB 2.0 and VGA standard (8SFF
bay optional)
3.
Optional Optical drive. Requires Universal Media bay
4.
Optional 2 SFF HDD, blank shown. Requires Universal
Media bay
5.
Drive Bay 2. Blank shown, 8SFF optional
6.
8 SFF Drive Cage Bay
7.
Power On/Standby button and system power LED
button
8.
Health LED
9.
NIC status
10.
UID button
11.
USB 3.0
12.
Serial label pull tag
Rear view
1.
PCI Slots (Slots 1-3 top to bottom, riser shipped
standard)
2.
PCI Slots (Slots 4-6top to bottom, requires second riser
card, and second processor)
3.
Optional serial port
4.
Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF
front end)
c04375627 – DA – 15034 North America — Version 7 — February 17, 2015
