HP QUICKSPECS DL380 Quickspecs

Generation 6
Hide thumbs Also See for QUICKSPECS DL380:

Advertisement

Quick Links

Download this manual
QuickSpecs
Overview

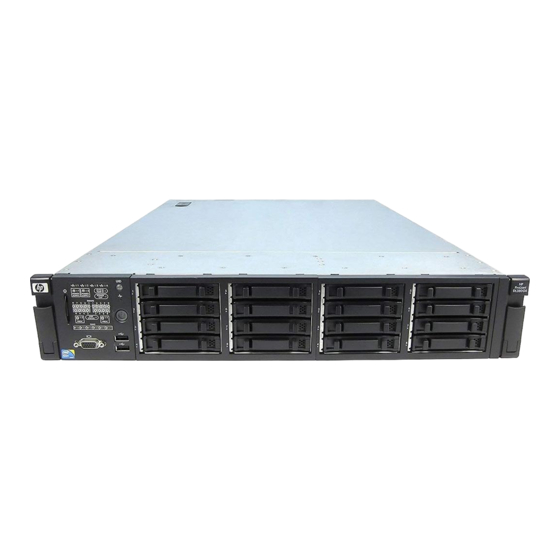

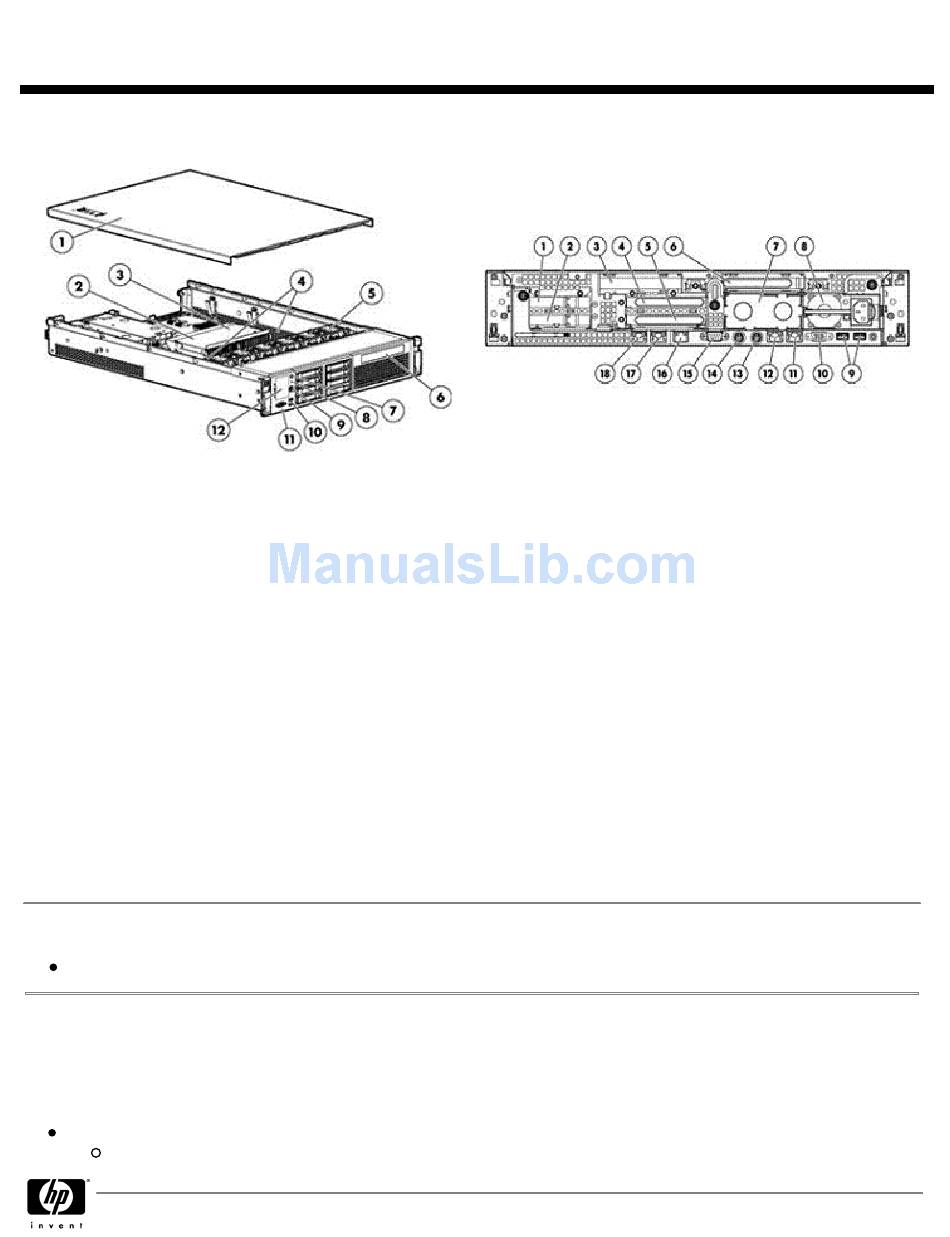

Front View:
Front View:
Front View:
Front View:
1.
Quick removal access panel
2.
Intel Quad-Core Processor (Performance models include
two processors)
3.
Second Intel Quad-Core Processor
4.
Eighteen slots: DDR3 Registered (RDIMM) or Unbuffered
(UDIMM) memory
5.
Hot-plug fans, full N+1 redundancy
6.
Slim Optical Bay (SATA DVD-RW Optical Drive included
on Performance models)
7.
UID LED button
8.
Health LED
9.
Power On/Standby button and system power LED
10.
USB connectors (2)
11.
Video connector
12.
Systems Insight Display
What's New
What's New
What's New
What's New
New Intel Xeon L5530 Processor
At A Glance
At A Glance
At A Glance
At A Glance
The HP ProLiant DL380 G6 Server continues to deliver on its heritage of engineering excellence with increased flexibility and
performance, enterprise-class uptime and manageability, 2-socket Intel Xeon performance, and 2U density for a variety of
applications.
Processors
Processors
Processors
Processors:
Up to 2 Quad-Core or Dual-Core Intel® Xeon® processor 5500 sequence)
DA - 13234
North America — Version 25 — December 18, 2009
HP ProLiant DL380 Generation 6 (G6)
HP ProLiant DL380 Generation 6 (G6)
HP ProLiant DL380 Generation 6 (G6)
HP ProLiant DL380 Generation 6 (G6)
Rear View:
Rear View:
Rear View:
Rear View:
1.
PCI slot 5
2.
PCI slot 6
3.
PCI slot 4
4.
PCI slot 2
5.
PCI slot 3
6.
PCI slot 1
7.
Power supply 2
8.
Power supply 1
9.
USB connectors (2)
10.
Video connector
11.
NIC 1 connector
12.
NIC 2 connector
13.
Mouse connector
14.
Keyboard connector
15.
Serial connector
16.
iLO2 connector
17.
NIC 3 connector
18.
NIC 4 connector
Page 1
