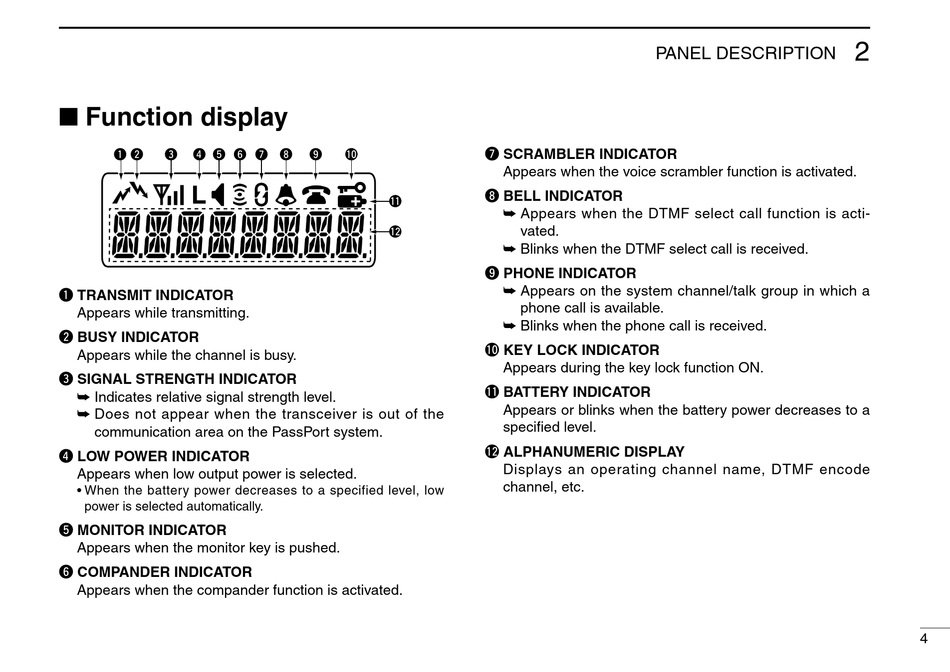

Function display

q w e r t y
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
Does not appear when the transceiver is out of the
communication area on the PassPort system.
r LOW POWER INDICATOR
Appears when low output power is selected.
power is selected automatically.
t MONITOR INDICATOR
Appears when the monitor key is pushed.
y COMPANDER INDICATOR
Appears when the compander function is activated.
u i o !0
!1
!2
PANEL DESCRIPTION
u SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
i BELL INDICATOR
Appears when the DTMF select call function is acti-
vated.
Blinks when the DTMF select call is received.
o PHONE INDICATOR
Appears on the system channel/talk group in which a
phone call is available.
Blinks when the phone call is received.
!0 KEY LOCK INDICATOR
Appears during the key lock function ON.
!1 BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
!2 ALPHANUMERIC DISPLAY
Displays an operating channel name, DTMF encode
channel, etc.
