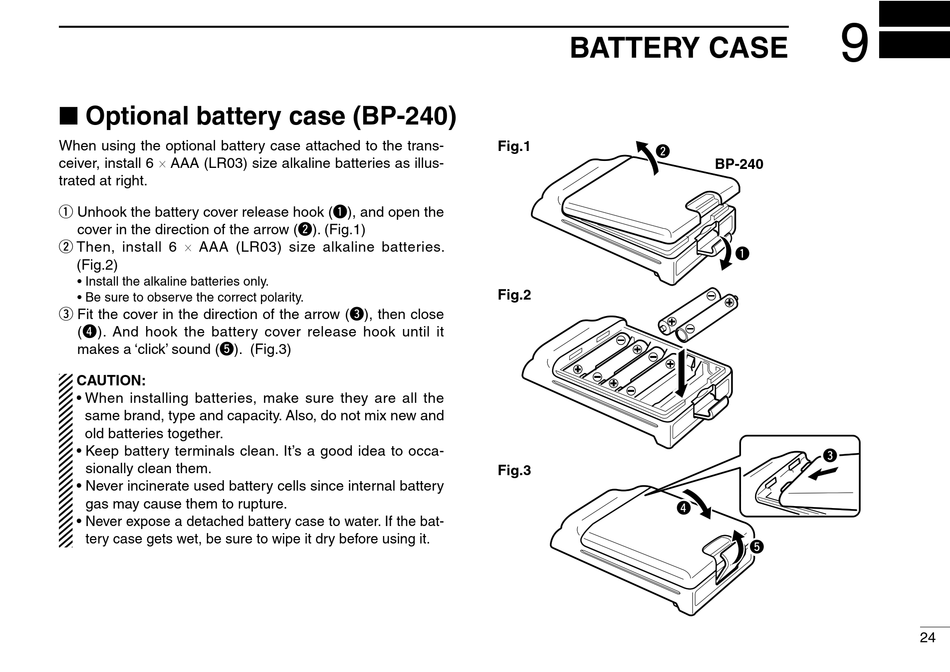

Optional battery case (BP-240)

ceiver, install 6 AAA (LR03) size alkaline batteries as illus-
trated at right.
q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Then, install 6 AAA (LR03) size alkaline batteries.
(Fig.2)
e Fit the cover in the direction of the arrow (e), then close
(r). And hook the battery cover release hook until it
t). (Fig.3)
CAUTION:
same brand, type and capacity. Also, do not mix new and
old batteries together.
sionally clean them.
gas may cause them to rupture.
Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.

BATTERY CASE

- Fig.1
Fig.2
-
Fig.3
w
BP-240
q
e
r
t
