2

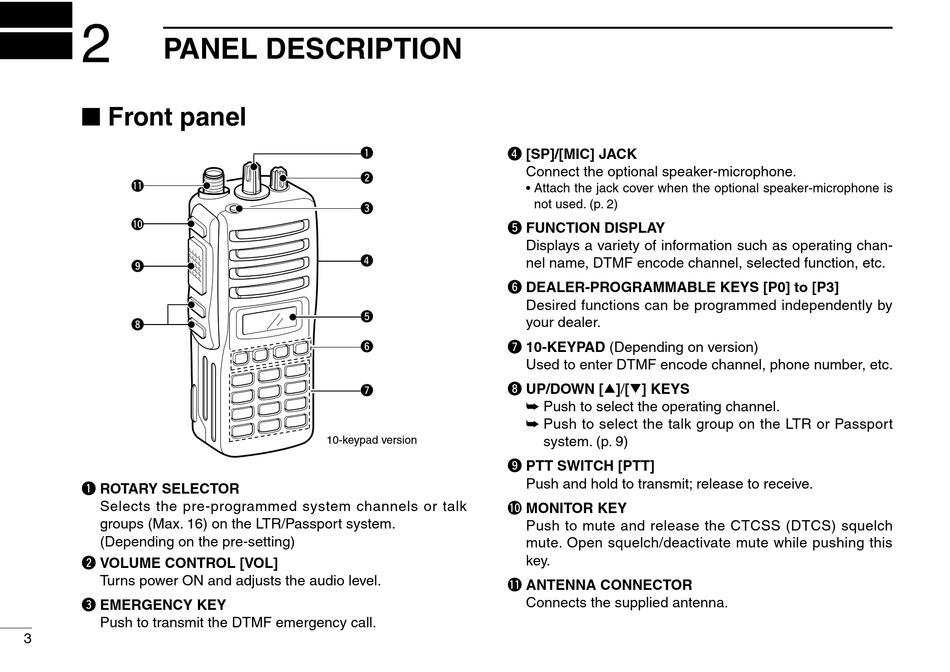

PANEL DESCRIPTION

Front panel

!1
!0
o
i
q ROTARY SELECTOR
Selects the pre-programmed system channels or talk
groups (Max. 16) on the LTR/Passport system.
(Depending on the pre-setting)
w VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
e EMERGENCY KEY
Push to transmit the DTMF emergency call.
3
q
w
e
r
t
y
u
10-keypad version
r [SP]/[MIC] JACK
Connect the optional speaker-microphone.
not used. (p. 2)
t FUNCTION DISPLAY
Displays a variety of information such as operating chan-
nel name, DTMF encode channel, selected function, etc.
y DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer.
u 10-KEYPAD (Depending on version)
Used to enter DTMF encode channel, phone number, etc.
i UP/DOWN [∫]/[√] KEYS
Push to select the operating channel.
Push to select the talk group on the LTR or Passport
system. (p. 9)
o PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
!0 MONITOR KEY
Push to mute and release the CTCSS (DTCS) squelch
mute. Open squelch/deactivate mute while pushing this
key.
!1 ANTENNA CONNECTOR
Connects the supplied antenna.
