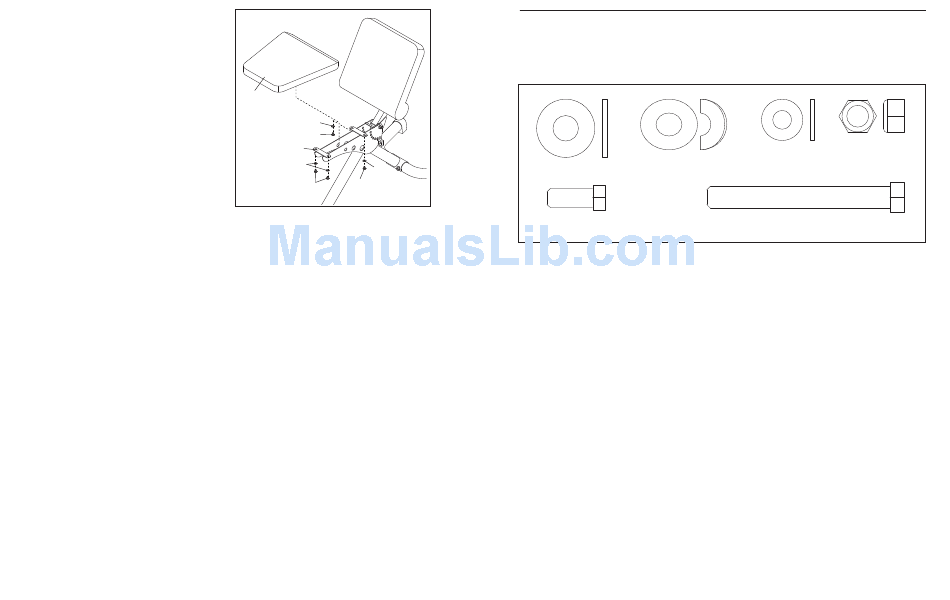

5. Attach the Seat (6) to the Frame (2) with four M8
x 20mm Screws (17) and four M8 Washers (18).
6. Make sure all parts are properly tightened
before the weight bench is used.
5
6
18
17
2
18
18
17
17
8
PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST on page 10 of this manual. Note: Some small parts may have
been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M10 Curved Washer (19)
M10 Washer (20)
M8 x 20mm Screw (17)
M10 Nut (21)
M8 Washer (18)
M10 x 80mm Bolt (22)
