12000 Series Switches

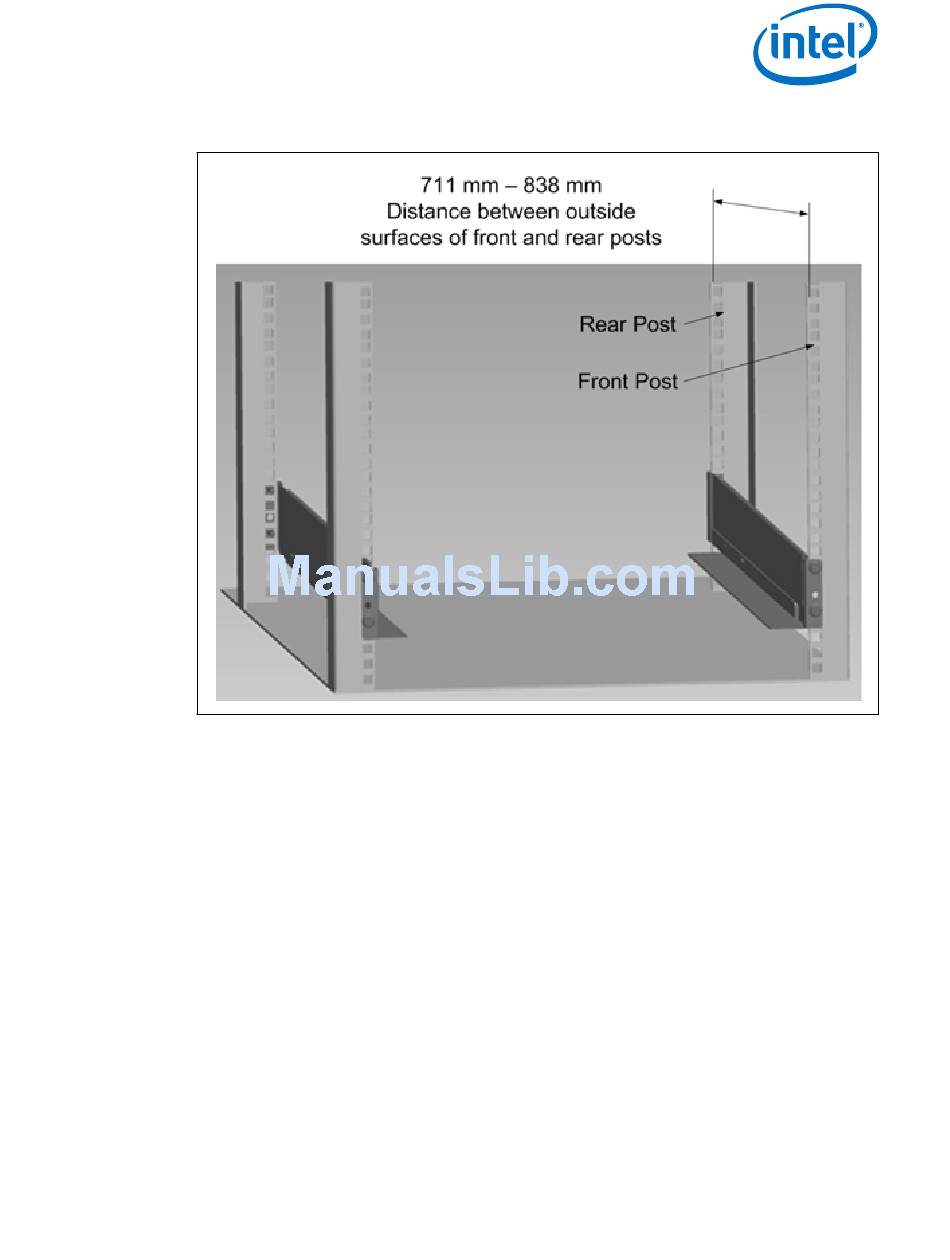

Figure 16.
Support Rail Installation
4. Install two (2) rear mounting Hat Brackets on the chassis and fasten with #8–32
screws. There are four (4) screws per bracket. Torque to 30in-lb.
True Scale Fabric Switches 12000 Series Hardware
July 2015
Installation Guide
Order Number: G91928004US
