Intel Express 460T User Manual

Standalone switch
Hide thumbs Also See for Express 460T:
Table of Contents

Advertisement

Quick Links

®
Intel
Express 460T
Standalone Switch
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Intel Express 460T

Summary of Contents for Intel Express 460T

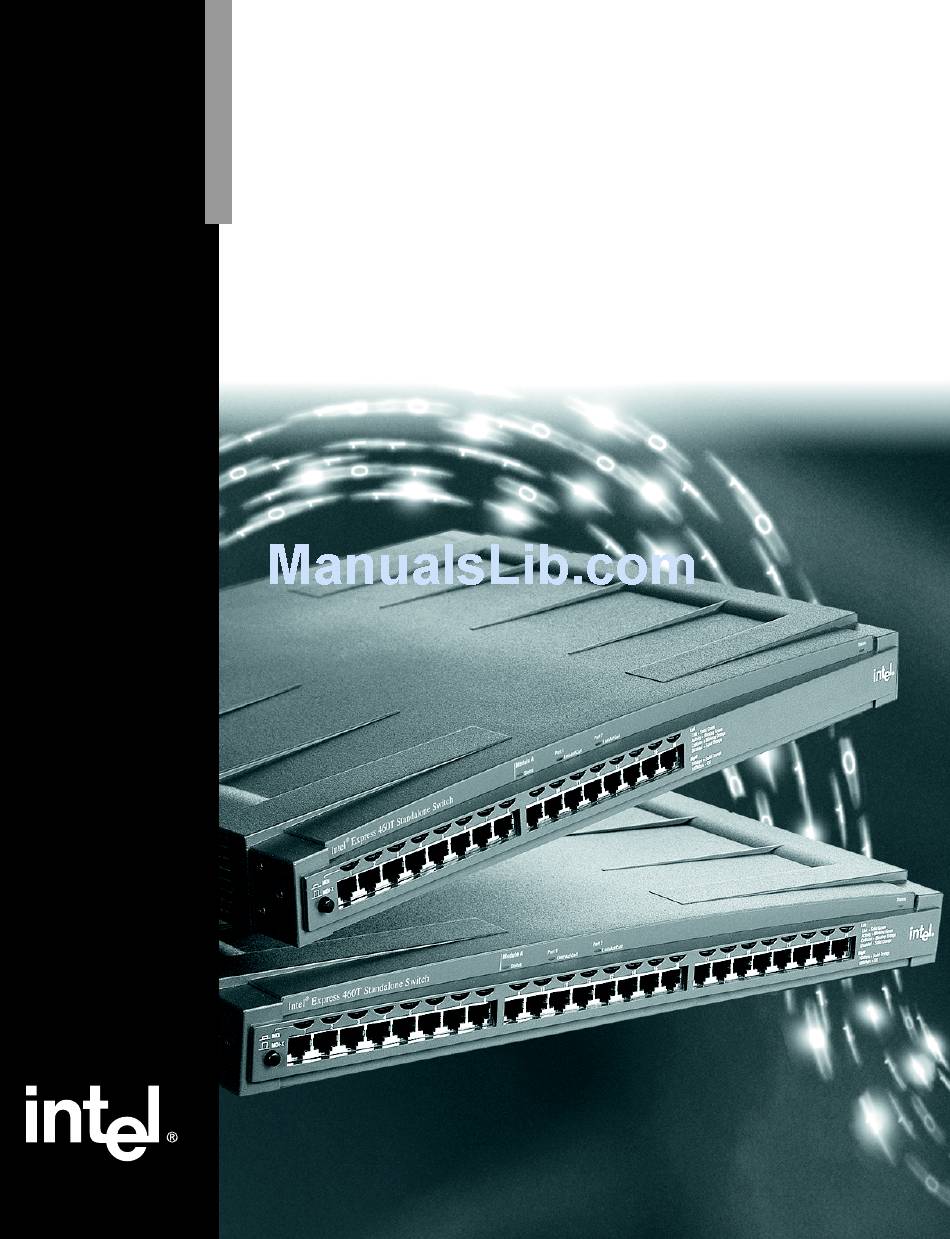

  • Page 1 ® Intel Express 460T Standalone Switch User Guide...
  • Page 2 Copyright © 2001, Intel Corporation. All rights reserved. Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497 Intel Corporation assumes no responsibility for errors or omissions in this manual. Nor does Intel make any commitment to update the information contained herein.

  • Page 3: Table Of Contents

    Configuring Modules ... 7 Media Requirements ... 8 Testing a Cable ... 9 Straight-through vs. Crossover Cables ... 10 2: Using the Intel Express 460T Standalone Switch Overview ... 11 What is a Switch? ... 12 Sample Configurations ... 13 Flow Control ...
  • Page 4 Intel Express 460T Standalone Switch Users Guide Using the Device Tree ... 26 Managing a Switch ... 29 Viewing RMON information ... 30 4: Using the Web Device Manager Accessing the Web Device Manager ... 32 Navigating the Web Device Manager ... 33 Using Management Screens ...
  • Page 5 Intel Express 460T Standalone Switch Users Guide Configure Static MAC Addresses ... 68 Configure Port Security ... 69 Configure MAC Address Filtering ... 71 Configure Ethernet Multicast Filtering ... 72 Ethernet Multicast Filtering (Ports) ... 73 Port Mirroring ... 74 Link Aggregation ...
  • Page 6 Intel Express 460T Standalone Switch Users Guide Port Traffic Statistics ... 107 Port Error Statistics ... 109 Packet Analysis ... 111 IGMP Snooping Status ... 112 Browse Address Table ... 113 VLAN and GVRP Status ... 115 Tools ... 116 Switch Event Log ...

  • Page 7: Standalone Switch

    Overview This guide provides information on configuring and managing the Intel Express 460T Standalone Switch and is organized into these chapters: • Chapter 1 - Information on the switch hardware and optional modules • Chapter 2 - Information on using the switch in a LAN and advanced •...

  • Page 8: Switch Features

    Intel Express 460T Standalone Switch Users Guide Switch Features The following diagrams show the major features of the 16-port and 24-port versions of the 460T Standalone Switches. 16-port 460T Switch (Product Code ES460T16) Module A ® Intel Express 460T Standalone Switch...

  • Page 9: Module Features

    Module Features Both the 16-port and 24-port versions of the 460T Standalone Switches can accept a module to provide additional functionality. 100Base-FX Fiber Module (Product Code ES460MFX) 1000Base-SX Gigabit Module (Product Code ES460MSX) 1000Base-LX Gigabit Module (Product Code ES460MLX) 1000Base-T Gigabit Module (Product Code ES460MT)

  • Page 10: Port Leds

    Re-enable the port and try again. When the switch is first powered on, the Status LED is red for a couple of seconds before the diagnostic mode starts, then it turns orange.

  • Page 11: Crossover Button

    Setting up the Switch Crossover Button The 460T switch has a button that toggles port 1 from MDI-X to MDI. With the button depressed (MDI) you can to connect to another switch or a hub without using a crossover cable. For more information, see pages 9-10.

  • Page 12: Installing A Module

    Installing a Module You can install optional modules only in the Module A slot located at the back of the switch. Use the LEDs on the front of the switch to check the module’s status. To install the module in the switch 1 Unplug the power cord from the switch.

  • Page 13: Module A Leds

    Module A LEDs The LEDs are located on the front of the switch above ports 9-16. These LEDs provide information about the 100FX, 1000SX, or 1000LX module such as the module’s status, link, port activity, and collisions. When you are using the 1000SX, 1000LX, or 1000T module, only the port 1 LED will blink and show activity because the module has only one port.

  • Page 14: Media Requirements

    CAT 5 UTP cabling. The limit is 100 meters between any two devices. 100Base-FX The optional Fiber Module lets you connect to a switch at distances up to 400 meters (hubs up to 160 m) at half-duplex or 2 km at full-duplex. Use 62.5/125 µm multimode fiber optic cable with an SC-type fiber optic...

  • Page 15: Testing A Cable

    If a cable passes these tests, but the network connection is slow, verify that wires 1, 2 and 3, 6 on the cable are twisted pairs, as shown in the following diagrams. Setting up the Switch Media Type Cabling Used µ...

  • Page 16: Straight-Through Vs. Crossover Cables

    Intel Express 460T Standalone Switch Users Guide Straight-through vs. Crossover Cables Switch ports are wired for MDI-X. Use a straight-through cable to connect to a workstation or server (network adapter cards are wired MDI). To connect to another MDI-X port, use a crossover cable. Following are the pin arrangements for the switch’s Ethernet port and the typical RJ-45 connector.

  • Page 17: Overview

    Express 460T Standalone Switch Overview This section provides an overview for using the Express 460T standalone switch within a network. The chapter covers the basic differences between a switch and hub, basic switching features like flow control and Spanning Tree, and a discussion of more advanced features such as link aggregation and the types of VLANs available on the switch.

  • Page 18: What Is A Switch

    If a device sends traffic to an address that is not in the table (or sends broadcast or multicast traffic) the switch sends the traffic out to all ports on the switch. When the switch receives a response it updates the table with the new address.

  • Page 19: Sample Configurations

    Small Office Backbone In this example, the 460T switch serves as the backbone for a small network. The switch can provide high-bandwidth support to the clients (servers and power users) that require it while providing connections for 10 Mbps devices.

  • Page 20: Flow Control

    (also called backpressure) which causes the transmitting device to wait. If the port operates at full-duplex, the switch sends out an IEEE 802.3x PAUSE frame. You can enable or disable flow control for each port on the 460T switch. Spanning Tree Protocol Spanning Tree is a protocol that prevents loops within the network topology.

  • Page 21: Tagged Frames

    The priority level can range from 0 (low) to 7 (high). The 460T switch can read the priority tags and forward traffic on a per port basis. The switch uses two priority queues per port and routes traffic to a queue depending on the packet’s tag.

  • Page 22: Link Aggregation

    To aggregate ports, you must link an “anchor” port to an adjacent port. The 460T Switch supports up to four link aggregation groups (anchor ports 1, 9, 17) for a 24-port switch and up to three link aggregation groups (anchor ports 1, 9) on a 16-port switch.

  • Page 23: Virtual Lans (Vlans)

    VLAN. The advantage of port-based VLANs is that they are easy to configure and, because all changes occur at the switch, they are transparent to the users. The 460T supports up to 12 port-based VLANs. A port can belong to only one VLAN at a time.
  • Page 24 VLAN. The advantage to this type of VLAN is that even if users relocate, they remain on the same VLAN as long as they stay connected to the same switch. The 460T switch supports up to 12 MAC- based VLANs.
  • Page 25 IEEE 802.1Q (Tag-Based) VLANs The third type of VLAN supported by the 460T switch is based on the IEEE 802.1Q specification. The specification provides a uniform way to create VLANs within a network and enables you to create a VLAN that can also span across the network.

  • Page 26: Spanning Tree And Vlans

    Intel Express 460T Standalone Switch Users Guide On the 460T switch, overlapping VLANs can be supported by using 802.1Q- capable devices. However, for non-802.1Q-capable devices, overlapping VLANs can be supported by implementing an asymmetric VLAN on the switch. An asymmetric VLAN is a type of 802.1Q configuration where endstations send traffic on one VLAN and receive traffic on another VLAN.

  • Page 27: Garp Vlan Registration Protocol (Gvrp)

    When the device sending out the GVRP updates is disabled or rebooted, the dynamic VLAN is removed. Using the Intel Express 460T Standalone Switch • Dynamically adds or removes a port from participating in a VLAN. • Sends updates about the switch’s own VLAN configuration to neighboring GVRP-capable devices.

  • Page 28: Internet Group Multicast Protocol (Igmp)

    Intel Express 460T Standalone Switch Users Guide Internet Group Multicast Protocol (IGMP) Generally, the switch broadcasts multicast traffic to all ports. For multicast traffic based on the TCP/IP using the IGMP protocol, the switch can optimize the broadcasting of multicast traffic by forwarding multicast traffic only to ports that require it.

  • Page 29: 3: Using Intel® Device View Overview

    Device View to manage Intel Express 460T Standalone • The ability to configure new network devices • A graphical device manager for Intel switches, hubs, and routers • Autodiscovery, which finds supported Intel devices on the network • The Device Tree, which shows all the supported devices detected on your network •...

  • Page 30: Installing Intel Device View

    Intel Express 460T Standalone Switch Users Guide Installing Intel Device View Before you install Intel Device View, make sure your PC meets the system requirements in the Intel Device View User Guide, which is included on the Intel Device View CD-ROM.

  • Page 31: Starting Intel Device View

    Starting Intel Device View Install either the Windows or Web version of Intel Device View. Windows version From your desktop, click Start and then click Programs > Intel Device View > Intel Device View - Windows. The main screen appears. Web version...

  • Page 32: Using The Device Tree

    To install and configure a new switch for management 1 Start Intel Device View. The Device Install Wizard appears. If it doesn’t appear, click Install from the Device menu or double-click the appropriate MAC address in the Device Tree under Unconfigured Devices.
  • Page 33 Different states of the 460T switch are represented by icons in the Device Tree. Device Tree icons The Device Tree works much like Windows Explorer. To expand the root or a subnet, click the (+) next to the icon. To collapse the view, click the (-) next to the icon.
  • Page 34 If the non-responding switch icon appears, you cannot manage the device in Intel Device View. If you cannot ping the device or start a Telnet session, try accessing the switch’s Local Management.

  • Page 35: Managing A Switch

    IP address of 124.123.122.3. The Web Device Manager appears in the Intel Device View window. For information about using Intel Device View,see the program’s Help or see the Intel Device View User Guide on the Intel Device View installation CD-ROM.

  • Page 36: Viewing Rmon Information

    2 Click the RMON option you want to view. To access RMON features, you can use LANDesk Network Manager or an SNMP application that supports RMON such as OpenView. For more information about using RMON to monitor the switch, see the Intel Device View Help.

  • Page 37: 4: Using The Web Device Manager

    Using the Web Device Manager You can use the Web Device Manager, which is built into the Intel 460T Standalone Switch, to manage and monitor the switch using a Web browser. For example, you can use the Web Device Manager to configure the switch or individual ports, or to monitor traffic statistics and utilization.

  • Page 38: Accessing The Web Device Manager

    1 In the Location or Address field of your Web browser type the IP address of the switch. For example, to use the default IP address of the switch, type 192.0.2.1 in the Location or Address field and then press Enter.

  • Page 39: Navigating The Web Device Manager

    Navigating the Web Device Manager Click a menu to view available options. Click a menu option to view the corresponding help screen. Web Device Manager 1 On the left side of the Web Device Manager window, click a menu item (such as Configure Device) to show the available options.

  • Page 40: Using Management Screens

    Intel Express 460T Standalone Switch Users Guide Using Management Screens After you select an option from the navigation menu, the corresponding screen appears in the right side of your Web browser window. Switch faceplate graphic A graphical representation of the switch faceplate appears at the top of the screen.

  • Page 41: Configuring The Switch's Ip Settings

    VID of the VLAN where the switch’s SNMP management agent will reside. 3 Click Submit. 4 The new IP settings do not take effect until the switch reboots. Do one of the following: To have the changes take effect now, click Save and Reboot. Rebooting the switch temporarily interrupts network connectivity to the switch.

  • Page 42: Configuring A Port

    IP settings, you must reboot the switch before the new settings can take effect. Intel Express 460T Standalone Switch Users Guide Configuring a Port You can use the Web Device Manager to enable or disable a port, and to change its speed, duplex, flow control, and priority settings.

  • Page 43: Managing User Accounts

    Managing User Accounts Create user accounts to give specific users read or write access to the switch through the Web Device Manager and Local Management. You can create up to three accounts on the switch. To create a user account...
  • Page 44 If you delete the account you used to log in for this session, you can continue to use that account until you log out. If you delete the only user account on the switch, you can log in again using the default of no username and no password.

  • Page 45: Configuring Vlans

    1 Click the Configure VLAN menu and then click VLAN Operation Mode. 2 In the Current VLAN Mode Is box, click the type of VLAN to set up. You can set the 460T switch to use port-based, MAC-based, or tag- based VLANs. See “Virtual LANs” in Chapter 2 for more information about VLAN types.
  • Page 46 Intel Express 460T Standalone Switch Users Guide Port-based VLAN You configure a port-based VLAN by creating the VLAN and then adding participating ports. The switch can support up to 12 port-based VLANs. However a port can be a member of only one VLAN; port-based VLANs cannot overlap.
  • Page 47 MAC-based VLAN You configure a MAC-based VLAN by creating the VLAN and then adding the MAC addresses of member devices. To create a MAC-based VLAN Web Device Manager 1 Click the Configure VLAN menu and then click MAC-based VLAN. 2 Click Add VLAN. 3 In the VLAN Name box, type a name for the VLAN.
  • Page 48 Intel Express 460T Standalone Switch Users Guide Tag-based VLAN You configure a tag-based VLAN by configuring port membership and ingress/egress rules. If any of your devices don’t support 802.1Q VLAN tags, additional configuration may be necessary. To configure a tag-based (IEEE 802.1Q) VLAN 1 Create a VLAN and assign member ports.
  • Page 49 Ensure that the VLAN Name field displays the name of the VLAN you are configuring. b To determine whether or not the switch will remove (untag) tags before sending traffic out of each port, select Tag or Untag for each of the VLAN’s ports.
  • Page 50 Intel Express 460T Standalone Switch Users Guide 3 Configure ports for handling untagged traffic. a From the main Tag-based VLAN page, click Port Settings. b On the Port Settings screen, you can set port-specific behaviors for processing VLAN traffic. To configure a specific port, click it in the faceplate graphic.

  • Page 51: Link Aggregation

    For example, ports 1, 2, and 3 are a valid link aggregation; ports 2, 4, and 7 are not. On the Web Device Manager switch faceplate graphic, a link aggregation is shown with its ports outlined in magenta.

  • Page 52: Static Mac Addresses

    Monitor menu, click Advanced, then click MAC Address Table. Intel Express 460T Standalone Switch Users Guide Static MAC Addresses The MAC address table stores all the MAC addresses known by the switch. The switch uses this table for forwarding traffic to specific devices to avoid broadcasting traffic to every port for communication.

  • Page 53: Configuring Community Strings And Trap Receivers

    A trap receiver is a computer on the network that is running an SNMP management application and receives messages sent by the switch. For example, the switch can send a trap to the trap receiver when it detects a change in port speed.

  • Page 54: Monitoring Switch Activity

    Intel Express 460T Standalone Switch Users Guide Monitoring Switch Activity The Web Device Manager lets you view traffic, utilization, and error statistics for the switch and for individual ports. For more information on statistics, see “Port Traffic Statistics,” “Port Error Statistics,” and “Packet Analysis”...

  • Page 55: Viewing/Changing Switch Information

    Viewing/Changing Switch Information You can view information about the switch, such as its MAC address, firmware version, name, location, and contact person. Some of the fields can be updated, others are read-only. To view and configure switch settings Web Device Manager 1 Click the Configure Device menu and then click Switch Settings.

  • Page 56: Updating Switch Firmware

    Network Manager. Intel Express 460T Standalone Switch Users Guide Updating Switch Firmware Use the Update Firmware screen to set the switch up to update its firmware from a TFTP server. The actual firmware update occurs while the switch is rebooting.
  • Page 57 To update the switch’s configuration file The new configuration settings will be applied to the switch upon the next reboot. Web Device Manager The configuration file contains information and configuration settings specified by the network administrator. For more information on using configuration files, see “Upload Configuration Image File”...

  • Page 58: Saving Configuration Changes And Logging Out

    Each time you make configuration changes using the Web Device Manager, the switch immediately uses the new settings. However, unless you permanently save the configuration changes when you log out of the Web Device Manager, they are lost upon the next switch reboot. To save changes and log out 1 On the menu, click Log Out.

  • Page 59: 5: Using Local Management

    IP address you assign or the default IP address of 192.0.2.1). Using the serial port 1 Use the null modem cable included with the switch to connect the serial port of your PC to the serial port of the switch.

  • Page 60: Logon Screen

    To access the switch using Telnet, your workstation must be in the same subnet as the switch. Intel Express 460T Standalone Switch Users Guide Using Telnet 1 Open a Telnet application. In Windows 98 or Windows NT*, select Run from the Start Menu and then type: telnet E.

  • Page 61: Navigation

    Using Local Management Navigation The console menus provide a basic interface for configuring switch options. For navigation tips, see the text below the graphic. Screen Legend Use the W Z A S keys or the T and b keys to move between screen fields.

  • Page 62: Main Menu (Top Screen)

    LOCATION To return to the Main Menu at any time, press c T. Intel Express 460T Standalone Switch Users Guide Main Menu (Top Screen) Description The Main Menu is the starting point for all other Local Management screens. Use the W Z arrow keys to choose an option and press E to display the screen.

  • Page 63: Configure Device

    Module port settings: Configures the module’s speed and duplex settings, enables and disables ports, and displays link status. Switch settings: Sets switch identification, displays detailed information about the switch hardware and firmware, and configures some advanced switch settings. Spanning Tree Protocol: Configures Spanning Tree for the entire switch or individual ports.

  • Page 64: Configure Ip Address

    Intel Express 460T Standalone Switch Users Guide Configure IP Address Description Switch MAC address: The unique hardware address assigned by Intel. Current settings: The switch’s current IP configuration. New settings: Assign a new IP configuration to the switch. Assign IP: Indicates if the switch obtains an IP address dynamically, or if you assign an address manually.

  • Page 65: Port Configuration

    Port Configuration Description LOCATION Configure ports: Press the z to select a range of ports to configure. Main Menu Configure Device State: Press the z to toggle the field and disable or enable ports. Port Settings Speed/Duplex: Press the z to toggle the field options and change the speed and duplex of the port.

  • Page 66: Module Port Settings

    LOCATION Main Menu Configure Device Module Port Settings Intel Express 460T Standalone Switch Users Guide Module Port Settings Description Ports: Press the z to select a port on the module (FX Module only). State: Press the z to toggle the field and disable or enable ports.

  • Page 67: Switch Settings

    Name: Assigns a name to the switch, up to 40 characters long. Location: Assigns a location to the switch, up to 40 characters long. Contact: Assigns a contact person or phone number to the switch, up to 40 characters long.

  • Page 68: Configure Advanced Switch Settings

    Normally, when the switch sends traffic to a port it goes to the port’s transmit queue and is sent out. If the port’s transmit queue is already busy trying to send out data, the switch places the waiting traffic in the buffer memory until the port is ready to send it out.

  • Page 69: Configure Spanning Tree Protocol

    Spanning Tree status: Use the z to enable or disable support for the Spanning Tree Protocol, where the entire switch is a bridge for which you can set spanning tree parameters. (Note: If you are running 802.1Q VLANs, spanning tree must be enabled and is turned on automatically by the switch.)
  • Page 70 Intel Express 460T Standalone Switch Users Guide Hello Time: Type a number from 1 to 10 seconds (default is 2 seconds). This is the time between transmissions of configuration BPDUs (Bridge Protocol Data Units) when the switch is, or is attempting to become, the root in the spanning tree.

  • Page 71: Configure Spanning Tree For Ports

    The higher the value, the lower the chance oit will be used as the root port. If two ports on the switch have the same priority value, the spanning tree uses the port with the lowest number. For example, the spanning tree would choose port 1 over port 4 if they both had the same priority setting.

  • Page 72: Forwarding And Filtering

    LOCATION Main Menu Configure Device Forwarding and Filtering Intel Express 460T Standalone Switch Users Guide Forwarding and Filtering Description Lock address table: Use the z to toggle field values. <Yes> prevents the switch from learning new MAC addresses. Any existing addresses the switch has learned remain in the address table.

  • Page 73: Configure Igmp Snooping

    The switch “snoops” the IGMP query and report messages and forwards traffic only to the ports that request the multicast traffic. This prevents the switch from broadcasting the traffic to all ports and possibly affecting network performance.

  • Page 74: Configure Static Mac Addresses

    MAC address, it remains in the switch’s address table until you remove it. Enter MAC: Type the MAC address you want to add to the address table. VLAN or VLAN ID: When VLANs are active on the switch you can define static MAC addresses for each VLAN. If port-based VLANs are active press the z to select a VLAN.

  • Page 75: Configure Port Security

    1 On the Configure Device screen, select Forwarding and Filtering. 2 Select Configure Port Security from this menu. 1 To set the switch to use the first MAC address seen on the port you are securing, in the MAC Learning column, press z until <Single>...
  • Page 76 4 In the Port Number box, select the port you are securing. 5 If port-based or tag-based (IEEE 802.1Q) VLANs are set up on the switch, the address will be used by a specific VLAN. Type the name or VID of the VLAN to use the MAC address.

  • Page 77: Configure Mac Address Filtering

    Description MAC address filtering enables the switch to drop unwanted traffic. The switch drops traffic when it sees the specified MAC address in either the source address or destination address of the incoming packet. For example, if your network is congested because of high utilization from a specific MAC address, you can filter all traffic transmitted from that address and restore network flow while you troubleshoot the problem.

  • Page 78: Configure Ethernet Multicast Filtering

    If tag-based (IEEE 802.1Q) or port- based VLANs are currently run- ning, you must assign each multicast filter to a specific VLAN. Intel Express 460T Standalone Switch Users Guide Configure Ethernet Multicast Filtering Description Use Ethernet multicast filters to define which ports can receive multicast traffic from a specific multicast MAC address.

  • Page 79: Ethernet Multicast Filtering (Ports)

    LOCATION Main Menu Configure Device Forwarding and Filtering Ethernet Multicast Filtering Multicast Filters Per Port Using Local Management Ethernet Multicast Filtering (Ports) Description Action: Use the z to select whether to block or forward traffic to the selected port. APPLY CHANGES: Applies the changes to the multicast filter after you have configured the ports.

  • Page 80: Port Mirroring

    However, a port in an aggregated link can serve as the source port for a port mirror. Intel Express 460T Standalone Switch Users Guide Port Mirroring Description Port mirroring is a diagnostic tool you can use to send a copy of the good Ethernet frames transmitted or received on one port to another port.

  • Page 81: Link Aggregation

    Using Local Management Link Aggregation Description Use link aggregation to combine ports on the switch to increase the available bandwidth and provide redundancy. All ports in the aggregated link take on the characteristics of the anchor port. For example, if you set the anchor port to 100 Mbps and full duplex, all the ports aggregated to that anchor port are 100 Mbps and full duplex.

  • Page 82: Broadcast Storm Control

    LOCATION Main Menu Configure Device Broadcast Storm Control Intel Express 460T Standalone Switch Users Guide Broadcast Storm Control Description Use this feature to filter out broadcasts from faulty devices and prevent them from degrading network performance. Setting: Use the z to enable or disable broadcast storm control on this port.

  • Page 83: Configure Management Menu

    Update firmware and configuration files: Configures the switch’s internal software and specifies the location of configuration files. Reset and console options: Reboot the switch or change the settings on the serial port. You can also set the switch back to its factory defaults.

  • Page 84: Community Strings & Trap Receivers

    • A port is partitioned. • Authentication failure. • A security violation occurs on the port. Intel Express 460T Standalone Switch Users Guide Community Strings & Trap Receivers Description Use this screen to send alerts to PCs with SNMP management applications (such as OpenView*) installed.

  • Page 85: User Accounts

    New password: Sets a new password for accessing Local Management. The one you specify here is used the next time you reset the switch or log out and log in on Local Management. Passwords are case-sensitive and can be up to fifteen characters long.

  • Page 86: Managing User Accounts

    Intel Express 460T Standalone Switch Users Guide Modify User Accounts Access Level: Use the z to change access rights for the user. Delete: The default value is <No>. To delete an account, use the z to change the value to <Yes>.
  • Page 87 Using Local Management To change a password 1 On the Main Menu, select Configure Management and press E. Select Administer User Accounts and press E. 2 In the Username field, type the username of the account for which you want to change the password. Press E . 3 Type the current password in the Old password field and press 4 Type the new password in the New password field and press E.

  • Page 88: Update Firmware And Config Files

    Check the Intel Customer Support Web site for firmware updates to the Intel Express 460T Standalone Switch. Intel Express 460T Standalone Switch Users Guide Update Firmware and Config Files Description Software Update Mode: Use the z to select whether to update the switch’s firmware over the network or through a SLIP connection.

  • Page 89: Reset And Console Options

    Reset switch settings to factory defaults: Clears any IP address or current changes and resets the switch back to its factory defaults. All counters are cleared and the switch starts sending BOOTP requests.

  • Page 90: Configure Vlan Operation Mode

    VLANs are not active on the 460T switch so they must be turned on before you can start configuring them. The 460T switch supports operation of only one type of VLAN at a time. It supports multiple VLANs of the same type.

  • Page 91: Port-Based Vlans

    VLAN_2 the two ports cannot communicate with each other even though they are part of the same switch. A port can be a member of only one port- based VLAN. Any port that is not a member of a user-defined VLAN is a member of the DEFAULT_VLAN.

  • Page 92: Add A Port-Based Vlan

    LOCATION Main Menu Configure VLAN Add a Port-based VLAN Intel Express 460T Standalone Switch Users Guide Add a Port-based VLAN Description VLAN Name: Assigns a name to the VLAN. Names can consist of any character (no spaces) and be up to 12 characters long. After a VLAN is created the name cannot be changed.

  • Page 93: Edit/Delete A Port-Based Vlan

    To create a port-based VLAN 1 On the main menu, select Configure VLAN. Note: Make sure the switch’s current VLAN operation mode is set to port-based VLAN. If another type of VLAN is running, see “Configure VLAN Operation Mode” to change the VLAN operation mode.

  • Page 94: Change Port Membership In A Vlan

    LOCATION Main Menu Configure VLAN Edit/Delete a Port-based VLAN Intel Express 460T Standalone Switch Users Guide Change Port Membership in a VLAN Description This screen is similar to the VLAN creation screen. You can change the membership status of ports within the VLAN but you cannot change the name of the VLAN.

  • Page 95: Mac-Based Vlans

    VLANs entirely. Add a MAC-based VLAN: Creates a new MAC-based VLAN. You can create up to 12 MAC-based VLANs on the switch. Edit/Delete a MAC-based VLAN: Adds member MAC addresses to a MAC- based VLAN, or deletes a VLAN entirely.

  • Page 96: Add A Mac-Based Vlan

    LOCATION Main Menu Configure VLAN Add a MAC-based VLAN Intel Express 460T Standalone Switch Users Guide Add a MAC-Based VLAN Description VLAN Name: Assigns a name to the VLAN. The name can consist of any character (no spaces) and be up to 12 characters long. After a VLAN is created the name cannot be changed.

  • Page 97: Edit/Delete A Mac-Based Vlan

    Use the z to toggle <Edit> to add/remove member MAC addresses or <Delete> to remove a VLAN from the switch. VLAN Name: The names of MAC-based VLANs active on the switch. MAC Addresses: Total number of MAC addresses in the specified VLAN.

  • Page 98: Edit A Mac-Based Vlan

    LOCATION Main Menu Configure VLAN Edit/Delete a Mac-based VLAN Edit a MAC-based VLAN Intel Express 460T Standalone Switch Users Guide Edit a MAC-based VLAN Description Use this screen to add or remove member MAC addresses from a MAC- based VLAN.

  • Page 99: To Create A Mac-Based Vlan

    VLAN is removed from the list. Security considerations MAC-based VLANs, as designed on the 460T switch, are meant to limit broadcast and multicast traffic over the network. The switch relies on limiting broadcast traffic to constrain network visibility of network applications (such as TCP/IP) that rely on broadcasts (such as ARP) for station discovery.

  • Page 100: Configure 802.1Q Vlans

    LOCATION Main Menu Configure VLAN Intel Express 460T Standalone Switch Users Guide Configure 802.1Q VLANs Description VLAN operation mode: Change the type of VLAN operating on the switch, or disable VLANs entirely. Create an IEEE 802.1Q VLAN: Create a new 802.1Q VLAN and add ports to the VLAN.

  • Page 101: Add An Ieee 802.1Q Vlan (Configure Port Membership)

    4094. The DEFAULT_VLAN (created when you select a VLAN operation mode) is assigned a VID of 1. Allow IGMP Snooping: Press the z to determine if the switch will perform IGMP snooping on this VLAN. Up to12 IGMP snooping sessions are allowed.

  • Page 102: Add An Ieee 802.1Q Vlan (Configure Port Tagging)

    Main Menu Configure VLAN Create an 802.1Q VLAN Add an 802.1Q VLAN... Intel Express 460T Standalone Switch Users Guide Add an IEEE 802.1Q VLAN (Configure Port Tagging) Description VLAN Name: Displays the VLAN name assigned on the Add an IEEE 802.1Q VLAN (Configure Port Membership) screen.

  • Page 103: Configure Pvid For Untagged/Priority Traffic

    Description LOCATION Main Menu Use this screen to set up the switch to manage incoming packets that do Configure VLAN not contain IEEE 802.1Q VLAN tags or priority-tagged traffic (packets with a VID of zero). This applies to ingress traffic; it does not apply to outbound Configure PVID for...

  • Page 104: Configuring 802.1Q Vlans

    VLANs and which do not, before you start this procedure. Intel Express 460T Standalone Switch Users Guide Configuring 802.1Q VLANs Setting up a 802.1Q VLAN is a two-step process: create a VLAN on the switch, assigning member ports to it, then set up tagging properly for your attached devices.
  • Page 105 VLAN you want the port to use. Strips 802.1Q tags before sending traffic to the untagged device. When the switch needs to send traffic from a port to an untagged device, it strips the 802.1Q tag. Otherwise the untagged device may not understand how to process the VID tag.

  • Page 106: Edit/Delete 802.1Q Vlans

    LOCATION Main Menu Configure VLAN Edit/Delete an 802.1Q VLAN Intel Express 460T Standalone Switch Users Guide Edit/Delete 802.1Q VLANs Description Use this screen to select a VLAN to edit the port membership in the VLAN or delete the VLAN from the switch.

  • Page 107: Edit An Ieee 802.1Q Vlan

    VLAN ID: Assign a unique ID number to the VLAN. This number is used to identify all packets belonging to that VLAN. Type a number from 2 to 4094. Allow IGMP Snooping: Press the z to determine if the switch will perform IGMP snooping on this VLAN. Up to 12 IGMP snooping sessions are allowed.

  • Page 108: Edit An Ieee 802.1Q Vlan (Configure Port Tagging)

    Edit an IEEE 802.1Q VLAN (Configure Port Tagging) Description Use this screen to set up the switch to manage outgoing packets that do not contain IEEE 802.1Q VLAN tags. VLAN Name: Displays the name of the VLAN you are editing or deleting.

  • Page 109: Configure Vlan Id For Untagged Traffic

    Configure VLAN ID for Untagged Traffic Description Use this screen to set up the switch to manage incoming packets that do not contain IEEE 802.1Q VLAN tags or priority-tagged traffic (packets with a VID of zero). This applies to ingress traffic only; it does not apply to outbound traffic.

  • Page 110: Gvrp And Ingress Filter Settings

    In order for GVRP to work, the port must be connected to a switch that supports GVRP. Intel Express 460T Standalone Switch Users Guide GVRP and Ingress Filter Settings Description Configure Ports: Use the z to toggle the range of ports that you can configure.

  • Page 111: Monitor (Network Statistics)

    Browse the address table: Displays the entries in the switch’s address table by port or MAC address. VLAN/GVRP Status: Displays status for static and dynamic tag-based (IEEE 802.1Q) VLANs. This option is available only when the switch is running 802.1Q VLANs.

  • Page 112: Switch Overview

    LOCATION Main Menu Monitoring Switch Overview Intel Express 460T Standalone Switch Users Guide Switch Overview Description Use this screen to view activity on the switch. The screen displays the traffic sent and received for each port on the switch, including any optional modules, and the percent utilization for that port.

  • Page 113: Port Traffic Statistics

    Select Port: Selects the range of ports to view. Statistics are displayed four ports at a time. Press the z to toggle between port numbers and the optional module. The example shows ports 1-4 on a 24-port switch. Update interval: Press the z to select the time period between updates.
  • Page 114 Intel Express 460T Standalone Switch Users Guide Frames received: The number of error-free frames detected. Includes unicast, broadcast, or multicast frames and frames whose destination address is mapped to the receiving port. It also includes frames dropped because of full buffers, spanning tree, disabled ports, no link, or empty distribution list.

  • Page 115: Port Error Statistics

    Select Port: Select the range of ports to view. Statistics are displayed four ports at a time. Press the z to toggle between port numbers and the optional module. The example shows ports 1-4 on a 24-port switch. Update interval: Press the z to select the time period between updates.
  • Page 116 Intel Express 460T Standalone Switch Users Guide Late Collision: The number of collisions detected after the allowable detection period. This usually occurs in networks where cables are longer than the IEEE specification. MAC Rx Error: The number of received packets containing Rx Error events.

  • Page 117: Packet Analysis

    Press the z to toggle between the ports and the optional module. Update interval: Press the z to select the time period between updates. For example, an update interval of 5 sec means the switch collects and displays information every five seconds.

  • Page 118: Igmp Snooping Status

    LOCATION Main Menu Monitoring IGMP Snooping Status Intel Express 460T Standalone Switch Users Guide IGMP Snooping Status Description Use this screen to view active multicast groups detected by the switch. The switch uses these groups for filtering purposes when you enable IGMP snooping.

  • Page 119: Browse Address Table

    Using Local Management Browse Address Table Description Use this screen to sort through the switch’s MAC address table and view the addresses the switch has learned. The switch uses this table when making forwarding decisions to avoid broadcasting traffic over every port.
  • Page 120 Intel Express 460T Standalone Switch Users Guide DISPLAY: After you enter a MAC address, or choose a port, select this button and press e to display the results. Total Addresses in Table: The total number of addresses learned by the switch.

  • Page 121: Vlan And Gvrp Status

    Status: Whether the VLAN is permanent or dynamic. A permanent (static) tag-based VLAN is created and configured by the switch administrator. A dynamic VLAN is created by the switch in response to GVRP requests from GVRP-enabled network nodes. Creation time since switch power up: Amount of time the VLAN has been...

  • Page 122: Tools

    LOCATION Main Menu Tools Intel Express 460T Standalone Switch Users Guide Tools Description View switch traps and events (log): View events contained in the switch’s internal log. Ping a device: Ping another device on the network to test connectivity. Save switch configuration to a TFTP server: Back up the switch’s current...

  • Page 123: Switch Event Log

    Switch Event Log Description LOCATION Use this screen to view and navigate the switch’s log. The log is similar to a Main Menu trap and event receiver but it only captures traps/events generated by the Tools switch itself. For example, the log includes events such as when a port is...

  • Page 124: Ping A Device

    Intel Express 460T Standalone Switch Users Guide Ping a Device Description Target IP address: Type the IP address of the device you want the switch to ping. Repetitions: Type the number of times (1–255) you want the switch to ping the specified device.

  • Page 125: Upload Configuration Image File

    Using Local Management Upload Configuration Image File Description Use this screen to save an image of the switch’s configuration to a file and upload it to a TFTP server. Server IP Address: Type the IP address of your TFTP server.

  • Page 126: Appendix A: Technical Info What Is A Configuration File

    A configuration file is an ASCII text file that contains initialization information and configuration settings for the switch specified by the network administrator. The switch’s configuration file (.CFG) can be up to 10 KB in size and is stored on a central server where it is downloaded into the hub using TFTP.

  • Page 127: Sample Configuration File

    Intel Express 460T Standalone Switch Users Guide Sample Configuration File The following is an example of a configuration file. ###### Intel Express 460T Standalone Switch Configuration File ############## # Lines beginning with a "#" character are comment lines. ###### IP Address Configuration ############################################ # Ip_addr= <ipaddress>...
  • Page 128 # linkaggr_list={(index “name”, width of the aggregated group, “state” # pvid_list={(port#, PVIDvalue) (port#, PVIDvalue) ...} ###### Create 802.1Q VLAN on the Switch (Static Entries) ################################### # 802_1q_static_list={(VID, “VLANstring”, M/N U/T,...) (VID, “VLANstring”, M/N U/T,...)} ###### GVRP (Dynamic VLAN Registration) ################################### # gvrp_enabled={port#, port#, ...}...

  • Page 129: Boot Menu

    BOOT Menu is only available by connecting to the switch’s serial port. It is used when the firmware fails to load. To access the BOOT Menu, press c + C while the switch is starting up. The menu above displays. Most of the options available from the BOOT Menu are simplified versions of the normal runtime firmware;...

  • Page 130: List Of Factory Defaults

    A P P E N D I X List of Factory Defaults • Software upgrade mode: Network • TFTP Server Address: 0.0.0.0 • Load configuration file: Disabled • Console baud rate: 9600 • Console port data bits : 8 • Console port stop bit: 1 •...

  • Page 131: Troubleshooting/Faqs

    Local Management or Web Device View. When I set the 460T to autonegotiate with flow control enabled and try to connect to another device, there is no link. Why? Check the settings of the other device and disable flow control on the switch.

  • Page 132: Locating Mib Files

    DEFAULT_VLAN. Locating MIB files If you use a MIB browser, you can configure or view statistics for the switch. You can find these switch MIB files at the Intel Customer Support Web site at http://support.intel.com/support/express/switches. • intel.mib •...

  • Page 133: Regulatory Information

    CAUTION If you make any modification to the equipment not expressly approved by Intel, you could void your authority to operate the equipment. Canada Compliance Statement (Industry Canada) Cet appareil numérique respecte les limites bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la...
  • Page 134 A P P E N D I X AVERTISSEMENT Le système a été conçu pour fonctionner dans un cadre de travail normal. L’emplacement choisi doit être: · Propre et dépourvu de poussière en suspension (sauf la poussière normale). · Bien aéré et loin des sources de chaleur, y compris du soleil direct.

  • Page 135: Wichtige Sicherheitshinweise

    Betriebssicherheit des Gerätes sicher. 18. Zum Netzanscluß dieses Gerätes ist eine geprüfte Leitung zu verwenden, Für einen Nennstrom bis 6A und einem Gerätegewicht größer 3kg ist eine Leitung nicht leichter als H05VV-F, 3G, 0.75mm2 einzusetzen. Intel Express 460T Standalone Switch Users Guide...

  • Page 136: Limited Hardware Warranty

    (RMA) number either to the company from whom you purchased it or to Intel (North America only). If you ship the product, you must assume the risk of damage or loss in transit. You must use the original container (or the equivalent) and pay the shipping charge.
  • Page 137 This warranty does not cover replacement of products damaged by abuse, accident, misuse, neglect, alteration, repair, disaster, improper installation or improper testing. If the product is found to be otherwise defective, Intel, at its option, will replace or repair the product at no charge except as set forth below, provided that you deliver the product along with a return material authorization (RMA) number either to (a) the company from whom you purchased it or (b) to Intel, North America only (if purchased in Europe you must deliver the product to “(a)”.
  • Page 138 à l’exception des cas énumérés ci-après, à condition que le produit soit renvoyé avec un numéro d’autorisation de retour du matériel (ARM) à (a) la société auprès de laquelle il a été acheté ou (b) à Intel, en Amérique du Nord seulement (si l’achat a eu lieu en Europe vous devez le renvoyer à...
  • Page 139 “(a)”). Se il prodotto viene inviato, il mittente si assume la responsabilità in caso di danni o di perdita durante il tragitto. È necessario utilizzare l’imballaggio originale del prodotto (o un suo equivalente) e pagare le spese di spedizione. Intel sostituirà o riparerà il prodotto (o la parte) con uno nuovo o uno rifabbricato, e il prodotto restituito diventerà...
  • Page 140 übernehmen. Intel ersetzt die Hardware entweder durch ein neues oder ein neuwertiges Produkt. Das zurückgegebene Hardwareprodukt wird Eigentum von Intel. Intel garantiert, daß das reparierte oder ersetzte Hardwareprodukt für einen Zeitraum von: (i) neunzig (90) Tagen ab Rückgabedatum oder (ii) für die verbleibende Zeit der ursprünglichen Garantie von drei (3) Jahren frei von Material- und Herstellungsfehlern ist.
