KX-NS700G Quick Reference Guide
1. Introduction
Thank you for purchasing this Panasonic product.
Please read this guide before using this product.
See the KX-NS700 manuals for the full KX-NS700 details other than the KX-NS700G
content written in this guide. For more information, refer to
http://www.panasonicpartnerportal.com/

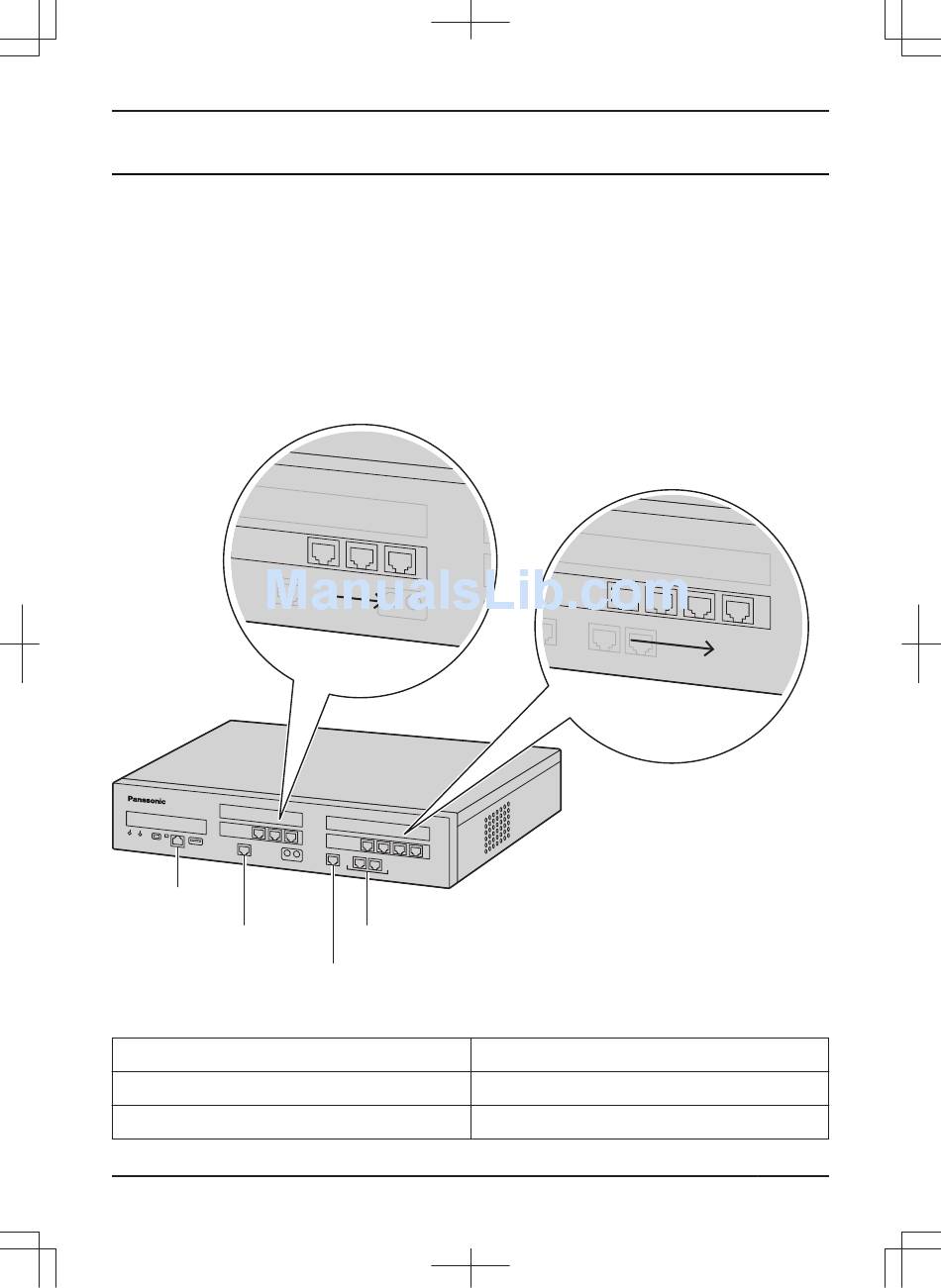

2. Overview
LCOT6 Port
LAN Port
PFT Port
KX-NS700G: Front Side
Model No.
KX-NS5180 (Pre-installed)
KX-NS5172 (Pre-installed)
1
6
SLT Port
DPT Port
DLC16 Port
1
Model Name
6-port Analogue Trunk Card (LCOT6)
16-port Digital Extension Card (DLC16)
16
1

Advertisement

loading

Related Manuals for Panasonic KX-NS700G

Summary of Contents for Panasonic KX-NS700G

  • Page 1 1. Introduction Thank you for purchasing this Panasonic product. Please read this guide before using this product. See the KX-NS700 manuals for the full KX-NS700 details other than the KX-NS700G content written in this guide. For more information, refer to http://www.panasonicpartnerportal.com/ 2.
  • Page 2 Note Refer to the KX-NS700 Installation manual for the description of optional cards other than the pre-installed cards. KX-NS700G has pre-installed ports (CO lines, extensions, UM) and mailboxes as follows: Pre-installed Number CO Line 6 ports Extension 18 ports 4 ports...
  • Page 3 DPT Port Signal Name Function D1 A Data port 1 (Low) D2 A Data port 1 (High) D1 B Data port 2 (Low) Reserved – Reserved – D2 B Data port 2 (High) Reserved – Reserved – User supplied (not included): RJ45 connector, Twisted pair cable. SLT Port Signal Name Function...
  • Page 4 DLC16 PORT Signal Name Function Data port 1 (Low) Data port 1 (High) Data port 2 (Low) Data port 3 (Low) Data port 3 (High) Data port 2 (High) Data port 4 (Low) Data port 4 (High) User supplied (not included): RJ45 connector, Twisted pair cable.
  • Page 5 PFT PORT/LCOT6 PORT Optional card KX-NS5180 No. Signal Name Reserved Reserved Reserved CO1 Tip Reserved CO1 Ring PFT1-2 CO2 Tip No. Signal Name CO2 Ring Reserved Reserved Reserved Reserved Note The connector consists of multiple lines for the extensions/CO lines. Therefore, each RJ45 cable needs to be connected to the necessary port and divided for the appropriate extensions/CO lines.

  • Page 6: System Components

    3. System Components The following cards and activation keys are installed: Model No. Model Name KX-NS5110 VoIP DSP Card (S Type) (DSP S) KX-NS7134 SD Memory Card (XS Type) (SD Memory XS) The SD card is sealed to at the factory so that it does not fall off during transportation. If you need to exchange the SD card, remove the seal before exchanging.

  • Page 7: System Capacity

    KX-NSU3XXW MANUAL 2-WAY RECORDING Refer to the Installation manual for the details. Other KX-NS700 equipment and activation keys not listed here will not operate with the KX-NS700G even if they are successfully installed. 4. The specification differences between KX-NS700G and KX-NS700 4.1 System Capacity...
  • Page 8 DPTs SLTs IP-PTs • The KX-NS700G capacities can be expanded to the same as the KX-NS700 by installing “Activation Key to release KX-NS700G capacity limitation” (KX-NSF999W). Note • KX-NSF999W is a new activation key and a dedicated activation key for the KX-NS700G.
  • Page 9 Following table shows system capacity Max. without Max. with Pre Install KX-NSF999W KX-NSF999W CO line (ch) Legacy 38 (30+8) LCOT PRI23 H.323 Extension (ch) Legacy 36 (32+4) 34 (32+2) 0 (4 IP-PT AK) 32/128 IP-PT 0 (4 IP-PT AK) 32/128 0 (4 IP-PT AK) 32/128 0 (4 IP-PT AK)
  • Page 10 Max. without Max. with Pre Install KX-NSF999W KX-NSF999W PS (DECT) (pcs) ESVM (ch) Built-in UM (ch) TVM unit Door phone Door phone Door opener Sensor MOH / BGM KX-HDV series, KX-NTV series, KX-TGP600 In case that IP extensions are over 32 or connecting to KX-NS720, "Expansion Capacity Activation key"...
  • Page 11 The System Resource Capacity is the same as KX-NS700 even if “Activation Key to release NS700G capacity limitation” (KX-NSF999W) is not installed. See the KX-NS700 manuals for System Resource Capacity details. 4.3 Programming • The KX-NS700G does not support the database conversion from legacy PBX (ex. KX-TDA50, KX-TDE series, and KX-NCP series).
  • Page 12 Note...
  • Page 13 Note...
  • Page 14 Note...
  • Page 15 Note...
  • Page 16 PNQW5098ZA-VB DD0714AH7115...
