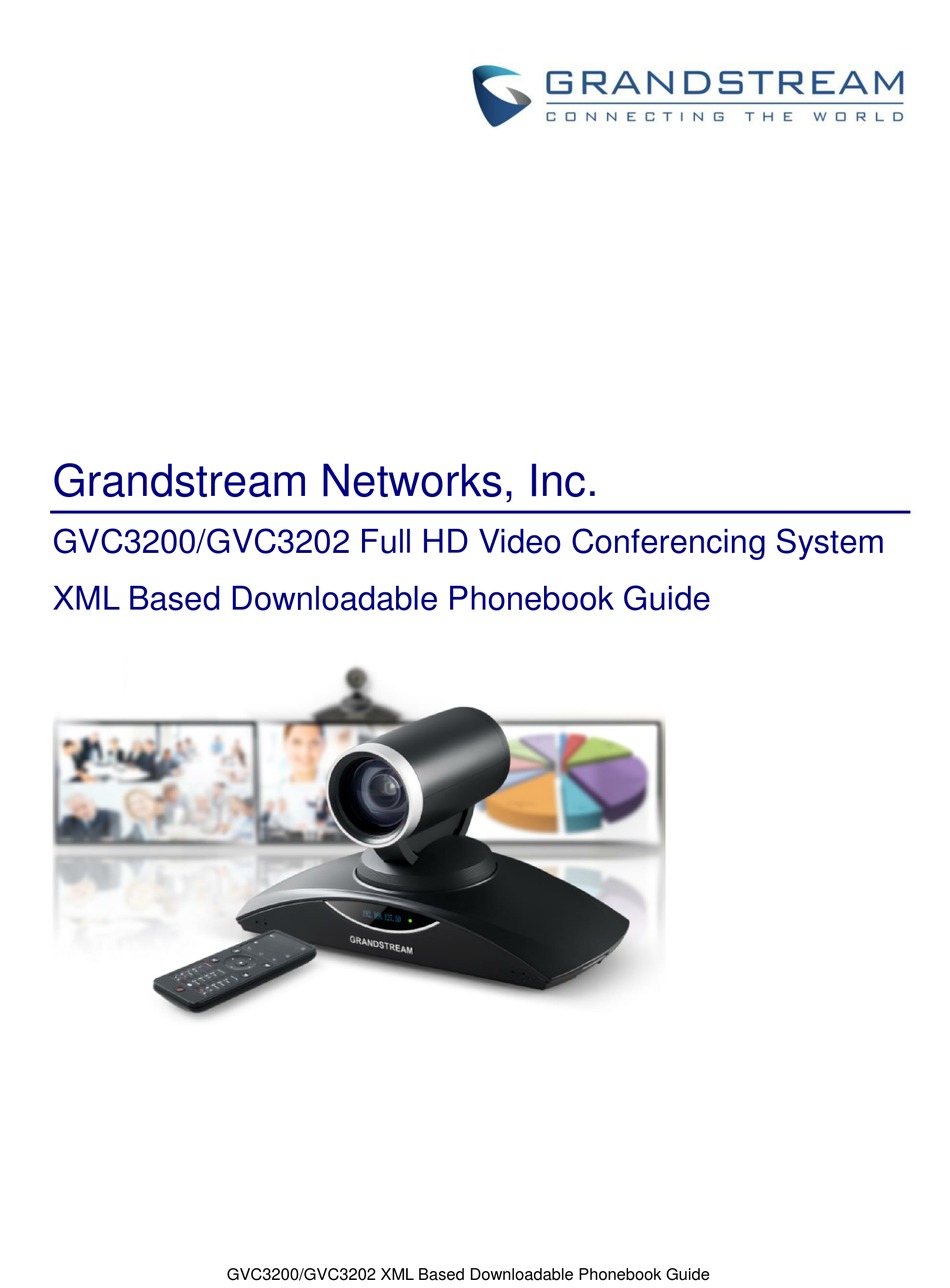

- Page 1 Grandstream Networks, Inc. GVC3200/GVC3202 Full HD Video Conferencing System XML Based Downloadable Phonebook Guide GVC3200/GVC3202 XML Based Downloadable Phonebook Guide...
-
Page 2: Table Of Contents
GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Index INTRODUCTION ..................4 WHAT IS XML ............................4 WHY XML .............................. 4 XML API ARCHITECTURE ........................4 XML PHONEBOOK CONFIGURATION ............. 7 FIRMWARE ............................7 WEB CONFIGURATION ........................7 LCD CONFIGURATION ........................10 PROVISIONING ........................... - Page 3 Table of Figures GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Figure 1: GVC3200/GVC3202 XML API via HTTP ..................5 Figure 2: GVC3200/GVC3202 XML API Structure 1 ..................5 Figure 3: GVC3200/GVC3202 XML API Structure 2 ..................6 Figure 4: Contacts->More->Download ......................7 Figure 5: XML Phone Book Download ......................
- Page 4 Table of Tables GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Table 1: <AddressBook> Element ....................... 22 Table 2: <pbgroup> Element ........................22 Table 3: <Contact> Element ........................23 Table 4: <Phone> Element .......................... 23 GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 3 of 24...
-
Page 5: Gvc3200/Gvc3202 Xml Based Downloadable Phonebook Guide
This document specifies the Grandstream XML based downloadable phone book configuration that will be applied to GVC3200/GVC3202. An example XML phone book file is provided at the end of this guide. Users could start a phone book by adding contacts to the example file or exporting the existed phone book file from its LCD or web UI. -
Page 6: Figure 1: Gvc3200/Gvc3202 Xml Api Via Http
GVC3200/GVC3202 initiates the HTTP GET Request to the HTTP server and waits for the response. Once the device receives the response with XML content in BODY, it displays the information. Figure 1: GVC3200/GVC3202 XML API via HTTP Two types of XML API architecture are introduced below, depending on whether the transaction is via LAN or Internet. -
Page 7: Figure 3: Gvc3200/Gvc3202 Xml Api Structure 2
Figure 3: GVC3200/GVC3202 XML API Structure 2 As illustrated above, all the logic lies within the server side of the architecture. The GVC3200/GVC3202 just receives the XML documents and displays it accordingly. GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 6 of 24... -
Page 8: Xml Phonebook Configuration
XML PHONEBOOK CONFIGURATION FIRMWARE Before the XML phone book is used on GVC3200/GVC3202, please make sure the firmware on the device is upgraded to the latest version. Please refer to the following link for firmware upgrading information: http://www.grandstream.com/support/firmware WEB CONFIGURATION To configure XML phone book file download on GVC3200/GVC3202, go to web UI ->... -
Page 9: Figure 5: Xml Phone Book Download
Figure 5: XML Phone Book Download Clear The Old List If this option is set to "ON", all the existed entries in the GVC3200/GVC3202 Contacts will be automatically removed when the XML phone book is downloaded to the device. The default value is "OFF". - Page 10 HTTPS, and Port 69 will be used as default for TFTP. 2. The GVC3200/GVC3202 always looks for the phone book file phonebook.xml for downloading if no file name is specified in the server path. Users could also change the phone book name if desired.
-
Page 11: Lcd Configuration
LCD CONFIGURATION Besides using the web UI to configure XML phone book download, the users could also achieve the same configuration via GVC3200/GVC3202 LCD display using the GVC remote control. 1. On the GVC3200/GVC3202 LCD main screen, click on “Contacts”. -
Page 12: Figure 7: Lcd Main Screen->Contacts
Figure 7: LCD Main Screen->Contacts on the remote control and select “Download”. 2. Press button Figure 8: Contacts->Download GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 11 of 24... -
Page 13: Figure 9: Xml Phone Book Download Configurations In Lcd
3. Use the remote control to configure phone book download parameters, which are the same as described in section WEB CONFIGURATION. 4. Press the yellow shortcut key on the GVC remote control or press ->Save to save the configuration. GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 12 of 24... -
Page 14: Figure 10: Save Configuration
->Download Now to download the phone book XML immediately. Or the users can wait for the next downloading interval (if configured) for the phone book to be downloaded to GVC3200/GVC3202. Figure 11: Download Now GVC3200/GVC3202 XML Based Downloadable Phonebook Guide... -
Page 15: Provisioning
P6714: HTTP/HTTPS Password for phonebook downloading GVC3200/GVC3202 will be set up with the P values when the provisioning routine is completed. It will attempt to download the phone book XML file specified in "Download Server" with configured interval and process it. -
Page 16: Import/Export Phonebook
Besides downloading phone book file from remote server, users could also directly import phonebook.xml to the GVC3200/GVC3202 from the web UI. If there is an existing phone book in the device's Contacts already, users may export the phone book file to PC as well. The "Import" and "Export" settings are under web UI->... -
Page 17: Figure 13: Import Phone Book Xml File: Settings
Configure import options "Clear The Old List", "Replace Duplicate Entries", "File Encoding" format and select "File Type" as "XML". Then, click on "Browse" button to specify the path where the phonebook.xml is located in the PC. GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 16 of 24... -
Page 18: Figure 14: Importing Phone Book Xml
Figure 15: Import Phone Book XML Successfully After selecting the file, GVC3200/GVC3202 will start importing and finish importing (see figure above) automatically. If the file fails to be imported, please check the format and syntax of the phone book xml file. -
Page 19: Figure 16: Export Phone Book Xml File: Settings
Figure 16: Export Phone Book XML File: Settings Select "File Encoding" format and select "File Type" as "XML". Then, click on "Export" to download phonebook.xml, this file will be saved in PC, under the default downloading directory. GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 18 of 24... -
Page 20: Figure 17: Exporting Phone Book Xml File
Click on -> select Import/Export. 2. For “Import”, the phone book file needs to be located in GVC3200/GVC3202 file system or SD card/USB storage plugged into the GVC3200/GVC3202 for selection; for “Export”, choose the GVC3200/GVC3202 file system directory for the phone book xml file to be saved to. -
Page 21: Xml Phonebook Syntax
<?xml version="1.0" encoding="UTF-8"?> PHONE BOOK XML STRUCTURE An XML phone book example for GVC3200/GVC3202 can be found in the last section of this document. The main structure is represented as below. (Some of the elements are optional). Figure 18: Phone Book XML Structure... -
Page 22: Phonebook Xml Element
</Contact> </AddressBook> PHONEBOOK XML ELEMENT This section describes details of the XML element used in GVC3200/GVC3202 XML phone book file. Please note that the element name is case-sensitive when being used in XML document. ROOT ELEMENT <AddressBook> <AddressBook> is the root element of the XML document. This element is mandatory. -
Page 23: Pbgroup Element
Number To specify group ID. name Child element Mandatory String Group name. ringtones Child element Optional String The directory/path to the ring tone file stored in the GVC3200/GVC3202. <Contact> ELEMENT GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 22 of 24... -
Page 24: Phone Element
Element Mandatory It has attribute "type". type: Work/Home/Mobile/Fax/Other phonenumber Child element Mandatory Number Phone number accountindex Child element Mandatory Number From 0 to 5 for account 1 to account 6 GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 23 of 24... -
Page 25: Xml Phonebook Example
<phonenumber>81234567</phonenumber> <accountindex>1</accountindex> </Phone> <Mail type="Other">JaneDoe@mycompany.com</Mail> <Group>1</Group> </Contact> <Contact> <FirstName>Alex</FirstName> <LastName>Smith</LastName> <Phone type="Home"> <phonenumber>1234567890</phonenumber> <accountindex>1</accountindex> </Phone> <Mail type="Other">smith.alex@mycompany.com</Mail> </Contact> <Contact> <FirstName>John</FirstName> <LastName>Williams</LastName> <Phone type="Mobile"> <phonenumber>5432154321</phonenumber> <accountindex>1</accountindex> </Phone> <Mail type="Home">Johnwilliams@mycompany.pbx.com</Mail> </Contact> </AddressBook> GVC3200/GVC3202 XML Based Downloadable Phonebook Guide Page 24 of 24...
