Configuring the DV-SP506—Continued

Picture Menu

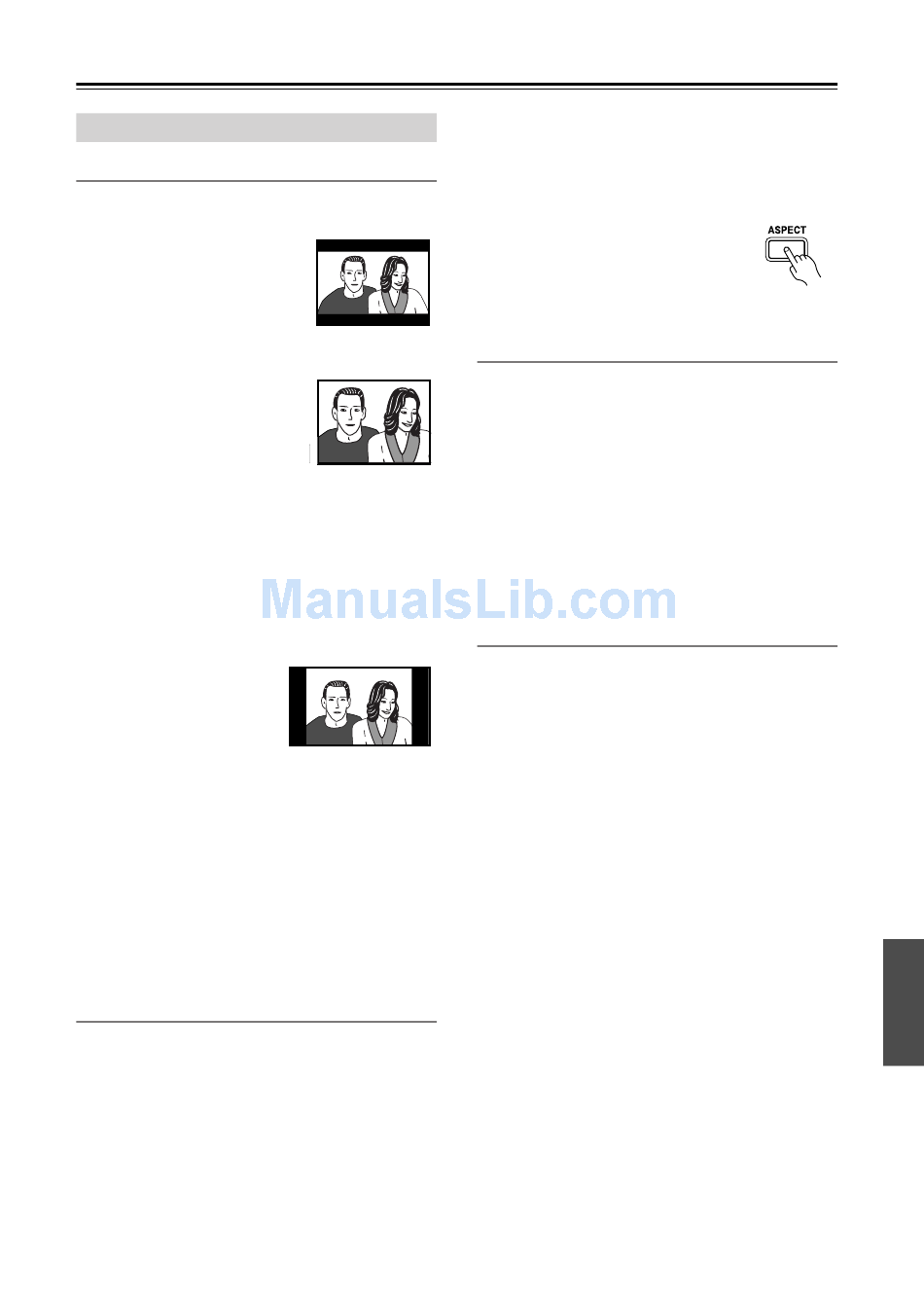

TV Shape

With this setting you can select a picture format to match
the aspect ratio of your TV.
Choose this
4:3 Letter box:
option if you have a standard TV
(4:3 aspect ratio). When you
watch widescreen DVD-Video
movies, the entire picture will be
visible and there will be black
bars at the top and bottom of the screen, as shown.
Choose this
4:3 Pan & Scan:
option if you have a standard TV
(4:3 aspect ratio) and want to use
the full height of the screen when
watching widescreen
DVD-Video movies. In order to
use the full height of the screen, the picture will be
cropped on both sides, as shown. This option won't
work with discs that don't support pan and scan.
Choose this option if you have a
16:9 Widescreen:
widescreen TV (16:9 aspect ratio). Depends on TV,
the picture appears stretched when watching programs
in 4:3 format.
16:9 Compressed (default):
Choose this option if you
have a widescreen TV (16:9
aspect ratio) and the picture
appears stretched when
watching programs in 4:3
format. This option will cor-
rect the issue.
Notes:
• This setting does not apply to DVD menus.
• When the HDMI OUT signal is at a resolution of
720p, 1080i, or 1080p, programs in 4:3 format will
appear stretched, so we recommend that you select the
16:9 Compressed option.
• With some DVD-Video discs this setting may have no
effect. See the disc's sleeve notes to see which picture
format is used.

View Mode

With this setting you can adjust the aspect of the picture
so that it fits your TV screen. Due to your TV's aspect
ratio setting and the DVD's aspect ratio, black bars may
appear above and below the picture or at the sides and the
aspect of the picture may be unsuitable. In this case, use
this setting to adjust the aspect of the picture as you like.
The picture is displayed in its
Normal (default):
original aspect ratio.
The picture is stretched horizontally to
View Mode1:
make it fit the height of the screen.
The picture is stretched vertically to
View Mode2:
make it fit the width of the screen.
The picture is stretched horizontally
View Mode3:
and vertically.
Tip:
• The view mode can also be changed by
using the remote controller's
[ASPECT] button.
Note:
• This setting does not apply to DVD menus.

HDMI Output Setting

With this setting you can turn the HDMI video output on
or off. See page 46 for more information.
Video is output by the HDMI OUT.
On (default):
Video is not output by the HDMI OUT.
Off:
Tip:
• This setting can also be changed by using the [HDMI]
button on the front panel (see page 46).
Note:
• While an SACD or DVD-Audio disc is loaded, this
setting cannot be changed. Eject the disc first if you
need to change this setting.

Progressive Setting

With this setting you can set the component video output
to progressive or interlaced. While the HDMI Output
Setting is set to On, this setting is fixed at Interlaced and
cannot be changed.
Select this setting when your TV
Interlace (default):
or projector does not support progressive output.
Select this setting when your TV or
Progressive:
projector supports progressive output and is con-
nected to the component jacks of the DV-SP506.
This setting offers better picture quality.
Note:
• When the HDMI Output Setting is set to Off, and this
setting is set to Progressive, nothing is output by the
composite video and S-Video outputs.
Tip:
• If the HDMI Output Setting is set to Off, this setting
can also be changed by pressing the [RESOLUTION]
button.
