OPERATING THE EZ-LINk™ SYSTEM
The EZ-Link™ system enables the use of these optional Add-Ons:
Mach 4® Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AF720
Articulating Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . AH720*
Brushcutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BC720*
Bladed Pruner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BP720
Blower Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BT720*
Blower Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BV720
Garden Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720
Lawn Dethatcher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .LD720
Lawn Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE720*
Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PS720
Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . SS725
Snow Thrower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ST720
Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720
Do NOT use this add-on with an electric powered
*
product.
WARNING:
When using any add-on, read and
understand that add-on's specific manual before
you begin operation. Follow all applicable safety
information.
Removing the Add-On
WARNING:
To avoid serious personal injury and
damage to the unit, shut the unit off before
removing or installing add-ons.

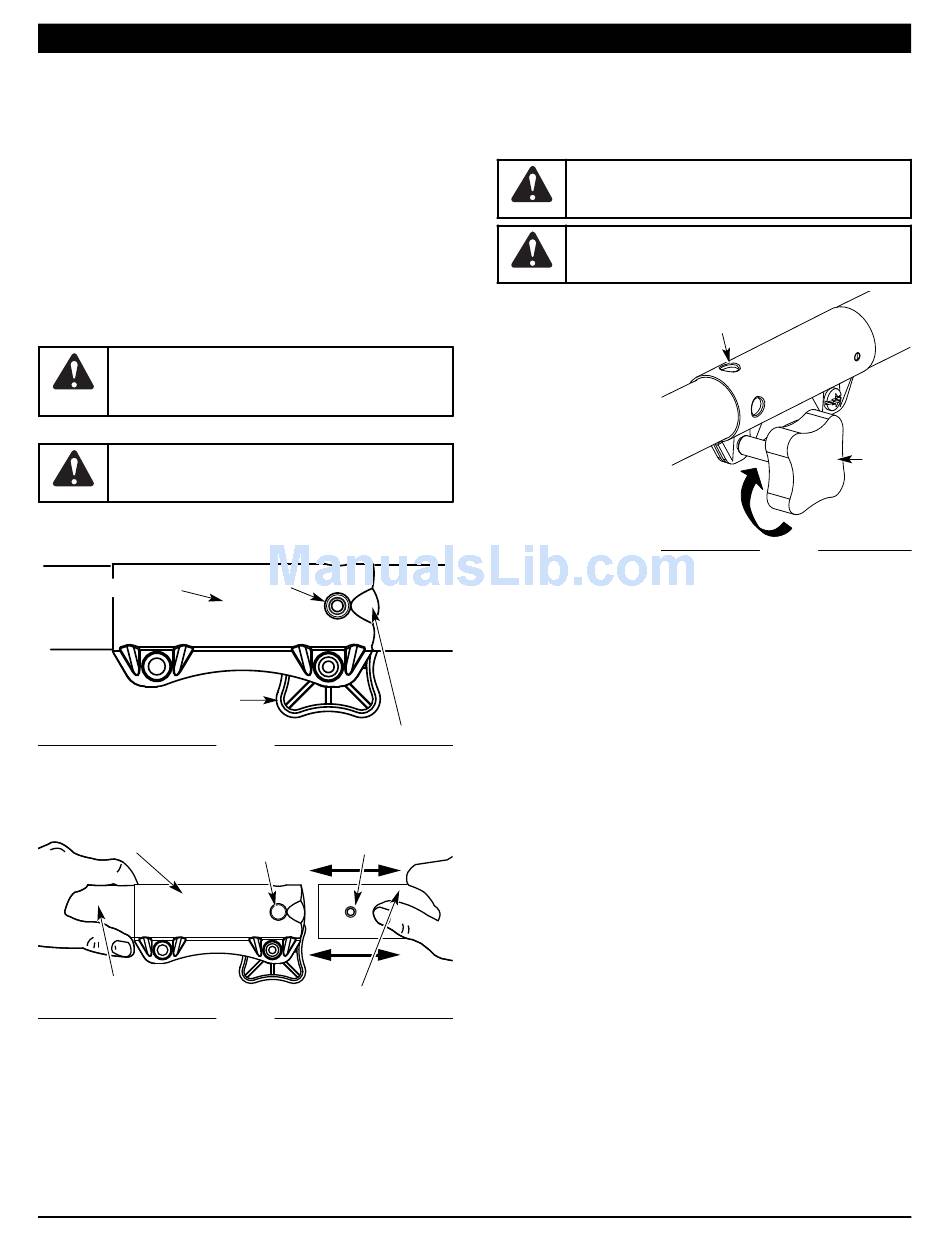

1. Turn the knob counterclockwise to loosen (Fig. 16).
2. Press and hold the release button (Fig. 16).
EZ-Link™ Coupler
Knob
3. While firmly holding the upper shaft housing, pull the cutting
attachment or add-on straight out of the EZ-Link™ coupler
(Fig. 17).
EZ-Link™ Coupler
Upper Shaft Housing
Installing the Add-On
NOTE: Place the unit on the ground or on a work bench to
make add-on installation or removal easier.
1. Turn knob counterclockwise to loosen (Fig. 16).
8
ASSEMBLY INSTRUCTIONS
Release Button
Guide Recess
Fig. 16
Release Button
Primary Hole
Lower Shaft Housing
Fig. 17
2. While firmly holding the add-on, push it straight into the EZ-
Link™ coupler (Fig. 17).
NOTE: Aligning the release button with the guide recess will
help installation (Fig. 16).
3. Turn the knob clockwise to tighten (Fig. 18).
CAUTION:
Lock the release button in the
primary hole and securely tighten the knob before
operating this unit.
CAUTION:
Add-ons are to be used in the
primary hole only. Using the wrong hole could lead
to personal injury or damage to the unit.
For edging (when using
90˚ Edging Hole
the line head cutting
(Trimmer Only)
attachment with EZ-
Link™ models), lock the
release button of the
cutting attachment into
the 90° edging hole
(Fig. 18).
Knob
Fig. 18
