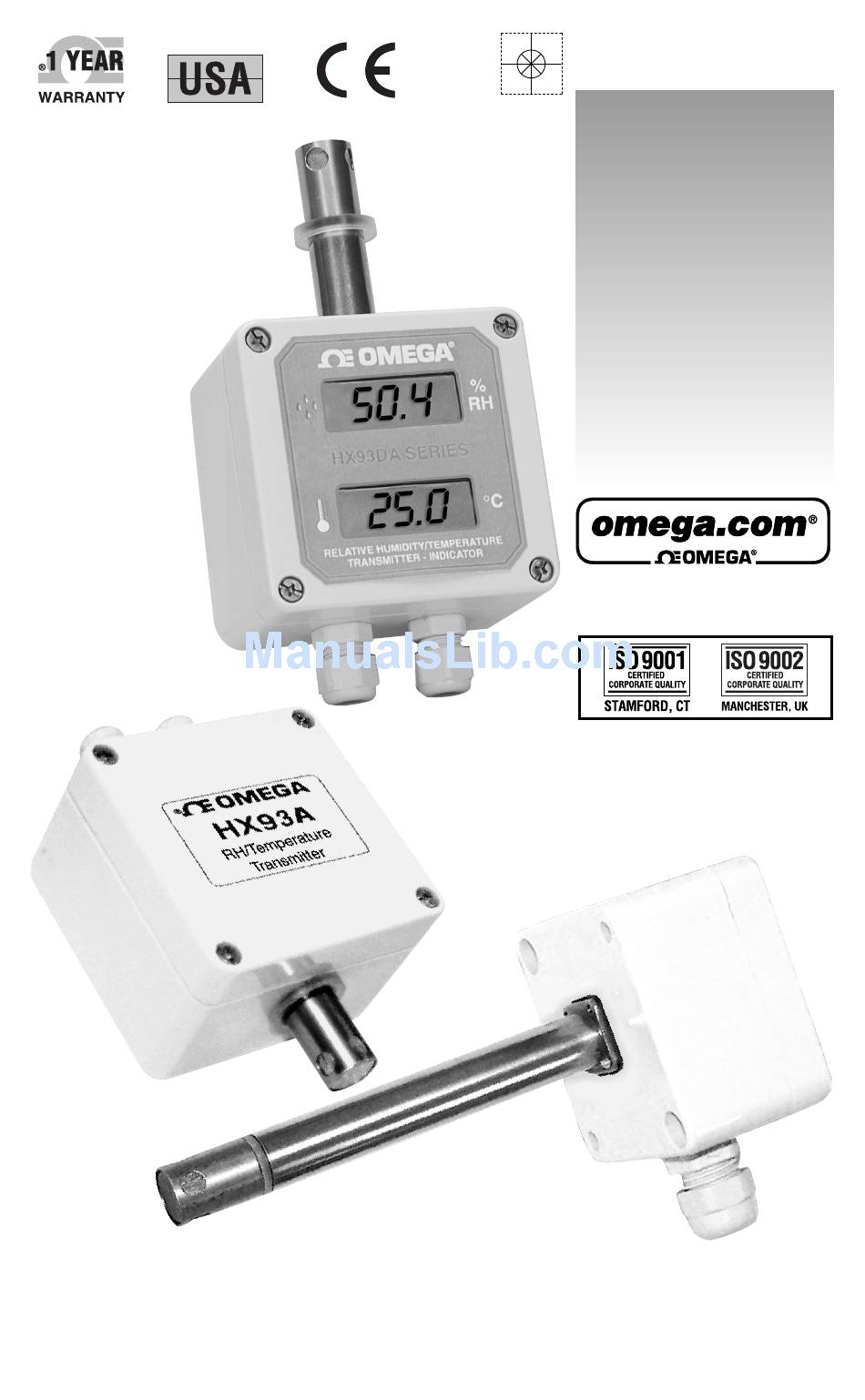

- Page 1 User’ s Guide MADE IN Shop online at www.omega.com e-mail: info@omega.com HX93A, HX93DA SERIES RH/Temperature Transmitter...
- Page 2 OMEGAnet ® www.omega.com USA: One Omega Drive, Box 4047 ISO 9001 Certified Stamford CT 06907-0047 Tel: (203) 359-1660 e-mail: info@omega.com Canada: 976 Bergar Laval (Quebec) H7L 5A1, Canada Tel: (514) 856-6928 e-mail: info@omega.ca For immediate technical or application assistance: USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN...
-
Page 3: Table Of Contents
HX93A, HX93DA SERIES RH/Temperature Transmitter Section General Description ... 1 Unpacking ... 1 Theory of Operation ... 2 Mounting ... 3 Electrical Connections ... 4 Current Transmitter Wiring Examples ... 4 Voltage Transmitter Wiring Examples ... 5 Relative Humidity Output Calculations ... 5 RH Measured Vs Output Reading ... - Page 4 HX93A, HX93DA SERIES FIGURES RM/Temperature Transmitter Figure Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8 Figure 9 Figure 10 Basic Transmitter Set-up With Current Loop Output ... 2 Wall Mount Model Dimensions ... 3 Duct Mount And Remote Probe Model Dimensions ...
-
Page 5: General Description
1. General Description The OMEGA ® Temperature Transmitter’s provide a linearized and temperature compensated output signal of 4 to 20 mA or 0 to 1 Vdc depending upon the model selected for both relative humidity and temperature measurement. The output signals have been calibrated and scaled 0 to 100% for Relative Humidity and –20 to 75ºC for temperature. -
Page 6: Theory Of Operation
HX93A, HX93DA SERIES RH/Temperature Transmitter continued from page 1 HX15AV-W Wall mount “High Ambient Temperature” application HX15AC-W Wall mount “High Ambient Temperature” application HX15AV-D Duct mount “High Ambient Temperature” application HX15AC-D Duct mount “High Ambient Temperature” application 3. Theory of Operation A 4-20 mA loop is a series loop in which a transmitter will vary the current flow depending on the input to the transmitter. -
Page 7: Mounting
Complimentary Instruments Power Supply, OMEGA Csi32 Series Panel Meters and Controllers Recommended Accessories Shielded Transmitter Cable, OMEGA RH Calibration Kit, OMEGA 4. Mounting OMEGA’s HX93A and HX93DA transmitter’s are designed for either wall, duct or remote probe mounting depending upon model. Plastic wall anchors and mounting screws are included for wall mounting and remote probe models. -
Page 8: Electrical Connections
HX93A, HX93DA SERIES RH/Temperature Transmitter 5. Electrical Connections All electrical connections and wiring should be performed by a suitably trained professional only. Models: HX93AC, HX93AC-D, HX93AC-RP1, HX93DAC, HX93DAC- D,HX93DAC-RPI (Current Output) TB1 - Relative Humidity 1. + Power Supply 2. No Connection 3. -
Page 9: Voltage Transmitter Wiring Examples
Models: HX93AV, HX93AV-D HX93AV-RP1 (Voltage Output) TB1 - Relative Humidity 1. + Power Supply 2. + Output 3. - Power Supply 7. Voltage Transmitter Wiring Examples For voltage output models (0 to 1 Vdc) 8. Relative Humidity Output Calculations To calculate % Relative Humidity by measuring the current or voltage output use the following formulas. -
Page 10: Rh Measured Vs Output Reading
HX93A, HX93DA SERIES RH/Temperature Transmitter 9. RH Measured Vs Output Reading % Relative Humidity 10. Temperature Output Calculations To calculate Temperature by measuring the current or voltage output use the following formulas. For Current output in ºC (-20 to 75ºC) ºC = (Output measured in miliamps –... -
Page 11: Calibration
11. Calibration Your transmitter has been factory calibrated to meet or exceed the specifications outlined in this manual. To maintain original specifications it is generally recommended that your transmitter be re- calibrated on an annual basis depending on operating conditions. 12. -
Page 12: Temperature Adjustment
HX93A, HX93DA SERIES RH/Temperature Transmitter 13. Calibration Procedure for HX93AC (all styles) Temperature Adjustment Recommended equipment: • RTD Simulator OMEGA • Handheld Digital Multi-meter, OMEGA • Dc Power Supply, OMEGA 1. Remove enclosure cover 2. Connect the power supply and multimeter as shown in the figure below. -
Page 13: Calibration Procedure For Hx93Av
14. Calibration Procedure for HX93AV (all styles) Relative Humidity Adjustment Recommended equipment: • Humidity Calibration Kit, OMEGA • Handheld Digital Multi-meter, OMEGA • Dc Power Supply, OMEGA 1. Remove enclosure cover. 2. Connect transmitter as shown in figure below. 3. Apply power to transmitter and allow to warm up for 15 min. 4. -
Page 14: Calibration Procedure For Hx93Av Temperature Adjustment
HX93A, HX93DA SERIES RH/Temperature Transmitter 15. Calibration Procedure for HX93AV (all Styles) Temperature Adjustment Recommended equipment: • 100 Ohm RTD Simulator OMEGA • Handheld Digital Multi-meter, OMEGA • Dc Power Supply, OMEGA 1. Remove enclosure cover 2. Connect the power supply and multimeter as shown in the figure below. -
Page 15: Display Scaling For Hx93Da Series
15A. Display Scaling for HX93DAC (all styles) Your HX93DA transmitter comes with dual built-in LCD indicators for displaying both Humidity and Temperature. Before the meter adjustment or re-scaling can be done the transmitters current output should be checked as per the calibration procedure in Section 12 and 13 to verify the display will be adjusted correctly and match the analog output. -
Page 16: Maintenance
HX93A, HX93DA SERIES RH/Temperature Transmitter Temperature Display Scaling Recommended equipment: • RTD Simulator OMEGA • Handheld Digital Multi-meter, OMEGA • Dc Power Supply, OMEGA For ºF Display 1. Remove enclosure cover 2. Connect the power supply and multimeter as shown in the figure 7. 3. -
Page 17: General Specifications
16. Maintenance If your Humidity transmitter will be used in a dusty environment, the protective sensor filter, if clogged, may be removed for cleaning. Unscrew the protective cover and gently blow compressed air through the filter screen. A soft brush may also be used to remove dirt particles from the screen. - Page 18 HX93A, HX93DA SERIES RH/Temperature Transmitter Max Loop Resistance: Sensor Type: 18. General Specifications Enclosure Housing: Connections Cable Strain Relief: Wire Connections: Dimensions: Weight Wall Mount Model: Duct Mount Model: Ohms = (V supply – 6 V)/.02 A 100 Ohm Platinum RT Gray Polycarbonate, (IP 65, DIN 40050) NEMA rated up to 13, UL Listed.
- Page 19 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time.
-
