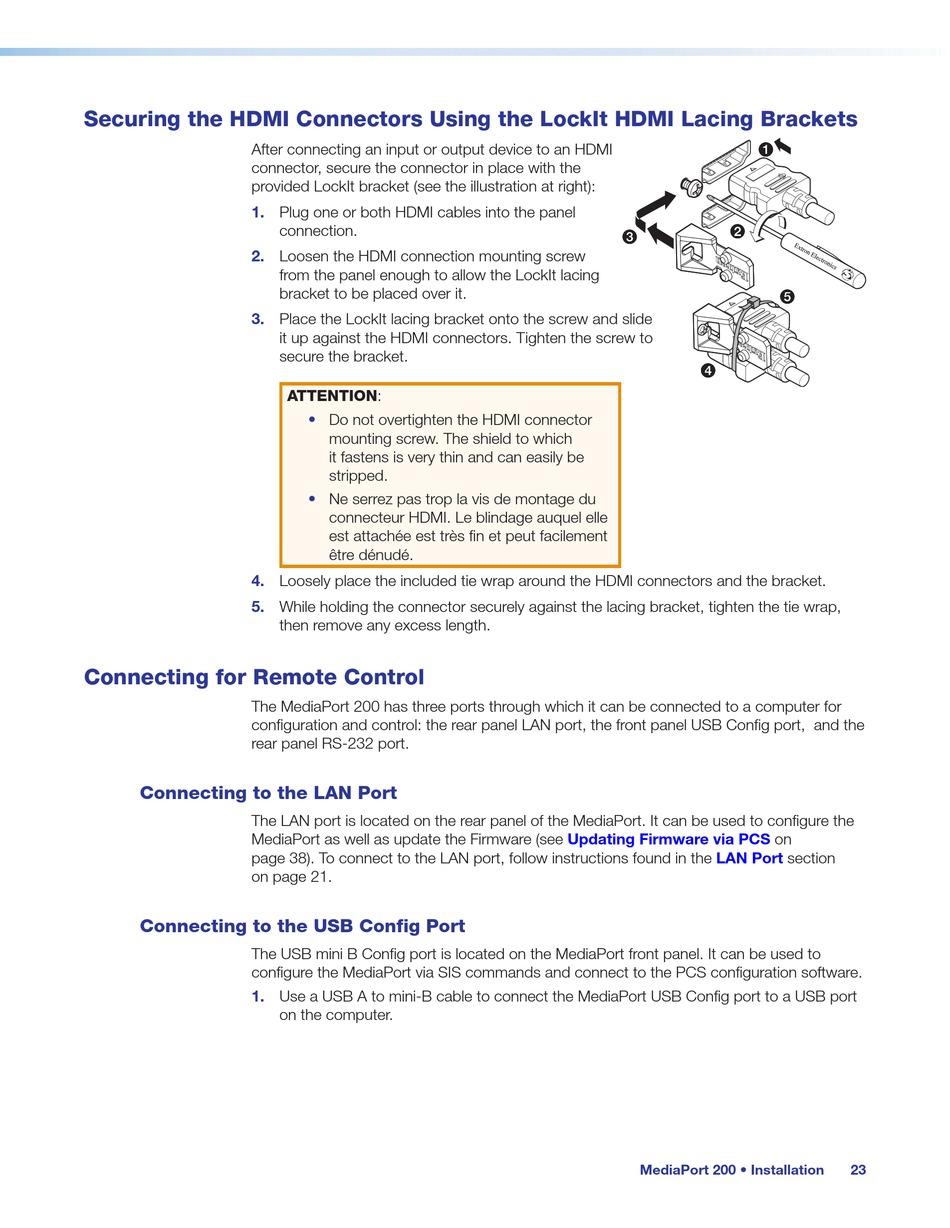

Securing the HDMI Connectors Using the LockIt HDMI Lacing Brackets

After connecting an input or output device to an HDMI
connector, secure the connector in place with the
provided LockIt bracket (see the illustration at right):
1.
2.
3.
4.
5.

Connecting for Remote Control

The MediaPort 200 has three ports through which it can be connected to a computer for
configuration and control: the rear panel LAN port, the front panel USB Config port, and the
rear panel RS-232 port.

Connecting to the LAN Port

The LAN port is located on the rear panel of the MediaPort. It can be used to configure the
MediaPort as well as update the Firmware (see
page 38). To connect to the LAN port, follow instructions found in the
on page 21.

Connecting to the USB Config Port

The USB mini B Config port is located on the MediaPort front panel. It can be used to
configure the MediaPort via SIS commands and connect to the PCS configuration software.
1.
Plug one or both HDMI cables into the panel
connection.
Loosen the HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it.
Place the LockIt lacing bracket onto the screw and slide
it up against the HDMI connectors. Tighten the screw to
secure the bracket.
ATTENTION:
• Do not overtighten the HDMI connector
mounting screw. The shield to which
it fastens is very thin and can easily be
stripped.
• Ne serrez pas trop la vis de montage du
connecteur HDMI. Le blindage auquel elle
est attachée est très fin et peut facilement
être dénudé.
Loosely place the included tie wrap around the HDMI connectors and the bracket.
While holding the connector securely against the lacing bracket, tighten the tie wrap,
then remove any excess length.
Use a USB A to mini-B cable to connect the MediaPort USB Config port to a USB port
on the computer.
2 2 2
3 3 3
4 4 4
Updating Firmware via PCS
LAN Port
MediaPort 200 • Installation
1 1 1
5 5 5
on
section
23
