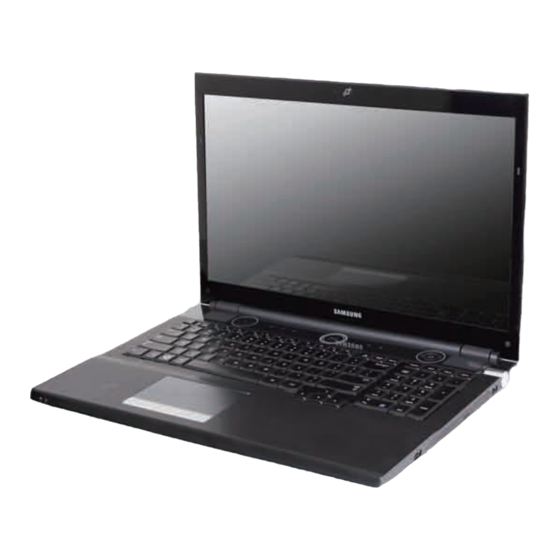

Samsung NP700G7A User Manual

Hide thumbs Also See for NP700G7A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

User Guide

1 1
1
Getting Started
2
Using the Computer
3
Settings and Upgrade
4
Backup / Restore
5
Appendix
Contents
Start

Advertisement

Table of Contents
loading

Related Manuals for Samsung NP700G7A

Summary of Contents for Samsung NP700G7A

  • Page 1: User Guide

    User Guide Getting Started Using the Computer Start Settings and Upgrade Backup / Restore Appendix Contents...

  • Page 2: Table Of Contents

    Using the Security Slot (Optional) Mode Dial Keyboard Chapter 4. Backup / Restore Touchpad CD Drive (ODD, Optional) Samsung Recovery Solution (Optional) Multi Card Slot (Optional) Connecting an External Display Device Chapter 5. Appendix Connecting an External Digital Device Adjusting the Volume...
  • Page 3 Chapter 1. Getting Started Tips Before You Start Safety Precautions Proper Posture During Computer Use Overview Turning the Computer On and Off...

  • Page 4: Tips

    How can I extend the battery usage time? purchased. The battery usage time may be shortened if you recharge If you use the Samsung Recovery Solution function, you the battery before it is completely discharged. can easily and quickly restore the computer to a previous...

  • Page 5: Before You Start

    Content included in this section includes Note - Start > All Programs helpful information to use the function. - Start > All Programs > Samsung Samsung • When the programs are not installed, select Recovery Solution > System Software to install the programs.
  • Page 6 HDD in Windows is smaller than the Samsung Electronics shall not be liable for any data loss. Please actual capacity due to the difference in capacity calculation.
  • Page 7 Before You Start Chapter 1. Getting Started About Memory Capacity Representation The memory capacity reported in Windows is less than the actual capacity of memory. This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g.

  • Page 8: Safety Precautions

    Keep a distance of 15cm or more between following safety instructions carefully. the computer and the wall and do not place Since this is commonly applied to Samsung Computers, some any objects between them. pictures may differ from actual products.
  • Page 9 Safety Precautions Chapter 1. Getting Started Warning If the power cord or power outlet makes a noise, disconnect the power cord from the Failure to follow instructions marked with this symbol may wall outlet and contact a service center. cause personal injury and even fatality. There is a danger of electric shock or fi re hazard.
  • Page 10 Safety Precautions Chapter 1. Getting Started Warning AC Adapter Usage Precautions Failure to follow instructions marked with this symbol may cause personal injury and even fatality. Connect the power cord to the AC adapter firmly. Connect the power cord to an outlet or Otherwise, there is a danger of fire due to an multiple power plug (extended cable) with incomplete contact.
  • Page 11 Please use an authorized battery and adapter is still turned on. approved by Samsung Electronics. If you put the computer into your bag without Unauthorized batteries and adapters may not turning it off, the computer may overheat and meet the proper safety requirements and may there is a danger of fire.
  • Page 12 AC adapter, There is a danger of an explosion or fire. and immediately contact Samsung Electronics so that To use the computer safely, replace a dead the appropriate countermeasures can be taken.
  • Page 13 Safety Precautions Chapter 1. Getting Started Warning Usage Related Failure to follow instructions marked with this symbol may cause personal injury and even fatality. Disconnect all cables connected to the computer before cleaning it. If your • Thereafter, if you connect the AC adapter, the battery power notebook is external &...
  • Page 14 Safety Precautions Chapter 1. Getting Started Warning Upgrade Related Failure to follow instructions marked with this symbol may cause personal injury and even fatality. Never disassemble the power supply or AC adapter. If the computer is broken or dropped, There is a danger of electric shock. disconnect the power cord and contact a service center for a safety check.
  • Page 15 Safety Precautions Chapter 1. Getting Started Warning When carrying the notebook computer with other items, such as the adapter, Failure to follow instructions marked with this symbol may mouse, books etc, take care not to press cause personal injury and even fatality. anything against the notebook computer.
  • Page 16 This may cause an injury, fire or explosion. When using the computer with it lying on its side, place it so Use only a battery authorized by Samsung Electronics. that the vents face upwards. Failure to do so may cause an explosion.
  • Page 17 This may cause personal injury or loss of data. Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for Do not touch the antenna with electricity facility such as the safety may cause an electric shock or fire.
  • Page 18 Safety Precautions Chapter 1. Getting Started Caution Do not place your face close to the Optical Disk Drive tray when it is operating. Failure to follow instructions marked with this symbol may There is a danger of injury due to an abrupt ejection. cause slight injury or damage to the product.
  • Page 19 Never disassemble or repair the product by yourself. There is a danger of electric shock or fire. To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device. There is a danger of damaging the product.
  • Page 20 Safety Precautions Chapter 1. Getting Started Caution Causes that may damage the data of a hard disk drive and the hard disk drive itself. Failure to follow instructions marked with this symbol may cause slight injury or damage to the product. •...
  • Page 21 Safety Precautions Chapter 1. Getting Started When using the AC power plug Using the power supply in an airplane Connect the power plug pins perpendicular into the center of the Since the power outlet type diff ers depending on the type of power outlet.

  • Page 22: Proper Posture During Computer Use

    Proper Posture During Computer Use Chapter 1. Getting Started Maintaining a proper posture during computer use is very • Do not use the computer while you are lying down, but only important to prevent physical harm. while you are sitting down. The following instructions are about maintaining a proper posture •...
  • Page 23 Proper Posture During Computer Use Chapter 1. Getting Started Eye Position Hand Position Keep the monitor or LCD away from your eyes by at least Keep your arm at a right angle as shown by the fi gure. 50cm. • Keep the line from your elbow to your hand straight.
  • Page 24 Proper Posture During Computer Use Chapter 1. Getting Started Volume Control (Headphones and Speakers) Use Time (Break Time) Check your volume fi rst to listen to music. • Take a break for 10 minutes or more after a 50-minute period when working for more than one hour.

  • Page 25: Overview

    Overview Chapter 1. Getting Started Front View Using this camera, you can take still Camera/Camera pictures and record video. LED (Optional) • The pictures used for the cover and the main body in the If you use this, the LED will turn on. User Manual are those of the representative model of each The screen images are displayed here.
  • Page 26 Overview Chapter 1. Getting Started Status Indicators This shows that the computer is in high 1 Turbo Mode performance mode optimized for playing games. This turns when either the HDD or ODD is 2 HDD/ODD being accessed. This turns on when the Caps Lock key is pressed allowing capital letters to be typed without holding the Shift button down.
  • Page 27 Overview Chapter 1. Getting Started Touch sensor buttons Volume control Controls the volume. Mutes the sound. : This shows that the sound is 2 3 4 2 Mute muted. : This shows that the sound is on. Turns several wireless network devices on or off at the same time.
  • Page 28 (Optional) may differ depending on the model specifications. You can configure the various computer modes. Gaming Mode: • Game mode (High-performance mode) Mode Dial Balanced Mode: • Samsung-optimized mode Library Mode: Silent mode • • Green Mode: Maximum power-saving mode...
  • Page 29 Overview Chapter 1. Getting Started Left View A jack to connect the AC adapter that DC Jack supplies power to the computer. Wired LAN Port Connect the Ethernet cable to this port. A port used to connect a monitor, TV Monitor Port (RGB) or projector supporting a 15pin D-SUB (Optional)
  • Page 30 Overview Chapter 1. Getting Started Back View This is a Lithium-Ion rechargeable Battery battery that supplies power to the computer. The latch used to remove or install Battery Latches the battery. A device used to produce mid and Sub-Woofer Speaker low frequency sound louder.

  • Page 31: Turning The Computer On And Off

    Turning the Computer On and Off Chapter 1. Getting Started Turning the computer on About Windows Activation Install the battery and connect the AC adapter. When you turn the computer on for the fi rst time, the Windows activation screen appears. Lift the LCD panel up.
  • Page 32 Turning the Computer On and Off Chapter 1. Getting Started Turning the computer off • Since the procedures to turn the computer off may diff er depending on the installed operating system, please turn the computer off according to the procedures for the purchased operating system.

  • Page 33: Chapter 2. Using The Computer

    Chapter 2. Using the computer Mode Dial Keyboard Touchpad CD Drive (ODD, Optional) Multi Card Slot (Optional) Connecting an External Display Device Connecting an External Digital Device Adjusting the Volume Wired Network Wireless Network (Optional) Using 3D (for 3D models only)

  • Page 34: Mode Dial

    While playing sound, the Sound LED in Red color blinks. (Game mode) • The Desktop and icons are changes. You can confi gure the major functions by clicking Start > All Programs > Samsung > Mode Shift. Balanced Mode This is Samsung-optimized mode. (Samsung- •...

  • Page 35: Keyboard

    Keyboard Chapter 2. Using the computer Shortcut key functions and procedures are discussed in the following sections. • The keyboard image may diff er from the actual keyboard. • The keyboard may diff er depending on your country. The following mainly describes the shortcut keys. Shortcut Keys Press both the Fn key and hot key at the same time.
  • Page 36 Shortcut Keys Name Function Easy Settings The Samsung software control program, the Easy Settings, is launched. Screen Brightness Controls the screen brightness. Control Switches the screen output to the LCD or external monitor when an external monitor (or TV) is CRT/LCD connected to the computer.
  • Page 37 Keyboard Chapter 2. Using the computer Fn Lock key Other Function Keys If you press the Fn Lock key, you can use the hot key functions Performs the right-click mouse function (touchpad). without pressing the Fn key. Lock If the Fn Lock function is On •...

  • Page 38: Touchpad

    Touchpad Chapter 2. Using the computer The touchpad provides the same function as a mouse and the left • Use the Touchpad with your fi ngers. Using a sharp object and right buttons of the touchpad plays the role of the left and may damage the Touchpad.
  • Page 39 Touchpad Chapter 2. Using the computer Basic Touchpad Functions Touch Area Moving the cursor on the screen Use to move the cursor. Place your fi nger on the touchpad slightly and move your fi nger. The mouse cursor will move accordingly. Move your fi nger in the direction you wish to move the cursor.
  • Page 40 Touchpad Chapter 2. Using the computer Double-Click Function Drag Function Put your finger on the touchpad and quickly tap twice with your Dragging refers to moving an item to another place after selecting finger on an item you want. Alternatively, press the left touchpad button twice quickly. Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.
  • Page 41 Touchpad Chapter 2. Using the computer Confi guring the Gesture Function The Gesture Function of the Touchpad (Optional) Some gesture functions may not be confi gured. In this case, you can confi gure them using the following path. ► When using the Elan driver •...
  • Page 42 Touchpad Chapter 2. Using the computer The Scroll Function Page Move Function This function is the same as the scroll area of the Touchpad. You can move to the previous or next page when you are looking at a photo or surfing the Internet. If you place two fingers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right For example, if you lightly brush three fingers to the left while you...
  • Page 43 Touchpad Chapter 2. Using the computer ► When using the Elan driver Setting the Touchpad Sensitivity Click Start > Control Panel > Hardware and Sound > Mouse If the touchpad reacts too sensitively or the pointer moves > ELAN > Options > PalmTracking and then adjust the unintentionally, please adjust the touchpad pointer speed and sensitivity.
  • Page 44 Touchpad Chapter 2. Using the computer Touchpad On/Off Function Locking with shortcut keys Auto-locking when connecting USB mouse If you want to use the mouse only without using the touchpad, ► When using the Elan driver you can turn the touchpad off . Click Start >...

  • Page 45: Cd Drive (Odd, Optional)

    CD Drive Chapter 2. (ODD, Optional) Using the computer An optical disk drive is optional and may diff er depending on When the CD tray opens, insert a CD or DVD and push the your computer model. For detailed specifi cations, refer to the tray in until it clicks.

  • Page 46: Multi Card Slot (Optional)

    Multi Card Slot Chapter 2. (Optional) Using the computer Using the multi card slot, you can read and write data to cards. Using the card You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital Insert the card into the multi card slot in the indicated camcorder, MP3, etc..
  • Page 47 Multi Card Slot Chapter 2. (Optional) Using the computer The card drive appears. Click Open folder and view fi les. You can save, move and delete data by double-clicking the corresponding drive. If the window does not appear, click Start > Computer. You can only use the card after formatting it.
  • Page 48 Multi Card Slot Chapter 2. (Optional) Using the computer To remove a memory card • To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital Take hold of the end of the card and remove the card. device is recommended.

  • Page 49: Connecting An External Display Device

    Connecting an External Display Device Chapter 2. Using the computer If you connect an external display device such as a monitor, TV, About the connection cable projector, etc., you can view the picture on the wider screen of the Users should additionally purchase the necessary connection external device when you give a presentation or watch a video or cables.
  • Page 50 Connecting an External Display Device Chapter 2. Using the computer Connecting to the monitor port You can experience a wider screen by connecting the computer to Press the key combination once. Then the a monitor, TV or projector with a monitor port. You can give better setting screen appears where you can select the monitor presentations by connecting the computer to a projector.
  • Page 51 Connecting an External Display Device Chapter 2. Using the computer ► When Multi View is supported (Optional) LCD Only All Clone LCD+CRT Clone All Extend LCD+CRT Dual View • What is Multi View? Alternatively, to set up Dual View: This refers to the mode that outputs the screen to the Open the Display Settings window in the Control Panel, notebook LCD and the additionally connected monitors select Monitor 2 and select the Expand to fi t to this...
  • Page 52 Connecting an External Display Device Chapter 2. Using the computer Connecting through the HDMI/DP port (Optional) By connecting the computer to a TV with a HDMI/DP port, you Press the key combination once. Then the can enjoy both a high visual quality and a high sound quality. setting screen appears where you can select the monitor After connecting a TV through HDMI/DP, you have to confi gure mode.
  • Page 53 Connecting an External Display Device Chapter 2. Using the computer ► When Multi View is supported (Optional) HDMI LCD Only LCD+HDMI Clone All Clone LCD+HDMI Dual View All Extend Alternatively, to set up Dual View: Open the Display Settings window in the Control Panel, •...
  • Page 54 Connecting an External Display Device Chapter 2. Using the computer Setting up HDMI TV video (Optional) ► For AMD graphics cards If the Desktop screen displayed on the TV does not fi t to the TV Right-click on the Desktop and select Catalyst Control screen, confi gure it as follows depending on the graphics card.
  • Page 55 Connecting an External Display Device Chapter 2. Using the computer ► For NVIDIA graphics cards Resize the Desktop using the resize bars so that the four arrows at the corners of the Desktop are placed in the corners of the TV and then click OK. This function is not provided in the Optimus specifi cations.
  • Page 56 Connecting an External Display Device Chapter 2. Using the computer Setting up HDMI TV audio (Optional) You can confi gure the sound of the computer to be played through the HDMI TV. You have to confi gure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.

  • Page 57: Connecting An External Digital Device

    Connecting an External Digital Device Chapter 2. Using the computer The Auto run window appears. Click Open folder and view You can save a fi le stored on a device onto the computer by fi les. connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the fi le management functions.

  • Page 58: Adjusting The Volume

    Adjusting the Volume Chapter 2. Using the computer You can adjust the volume using the keyboard and the volume Using the Sound Recorder control program. The procedures to record sound using the Windows Recorder are described below. Adjusting the Volume using the Keyboard Connect a microphone to the microphone jack.

  • Page 59: Wired Network

    Wired Network Chapter 2. Using the computer Click Start > Control Panel > Network and Internet > A wired network is a network environment used for a company Network and Sharing Center and click on Change adapter network or broadband internet connection at home. settings in the left menu pane.
  • Page 60 Wired Network Chapter 2. Using the computer Select Internet Protocol Version 4(TCP/IPv4) from the list Confi gure the IP settings. of Network Components and click Properties. When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.
  • Page 61 Wired Network Chapter 2. Using the computer - <Wake On LAN> feature may not work while using Hybrid Using the WOL (Wake On LAN) function power saving feature. <Wake On LAN> is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

  • Page 62: Wireless Network (Optional)

    Wireless Network Chapter 2. (Optional) Using the computer A wireless network (Wireless LAN) environment is a network What is an Access Point ( AP)? environment that enables communicating between multiple An AP is a network device that bridges wired and wireless computers at home or a small-size offi ce through wireless LAN LANs, and corresponds to a wireless hub in a wired network.
  • Page 63 Wireless Network Chapter 2. (Optional) Using the computer Click Connect. Connecting to a Wireless LAN through Windows If a network key is set for the AP, enter the network key and If there is an AP, you can connect to the Internet via the AP using then click Connect.
  • Page 64 Wireless Network Chapter 2. (Optional) Using the computer When you are not connected to the Internet Normal Wireless LAN Status This is indicated by the wireless LAN icon in the system tray of If the wireless LAN icon is displayed in the system tray of the the Taskbar.

  • Page 65: Using 3D (For 3D Models Only)

    Liquid crystal shutter Using the 3D function (Battery-operated 3D active glasses) The following items are required to use the 3D computer. • Samsung 3D computer Liquid-crystal shutter (a model with 3D graphics and a 3D LCD panel, Optional) Sensor pad •...
  • Page 66 Using the computer (The TriDef 3D Portal screen) Using the 3D function You can use the 3D function of the Samsung 3D computer after connecting the 3D glasses to the computer through a Bluetooth connection. In the 3D program, run a 3D video, 3D game or 3D photo.
  • Page 67 Using 3D Chapter 2. (for 3D models only) Using the computer The LED indicator for the battery-operated 3D active If you put on the 3D active glasses and press the 3D button, the data exchange begins between the glasses and the software glasses (hereafter, referred to as pairing).
  • Page 68 Using 3D Chapter 2. (for 3D models only) Using the computer The LED indicator for the chargeable 3D active glasses Charging the chargeable 3D glasses The LED indicator of the glasses changes depending on the If the LED blinks red at a 2 second interval, charge the glasses with operating conditions.
  • Page 69 • If you switch the mode from 3D to 2D While watching a 3D picture, the 3D function of the screen is turned off automatically. • Only a dedicated pair of Samsung 3D glasses and a Samsung 3D computer can be connected.
  • Page 70 Using 3D Chapter 2. (for 3D models only) Using the computer SAFETY PRECAUTIONS Warning Caution Failure to follow instructions marked with this symbol may Failure to follow instructions marked with this symbol may cause personal injury and even fatality. cause slight injury or damage to the product. •...
  • Page 71 Using 3D Chapter 2. (for 3D models only) Using the computer Q&A Can I watch 2D content in 3D? The 3D glasses do not work. You can watch 2D content in 3D by selecting 3D mode in the 3D program. However, some content may not be supported. For supported games and file formats, refer to the online A1 Use the 3D active glasses within the operating range of the help of the program.

  • Page 72: Chapter 3. Settings And Upgrade

    Chapter 3. Settings and Upgrade LCD Brightness Control Easy Settings (Optional) BIOS Setup Setting a Boot Password Changing the Boot Priority Upgrading Memory Adding a Hard Disk Drive Battery Using the Security Slot (Optional)

  • Page 73: Lcd Brightness Control

    LCD Brightness Control Chapter 3. Settings and Upgrade You can adjust the LCD brightness in 8 levels. Maintaining the changed LCD brightness even after • turning the computer on again The screen brightness is automatically set to the brightest To maintain the LCD brightness set by using the brightness level (brightness level 8) when AC power is connected and the control keys or through the Power Options, follow the brightness is automatically set dimmer when the computer...
  • Page 74 Settings and Upgrade LCD bad pixels principle of computer • Samsung observes the specifi cations regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t aff ect the...

  • Page 75: Easy Settings (Optional)

    Easy Settings Chapter 3. (Optional) Settings and Upgrade The Easy Settings is the integrated Samsung software control Functions program that allows users to confi gure various settings. You can confi gure the USB Charging, Battery • This description is for models that support this function...

  • Page 76: Bios Setup

    BIOS Setup Chapter 3. Settings and Upgrade The BIOS Setup enables you to confi gure your computer hardware When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS Setup. according to your needs. • Use the BIOS setup to defi ne a boot password, change the booting priority, or add a new device.
  • Page 77 BIOS Setup Chapter 3. Settings and Upgrade System Setup Keys The BIOS Setup Screen In the Setup, you have to use the keyboard. The BIOS Setup menus and items may diff er depending on your computer model. Press to view the Setup Help. Setup Menu Up &...

  • Page 78: Setting A Boot Password

    Setting a Boot Password Chapter 3. Settings and Upgrade Select the Security menu in the BIOS Setup. If you set a password, you have to enter the password when you turn the computer on or enter the BIOS Setup. XXXXXXXX By confi guring a password, you can restrict system access to In the Set Supervisor Password item, press <Enter>.
  • Page 79 Setting a Boot Password Chapter 3. Settings and Upgrade Setting a User Password Setting up a Hard Disk Drive Password (Optional) Using the User Password, you can turn the computer on but you If you set a password for a hard disk drive, it cannot be accessed cannot change the major settings of the BIOS Setup because you from another computer.
  • Page 80 Setting a Boot Password Chapter 3. Settings and Upgrade Deactivating the Password Press <Enter> on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>. In the Enter Current Password item, enter the currently confi gured password and press <Enter>.

  • Page 81: Changing The Boot Priority

    Changing the Boot Priority Chapter 3. Settings and Upgrade Press the down key (↓) to move to the SATA HDD item and This computer is confi gured to boot from an external-type ODD press the F6 key to move up to the top item. fi rst.

  • Page 82: Upgrading Memory

    Upgrading Memory Chapter 3. Settings and Upgrade One or more memory modules are installed on the computer. Adding or Replacing Memory Modules There are 4 memory slots in total. Users can replace the memory modules or add new memory modules using 2 of the slots. Remove the screw on the memory compartment cover at the bottom of the computer using a screw driver.
  • Page 83 Upgrading Memory Chapter 3. Settings and Upgrade Push the memory module down so that it is completely fi xed. Close the memory compartment cover and fasten the screw. If the memory does not fi t easily, push the memory module down while pulling the memory module latches outward.

  • Page 84: Adding A Hard Disk Drive

    Adding a Hard Disk Drive Chapter 3. Settings and Upgrade This computer may have one or two hard disk drives depending Shut the computer down completely and separate the AC on the product. adapter and the battery from the main body. If there is only one hard disk drive, you can add a hard disk drive to Remove the screw fi xing the hard disk drive compartment the auxiliary hard disk drive compartment.
  • Page 85 Chapter 3. Adding a Hard Disk Drive Settings and Upgrade Insert the hard disk drive to be added into the rubber cover Insert the fi xing cover aligning the one side of the cover with and connect one end of the connector to the hard disk drive. the three holes of the main body and fi x the other side of the cover by fastening 2 fi xing screws.

  • Page 86: Battery

    Battery Chapter 3. Settings and Upgrade Please refer to the following instructions when running the Installing/Removing the Battery computer on battery power without connecting the AC power. A Lithium-Ion smart battery is supplied with this computer. Shutdown the system, close the LCD panel and place the computer upside down on a fl at surface.
  • Page 87 Battery Chapter 3. Settings and Upgrade Charging the Battery Measuring the Remaining Battery Charge You can view the battery charge status by completing the For safety purposes, the computer has been designed to not following procedures. charge the battery when applications place a heavy load on the CPU over a long period of time even if the AC adapter is connected.
  • Page 88 Power Alternatively, to extend the battery life Options. Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced If the following screen appears, select one of the modes.
  • Page 89 Restart your computer and press the F2 button when the window and press <Enter>. Samsung logo appears, to start the BIOS Setup. The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the <Esc>...

  • Page 90: Using The Security Slot (Optional)

    Using the Security Slot Chapter 3. (Optional) Settings and Upgrade You can secure the computer by connecting a lock and cable to the Security Slot. To use this feature, you have to purchase the lock and cable additionally. To use the lock and cable, refer to the product manual. Tie the lock and cable to a fixed object and install the other end of the cable to the security slot.

  • Page 91: Chapter 4. Backup / Restore

    Chapter 4. Backup / Restore Samsung Recovery Solution (Optional)

  • Page 92: Samsung Recovery Solution (Optional)

    Samsung Recovery Solution Chapter 4. (Optional) Backup / Restore Samsung Recovery Solution is a program that enables restoring Samsung Recovery Solution Functions or backing up the hard disk drive for when a problem occurs with the computer. Backup/Restore Functions If the computer fails to boot up, you can restore the computer by pressing the key in the booting screen.
  • Page 93 Restore Function the slide bar and the click Next. Not only can you use Samsung Recovery Solution when Windows The Partition Setup function is only available when the is running, but also when you are unable to boot up into Windows.
  • Page 94 – When Windows does not start: Turn the computer on and press the key when the boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung If you click Select by Symptom, the Select by Symptom Recovery Solution screen appears.
  • Page 95 Samsung Recovery Solution Chapter 4. (Optional) Backup / Restore Select either Basic Restore or Complete Restore from the In the Advanced menu, you can change the size of the hard Restore menu. drive partitions (e.g. C: and D:). To restore the computer to the initial state, click Computer •...
  • Page 96 15 GB of free space is required. When the option selection item appears, select an option and click Next. Click Backup in the start screen of the Samsung Recovery Solution. The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.
  • Page 97 If the LiveImaging option has been selected, the computer is not restarted. • Samsung Recovery Solution supports the DVD+R, DVD-R, DVD+RW and DVD-RW formats. • If the LiveImaging option has been selected, the Complete Backup operation begins without the computer being restarted.
  • Page 98 Connect the removable storage device. – When backing up to another drive Proceed to Step 2. When the Samsung Recovery Solution start screen appears, click Restore and then click Complete Restore. The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.
  • Page 99 Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD. Data Backup When the Samsung Recovery Solution start screen appears, Select Drive D. Select the DVD drive. click Backup and then click Data Backup.
  • Page 100 Samsung Recovery Solution Chapter 4. (Optional) Backup / Restore Data Restore – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive. – When backing up to a removable storage device Connect the removable storage device.
  • Page 101 System Software Programs or back up > System Software Installation. those programs. The system software function is supported by Samsung Recovery Solution version 4 or later. Therefore, the function may not be supported depending on the version.
  • Page 102 SecSWMgrGuide.exe fi le in the SystemSoftware folder. • To delete Samsung Recovery Solution, refer to the Help section of the program. Select Drive D. If you have specifi ed a hard disk drive or a removable disk as the Save Path, the SamsungSoftware folder is created on the corresponding drive (e.g.
  • Page 103 5~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows. The size of Samsung Recovery Solution varies by models because of the different size of applied programs.
  • Page 104 Chapter 5. Appendix Important Safety Information Replacement Parts and Accessories Regulatory Compliance Statements WEEE Symbol Information Product Specifi cations Glossary Index...

  • Page 105: Important Safety Information

    Important Safety Information Chapter 5. Appendix • If your computer has a voltage selector switch, make sure that Safety Instructions the switch is in the proper position for your area. Your system is designed and tested to meet the latest standards •...
  • Page 106 Important Safety Information Chapter 5. Appendix Care During Use The Instruction On Safety Operation of NotePC • Do not walk on the power cord or allow anything to rest on it. 1. When installing and operating devices please refer to safety requirements in the user guide.

  • Page 107: Replacement Parts And Accessories

    • Class 1M laser radiation when operating part is open. Contact the Samsung Helpline for information on how to dispose Do not view directly with optical instruments. of batteries that you cannot use or recharge any longer.
  • Page 108 Replacement Parts and Accessories Chapter 5. Appendix General Requirements Connecting and Disconnecting the AC adapter The requirements listed below are applicable to all countries: The socket-outlet should be installed near the equipment and should be easily accessible. • All power cord sets must be approved by an acceptable Do not unplug the power cord by only pulling the cable.

  • Page 109: Regulatory Compliance Statements

    Regulatory Compliance Statements Chapter 5. Appendix As a general guideline, a separation of 20 cm (8 inches) between Wireless Guidance the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device (If fitted with 2.4G band or 5G band) should be used more than 20 cm (8 inches) from the body when Low power, Radio LAN type devices (radio frequency (RF) wireless...
  • Page 110 Regulatory Compliance Statements Chapter 5. Appendix United States of America • Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries USA and Canada Safety Requirements and Notices with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on Do not touch or move antenna while the unit is transmitting or...
  • Page 111 Regulatory Compliance Statements Chapter 5. Appendix Unintentional Emitter per FCC Part 15 Use On Aircraft Caution This device complies with Part 15 of the FCC Rules. Operation is Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals subject to the following two conditions:(1) this device may not could interfere with critical aircraft instruments.
  • Page 112 Regulatory Compliance Statements Chapter 5. Appendix If necessary, the user should consult the dealer or an experienced This device is restricted to indoor use due to its operation in the radio/television technician for additional suggestions. The user 5.15 to 5.25 GHz frequency range. FCC requires this product to be may find the following booklet helpful: “Something About used indoors for the frequency range 5.15 to 5.25 GHz to reduce Interference.”...
  • Page 113 Regulatory Compliance Statements Chapter 5. Appendix FCC Part 68 (If fitted with a modem device.) Wireless devices are not user serviceable. Do not modify them in any way. This equipment complie with part of the FCC rules. On the back of Modification to a wireless device will void the authorization this equipment is a label that contains, among other information, to use it.
  • Page 114 Regulatory Compliance Statements Chapter 5. Appendix The REN is used to determine the quantity of devices which may The user must use the accessories and cables supplied by the be connected to telephone line. Excessive RENs on the telephone manufacturer to get optimum performance from the product. line may result in the devices not ringing in response to an No repairs may be done by the customer.
  • Page 115 Regulatory Compliance Statements Chapter 5. Appendix The term “IC” before the equipment certification number only Canada signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent Unintentional Emitter per ICES-003 isotropically radiated power (EIRP) is not more than that required This digital apparatus does not exceed the Class B limits for radio...
  • Page 116 Regulatory Compliance Statements Chapter 5. Appendix du système pour vérifiez la présence de dispositifs sans fil. The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to Wireless devices that may be in your system are only qualified for 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point use in Canada if an Industry Canada ID number is on the system...
  • Page 117 Regulatory Compliance Statements Chapter 5. Appendix Ce transmetteur ne doit pas être colocalisé ni utilisé Les dispositifs sans fil ne peuvent pas être réparés par conjointement à tout autre transmetteur ou antenne, à l’exception l’utilisateur. Ne les modifiez en aucune façon. La modification du transmetteur Bluetooth installé.
  • Page 118 Regulatory Compliance Statements Chapter 5. Appendix Telecommunications per DOC notice To avoid electrical shock or equipment malfunction do not (for products fitted with an IC-compliant modem) attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, The Industry Canada label identifies certified equipment.
  • Page 119 Class 2 identifier. Tel: +86-512-6253-8988 The following information is only applicable to systems labeled with the CE mark For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.
  • Page 120 [Danish] de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den Wireless devices that may be in your system are only qualifi ed for Deutsch...
  • Page 121 [Portuguese] [Italian] ed alle altre disposizioni pertinenti stabilite disposições da Directiva 1999/5/CE. dalla direttiva 1999/5/CE. Samsung izjavlja, da je ta Notebook PC v skladu Slovensko Ar šo Samsung deklarē, ka Notebook PC atbilst z bistvenimi zahtevami in ostalimi relevantnimi Latviski [Slovenian] Direktīvas 1999/5/EK būtiskajām prasībām un...
  • Page 122 Regulatory Compliance Statements Chapter 5. Appendix European Economic Area Restrictions Hér með lýsir Samsung yfi r því að Notebook PC Íslenska er í samræmi við grunnkröfur og aðrar kröfur, Local Restriction of 802.11b/802.11g Radio Usage [Icelandic] sem gerðar eru í tilskipun 1999/5/EC.
  • Page 123 Regulatory Compliance Statements Chapter 5. Appendix France The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted For Metropolitan departments: in particular countries or regions within countries, as follows: 2.400 - 2.4835 GHz for indoor use. General 2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.
  • Page 124 Regulatory Compliance Statements Chapter 5. Appendix European Telecommunication Information This equipment has been approved to Council Decision 98/482/ EEC - “CTR 21” for Pan-European single terminal connection to the (for products fitted with EU-approved modems) Public Switched Telephone Network (PSTN). Marking by the symbol indicates compliance of this equipment However, due to differences between the individual PSTNs...

  • Page 125: Weee Symbol Information

    Dioxide) Lithium coin cells in the product sold or distributed ONLY in disposal. California USA. “Perchlorate Material- special handling may apply, See www.dtsc. ca.gov/hazardouswaste/perchlorate.” Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website:www. samsung.com/recyclingdirect Or call, (877) 278-0799...

  • Page 126: Product Specifications

    The system specifications are subject to change without notice. Intel® Quad-Core™ i7 Processor • The hard disk drive capacity of a computer in which Samsung Recovery Solution is installed, is represented as Main Memory Memory type: DDR3 SODIMM smaller than the product specification. •...
  • Page 127 Registered Trademarks ENERGY STAR® Partner As an ENERGY STAR® Partner, SAMSUNG has Samsung is a registered trademark of Samsung Co., Ltd. determined that this product meets the ENERGY STAR® Intel, Quad-Core are registered trademarks of the Intel guidelines for energy efficiency.

  • Page 128: Glossary

    Glossary Chapter 5. Appendix The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help. Backup DHCP (Dynamic Host Configuration Protocol) A way to save the current data to restore it later if necessary. This refers to automatically allocating IP addresses to the users on A backup is a way to restore computer data when the data or the network by the network administrators.
  • Page 129 Glossary Chapter 5. Appendix DVD (Digital Versatile Disk) Icon DVD was developed to replace CD (compact disk). Although the This refers to a small image that represents a file that users can use. shape and size of the disc are the same as that of a CD, the capacity IEEE802.XX of a DVD is at least 4.7GB while the capacity of a CD is 600MB.
  • Page 130 Glossary Chapter 5. Appendix Network PCMCIA( Personal Computer Memory Card International Association) card A group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either This is an extended card slot specification for mobile computers small or large and can be connected permanently through cables such as a notebook computer.
  • Page 131 Glossary Chapter 5. Appendix Server TCP/IPv4 In general, a server refers to a computer that provides shared This is a 4 byte (32 bit) address system separated into each byte resources for network users. (8 bits) by a dot and each byte is represented as a decimal number. Share USB (Universal Serial Bus) This refers to setting a resource of a computer such as a folder or...

  • Page 132: Index

    Index Chapter 5. Appendix LCD Brightness Safety Precautions Samsung Recovery Solution Scroll Battery Mode Dial Security Slot BIOS Setup Monitor Connection / Output Shortcut Key Booting Priority Multi Card Slot Status Indicators Supervisor Password CD Drive Overview Charge Touchpad Click...
