Page 24
English iMPORTAnT sAFEgUARDs READ ALL INSTRUCTIONS BEFORE USE When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: DAngERs To reduce the risk of electrocution: Do not place or store the charger or sanitizer where it can fall or be pulled into a tub or sink, or where it will sit or drop into water or other liquid.
Page 25
English Never force the plug into an outlet; if the plug does not easily fit into the outlet, discontinue use. Discontinue use if the product appears damaged in any way (brush head, handle, charger, sanitizer). The power cord cannot be replaced. If the power cord is damaged, discard the charger and/or sanitizer.
Consult your physician if you have other medical concerns. Electromagnetic fields (EMF) This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields. SAVE THESE INSTRUCTIONS...

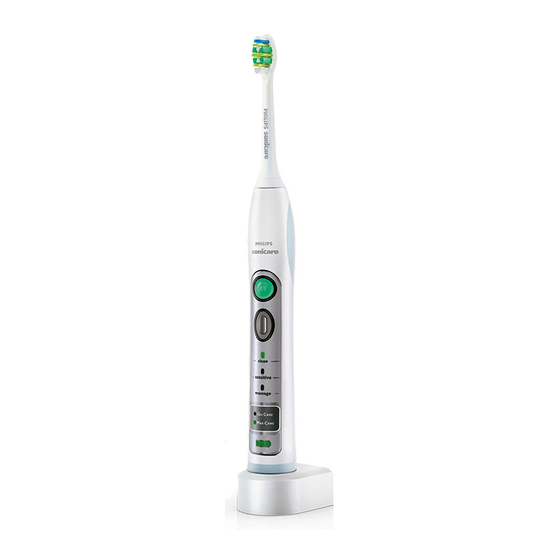

English Your Sonicare (Fig. 1) A Hygienic travel cap B Brush head C Handle with soft grip D Power on/off button Personalized brushing button Brushing modes (select models) G Brushing routines (select models) H Deluxe recharge gauge Travel charger UV sanitizer with integrated charger and cord wrap Not shown: UV light bulb Not shown: Sanitizer drip tray...
English Place the handle on the charger. The flashing light on the battery gauge indicates that the toothbrush is charging. Deluxe recharge gauge: Indicates amount of charge left in battery 3 green LEDs: 75-100% 2 green LEDs: 50-74% 1 green LED: 25-49% 1 flashing yellow LED: less than 25% Note: If the battery charge of your Sonicare is low, you hear 3 beeps and 1 LED on the recharge gauge...
Page 29
English Gently move the brush head slowly across the teeth in a small back and forth motion so the longer bristles reach between your teeth. Continue this motion throughout your brushing cycle. Note: To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections using the Quadpacer®...
Page 30
English Note: When the toothbrush is turned on, you can switch between modes but not between routines. Routines should be selected prior to brushing. Brushing modes Clean mode Standard mode for superior teeth cleaning. Sensitive mode Gentle, yet thorough cleaning for sensitive gums and teeth.
Page 31
English Features Easy-start® This Sonicare model comes with the Easy-start® feature activated. The Easy-start feature gently increases power over the first 14 brushings to ease into the Sonicare experience. Note: Each of the first 14 brushings must be at least 1 minute in length to properly move through the Easy- start ramp-up cycle.
Page 32
English Quadpacer® - The Quadpacer® is an interval timer that has a short beep and pause to remind you to brush the 4 sections of your mouth. Depending on the brushing mode or brushing routine you have selected, the Quadpacer beeps at different intervals during the brushing cycle.
Page 33
English Sanitizing Sanitizing - With the UV sanitizer you can clean your brush head after every use. Unplug the sanitizer, discontinue use and call Consumer Care if: The UV light bulb remains on when the door is open. The window is broken or missing from the sanitizer.
Page 34
English Close the door and press the green power on/ off button once to select the UV clean cycle. Note: You can only turn on the sanitizer if the door is properly closed. Note: The sanitizer stops if you open the door during the sanitizing cycle.
Page 35
English Charger Unplug the charger. Use a damp cloth to wipe the surface of the charger. Sanitizer Do not immerse the sanitizer in water or rinse it under the faucet. Do not clean the sanitizer when the UV light bulb is hot.
Page 36
UV light bulb Replacement UV bulbs are available through your Sonicare Consumer Service Center in North America by calling 1-800-682-7664. Outside North America, contact your local Philips Consumer Care Center. Disposal The rechargeable battery inside your Sonicare cannot be replaced, but is easy to remove for recycling.
Page 37
English from the handle by following the instructions below.
Page 38
English - Do not throw away the appliance or the UV light bulb (bulb contains mercury) with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. If you have any recycling questions, contact your local waste management office.
Page 39
The rechargeable battery can now be recycled and the rest of the product discarded appropriately. Guarantee and service Philips warrants its products for two years after the date of purchase. Defects due to faulty materials and workmanship will be repaired or replaced at Philips expense provided that convincing proof of purchase in the qualifying period is provided.
Page 40
English SOME STATES LIMITATIONS ON DURATION OF IMPLIED WARRANTIES DO NOT APPLY. liMiTATiOn OF REMEDiEs IN NO EVENT SHALL PHILIPS OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY.
