User's Guide: Mac
59355801

Advertisement

Table of Contents
loading

Related Manuals for Oki 1220n

Summary of Contents for Oki 1220n

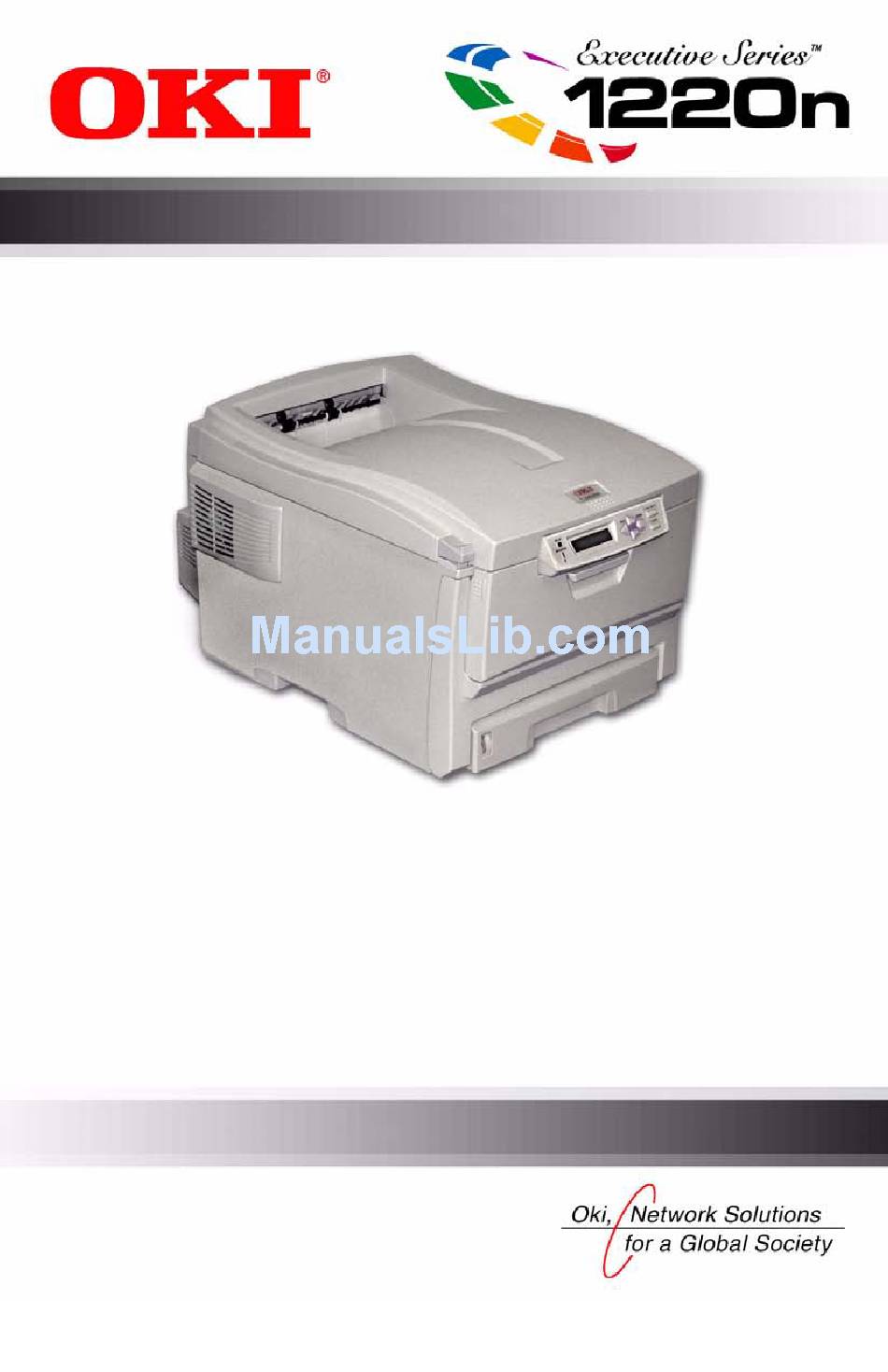

  • Page 1 User’s Guide: Mac 59355801...
  • Page 2 Oki is a registered trademark of Oki Electric Industry Company, Ltd. Executive Series is a trademark of Oki Data Americas, Inc. NERGY TAR is a registered trademark of the United States Environmental Protection Agency.

  • Page 3: Table Of Contents

    Oki Driver Options ........
  • Page 4 Printer Features ........68...
  • Page 5 Open Setup Utility ........205 Mac OS 10.1 and 10.2 Utilities ......207 ES 1220n Contents • 5...

  • Page 6: Introduction

    Introduction Your new printer is designed with advanced features to give you clear, vibrant color printing and crisp black and white pages at high speed on a range of print media. Features: • Up to 12 pages per minute in full color.

  • Page 7: Printer Overview

    Standard blank paper tray. Holds up to 300 sheets of 20-lb. US Bond (75 g/m²) paper. Multi-Purpose Tray Used for feeding heavier paper stocks, envelopes and other special media. Also for manual feeding of single sheets when required. ES 1220n Introduction • 7...

  • Page 8: Rear View

    (75 g/m²) paper When the rear paper stacker is folded down, paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the Multi-Purpose Tray, the paper path through the printer is essentially straight.
  • Page 9 A warning appears like this. A warning provides additional information which, if ignored, may result in a risk of personal injury. An important message appears like this. An important message provides supplemental information which can prevent potential problems. NOTE CAUTION! WARNING! Important! ES 1220n Introduction • 9...

  • Page 10: Changing The Display Language

    4. Press ENTER. 5. Press MENU language you wish to select. 6. Press ENTER to select this language. 7. Press ON LINE to exit the menu and return the printer to standby. repeatedly until you see repeatedly until you see –...

  • Page 11: Media Recommendations

    Media Recommendations Your printer can handle a variety of print media, including a range of paper weights and sizes, transparencies, labels and envelopes. This section provides general advice on choice and use of media. Print media must be able to withstand 446°F (230°C) for 0.2 second.

  • Page 12: Media Types

    – Paper with perforations, cut-outs or ragged edges. – Carbon paper, recycled paper, NCR paper, photosensitive paper, pressure sensitive paper or thermal transfer paper. ES 1220n Media Recommendations • 12 ® Laser Printer Radiant White, 24 lb. US Bond (90...

  • Page 13: Envelopes

    Envelopes • Use only recommended envelopes (Oki 52206301 and 52206302: see “Selecting/Using OKI Print Media” in your Handy Reference Guide for more information). • Envelopes should be stored flat and away from moisture, direct sunlight and heat sources. • Don’t use envelopes with windows or metal clasps.

  • Page 14: Transparencies

    Transparencies • Use only recommended transparencies (3M CG3720, Oki 52205701). • Avoid office transparencies designed for use by hand with marker pens. These will melt in the fuser and cause damage. Labels • Avery 5161 White Laser Labels (letter size) work well with your printer.

  • Page 15: Media: Tray 1 And Optional Tray 2

    Switch to the Rear Exit (Face Up Stacker) when you are printing paper heavier than 47 lb. US Bond (98 lb. Index, 177 g/m c. S = Simplex; D = Duplex (printing on both sides) ES 1220n Media Recommendations • 15 Feed Tray 1...

  • Page 16: Auto Switching

    The duplex unit can be used for paper only, at weights up to 28 lb. US Bond (105 g/m duplex (two-sided printing) function for labels, envelopes, transparencies, or paper heavier than 28 lb. US Bond. ES 1220n Media Recommendations • 16 Important! metric, 58 lb. Index). Do not use the...

  • Page 17: Media Sizes: Multi-Purpose Tray

    – Weight Range = 28 to 34 lb. US Bond (105 to 128 g/m – Path = Rear Exit (Face Up Stacker) only – Feed one sheet at a time. ES 1220n Media Recommendations • 17 Feed MP Tray Rear...

  • Page 18: Top Exit (Face Down Stacker)

    Rear Exit (Face Up Stacker) The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

  • Page 19: Loading Paper

    If you have the optional second paper tray installed: • If you are printing from the 1st (upper) tray, you can pull out the 2nd (lower) tray and reload it while the printer is printing. • If you are printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray while printing.
  • Page 20 (3). 3. Load paper print side down, making sure the rear stopper (1) and paper guides (2) are snug against the paper. ES 1220n Loading Paper • 20...
  • Page 21 NOTE Load letterhead paper face down, with the top edge aimed towards the front of the printer. 4. Gently close the paper tray. ES 1220n Loading Paper • 21...

  • Page 22: Multi-Purpose (Mp) Tray

    The MP Tray will take a stack of media about 3/8'' (10 mm) high, equivalent to about 10 envelopes or 50 transparencies. Do not exceed the 3/8'' (10 mm) media stack height. NOTE NOTE ES 1220n Loading Paper • 22...
  • Page 23 1. Open the MP Tray. ES 1220n Loading Paper • 23...
  • Page 24 (Optional duplex unit must be installed.) • Envelopes: load print side up (flap down) with top edge to the left and short edge into the printer. Do not select duplex print- ing on envelopes. ES 1220n Loading Paper • 24...
  • Page 25 4. Press the blue tray latch (1) toward the paper stack to lift the paper platform into the feed position. ES 1220n Loading Paper • 25...

  • Page 26: Macintosh Os 9.X Operation

    • Both devices use very different technologies to represent color. A monitor uses Red, Green and Blue (RGB) phosphors (or LCDs), a printer uses Cyan, Magenta, Yellow and Black (CMYK) toner or ink. ES 1220n Macintosh OS 9.x Operation • 26...
  • Page 27 Several of the Color Matching options make reference to your monitor’s Color Temperature. Many modern monitors allow the color temperature to be adjusted using the monitor’s control panel. ES 1220n Macintosh OS 9.x Operation • 27 → Print). File drop down menu and select...

  • Page 28: How Your Software Application Displays Color

    The type of paper used can also significantly affect the printed color. For example, a printout on recycled paper can look duller than one on specially formulated glossy paper. ES 1220n Macintosh OS 9.x Operation • 28 ® ® or Adobe...

  • Page 29: Choosing A Color Matching Method

    Desktop Publishing and Graphics applications. Matching Photographic Images RGB only Oki Color Matching (found in the printer driver under Color Control) is a generally a good choice. Select a matching method appropriate to your monitor. ES 1220n Macintosh OS 9.x Operation • 29...

  • Page 30: Matching Specific Colors

    Photoshop, you may be able to use Soft-Proofing to simulate the printed image on your monitor. To do this, you can use the ICC- Profiles provided by Oki, and then print using the ICC profiles as the Print Space (or Output space).

  • Page 31: Oki Driver Options

    Color Option 1. To access Color Option, first select your desired printer from an application using 2. Then open the drop-down menu directly underneath the printer and select Color ES 1220n Macintosh OS 9.x Operation • 31 → Print. File Option.
  • Page 32 1. Select the option desired. OKI Color Matching This is OKI’s proprietary color matching system and affects RGB data only. This is the default setting and provides the fastest, best color matching for your printer.
  • Page 33 When a document is printed, a conversion takes place from the document's color space to the printer color space. The rendering intents are essentially a set of rules that determine how this color conversion takes place. ES 1220n Macintosh OS 9.x Operation • 33...
  • Page 34 The white of a monitor is often very different from paper white, so this may result in color casts, especially in the lighter areas of an image. ES 1220n Macintosh OS 9.x Operation • 34...
  • Page 35 Glossy This option uses more CMYK and less Black while producing a shinier black. Matte This option uses more Black and less CMYK while producing a flatter black. ES 1220n Macintosh OS 9.x Operation • 35...
  • Page 36 (page 196) for further instructions. You will need to create a custom gamma profiles using the SDM before selecting one here. 1. Click on the arrows to select the profile required. ES 1220n Macintosh OS 9.x Operation • 36 NOTE NOTE...

  • Page 37: Job Option

    This option prevents the halftone of a high-end graphics application from printing. 1. Click on the checkbox to enable the option. Job Option 1. To access Job Option, first select your desired printer from an → Print. application using File ES 1220n Macintosh OS 9.x Operation • 37...
  • Page 38 = lower resolution, fast speed: choose this one for quick proofing of drafts.Select your desired print quality. Media Type Many options are available for selecting the thickness of the paper type. Normally the Printer Setting is sufficient. ES 1220n Macintosh OS 9.x Operation • 38...

  • Page 39: Job Option List

    1. Select your desired Media Type. Any option, other than Printer Setting, will override the setting at the printer. Job Option List A list of options to modify the printer. ES 1220n Macintosh OS 9.x Operation • 39...
  • Page 40 The MP tray cannot be used for duplex printing. Page Rotate Checking this will rotate the printed material on the page 180 degrees. Toner Saving Checking this will enable toner saving. ES 1220n Macintosh OS 9.x Operation • 40...

  • Page 41: Job Accounting (Optional Software)

    Plug-in 3. Open the Print Time Filters Filters, JobType 4. Click Save Settings, then click OK. 5. Click Cancel. ES 1220n Macintosh OS 9.x Operation • 41 on the File menu. Preferences. menu, then check and JobAccounting. General Print Time...
  • Page 42 Accounting. 4. Enter your User Name to proceed with your print job. If applicable, your not necessarily the same as your network login. ES 1220n Macintosh OS 9.x Operation • 42 on the File menu. Password and press the...

  • Page 43: Job Type

    OFF for secure printing to operate correctly. • Secure printing may not be available in some software applications. 1. To access Job Type, first select your desired printer from an application using ES 1220n Macintosh OS 9.x Operation • 43 NOTES → Print. File...
  • Page 44 From here you will select your desired option. Normal This is the default setting for which no further action is required. Job Spool If you wish to spool your print job to the printer’s hard drive, select Spool. ES 1220n Macintosh OS 9.x Operation • 44...
  • Page 45 The document will be stored on the printer’s hard disk. 4. Walk up to the printer to print out the document using the front panel (see below). ES 1220n Macintosh OS 9.x Operation • 45 option.
  • Page 46 5. To print all jobs stored under your password, press ENTER. To print a specific job, press appears on the second line of the display, then press ENTER. The document prints and is deleted from the hard disk drive. ES 1220n Macintosh OS 9.x Operation • 46 N INE NTER ANCEL...
  • Page 47 6. Press ENTER to delete the job, then press ON LINE. An alternative method of printing or deleting the document is to use the Storage Device Manager if you are on an AppleTalk network: see page 196. ES 1220n Macintosh OS 9.x Operation • 47 **** 5*** NOTE...
  • Page 48 • If the software application being used has a collate print option, it must be turned OFF for proof and print to operate correctly. • Proof and print may not be available in some software applications. ES 1220n Macintosh OS 9.x Operation • 48 NOTES...
  • Page 49 3. Use to set the number for the first digit of the password, then press ENTER to engage the number and move to the next digit: ENTER PASSWORD ES 1220n Macintosh OS 9.x Operation • 49 Print. NTER **** 5***...
  • Page 50 ENTER to engage the number and move to the next digit: ENTER PASSWORD 4. Repeat step 3 for each of the remaining digits in the password. SELECT JOB ALL JOBS ES 1220n Macintosh OS 9.x Operation • 50 **** 5***...
  • Page 51 6. Press ENTER to delete the job, then press ON LINE. An alternative method of printing or deleting the document is to use the Storage Device Manager if you are on an AppleTalk network: see page 196. ES 1220n Macintosh OS 9.x Operation • 51 NOTE...
  • Page 52 • Store To Hard Disk may not be available in some software applications. 1. Select Store to HDD. 2. Enter a job name of up to 16 characters under four digit personal ID number (0000 to 9999). ES 1220n Macintosh OS 9.x Operation • 52 NOTES Job Name and a...
  • Page 53 ENTER to engage the number and move to the next digit: ENTER PASSWORD 4. Repeat step 3 for each of the remaining digits in the password. SELECT JOB ALL JOBS ES 1220n Macintosh OS 9.x Operation • 53 N INE NTER ANCEL ****...
  • Page 54 ENTER to engage the number and move to the next digit: ENTER PASSWORD 4. Repeat step 3 for each of the remaining digits in the password. SELECT JOB ALL JOBS 5. Press CANCEL. DELETE THE JOB Y=ENTER/N=CANCEL ES 1220n Macintosh OS 9.x Operation • 54 **** 5***...

  • Page 55: General Printing Directions

    You can also refer to your Macintosh online help or manual for further information. Multiple Pages on One Sheet 1. To access, first select your desired printer from an application → Print. using File ES 1220n Macintosh OS 9.x Operation • 55 NOTE to force the...
  • Page 56 Select the desired direction. c. Select a border between the sheets, if desired. 4. Click Print to print or dialog box. ES 1220n Macintosh OS 9.x Operation • 56 Pages per sheet Save Settings to save and close the printer...

  • Page 57: Duplex

    1. To access, first select your desired printer from an application using File—Print. 2. Then, open the drop-down menu directly underneath the printer and select Layout. ES 1220n Macintosh OS 9.x Operation • 57...

  • Page 58: Collating

    Collating Collating can be carried out with or without a hard disk drive installed. However, installing an HDD will achieve better performance. ES 1220n Macintosh OS 9.x Operation • 58 Sides. you prefer. Normally, the first option is NOTE...
  • Page 59 1. To access, first select your desired printer from an application using File—Print.. 2. The General dialog box should already be displayed. If not, then select General from the menu. ES 1220n Macintosh OS 9.x Operation • 59...
  • Page 60 3. From the General screen, click the button next to Collate to enable the function. 4. Click Print to print or dialog box. ES 1220n Macintosh OS 9.x Operation • 60 Save Settings to save and close the printer...

  • Page 61: Macintosh Os 10.1 & 10.2 Printer Drivers

    Adjusting Options Apple Computer has not enabled OS 10.2. Therefore, direct configuration of the printer driver is unavailable at this time. ES 1220n Macintosh OS 10.1 & 10.2 Printer Drivers • 61 Configure Printer... as of release...

  • Page 62: Macintosh Os X Operation

    Color Print Matching The install utility provides a color matching profile for your printer. In general, using the OKI Color Matching settings will provide reasonable default settings that produce good results for most documents. Many applications have their own color settings and these may override the settings in the printer driver.

  • Page 63: Icc Color Profile Select

    ICC Color Profile Select Apple provides a ColorSync Utility → Devices that allows selection of the OKI supplied ICC color profile for your monitor. The profile will attempt to calibrate the monitor to more closely match the printer’s output. However, merely selecting the profile will not automatically produce perfect results as many factors will contribute to the gamut of color selection.

  • Page 64: Default Color Profile Select

    The above example details the CMYK output space default selection. Monitor settings The brightness and contrast controls on your monitor can change how your document looks on-screen. You can calibrate your ES 1220n Macintosh OS X Operation • 64 Open to enable. ColorSync Utility, Apple also provides System Preferences —...
  • Page 65 The type of paper used can also significantly affect the printed color. For example, a printout on recycled paper can look duller than one on specially formulated glossy paper. ES 1220n Macintosh OS X Operation • 65 System Preferences NOTE →...

  • Page 66: Choosing A Color Matching Method

    RGB. Typically CMYK documents are only used in professional Desktop Publishing and Graphics applications. Matching Photographic Images RGB only Oki’s Color Matching (found in the printer driver under → Features Features matching method appropriate to your monitor.

  • Page 67: Matching Specific Colors

    Photoshop, you may be able to use Soft-Proofing to simulate the printed image on your monitor. To do this, you can use the ICC- Profiles provided by Oki, and then print using the ICC profiles as the Print Space (or Output space).

  • Page 68: Driver Options

    2. Then open the drop-down menu at left and select Features. Feature Set 1 The tab’s features are explained below. ES 1220n Macintosh OS X Operation • 68 Features, open your print driver from within an → Print. File Printer...
  • Page 69 However, printers with a hard disk drive will provide greater performance. This option is useful when printing multiple copies of large documents and you want to print them in sequence. 1. Click to enable collation of your documents. ES 1220n Macintosh OS X Operation • 69...
  • Page 70 Color Simulation option. OKI Color Matching This is OKI’s proprietary color matching system and affects RGB data only. This is the default setting and provides the fastest, best color matching for your printer.
  • Page 71 This option attempts to simulate RGB color. The colors within the printer's color gamut are printed without any modification, and only colors that fall outside the printable colors are modified. Feature Set 2 The tab’s features are explained below. ES 1220n Macintosh OS X Operation • 71...
  • Page 72 1. Select your desired Media Type. Any option, other than Printer Setting, will override the setting at the printer. Multipurpose tray is handled as manual feed Select the option desired: the default is No. ES 1220n Macintosh OS X Operation • 72...
  • Page 73 A straightforward selection of the print quality desired. • Fast: low resolution, fast speed: choose this for quick proofing of drafts. • Fine (the default): high resolution, slower speed: Provides optimum results when printing graphics. ES 1220n Macintosh OS X Operation • 73...
  • Page 74 Good for proofing CMYK color images on a desktop printer. Much like Absolute Colorimetric, except that it scales the source white to the (usually) paper white; i.e. unlike Absolute Colorimetric, this attempts to take the paper white into account. ES 1220n Macintosh OS X Operation • 74...
  • Page 75 This option prevents the halftone of a high-end graphic application from printing. 1. Click on the checkbox to enable the option. Toner Saving Checking this will enable toner saving but reduce print quality. ES 1220n Macintosh OS X Operation • 75 NOTE...

  • Page 76: General Printing Directions

    1. To access, first select your desired printer from an application → Print.. using File 2. The Copies & Pages not, then select ES 1220n Macintosh OS X Operation • 76 dialog box should already be displayed. If Copies & Pages from the menu.

  • Page 77: Multiple Pages On One Sheet

    3. From the Layout screen, select the options desired. a. For Multiple Pages, access b. Select the desired c. Select a Border ES 1220n Macintosh OS X Operation • 77 Pages per sheet. Layout Direction. between the sheets, if desired.

  • Page 78: Duplex

    • Paper must be loaded into the paper tray with the print side facing upwards. ES 1220n Macintosh OS X Operation • 78 screen, select the options desired. Sides. you prefer. Normally, the first option is...

  • Page 79: Paper Feed/Type Select

    2. Then open the drop-down menu at left and select 3. From the screen, click the arrows button to select the desired option. 4. From the various options presented, make your desired selection. ES 1220n Macintosh OS X Operation • 79 Paper Feed.
  • Page 80 For example, when Labels is selected, the printer will pull from the Multipurpose tray where the labels should be inserted. Tray Options Select the drawer desired for the current print job. ES 1220n Macintosh OS X Operation • 80...

  • Page 81: Menu Functions

    Menu Functions This section lists the menus accessed via the controls on the printer’s operator panel and displayed in the LCD window. How To Make Changes in The Menus 1. Press to enter the menu mode. – 2. Press to scan through the available menus until the menu you wish to enter appears on the display.

  • Page 82: For Example

    2. Press MENU + and/or MENU – repeatedly until you see PRINT MENU 3. Press ENTER to go into the Print Menu. COPIES 4. Press MENU + and/or MENU – repeatedly until you see DUPLEX 5. Press ENTER to select this item. ES 1220n Menu Functions • 82...
  • Page 83 7. Press ENTER to select the new setting: DUPLEX An asterisk appears on the second line of the display. 8. Press ON LINE to engage the new setting and to exit the menu. The printer returns to standby mode. ES 1220n Menu Functions • 83...

  • Page 84: Summary Of Menu Defaults

    AUTO TRAY SWITCH TRAY SEQUENCE MP TRAY USAGE MEDIA CHECK RESOLUTION TONER SAVE MODE MONO-PRINT SPEED ORIENTATION LINES PER PAGE EDIT SIZE ES 1220n Menu Functions • 84 Default Setting **** ALL JOBS [EXECUTE] [EXECUTE] [EXECUTE] [EXECUTE] [EXECUTE] [EXECUTE] [EXECUTE]...
  • Page 85 COLOR TUNING C HIGHLIGHT C MID-TONE C DARK M HIGHLIGHT M MID-TONE M DARK Y HIGHLIGHT Y MID-TONE Y DARK K HIGHLIGHT ES 1220n Menu Functions • 85 Default Setting LETTER PLAIN MEDIUM † LETTER † PLAIN † MEDIUM LETTER...
  • Page 86 CMYK CONVERSION POW SAVE TIME PERSONALITY PARA PS-PROTOCOL USB PS-PROTOCOL CLRABLE WARNING AUTO CONTINUE MANUAL TIMEOUT WAIT TIMEOUT LOW TONER ES 1220n Menu Functions • 86 Default Setting [EXECUTE] DISABLE 60 MIN AUTO EMULATION ASCII 60 SEC 40 SEC CONTINUE...
  • Page 87 PEN WIDTH ADJUST CHARACTER PITCH FONT CONDENSE CHARACTER SET SYMBOL SET LETTER O STYLE ZERO CHARACTER LINE PITCH WHITE PAGE SKIP CR FUNCTION ES 1220n Menu Functions • 87 Default Setting ENGLISH RESIDENT I000 10.00 CPI 12.00 POINT PC-8 78 COLUMN NORMAL...
  • Page 88 WHITE PAGE SKIP CR FUNCTION LINE LENGTH FORM LENGTH TOF POSITION LEFT MARGIN FIT TO LETTER TEXT HEIGHT PARALLEL BI-DIRECTION ES 1220n Menu Functions • 88 Default Setting 80 COLUMN 11 INCH 0.0 INCH 0.0 INCH ENABLE SAME 10 CPI SET-2...
  • Page 89 NETBEUI NETWARE ETHERTALK FRAME TYPE IP ADDRESS SET IP ADDRESS SUBNET MASK GATEWAY ADDRESS WEB/IPP TELNET SNMP HUB LINK SETTING ES 1220n Menu Functions • 89 Default Setting NARROW ACK IN BUSY DISABLE DISABLE ENABLE DISABLE 480Mbps DISABLE ENABLE ENABLE...
  • Page 90 MENU RESET SAVE MENU POWER SAVE PAPER BLACK SET PAPER COLOR SET TRNSPR BLACK SET TRANSPR COLOR SET TRAY1 PAGE COUNT TRAY2 PAGE COUNT ES 1220n Menu Functions • 90 Default Setting AUTO [EXECUTE] Not Applicable [EXECUTE] 0.00 MILLIMETER 0.00 MILLIMETER 0.00...
  • Page 91 C DRUM LIFE M DRUM LIFE Y DRUM LIFE BELT LIFE FUSER LIFE K TONER C TONER M TONER Y TONER ES 1220n Menu Functions • 91 Default Setting nnnn nnnn nnnn REMAINING nn% REMAINING nn% REMAINING nn% REMAINING nn%...

  • Page 92: Printer Menus

    Print Jobs Menu Action NO JOBS ALL JOBS FILE NAME #1 … FILE NAME #n ES 1220n Menu Functions • 92 Explanation MENU + MENU – to enter a digit of the password, then press ENTER to progress to the next digit.

  • Page 93: Information Menu

    Prints a list of internal Epson FX emulation fonts, including any downloaded to flash memory or the optional Hard Disk Drive (see “Hard Disk Drive” on page 155). EXECUTE Prints a listing of errors stored in the printer’s memory. ES 1220n Menu Functions • 93...

  • Page 94: Print Menu

    DOWN PAPER FEED TRAY DO NOT USE WHEN MISMATCH ENABLE DISABLE ES 1220n Menu Functions • 94 Explanation Enter the number of copies of a document to be printed. Turns the duplex (2-sided) printing function on or off if this option is installed.
  • Page 95 COLOR SPEED NORMAL SPEED PORTRAIT LANDSCAPE 5 to 128 LINES Default = LINES ES 1220n Menu Functions • 95 Explanation If you don’t need 600x1200DPI resolution, switch to 600DPI to print faster, to reduce the amount of printer memory and toner used.
  • Page 96 COM-9 ENVELOPE COM-10 ENVELOPE MONARCH ENV DL ENVELOPE C5 ENVELOPE ES 1220n Menu Functions • 96 Explanation Sets the size of the printable page area to match the size of paper in use. This is not the same as the physical paper size, which is always slightly larger.

  • Page 97: Media Menu

    CUSTOM PLAIN LETTERHEAD BOND RECYCLED ROUGH ES 1220n Menu Functions • 97 Explanation Selects the size of paper loaded in Tray 1. Selects the type of media loaded in Tray 1. This will help the printer to adjust its internal...
  • Page 98 HEAVY ULTRA HEAVY INCH 3 to 8.5 INCH 8.5 INCH Default = ES 1220n Menu Functions • 98 Explanation Adjusts the printer for the weight of paper stock loaded in optional Tray 2. Selects the size of paper to be fed from the Multi-Purpose Tray.
  • Page 99 Y-DIMENSION Media Menu (continued) Settings 5 to 35.5 INCH Default = 11 INCH ES 1220n Menu Functions • 99 Explanation Selects the length of paper defined by the “Custom” settings. Note that media of up to 47'' (1.2 m) in length can...

  • Page 100: Color Menu

    Prints the pattern for the user to manually adjust TRC. Ordinarily this function is not needed because TRC is automatically adjusted. See “Setting Color Tuning from The Front Panel” on page 121. ES 1220n Menu Functions • 100...
  • Page 101 Selects from a range of industry standard color swatches. If paper curl occurs when printing pages with large areas of black print, changing this setting may help reduce the curl. ES 1220n Menu Functions • 101...
  • Page 102 Postscript emulation only. Switch to OFF to shorten the processing time for CMYK data. Not available when the Ink Simulation menu item is set to a value other than OFF (the default). ES 1220n Menu Functions • 102...

  • Page 103: System Configuration Menu

    Determines whether or not the printer will automatically recover from a memory overflow condition. Specifies how many seconds the printer will wait for paper to be fed before cancelling the job. ES 1220n Menu Functions • 103...
  • Page 104 Change this to ON, if you wish the printer to print the error details when a Postscript emulation error occurs. Sets the language used for the display window and printed reports. ES 1220n Menu Functions • 104...

  • Page 105: Pcl Emulation Menu

    I000 / C001 / S001 FONT PITCH 0.44 to 99.99 CPI Default = 10.00 CPI PCL Emulation Menu ES 1220n Menu Functions • 105 Explanation Specifies the location of the PCL default font. Change the setting appropriately if additional fonts are installed...
  • Page 106 OC, IBM-437, IBM-850, IBM-860, IBM-863, IBM-865, ISO Dutch, ISO L1, ISO L2, ISO L5, ISO L6, ISO L9 ES 1220n Menu Functions • 106 Explanation PCL symbol set. If the font source and number are changed to one which does...
  • Page 107 MARGIN 1/5 INCH 1/6 INCH TRUE BLACK PEN WIDTH ADJUST ES 1220n Menu Functions • 107 Explanation If you are printing a letter size document on an A4 size sheet, select 80 column. This condenses the print to fit on the slightly narrower A4 sheet, without changing the line breaks.

  • Page 108: Ppr Emulation Menu

    12CPI TO 20CPI CONDENSE 12CPI TO 12CPI CHARACTER SET 2 SET 1 PPR Emulation Menu ES 1220n Menu Functions • 108 Explanation Specifies character pitch (characters per inch). Specifies 12CPI pitch for Condense Mode. Specifies the character set to be used.
  • Page 109 Blt, PC-775, Serbo Croat1, PC-858, Roman-9, ISO L9 LETTER 0 Disable STYLE Enable ES 1220n Menu Functions • 109 Explanation Specifies the symbol set to be used. Specifies the style that replaces 9B Hex with the letter o and 9D Hex with a...
  • Page 110 0.0 to 1.0 INCH, in 0.1-inch increments FIT TO LETTER DISABLE Enable TEXT HEIGHT SAME DIFF ES 1220n Menu Functions • 110 Explanation Sets the zero to be slashed or unslashed. Specifies the line spacing (lines per inch). Change this setting to ON if you do not wish to print blank pages.

  • Page 111: Fx Emulation Menu

    Settings CHARACTER 10 CPI PITCH 12 CPI 17 CPI 20 CPI PROPORTIONAL CHARACTER SET 2 SET 1 FX Emulation Menu ES 1220n Menu Functions • 111 Explanation Specifies character pitch (characters per inch). Specifies which Epson character set is used.
  • Page 112 1004, Win 3.1 Blt, PC-775, Serbo Croat1, PC-858, Roman-9, ISO L9 LETTER 0 DISABLE STYLE ENABLE ES 1220n Menu Functions • 112 Explanation Specifies a symbol set. Specifies the style that replaces 9B Hex with letter o and 9D Hex with a zero...
  • Page 113 ENABLE TEXT HEIGHT SAME DIFF 1.0 inch in 0.01-inch 1.0 inch in 0.01-inch ES 1220n Menu Functions • 113 Explanation Sets the zero to be slashed or unslashed. Specifies the line spacing (lines per inch). Change this setting to ON if...

  • Page 114: Usb Menu

    Network Menu Explanation Enables or disables this network protocol. Enables or disables this network protocol. Enables or disables this network protocol. Enables or disables this network protocol. ES 1220n Menu Functions • 114...
  • Page 115 Current assigned gateway address. To change, proceed as above. Initializes the network card. Enables or disables Web config. facility and Internet Printing Protocol. This item will not appear in the menu if TCP/IP is set to DISABLE. ES 1220n Menu Functions • 115...
  • Page 116 This item will not appear in the menu if TCP/IP is set to DISABLE. Enables or disables SNMP protocol. Normal = Global network Small = Local network Sets full or half duplex for communication via a network hub. ES 1220n Menu Functions • 116...

  • Page 117: Disk Maintenance Menu

    HDD FORMATING CAUTION! Disk Maintenance Menu Settings [EXECUTE] [EXECUTE] COMMON ES 1220n Menu Functions • 117 Explanation Partitions the hard disk and formats each partition. Appears only if hard disk drive is installed. If you press ENTER to execute this item, the PCL/ COMMON menu item appears.

  • Page 118: System Adjust Menu

    Default = 0.00 +2.00MILLIMETER Default = 0.00 1 to 59 Default = 20 1 to59; Default = 4 ES 1220n Menu Functions • 118 Explanation Adjusts overall print position horizontally in 0.25 increments. Adjusts overall print position vertically in 0.25 increments.

  • Page 119: Maintenance Menu

    As above, but for color printing. As above, but for mono printing on transparencies. ES 1220n Menu Functions • 119 Explanation Press ENTER to switch the printer to the Hexadecimal Dump mode in which all data...

  • Page 120: Usage Menu

    Default = 0 This menu is for information only, and provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement...

  • Page 121: Setting Color Tuning From The Front Panel

    • To return the settings to the defaults, use the steps below to set each value back to 0 (zero). You can use the printer’s menu to adjust the color intensity for a specific color by adjusting the HIGHLIGHT, MID-TONE and DARK (shadows) Color Tuning Patterns.
  • Page 122 COLOR MENU c. Press ENTER. d. Press one or more times, until you see COLOR TUNING PRINT PATTERN e. Press ENTER. The Color Tuning Pattern prints and the display reads. C HIGHLIGHT ES 1220n Menu Functions • 122...
  • Page 123 Press ENTER, to select the new value. An asterisk (*) appears at the right of the new selection. d. Press BACK to engage the setting. The second line stops flashing. e. Press . The display reads C DARK ES 1220n Menu Functions • 123...
  • Page 124 Press BACK to engage the setting. The second line stops flashing. 5. Press 6. Press ON LINE to save the new setting and return the printer to online status 7. Print from your application. Repeat the above steps until you get the desired cyan color intensity.

  • Page 125: Replacing Consumables

    See “Image Drum Replacement” on page 226. • Transfer Belt — Life expectancy about 50,000 letter-size pages. See “Belt Unit Replacement” on page 235. • Fuser — Life expectancy about 45,000 letter-size pages. See “Fuser Replacement” on page 240. ES 1220n Replacing Consumables • 218 NOTE...

  • Page 126: Toner Cartridge Replacement

    Toner Cartridge Replacement REPLACE TONER : ZZZZ TONER EMPTY * nnn: ZZZZ = 410: YELLOW Toner Color Black Cyan Magenta Yellow ES 1220n Replacing Consumables • 219 411: MAGENTA 412: CYAN 413: BLACK Order # 52115101 52115102 52115103 52115104...
  • Page 127 1. Press the cover release and open the printer’s top cover fully. If the printer has been powered on, the fuser is hot. This area is clearly labelled. Do not touch. 2. Note the positions of the four cartridges: Cyan (1), Magenta (2), Yellow (3), Black (4): ES 1220n Replacing Consumables •...
  • Page 128 4. Lift the right-hand end of the cartridge and then pull the cartridge to the right to release the left-hand end as shown. Remove the toner cartridge and discard it in accordance with your local regulations. ES 1220n Replacing Consumables • 221...
  • Page 129 6. Remove the adhesive tape from the underside of the cartridge. Do not touch the toner release lever until the toner cartridge is installed in the image drum. If you do, it will open the toner release slot and spill toner. ES 1220n Replacing Consumables • 222 CAUTION!
  • Page 130 7. Holding the cartridge by its top center with the colored release lever to the right, insert the left end of the cartridge into the top of the image drum, pushing it firmly against the spring on the drum unit. ES 1220n Replacing Consumables • 223...
  • Page 131 To avoid toner spillage, do NOT open the toner release lever until the toner cartridge is firmly seated in the image drum. ES 1220n Replacing Consumables • 224 Important!
  • Page 132 9. Close and latch the top cover. ES 1220n Replacing Consumables • 225...

  • Page 133: Image Drum Replacement

    1. Place two sheets of paper on your working surface to protect it. You will put the image drum and toner cartridge on the paper while replacing them. ES 1220n Replacing Consumables • 226 351: MAGENTA 352: CYAN 353: BLACK...
  • Page 134 2. Press the cover release and open the top cover fully. If the printer has been powered on, the fuser is hot. This area is clearly labelled. Do not touch it. 3. Note the positions of the four image drums: Cyan (1), Magenta (2), Yellow (3), Black (4): ES 1220n Replacing Consumables •...
  • Page 135 4. Lift the image drum, complete with its toner cartridge, out of the printer and put it down on one of the sheets of paper. 5. With the colored toner release lever (1) to the right, pull the lever towards you. This will release the bond between the toner cartridge and the image drum.
  • Page 136 Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light.
  • Page 137 8. Unpack the new image drum. CAUTION! Image drum handling: The image drum contains toner. To avoid spilling toner, be careful to keep it upright. ES 1220n Replacing Consumables • 230...
  • Page 138 9. Grasp the white tape tab and peel the tape off the drum. 10. Remove the paper sheet, then the clear plastic film. ES 1220n Replacing Consumables • 231...
  • Page 139 11. Remove the silica gel pack. 12. Place the image drum in the printer. ES 1220n Replacing Consumables • 232...
  • Page 140 13. Remove the orange drum seal. 14. Install the toner cartridge in the image drum. ES 1220n Replacing Consumables • 233...
  • Page 141 15. Push back the toner cartridge lock lever. 16. Close and latch the top cover. ES 1220n Replacing Consumables • 234...

  • Page 142: Belt Unit Replacement

    50,000 pages. 1. Press the cover release and open the top cover fully. If the printer has been powered on, the fuser is hot. This area is clearly labelled. Do not touch it. ES 1220n Replacing Consumables • 235...
  • Page 143 (2), Yellow (3), Black (4). It is essential that they go back in the correct order! 3. Lift each of the image drum units out of the printer and place them on a flat surface in a safe place away from direct sources of heat and light.
  • Page 144 4. Locate the two blue locks (1) and the handle (2). 5. Turn the two locks about 45° counterclockwise to release the belt. ES 1220n Replacing Consumables • 237...
  • Page 145 6. Pull up the handle and lift the belt unit out of the printer. 7. Unpack the new belt unit and hold it with the blue handle toward the front of the printer. 8. Place the drive gear at the back of the belt unit in the gear at the left rear corner of the printer, and lower the belt unit into the printer.
  • Page 146 9. Turn the two belt locks about 45° clockwise to secure the belt unit in place. 10. Place the four image drums/toner cartridges back in the printer (1 = Cyan, 2 = Magenta, 3 = Yellow, 4 = Black): ES 1220n Replacing Consumables • 239...

  • Page 147: Fuser Replacement

    A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover. ES 1220n Replacing Consumables • 240...
  • Page 148 1. Press the cover release and open the printer’s top cover fully. 2. Pull the two blue fuser lock levers (1) towards the front of the printer. ES 1220n Replacing Consumables • 241...
  • Page 149 3. Holding the fuser by its handle, lift the fuser out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat. After letting the fuser cool down, discard it.
  • Page 150 6. Holding the new fuser by the handle, with the fuser pressure release lever (1) on the right, lower the fuser into the priner. 7. Push the two blue retaining levers (1) toward the rear of the printer to lock the fuser in place. ES 1220n Replacing Consumables • 243...
  • Page 151 8. Close and latch the top cover. ES 1220n Replacing Consumables • 244...

  • Page 152: Options

    RAM Memory (P/N 70043001, 70043101, 70043201) The basic printer comes equipped with 64 MB of main memory. This can be upgraded with an additional memory board containing • 64 MB (P/N 70043001) • 128 MB (P/N 70043101) •...

  • Page 153: Second Paper Tray

    • Up to 530 sheets of 20-lb. paper. • All the same size media as Tray 1 except A6. • Paper weight range 16 to 47 lbs. US Bond (33 to 98 lbs Index, 60 to 177 g/m metric). ES 1220n Options • 246...

  • Page 154: Duplex Unit

    The duplex unit handles: • Paper sizes letter, legal-14, legal-13.5, legal-13, A4, A5, B5. • Paper weights from 20 to 28 lbs. US Bond (42 to 58 lb. Index, 75 to 105 g/m² metric). ES 1220n Options • 247...

  • Page 155: Hard Disk Drive

    Proof and Print or Secure Print features. It is required • If you wish to use the printer’s Store to Hard Disk Drive feature. • If you wish to use the optional Print Job Accounting software with the printer when it is installed on a network.

  • Page 156: Clearing Paper Jams

    • Jam 381: see page 253 • Jam 382: see page 250 • Jam 383: see page 261 • Jam 390: see page 268 • Jam 391: see page 266 • Jam 392: see page 266 ES 1220n Clearing Paper Jams • 249...

  • Page 157: Jam 382

    2. Gently pull the sheet out. • If the sheet does not come out easily, go to the next step. • If the sheet does come out, close the cover. 3. Lower the rear exit tray. ES 1220n Clearing Paper Jams • 250...
  • Page 158 To get it out, reach around the top cover and press down on the fuser pressure release lever (1) before pulling the sheet out. Then let go of the fuser pressure release lever. ES 1220n Clearing Paper Jams • 251...
  • Page 159 5. Close the rear exit. 6. Close the top cover. ES 1220n Clearing Paper Jams • 252...

  • Page 160: Jam 381

    Jam 381 OPEN TOP COVER 381: PAPER JAM 1. Press the cover release and open the printer’s top cover fully. ES 1220n Clearing Paper Jams • 253...
  • Page 161 (2), Yellow (3), Black (4). It is essential that they go back in the correct order! If the printer has been powered on, the fuser is hot. This area is clearly labelled. Do not touch it. ES 1220n Clearing Paper Jams • 254 WARNING!
  • Page 162 3. Lift each of the image drum/toner cartridge units out of the printer and place them on a flat surface in a safe place away from direct sources of heat and light. The green surface at the base of each image drum is very delicate and light sensitive.
  • Page 163 4. Remove any sheets of paper on the belt unit. CAUTION! Do not use any sharp or abrasive objects to separate sheets from the belt. This may damage the belt surface. ES 1220n Clearing Paper Jams • 256...
  • Page 164 If the sheet is well advanced into the fuser (only a short length is still visible), do not attempt to pull it back. See step 4 under “Jam 382” . ES 1220n Clearing Paper Jams • 257...
  • Page 165 5. Place the four image drums/toner cartridges back in the printer, being careful to place them in the proper sequence (1=Cyan, 2 = Magenta, 3 = Yellow, 4 = Black): 6. Close the top cover. ES 1220n Clearing Paper Jams • 258...

  • Page 166: Jam 372 And 380

    Jam 372 and 380 OPEN FRONT COVER : PAPER JAM nnn = 372 or 380. 1. Lift the front cover release and pull open the front cover. 2. Remove any jammed sheets. ES 1220n Clearing Paper Jams • 259...
  • Page 167 3. Close the front cover. ES 1220n Clearing Paper Jams • 260...

  • Page 168: Jam 370, 373 And 383

    Jam 370, 373 and 383 OPEN DUPLEX COVER nnn: PAPER JAM nnn = 370, 373, 383 1. Press the duplex cover release and open the duplexer cover. ES 1220n Clearing Paper Jams • 261...
  • Page 169 2. Remove any jammed sheets. ES 1220n Clearing Paper Jams • 262...

  • Page 170: Jam 371

    3. Close the duplex unit cover. Jam 371 OPEN DUPLEX COVER 371: PAPER JAM 1. Turn off the printer. 2. Pull out the duplexer. ES 1220n Clearing Paper Jams • 263...
  • Page 171 3. Pull the duplexer lid to unlock it. 4. Open the lid and remove the jammed sheet. ES 1220n Clearing Paper Jams • 264...
  • Page 172 5. Close the lid and push it back to lock it in place. 6. Push the duplexer back into the printer. 7. Turn on the printer ES 1220n Clearing Paper Jams • 265...

  • Page 173: Jam 391 And 392

    391: PAPER JAM OPEN FRONT COVER 392: PAPER JAM 1. Pull out the appropriate tray (391 = Tray 1, 392 = Optional Tray 2) and remove any sheet jammed as it exited the tray. ES 1220n Clearing Paper Jams • 266...
  • Page 174 2. Open the front cover. 3. Remove any jammed sheets. 4. Close the front cover. ES 1220n Clearing Paper Jams • 267...

  • Page 175: Jam 390

    If the Sheet Has Just Begun to Enter the Printer 1. Gently pull the sheet out of the printer. If the Sheet Can’t Easily Be Pulled Out from the Front 1. Lift the front cover release and pull open the front cover. ES 1220n Clearing Paper Jams • 268...
  • Page 176 2. Remove any jammed sheets. 3. Close the front cover. ES 1220n Clearing Paper Jams • 269...

  • Page 177: Troubleshooting

    Any unprinted data is being deleted. ES 1220n Troubleshooting • 177 What to Do Open the top cover and make sure the indicated toner is there and properly seated in...
  • Page 178 The fuser unit is not properly installed. Paper has jammed while exiting the MP Tray. ES 1220n Troubleshooting • 178 What to Do Open the top cover and lift out the black (K) and Yellow (Y) image drums, placing them on a flat surface.
  • Page 179 Print job from MP Tray has been received and the MP Tray is empty. ES 1220n Troubleshooting • 179 What to Do Close the duplex cover: Be sure both the top cover and the front cover are firmly closed.
  • Page 180 (e.g., belt, fuser, toner, image drum) is nearing end of life. An error has occurred involving the network. ES 1220n Troubleshooting • 180 What to Do Load mmm media in the indicated (tttt) tray. Load the appropriate media in the tray and...
  • Page 181 An error has occurred which requires service. YYYY = the general cause. nnn = error number. ES 1220n Troubleshooting • 181 What to Do ON-LINE Press Reprocess and resend the print job. Reprocess and resend the job to the printer.

  • Page 182: Problem Solving

    Store paper within specified temperature and humidity levels (see “Specifications” on page 191). Remove the creased/wrinkled paper from the feed tray. Adjust tray or manual feed guides. Correct paper feed selection in the printer driver. ES 1220n Troubleshooting • 182...

  • Page 183: Problems Printing From Macintosh

    Make sure the USB cable is plugged into the white installed in the USB port ( Ethernet port. ES 1220n Troubleshooting • 183 Remedy Removing a paper jam is not sufficient: Raise and gently lower the top cover, especially if the paper jam has been removed from behind the front cover.
  • Page 184 Print processing is carried out by the computer. Print resolution is set high. Data is too complex. Simplify data. ES 1220n Troubleshooting • 184 Remedy Upgrade the application. Close all other applications. Correct or recreate the file. Increase computer’s memory.

  • Page 185: Print Quality Problems

    Possible cause LED head is dirty. Toner is low. Paper is unsuitable for printer. ES 1220n Troubleshooting • 185 Remedy Either change paper in tray to match size formatted in application and press continue, or continue printing on existing paper by...

  • Page 186: Faint Printing

    Paper is unsuitable for printer. Fading in patches Possible cause The paper is moist. ES 1220n Troubleshooting • 186 Remedy Reinstall the toner cartridge (see “Toner Cartridge Replacement” on page 126). Change toner cartridge (see “Toner Cartridge Replacement” on page 126).

  • Page 187: Longitudinal Black Stripes

    Paper has been affected by static electricity. Paper is too thick. Toner is low. ES 1220n Troubleshooting • 187 Remedy Replace image drum (see “Image Drum Replacement” on page 133). Change toner cartridge (see “Toner Cartridge Replacement” on page 126).

  • Page 188: Blurred Letter Edges

    Top cover is not properly closed. One or more of the toner cartridges is not seated properly. ES 1220n Troubleshooting • 188 Remedy Clean LED with lens cleaner or soft tissue. Replace toner cartridge (see “Toner Cartridge Replacement” on page 126).

  • Page 189: Miscellaneous Problems

    Miscellaneous problems The power is on, but the printer does not go online. Possible cause Bad connection Print processing does not start. Possible cause Printer error Print processing cancels. Possible cause The printer interface cable is faulty. The time out setting is too short.

  • Page 190: Printer Takes A Long Time To Start Printing

    Packing materials were left on the fuser when it was installed. ES 1220n Troubleshooting • 190 Remedy In the printer menu settings, set power save to a higher value to increase the length of time before entering power save mode ( →...

  • Page 191: Specifications

    100 sheets 20-lb. 75 g/m² Printer life 420,000 pages or 5 years, whichever comes first Duty cycle Maximum: 50,000 pages per month at 5% duty cycle (equivalent to an average business letter) Average: 4,000 pages per month ES 1220n Specifications • 191...
  • Page 192 Item Specification Toner life 5,000 pages at 5% coverage Image drum life 15,000 pages at 3 pages per job Belt life 50,000 letter-size pages Fuser life 45,000 letter-size pages ES 1220n Specifications • 192...

  • Page 193: Mac Os 9.X Utilities

    Mac OS 9.x Utilities This section explains how to install and use the utilities supplied with your printer. These Utilities are unavailable for Mac OS X. • Storage Device Manager • Admin Setup Utility Important! ES 1220n Mac OS 9.x Utilities • 193...

  • Page 194: General Information

    2. Double-click the CD icon that appears on the desktop. 3. Open the open and run. Click Important! folder and double-click the Continue and accept the license agreement. ES 1220n Mac OS 9.x Utilities • 194 Mac Installer icon to...
  • Page 195 5. Click in the boxes on the left hand side of the Utilities you wish to install and click the Utilities. ES 1220n Mac OS 9.x Utilities • 195 to access the Utility Installation. Install button to complete. This will install the...

  • Page 196: Storage Device Manager Operation

    PS commands and send them to change the printer settings. 2. This button is grayed out and disabled if no change has been made to the settings in this dialog box. Important! ES 1220n Mac OS 9.x Utilities • 196 Mac. From...
  • Page 197 Selects the size of paper for each tray. The currently selected paper is displayed. Paper Size/Legal Paper Size Sets the sizes of paper that are too similar to be automatically recognized by your printer. Auto Tray Switch Sets automatic tray switch. ES 1220n Mac OS 9.x Utilities • 197...

  • Page 198: Sdm Options

    Only standard sizes are checked. Jam Recovery This parameter, when enabled, sets whether or not printing will continue after a paper jam has been cleared. If set to Disable, the ES 1220n Mac OS 9.x Utilities • 198 button. File—Update from the menu.

  • Page 199: Sdm Menu Items

    UPDATE PPD Menu Item CHANGE PRINTER NAME/ZONE DOWNLOAD FILE DISPLAY FONT LIST INITIALISE DISK SUBSTITUTE FONTS PS GAMMA ADJUSTER ES 1220n Mac OS 9.x Utilities • 199 File Menu Value EXECUTE EXECUTE Utilities Menu Value EXECUTE EXECUTE Execute Execute Execute...
  • Page 200 Chooser - only the Admin Setup utility has that ability. 1. Access the function from the Utilities menu. 2. If available, choose the Zone required. 3. Rename the printer with the desired name and press Save. ES 1220n Mac OS 9.x Utilities • 200...
  • Page 201 2. If you wish to empty the hard drive, use the function. Remember that this will erase the entire disk and the printer will automatically rebuild it. ES 1220n Mac OS 9.x Utilities • 201 from the Utilities menu, select the Initialise Disk...
  • Page 202 Close to return to the main screen. Initialise Disk This utility will erase the hard disk of the printer and cause it to rebuild the directories. 1. Select the Disk to erase and click the button to execute. This action, once executed cannot be undone.
  • Page 203 Delete button, NOT the Remove button if you had edited (using the profile and wished to store it in the column. ES 1220n Mac OS 9.x Utilities • 203 button. Remove button. Only use the Available Gamma Curves Edit button) the...
  • Page 204 4. Remember, the Gamma Curve profile is tied to the displayed PPD file. To gain access to the Gamma Curve profile, the PPD file must be selected in the printer setup. ES 1220n Mac OS 9.x Utilities • 204 button. To edit, Edit button.

  • Page 205: Admin Setup Utility

    Menu Item OKI DEVICE SEARCH EXIT WARNING Local Hard Drive File Menu Value EXECUTE EXECUTE ES 1220n Mac OS 9.x Utilities • 205 → OKI Tools Description Finds and downloads the latest settings from attached network printers. Exits the program.

  • Page 206: Status Menu

    SYSTEM STATUS Menu Item OKI DEVICE SETUP RESET TEST PRINT IP ADDRESS SETUP... Menu Item ENVIRONMENT SETUP ES 1220n Mac OS 9.x Utilities • 206 Status Menu Value OPENS STATUS WINDOW OPENS STATUS WINDOW Setup Menu Value OPENS SETUP WINDOW...

  • Page 207: Mac Os 10.1 And 10.2 Utilities

    Mac OS 10.1 and 10.2 Utilities Important! All Utilities on the installation CD are unavailable for Mac OS 10.1 and 10.2, and will only run on Mac Classic OS. ES 1220n Mac OS 10.1 and 10.2 Utilities • 207...

This manual is also suitable for:

Es1220nEs1220nccs

Table of Contents
