Page 1: Table Of Contents

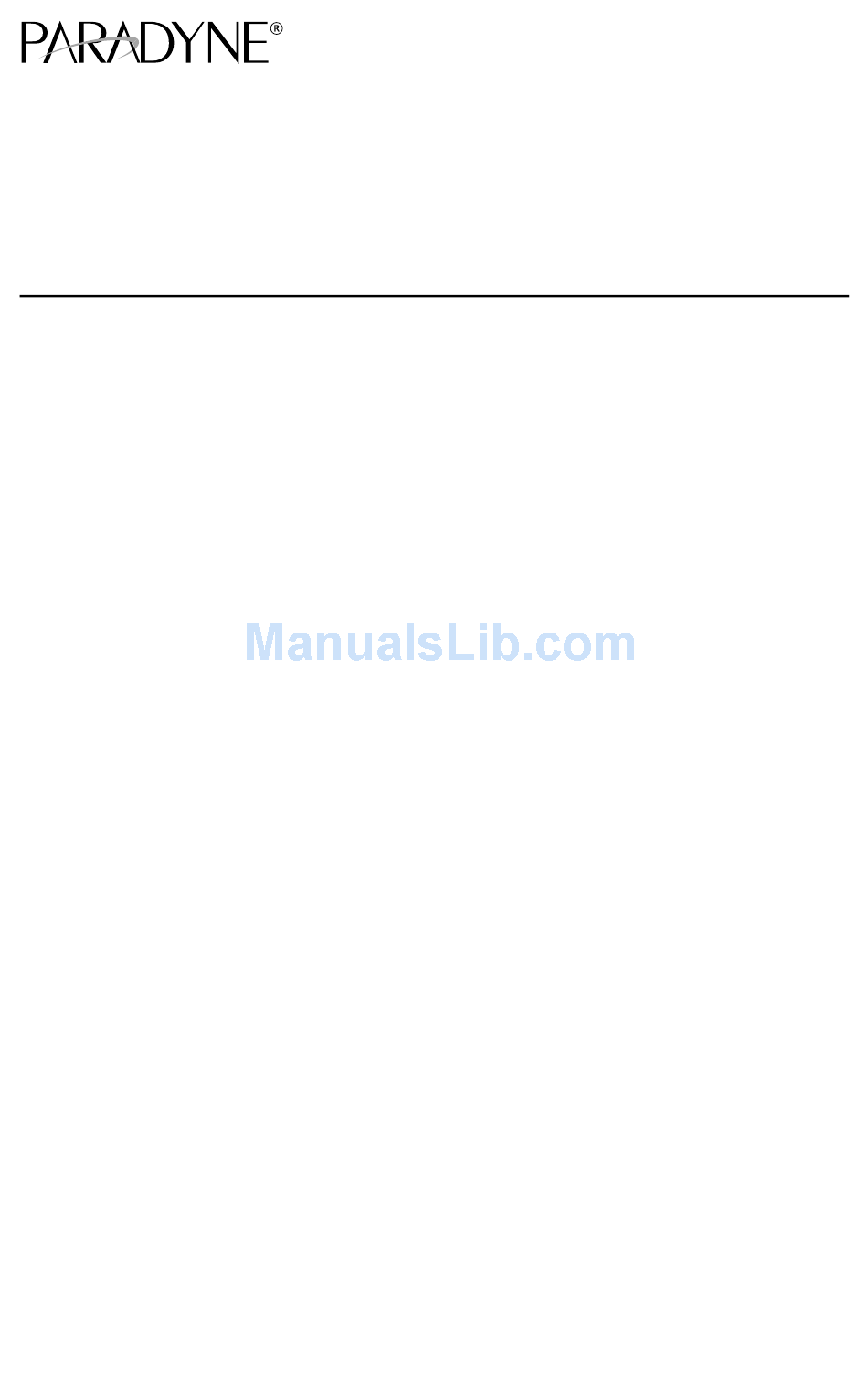

® FrameSaver DSL 9783 CSU/DSU Installation Instructions Document Number 9783-A2-GN10-30 April 2001 Contents FrameSaver DSL 9783 CSU/DSU Overview ..........Upgrading a Basic Unit to SLV ..............Product Documentation Online ..............Package Checklist ..................Wiring and Cables You May Need ..............
Page 2: Framesaver Dsl 9783 Csu/Dsu Overview
NOC (Network Operations Center). The CSU/DSU has an SDSL front end and is a manageable frame relay aware endpoint. A typical example of using the FrameSaver DSL 9783 CSU/DSU in a network configuration is shown below. DSL Provider's...
Page 3: Upgrading A Basic Unit To Slv
Upgrading a Basic Unit to SLV A basic FrameSaver DSL 9783 CSU/DSU can be upgraded to full SLV capability at any time by ordering a FrameSaver SLV Activation Certificate. A certificate can be ordered ® for a single 9783 CSU/DSU, or for many 9783 CSU/DSUs. The OpenLane system, Release 5.3 or later, is required to schedule the activation of SLV features, and...
Page 4: Wiring And Cables You May Need
EIA/TIA-568 specifications with 24 AWG (.5 mm) or 26 AWG (.4 mm). Cables and Connectors For standard cables, refer to on page 19 for pin numbers. For Paradyne cables, contact your sales representative to order them. Interface Feature Connection Cables...
Page 5: Prior To Installing The Csu/Dsu
Prior to Installing the CSU/DSU These Installation Instructions assume that the virtual circuits at the DSLAM have already been configured. Provisioning of these circuits can be simplified by using the Provisioning Data OpenLane SLM (Service Level Management) system, as indicated in Circuits in OpenLane Provisioning Data Circuits in OpenLane Use the OpenLane SLM system’s Provision Circuit screen to add new circuits that start...
Page 6: Installing The Csu/Dsu
Installing the CSU/DSU Place the FrameSaver DSL 9783 CSU/DSU on a flat surface with clearance for the rear connectors. Procedure 1. Use the supplied 8-pin DSL network cable (for use in the U.S.), or a 6-pin DSL network cable (using connectors similar to RJ11), as applicable, for the DSL connection.
Page 7 3. Use an 8-pin Ethernet cable for the Ethernet connection for local management. Insert one end of the cable into the jack labeled ETHERNET. — Use a straight-through cable to connect the other end of the cable to an Ethernet hub. Do not connect to the hub’s optional Uplink connection with a straight-through cable;...
Page 8 4. Connect one end of the DTE’s cable to the user data port labeled PORT. Plug the other end of the cable into the DTE (router or FRAD). Tighten the screws on each side of the connector. PORT P O W C O M E T H E R N E T...
Page 9: Power-On
6. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the transformer into an AC outlet. Install the supplied tie wrap for strain relief, as shown. Grounded Power Outlet Wrap Power Jack P O W C O M E T H E R N E T N E T...
Page 10: Status Leds
Status LEDs After a successful self-test, the LEDs should appear as indicated in BOLD in the Condition column below. Condition Status System LEDs The CSU/DSU has power. An alarm condition exists. No alarms have been detected by the CSU/DSU. TEST The CSU/DSU is performing the power-on self-test, or a test initiated by the service provider is currently active.
Page 11: Troubleshooting
Troubleshooting LED Symptom Action All LEDs are on. If the LEDs remain on for more than ten minutes, the CSU/DSU is not functional. Unplug the unit and reapply power. If the ALM LED is still on, contact the service provider. ALM LED only The power-on self-test may have failed.
Page 12: Configuration Setup
Configuration Setup Once the CSU/DSU is installed, it can be accessed locally through the menu-driven user interface via an asynchronous terminal or PC connection, or remotely via a Telnet session. The following provisioning can be set up: Frame relay, ATM, and physical layer provisioning – Typically set up by the CLEC (Competitive Local Exchange Carrier) using the menu-driven user interface via an ASCII terminal or PC running a terminal emulation program, or a Telnet session.
Page 13 Procedure To access the menu-driven user interface: 1. Verify the terminal or PC’s configuration: — Data Rate is set to 19.2 kbps. — Character Length is set to 8 data bits. — Parity is set to None. — Stop Bits is set to 1. —...
Page 14: Menu Navigation
Menu Navigation The CSU/DSU should operate using the default (factory-set) configuration options. Refer to the following table for help in navigating the menus. Press the . . . To . . . Esc key Go back one screen or menu level. For a visual display of the menu hierarchy, see the Quick Reference.
Page 15: Verifying That Self-Test Passed
1. Select the Easy Install feature. Main Menu → Easy Install Easy Install Screen Example main/easy_install 9783-C-SLV Device Name: Node A 2/26/2001 00:01 EASY INSTALL DSLAM Type: Paradyne Node IP Address: 000.000.000.000 Clear Node Subnet Mask: 000.000.000.000 Clear TS Access: VPI,VCI 0,35...
Page 16 2. If the CSU/DSU will not be connected to a Paradyne DSLAM, change the DSLAM Type. Other selections are Alcatel (NewBridge), PairGain, and Nokia. 3. Enter the Node IP Address and Node Subnet Mask. 4. Specify TS Access if a Troubleshooting (TS) DLCI or Virtual Circuit (VC) is being set up for remote access by the service provider.
Page 17: Completing Setup From The Noc
Completing Setup From the NOC Procedure 1. Access the remote CSU/DSU on the TS Management Link that was set up at the remote site in Step 5 Using the Easy Install Screen 2. Ping the CSU/DSU five times within five seconds. The unit automatically provisions the TS Access VC and accepts the destination IP address of the Ping as its temporary IP address, which is used on the management VC interface.
Page 18 Verifying End-to-End Management Path ® After installation of a remote CSU/DSU, run an ATM Ping test from the Hotwire GranDSLAM. Procedure To Ping the router: 1. From the Hotwire 8335 ATM Line Card’s Main Menu, select the ATM Ping test. Diagnostics →...
Page 19: Cables And Connectors
Checking PVC Connections Check PVC connections to verify that all PVCs, including management PVCs, are configured and active. Procedure To verify PVCs: 1. Select PVC Connection Status from the Status menu. The PVC Connection Status screen shows all PVC connections, the interface source and DLCI number of the incoming data linked to the interface, and DLCI number for the outgoing data.
Page 20 The user data port uses a 34-position V.35 connector that connects to the DTE. Signal ITU CT# Direction 34-Pin Socket Shield — Signal Ground/Common — Request to Send (RTS) In (From DTE) Clear to Send (CTS) Out (To DTE) Data Set Ready (DSR) Receive Line Signal Detector (RLSD or LSD) Data Terminal Ready (DTR)
Page 21 The Ethernet interface connector uses an 8-pin, non-keyed modular plug. Use shielded twisted-pair CAT5, or better, cables. See Step 3 on page 7. — To connect the router to an Ethernet hub, use a straight-through connection. 8-Pin Straight-Through Connections Ethernet Cable Pin # Function...
Page 22 The communication (COM) port connector uses a 25-position, EIA-232-C connector. Pin # Signal Direction Shield (GND) — DCE Transmit Data (TXD) From DTE (In) DCE Receive Data (RXD) To DTE (Out) DCE Request To Send (RTS) From DTE (In) DCE Clear To Send (CTS) To DTE (Out) DCE Data Set Ready (DSR) To DTE (Out)
Page 23: Csu/Dsu Technical Specifications
CSU/DSU Technical Specifications Item Specification Approvals FCC Part 15 Class A digital device Safety Certifications Refer to equipment’s label for approvals on product Physical Environment Operating temperature 32°F to 122°F (0°C to 50°C) Storage temperature –4°F to 158°F (–20°C to 70°C) Relative humidity 5% to 85% (noncondensing) Shock and vibration...
Page 24: Important Safety Instructions
Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered.
Page 25: Government Requirements
Government Requirements Certain governments require that instructions pertaining to connection to the telephone network be included in the installation and operation manual. Specific instructions are listed in the following sections. Notice to Users of the Canadian Telephone Network The following notice applies to units that have been CS-03 certified and bear the Industry Canada certification label.
Page 26 The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne Corporation. CANADA – EMI NOTICE: This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.
Page 27: Warranty, Sales, Service, And Training Information
