Nat Forwarding; Ip Filtering - TP-Link TC-W7960 User Manual

TC-W7960
RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet

is larger than the specified RTS Threshold size, the modem router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2347.
Short GI - This function is recommended for it will increase the data capacity by reducing the

guard interval time
Enable WMM – Check the box to enable this function. WMM function can guarantee the

packets with high-priority messages being transmitted preferentially, which is strongly
recommended. It is enabled by default.
Enable Power Save Support - Check the box to enable this function. This function can

make the wireless client has only antenna is in working condition, and the remaining
antennas are dormant, so as to achieve the purpose of saving power.
Click the Save button to save the settings.
5.5

NAT Forwarding

There are seven submenus under the Forwarding menu: IP Filtering, MAC Filtering, Port
Filtering, Port Forwarding, Port Triggers, DMZ and Options. Click any of them, and you will be
able to configure the corresponding function.

5.5.1 IP Filtering

Choose menu "Advanced  NAT Forwarding  IP Filtering", and then you can control the
client's access by configuring the IP Filtering function.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Short GI is enabled by default.
.

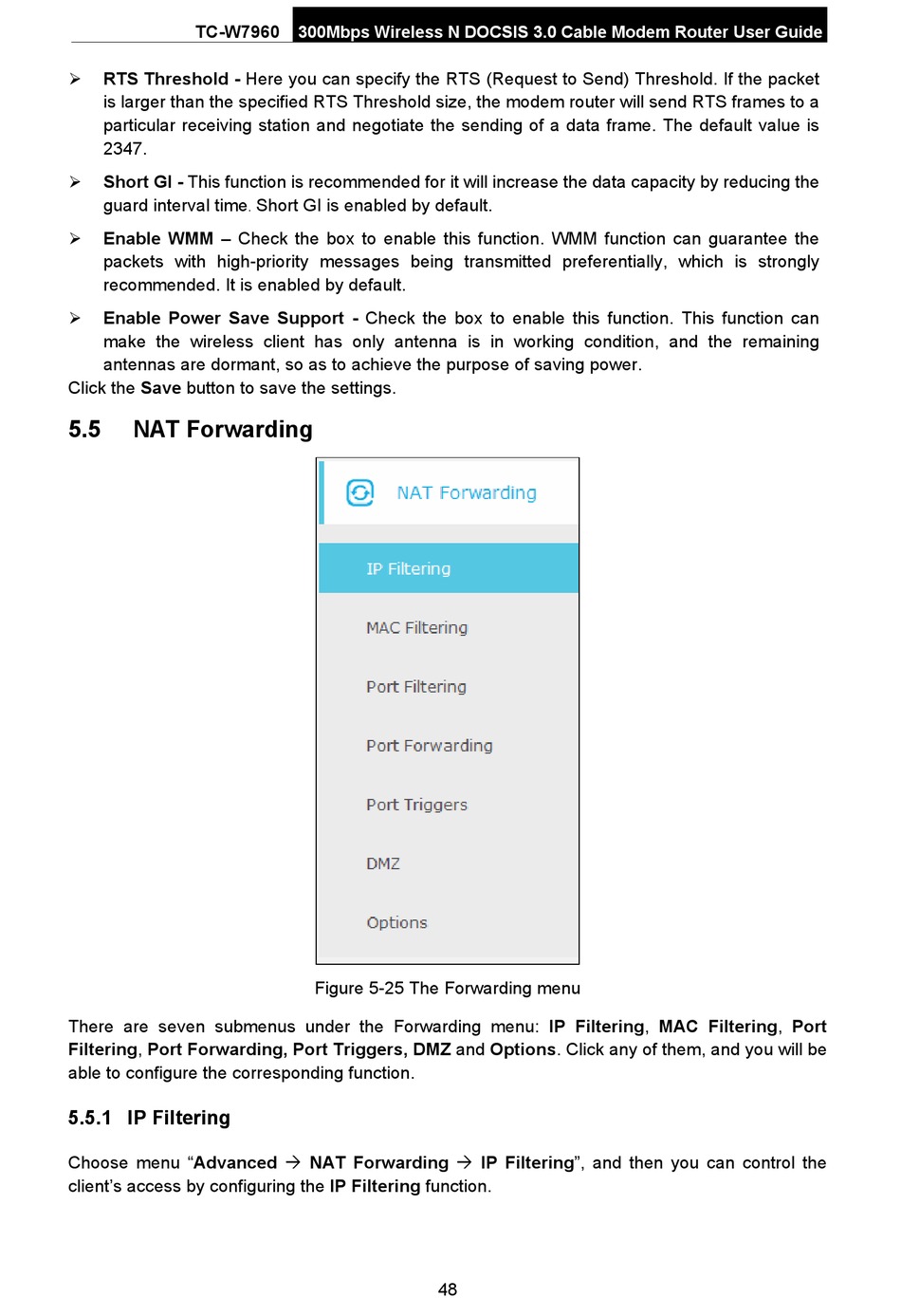

Figure 5-25 The Forwarding menu
48
