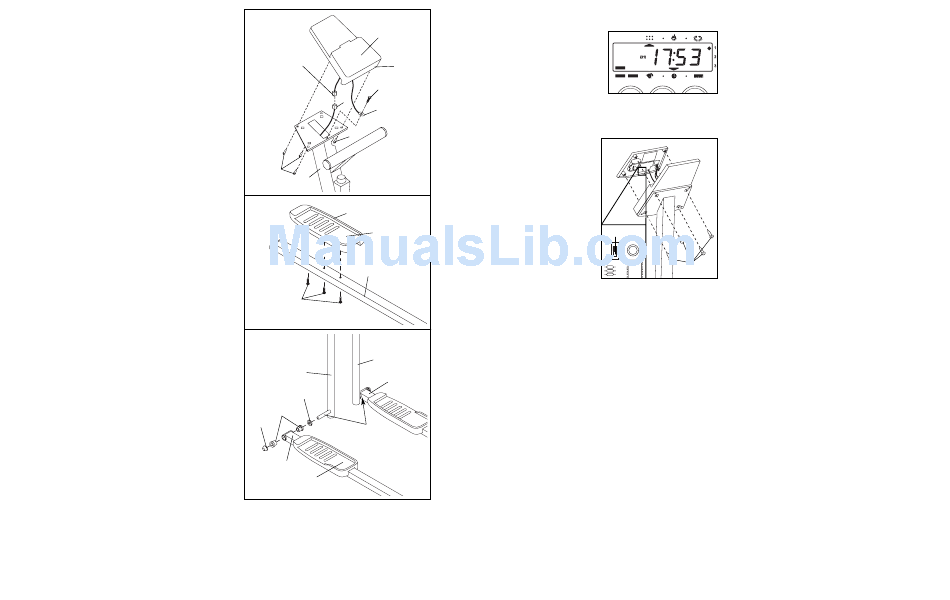

7. Connect the Extension Wire (2) to the corresponding
wire on the Console (6).
Next, connect the ground wire to the indicated hole in
the Upright (3) with an M4 x 16mm Screw (34).
Carefully feed the wires down into the Upright (3).
Attach the Console Base (14) to the Upright with four
M4 x 16mm Screws (34). Be careful to avoid pinch-
ing the wires.
8. Find the Left Pedal (31), which has a ridge on the
right side. Attach the Left Pedal to one of the Pedal
Arms (12) with three M4 x 19mm Flange Screws
(16) as shown.
Repeat this step to attach the Right Pedal to the
other Pedal Arm (not shown).
9. Identify the Left Handlebar (8) (there is an ÒLÓ sticker
on the Left Handlebar). Apply a thin film of the
included grease to the axle on the Left Handlebar.
Make sure that there are two Pedal Arm Bushings
(11) in each Pedal Arm (12).
Slide a Handlebar Spacer (39) and the Pedal Arm
(12) with the Left Pedal (31) onto the Left Handlebar
(8) as shown. (Note: These parts fit tightly; it may be
helpful to use the rubber mallet.) Next, tap a 3/4Ó
Axle Cap (43) onto the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (62).
7
6
Console
14
Wires
34
2
Ground Wire
34
34
3
8
Ridge
31
12
16
9
62
8
12
39
11
43
Apply
Grease
12
31
8
HOW TO SELECT KILOMETRES OR MILES
The console can dis-
play distance and
speed in either kilo-
metres or miles. If a
ÒKPHÓ appears in the
display, distance and
speed will be shown
in kilometres; if a
ÒKPHÓ does not appear, distance and speed will be
shown in miles.
To change the
unit of measure-
ment, first remove
the four indicated
screws from the
console. Lift the
console a few
inches and turn it
over; be careful
not to pull on
Switch
the wires.
Next, locate the
small switch on
Screws
the back of the
console. Slide the
switch up or down to change the unit of measurement.
Reattach the console with the four screws; be careful
not to pinch any of the wires.
