MAINTENANCE
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
The elliptical exerciser can be wiped clean with a soft
cloth and mild detergent. Do not use abrasives or
solvents. To prevent damage to the console, keep
liquids away from the console. Use only a sealable
water bottle in the console.
CONSOLE TROUBLE-SHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, refer to
assembly step 6 on page 7.
STORAGE
When storing the elliptical exerciser, remove the bat-
teries from the console. Keep the elliptical exerciser in
a clean, dry location, away from moisture and dust.
14

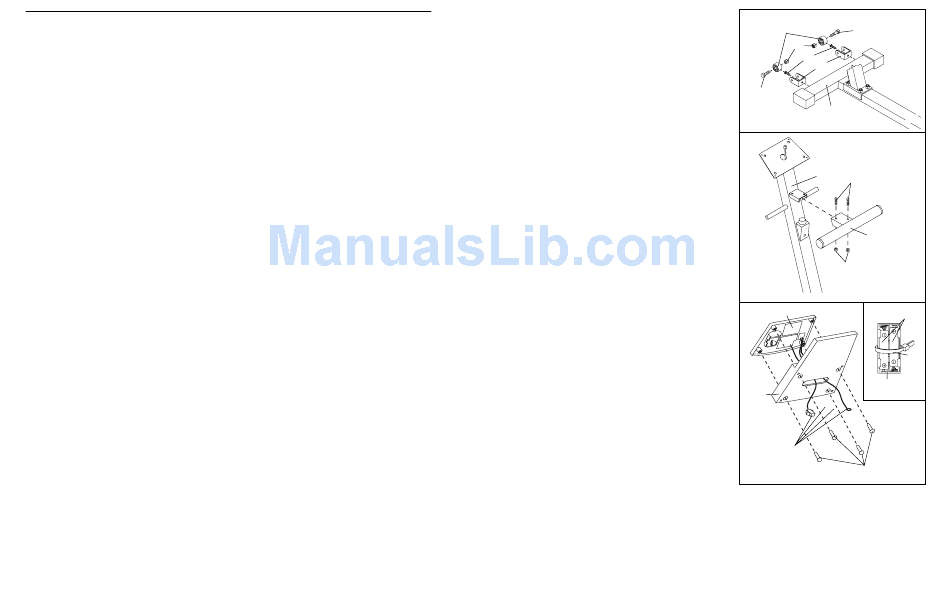

4. Attach the two Wheel Brackets (38) to the Frame (1)
with the two M10 x 25mm Button Head Screws (42)
as shown.
Attach a Wheel (61) to each Wheel Bracket (38) with
an M10 x 45mm Button Head Bolt (59) and an M10
Nylon Locknut (29).
5. Attach the T-handle (10) to the Upright (3) with two
M6 x 16mm Button Head Bolts (54) and two M6
Nylon Locknuts (17).
6. The Console (6) requires two 1,5V batteries (not
included). Alkaline batteries are recommended. To
install batteries, turn the console over. Remove the
four M4 x 16mm Screws (34), and separate the
Console from the Console Base (14). Insert two bat-
teries into the battery clip as shown in the inset draw-
ing. Make sure that the negative ends of the bat-
teries (marked ÒÑÓ) are touching the springs in
the battery clip.
Attach a Plastic Tie (9) to the battery clip as shown.
Attach the Console (6) to the Console Base (14) with
the four M4 x 16mm Screws (34), making sure that the
indicated wires are extending from the Console Base.
Be careful not to pinch the wires.
4
61
59
29
42
38
59
1
5
3
54
10
17
6
6
Batteries
Battery
Clip
14
Wires
34
7
9
