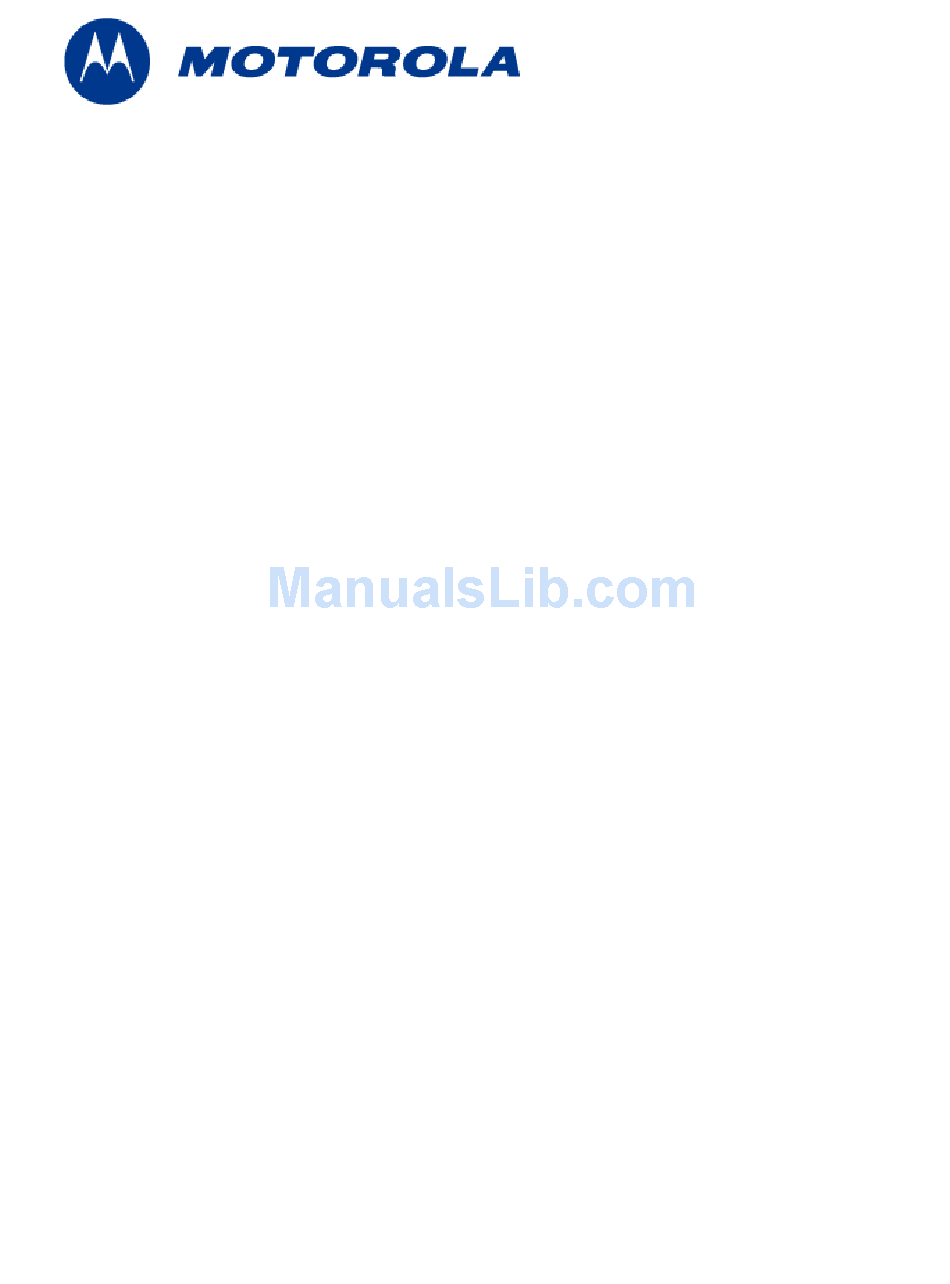

- Page 1 MOTOROLA MOTOMESH DUO 2.0 4300 Users Guide July 2007...
- Page 2 MOTOMESH DUO 2.0 4300 Users Guide This page intentionally left blank. July 2007...
- Page 3 The Motorola products described in this document may include copyrighted Motorola computer programs. Laws in the United States and other countries reserve for Motorola certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola.
- Page 4 MOTOMESH DUO 2.0 4300 Users Guide This page intentionally left blank. July 2007...
-
Page 5: Table Of Contents
Contents ..........Chapter 1: Product Introduction ... - Page 6 MOTOMESH DUO 2.0 4300 Users Guide Hostapd - Copyright and License Information... 4-7 Chapter 5: Customer Service ... 5-1 Customer Service Information... 5-1 Obtaining Support ... 5-2 System Information...5-2 Return Material Request ...5-2 Radio Products and Services Division ...5-2 Radio Products and Services Division Telephone Numbers...5-2 Returning System Components to Motorola ...5-3 Returning FREs...5-3 Chapter 6:...
- Page 7 List of Figures ..........Figure 1-1 MOTOMESH Duo 4300 Device Attached to a Light Pole...1-1 Figure 1-2...
- Page 8 List of Figures This page intentionally left blank. July 2007 viii...
-
Page 9: List Of Tables
List of Tables ..........Table 1-1 MOTOMESH Duo 4300-49 Device Specifications ...1-4 Table 1-2... - Page 10 List of Tables This page intentionally left blank. July 2007...
- Page 11 List of Procedures ..........Procedure 2-1 Assembling an AC Power MOTOMESH Duo Device...2-8 Procedure 2-2...
- Page 12 List of Procedures This page intentionally left blank. July 2007...
-
Page 13: Chapter 1: Product Introduction
Chapter 1: Product Introduction ..........This guide will provide you with technical specifications, installation guidelines, and testing procedures for the MOTOMESH Duo 4300 infrastructure devices. -
Page 14: Infrastructure Devices
Product Introduction Infrastructure Devices The MOTOMESH DUO 4300 device is configured to operate as an Intelligent Access Point (IAP) from the factory. The device is capable of being configured to operate as either an IAP or a MWR (Mesh Wireless Router). The selection of an IAP or MWR configuration will be determined by the customer’s wireless network needs at the time of purchase. -
Page 15: Figure 1-2 Iap And Mwr Devices In Context Of A Motomesh Network
MOTOMESH DUO 2.0 4300 Users Guide Figure 1-2 IAP and MWR Devices in Context of a MOTOMESH Network Wireless Switch Wireless 802.11 (MeshManager) 802.11 RADIUS 802.11 802.11 802.11 July 2007... -
Page 16: Motomesh Duo 4300 Device Specifications
Product Introduction MOTOMESH Duo 4300 Device Specifications The following specification tables apply to the MOTOMESH Duo 4300-49, 4300-58, and 4300-54 Infrastructure Devices. Table 1-1 MOTOMESH Duo 4300-49 Device Specifications Radio Characteristics Primary Radio Operating Freq. (GHz) Secondary Radio Operating Freq. (GHz) Wi-Fi Support RF Modulation Transmit Power (Maximum) - Page 17 Power Power Input Power Connector Power Consumption Power over Ethernet (PoE) Physical Dimensions Weight Packaging Mounting Environment Temperature Range Humidity Certifications Available Options Mounting Power Table 1-2 MOTOMESH Duo 4300-58 Device Specifications Radio Characteristics Primary Radio Operating Freq. (GHz) Secondary Radio Operating Freq. (GHz) Wi-Fi Support RF Modulation Transmit Power (Maximum)
- Page 18 Product Introduction Antenna Type Antenna Connector Routing Routing Engine Routing Protocol IEEE 802.11s Support Network Network Management Software Network Interface Network Segmentation Quality of Service (QoS) Security Virtual LAN (VLAN) Client Encryption Support Internodal Encryption Authentication Power Power Requirements Power Connector Power Consumption Power over Ethernet (PoE) Physical...
- Page 19 Available Options Mounting Power Table 1-3 MOTOMESH Duo 4300-54 Device Specifications Radio Characteristics Primary Radio Operating Freq. (GHz) Secondary Radio Operating Freq. (GHz) Wi-Fi Support RF Modulation Output Power (Maximum) Receive Sensitivity Power Control Antenna Type Antenna Connector Routing Routing Engine Routing Protocol IEEE 802.11s Support Network...
- Page 20 Product Introduction Power Power Requirements Power Connector Power Consumption Power over Ethernet (PoE) Physical Dimensions Weight Packaging Mounting Environment Temperature Range Humidity Certifications Available Options Mounting Power July 2007 90-264 VAC (with variation at 47 to 63 Hz) 12V +/- 10% VDC input, certified LPS power supply (orderable option) AC power cord, 12 ft 15W (with both radios operating at 50% duty cycle) Support for Canopy PoE connection...
-
Page 21: Chapter 2: Infrastructure Device Installation
Chapter 2: Infrastructure Device Installation ..........This chapter will provide hardware and software installation information for the MOTOMESH DUO 4300 Infrastructure Device. -
Page 22: Web Interface Utility
Chapter 2: Infrastructure Device Installation DO NOT use the Web Interface to manage VAP, VLAN, or Security configurations. 2. If a device has already been added to the network using MeshManager, DO NOT use the Web Interface to change the device type from an IAP to an MWR or from an MWR to an IAP. -
Page 23: Ports And Connections
Ports and Connections The following list defines the standard ports and connections for the MOTOMESH Duo 4300 device running in either the IAP or MWR modes. • 100-240V A/C Power Cable with flying leads • One non Power over Ethernet (PoE) Ethernet port •... -
Page 24: Motomesh Duo Infrastructure Device Labels
Chapter 2: Infrastructure Device Installation MOTOMESH DUO Infrastructure Device Labels The MAC address for each device is recorded on a label located on the device enclosure. Record this number in the provided IAP or MWR MAC Address Table section. The MAC Addresses will be required later to configure and test the device. -
Page 25: Infrastructure Device Mac Address Table
MOTOMESH DUO 2.0 4300 Users Guide Infrastructure Device MAC Address Table Table 2-2 MAC Address Table IAP or MWR Device Name Ethernet MAC IP Address July 2007... -
Page 26: Infrastructure Device Assembly
Chapter 2: Infrastructure Device Installation Infrastructure Device Assembly Figure 2-4 shows the external connection points for a MOTOMESH Duo 4300 device. The figure below it shows some examples of optional personality plugs (Black – Canopy Connect PoE, and Standards based 802.3 af PoE Grey). A red Hardware Reset Plug (not shown below) is also available and is used to reset a stranded 4300 device back to its factory default configuration. -
Page 27: Infrastructure Device Deployment And Installation
Figure 2-6 Side View (B) of the 4300 Device’s External Connection Points Figure 2-7 Side View (A) of the 4300 Device’s External Connection Points Infrastructure Device Deployment and Installation MOTOMESH devices require professional installation to ensure that the installation is performed in accordance with Motorola installation standards. -
Page 28: Grounding Considerations
Chapter 2: Infrastructure Device Installation • The antenna must have a separation distance of at least 2 meters from the body of all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. • Users and installers must be provided with antenna installation and transmitter operating conditions to satisfy RF exposure compliance. -
Page 29: Assembling A Dc Power Motomesh Duo Device
Adjust the position of the box so that the antenna connecters are positioned vertically. Align the antennas with the N-type connectors on the box and rotate to close. Insert the cable into the external Ethernet port and tighten the connector to ensure a weatherproof seal. Insert the Power Plug into the 4-pin connector. - Page 30 Chapter 2: Infrastructure Device Installation This page intentionally left blank. July 2007 2-10...
-
Page 31: Chapter 3: Device Configuration
Chapter 3: Device Configuration ..........This chapter includes the following sections: Pre-staging a MOTOMESH Duo 4300 device in MeshManager Demoting and Promoting an IAP... -
Page 32: Figure 3-1 The Add New Motomesh Duo Device Panel In Meshmanager
Chapter 3: Device Configuration Procedure 3-1 Configuring a 4300 Device Mesh Ensure that all the 4300 devices are wire-connected to the MOTOMESH 2.0 MiSC. NOTE: It is recommended that the 4300 devices are set-up on the bench prior to actual deployment in the field. The MOTOMESH 2.0 MeshManager element management application must be installed and running. -
Page 33: Figure 3-3 Selecting The Probe Button In Meshmanager
MOTOMESH DUO 2.0 4300 Users Guide Select the Probe button after entering the device’s Ethernet MAC address. The probing operation will ensure that the device is communicating with the MiSC in addition to capturing the other MAC Addresses. Figure 3-3 Selecting the Probe Button in MeshManager July 2007... -
Page 34: Figure 3-4 Examining Initial Device Defaults In Meshmanager
Chapter 3: Device Configuration Note that after initial Probing during the Add New Device process, the 802.11 b/g Radio and Mesh are both ENABLED by default, and the 802.11 a Radio and Mesh are both DISABLED by default. Figure 3-4 Examining Initial Device Defaults in MeshManager To configure an 802.11 b/g mesh network, a license key is not required. -
Page 35: Figure 3-5 Enabling The 802.11 A Radio On A 4300-54 And 4300-58 Device
To enable the 802.11 a Radio and Mesh devices (4300-54 and 4300-58). Select the 802.11 a Radio Active check box AND the Mesh Enabled check box. NOTE: Selecting the 802.11 a Radio and Mesh check boxes will automatically cause the 802.11 b/g Radio checkbox to remain enabled while the Mesh Enabled checkbox will be de-selected. -
Page 36: Figure 3-7 An Example Of A License Key Text File
Chapter 3: Device Configuration Minimize MeshManager temporarily as you will return to it shortly. There are still tasks that must be performed in MeshManager to complete the Adding and Changing of a New Device from an 802.11 b/g Mesh into a 802.11 a Mesh network. Open the License Key text file that was provided with your MOTOMESH DUO 2.0 Product CDs. -
Page 37: Figure 3-9 Pasting The License Key Into Meshmanager
MOTOMESH DUO 2.0 4300 Users Guide Paste the previously copied License key into the 802.11a License Key entry field in MeshManager. Figure 3-9 Pasting the License Key into MeshManager July 2007... -
Page 38: Figure 3-10 Entering 802.11 A Membership Vlan Data
Chapter 3: Device Configuration Configure the 802.11 a Membership VLAN by entering 0-4095 into the 802.11 a Membership VLAN entry field. IMPORTANT NOTE: The minimum requirement for this field is 4095, which is the initial designated Management VLAN. IMPORTANT NOTE: If the NEW Device is to be a 2.4/4.9 Mesh, the 802.11 a Membership VLAN entry field will become disabled. -
Page 39: Figure 3-11 Configuring A Device To Be An Iap Or Wr
Decide if you want the device to be an IAP or an MWR on your network. The Device is an IAP checkmark is ENABLED by Default. If you wish to Add a device to the Network as a MWR, simply uncheck the check box associated with this selection. IMPORTANT NOTE: All MOTOMESH Duo 4300 devices are initially preconfigured as IAPs. -
Page 40: Figure 3-13 Entering An Optional Deployed Location
Chapter 3: Device Configuration Enter an optional deployed location description into the Deployed Location entry field. Follow your company’s device network naming conventions. Figure 3-13 Entering an Optional Deployed Location All of the Device configuration selections should now be completed. Select the Add button to formally add the device to the Network. -
Page 41: Figure 3-15 After Adding A Device To The Mesh
Observe the Progress Log for any errors. Notice that the new device is now shown in the IAP group in the Device Tree in MeshManager. Figure 3-15 After Adding a Device to the Mesh To verify the new device configuration, select the Probe button again to re-probe the device. IMPORTANT NOTE: If there are any errors at the time that a device is added, performing a re-probe will confirm a successful configuration. -
Page 42: Figure 3-16 After Successfully Adding A Device To The Mesh
Chapter 3: Device Configuration A successfully configured device will display the same information in the entry fields and check boxes that were intended when configuring the device. Incorrectly displayed entry fields or check boxes will be a sign of a failed device configuration. You can also check the progress log for the following characteristics: - 802.11 a radio status enabled - 802.11 a mesh status enabled... -
Page 43: Demoting An Iap Device To A Mwr
Demoting an IAP Device to a MWR ..........The following is a step by step procedure that describes how to demote an existing IAP device to an MWR, and then promote it back to an IAP. -
Page 44: Figure 3-18 Promote / Demote Dialog
Chapter 3: Device Configuration From the newly opened Promote/Demote dialog box, select Yes to continue demoting the device, or select IMPORTANT NOTE: Careful consideration should be taken prior to demoting an IAP with respect to VLAN configurations. Precautions must be taken to prevent a loop condition from occurring in the network. -
Page 45: Second Ip Stack Aids In Troubleshooting
To Promote the device back to an IAP, right-click on the device in the Device Tree and choose Promote to an IAP from the pop-up menu. From the newly opened Promote/Demote dialog box, select Yes to continue promoting the device, or select No. -
Page 46: Device Recovery Settings
Chapter 3: Device Configuration Device Recovery Settings The MOTOMESH Duo device recovery default settings (VAP 15) have the following conditions: Authentication Type– WPA-AUTO-PSK Cipher Mode- Passphrase- Static IP Address- IP network mask- SSID- SSID Suppression- If you change any of the default settings for VAP15, make sure that when it is time to recover your MOTOMESH Duo Device that the Client Access Card is set to match your current network settings for Device Recovery (VAP15). -
Page 47: Chapter 4: License Information
Chapter 4: License Information ..........This chapter includes the contents of the Motorola End User License Agreement (EULA) as well as a Third Party License section. - Page 48 Chapter 4: License Information DEFINITIONS. In this Agreement, the word “Software” refers to the set of instructions for computers, in executable form and in any media, (which may include diskette, CD-ROM, downloadable internet, hardware, or firmware) licensed to you. The word “Documentation”...
