Installation, Start-Up, and Operating Instructions
NOTE: Read the entire instruction manual before starting the
installation.
Index
SAFETY CONSIDERATIONS .....................................................3
Dimensional Drawing ...............................................................2
Clearances to Combustibles......................................................4
INTRODUCTION ..........................................................................3
APPLICATIONS ......................................................................3-11
General ......................................................................................3
Upflow Applications..............................................................3-6
Downflow Applications.........................................................6-8
Horizontal Left (Supply-Air Discharge) Applications .........8-9
LOCATION ............................................................................11-12
General ....................................................................................11
Low-Fire Only Installation................................................11-12
Furnace Location Relative to Cooling Equipment ................12
Hazardous Locations...............................................................12
INSTALLATION....................................................................12-17
Leveling Legs (If Desired)................................................12-13
Installation On a Concrete Slab .............................................13
Applications)......................................................................13
Installation In Horizontal Applications.............................13-15
Filter Arrangement..................................................................15
Bottom Closure Panel.............................................................15
Gas Piping..........................................................................16-17
ELECTRICAL CONNECTIONS...........................................17-20
115-v Wiring......................................................................17-19
24-v Wiring.............................................................................19
Accessories ........................................................................19-20
DIRECT VENTING ...............................................................20-26
Common Vent Systems.....................................................20
Combustion-Air and Vent Piping .....................................20-23
Kit Installation..............................................................23-25
Multiventing and Vent Terminations................................25-26
CONDENSATE DRAIN ........................................................26-29
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4
PC 101
Catalog No. 565-905
Tab 6a 8a
For Sizes 040-100 Series 111
A93040
Page
Printed in U.S.A.
Variable-Capacity Multipoise
Condensing Gas Furnace
®

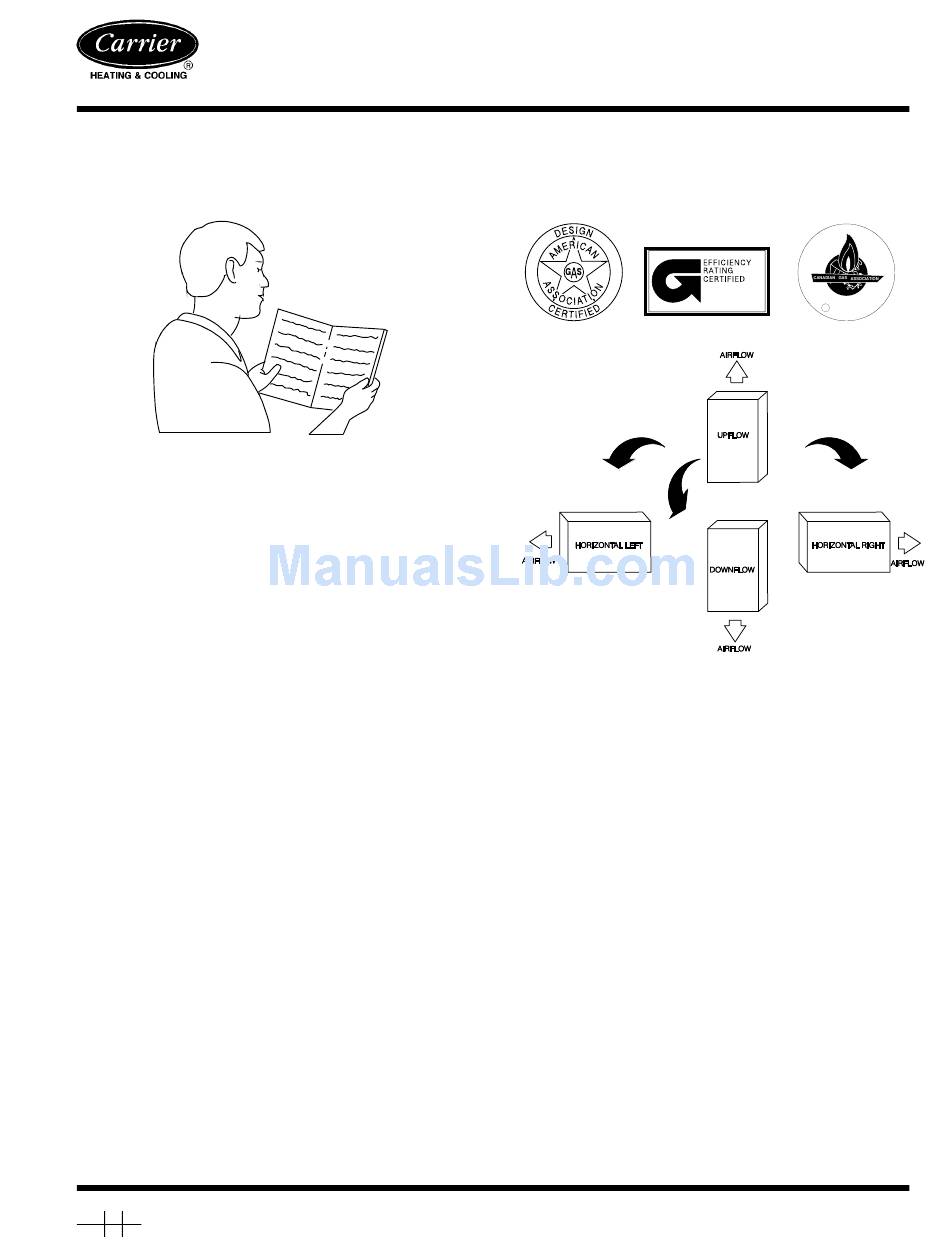

Fig. 1-Multipoise Orientations
General ....................................................................................26
Application ..............................................................................28
Condensate Drain Protection.............................................28-29
SEQUENCE OF OPERATION..............................................29-32
Self-Test Mode........................................................................29
Heating Mode ....................................................................29-30
Heat Mode-Two Stage .........................................................30
Emergency Heat Mode ...........................................................30
Cooling Mode ....................................................................30-31
Heat Pump Mode ....................................................................31
Continuous Fan Mode ............................................................31
Component Test.................................................................31-32
START-UP PROCEDURES ..................................................32-37
General ....................................................................................32
Select Setup Switch Positions...........................................32-33
Prime Condensate Trap With Water ......................................33
Purge Gas Lines......................................................................33
Adjustments .......................................................................33-37
Set Gas Input Rate ............................................................33-36
Set Temperature Rise ........................................................36-37
Set Thermostat Heat Anticipator............................................37
CHECK SAFETY CONTROLS..................................................37
Check Primary Limit Control.................................................37
Check Pressure Switch ...........................................................37
CHECKLIST ................................................................................37
Form 58MVP-2SI
Pg 1
58MVP
ama
A PP R O VED
R
A93041
6-94
Replaces: 58MVP-1SI
