Using the Browser-based Configuration Software

If you don't have access to a Windows-based computer,
you may use the internal browser-based configuration
software to configure the bridge.
1. Make sure the router or access point is powered up.
2. Power up the bridge.
3. Power down the Ethernet-enabled computer.
4. Connect the provided Ethernet crossover cable
between the computer and the bridge.
5. Power on the computer.
If your wireless network has an IP address other than
192.168.0.yyy, you'll first need to change the IP address
on the bridge before making any other changes.
1. Note the current setting and manually change the IP address of your computer to
192.168.0.201. With a Macintosh computer use the Network control panel (OS X) or the
TCP/IP control panel (OS 9.x).
2. Start your browser software.
3. Type http://192.168.0.200 as the
Web address and press Return.
You'll see the Information page.

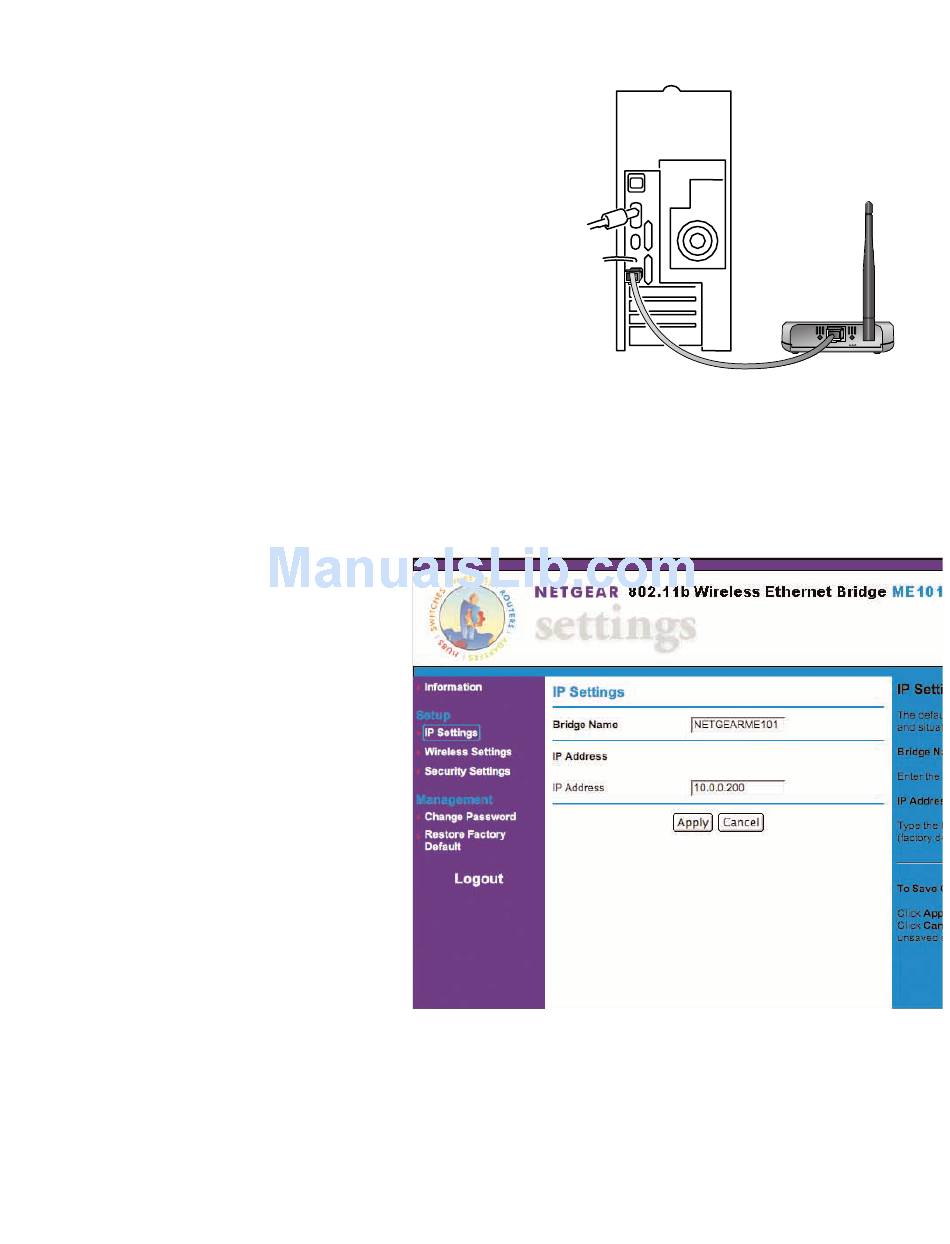

4. To change the IP address for the
bridge to match your wireless
network, click IP Settings.
5. Type admin as the User ID and
type password as the Password.
6. Click OK.
7. Type the correct IP address for the
bridge. The first three sets of
numbers (xxx.xxx.xxx.yyy) should
be the same as your access point or router. The last set of numbers (.yyy) should be a set of
unique numbers on your network.
8. Click Apply.
9. Click Logout.
10. Restore the computer to its previous network settings. For example, if your network uses
DHCP, return your computer to that setting instead of the manual setting.
Default Ethernet DC in 5V Antenna
ME101 Wireless
Ethernet Bridge
11
