When Used with Two or More Switchers (100 Inputs)

Up to 100 inputs can be accepted using the NEC ISS-6020 Switcher.
How to make connections:
1 Connect the REMOTE 1 terminal of the master Switcher to the
REMOTE 1 of the projector using the optional control cable (15p-
15p/CTL-6010).
2 Next connect the REMOTE 2 terminal of the master Switcher to
the REMOTE 1 terminal of the first slave Switcher using the same
optional control cable as mentioned above. Third, connect the
REMOTE 2 terminal of the first slave to the REMOTE 1 of the
second slave, and the REMOTE 2 terminal of the second slave to
the REMOTE 1 terminal of the third slave (— and the REMOTE
2 of the ninth slave to the REMOTE 1 of the tenth slave). Connect
all the Switchers with optional control cables.
• Select [Main Menu] [Projector Options]
[SW2 Level]. See page E-40 for the information in detail.
• Refer to the user's manual accompanying the Switcher.
• Cables mentioned are not included with the projector.

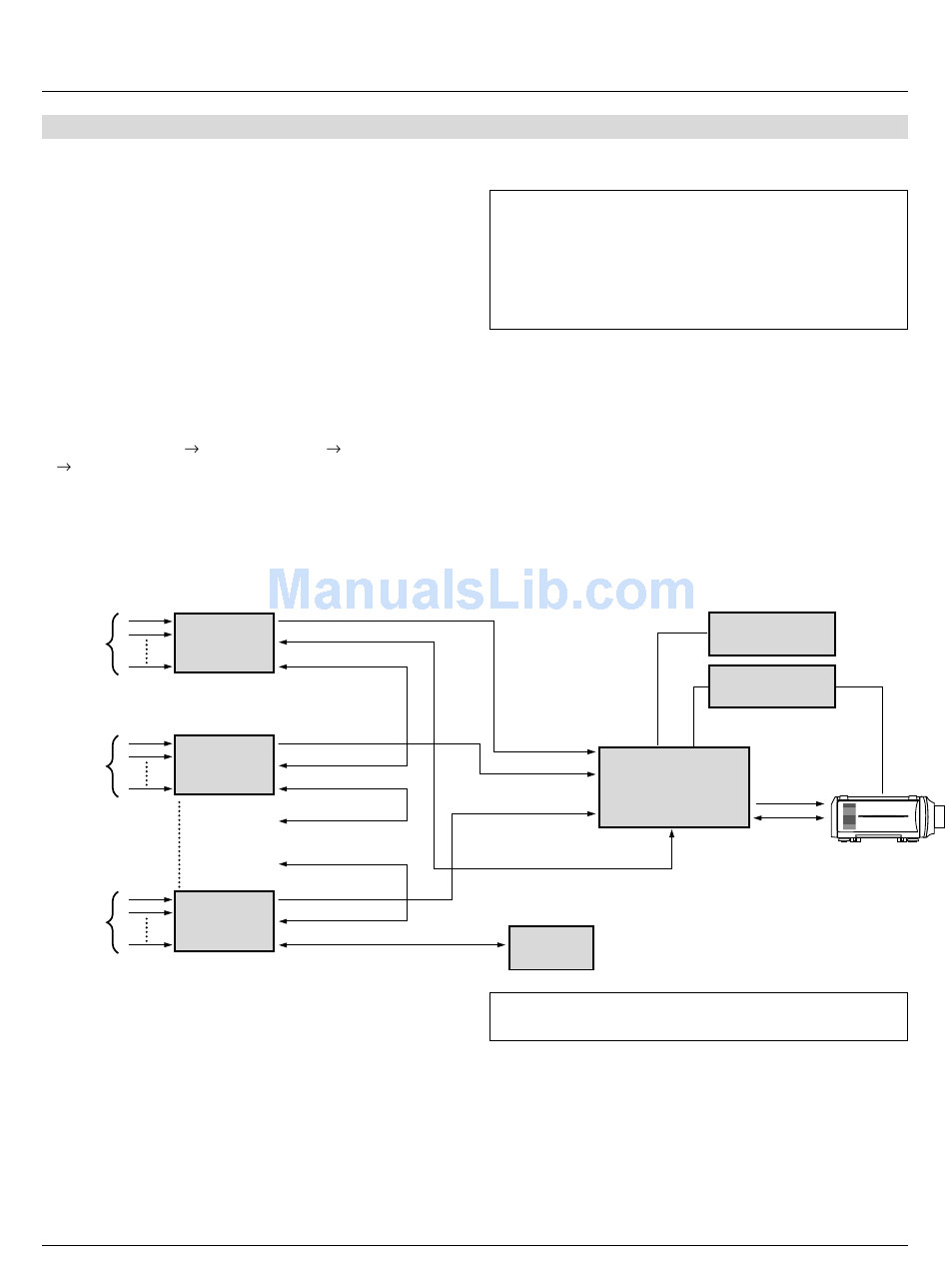

Signal Switcher
10 inputs
SLAVE 1
10 inputs
SLAVE 2
SLAVE 3
SLAVE 9
10 inputs
SLAVE 10
[Switcher Control]
Signal
REMOTE 1
REMOTE 2
Signal
REMOTE 1
REMOTE 2
REMOTE 1
REMOTE 2
Signal
REMOTE 1
REMOTE 2
E – 24
NOTE:
• Be sure to set all the slide switches (S8603) of the Switcher to
RS-422 positions. Set the one on the last slave Switcher to the
appropriate position to match the connected equipment such as
a personal computer. (RS-422/RS-232C for PC control of pro-
jector)
• Set the DIP switch S8601 of the Switcher.
To SLOT 1
To SLOT 2
MASTER
SWITCHER
To SLOT 10
To REMOTE 2
OPTION
(PC)
NOTE: The optional remote control RC-6320 for ISS-6020 will
not work correctly in the SW Level 1 or 2 mode.
OPTION (PC)
REMOTE
CONTROL
Signal (Input 1)
REMOTE
REMOTE 1
Projector
