Explorer I
C. Blower (Optional)
Tools Required: #2 Phillips head screwdriver
1. Locate bolts supplied with the blower.
2. Align holes in mounting fl ange of blower with bolt holes in
appliance. Blower should be positioned at bottom of rear
outer skin as shown in Figure 16.1
3. Re-insert and tighten bolts, securing blower onto outer
wall of appliance.
4. Place the bracket containing the snap disc and magnet
under the bottom left rear corner.
See Owner's Manual for detailed operating instructions
for the blower and snap disc.

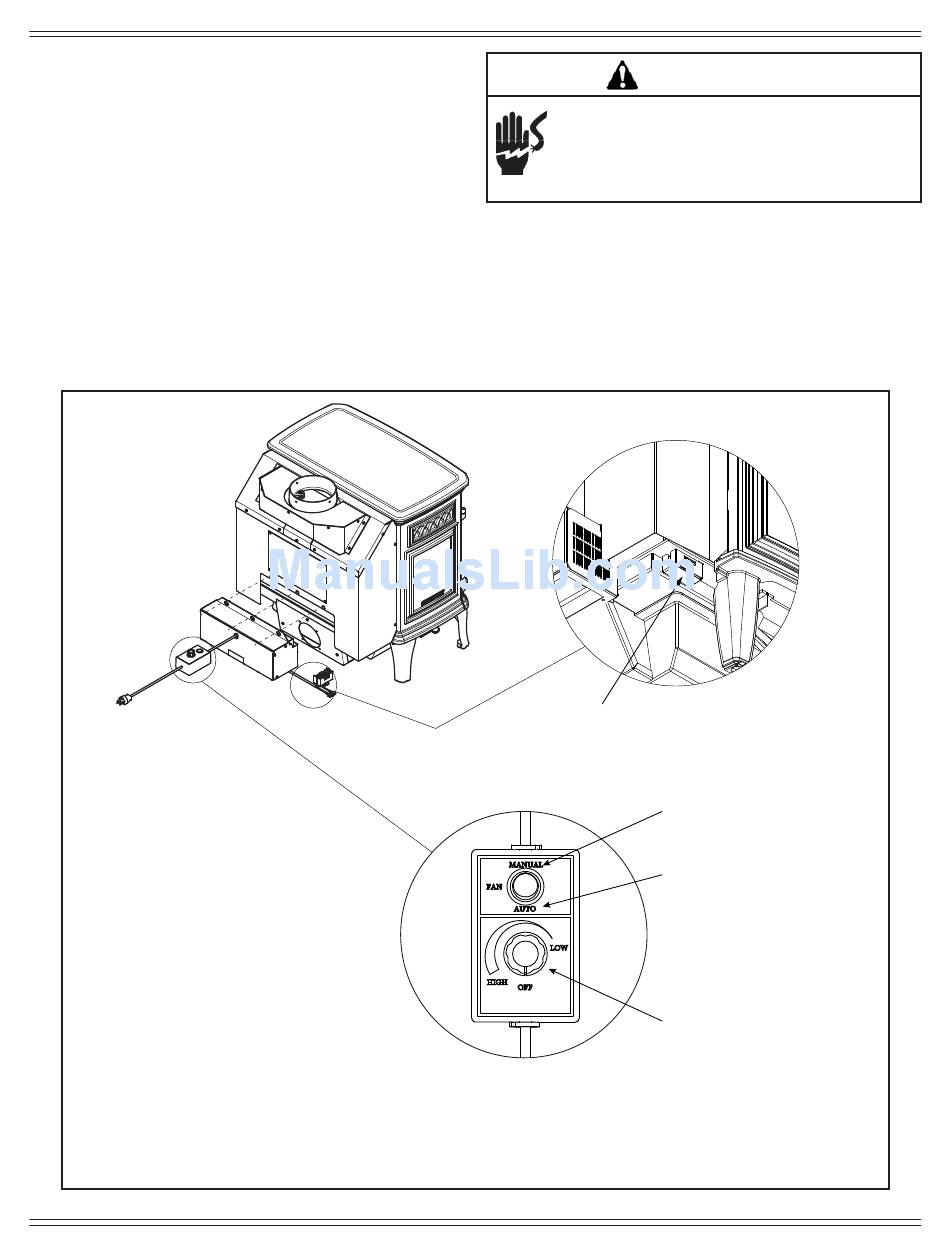

Figure 16.1
16
Shock Risk.
• Do NOT remove grounding prong from plug.
• Route cord away from appliance.
• Do NOT route cord under or in front of appliance.
• Plug directly into properly grounded 3 prong receptacle.
Snap Disc
Bracket
7062-197B
CAUTION
MANUAL: Overides
the Snap Disc
AUTO: Fan will turn
ON/OFF Automatically
by the Snap Disc
Controls the Fan
Speed
