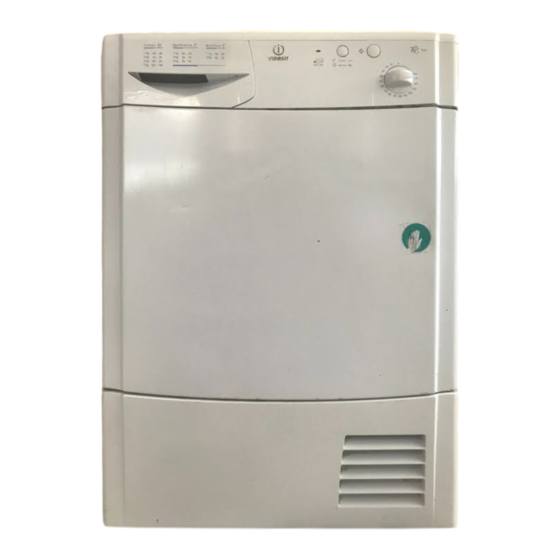

- Page 1 IS70C Kod handlowy: 30617...
- Page 2 6. Niektóre notatki techniczne są ogólne dla danej sekcji, zatem nie mogą być związane tylko konkretnej części. Aby poruszać się w dokumentacjach modelu sprawnie, pomocne jest czytanie notatek i monitorowanie uaktualnień dokumentacji. 7. Okładka dokumentacji technicznej przedstawia model sprzętu oraz jego kod handlowy. mod.IS70C page 2...
- Page 3 12721-15 rysunki mod.IS70C page 3...
- Page 4 12721-15 Lista części Ref. Od S/N Do S/N Zamiennik opis Notatka C00114678 door & liner assy indesit bianco C00207943 indesit door kit C00114678 door & liner assy indesit bianco C00095514 1 x C00119841 hak drzwi emz n4408e00 1 x C00119844...
- Page 5 12721-15 Lista części Ref. Od S/N Do S/N Zamiennik opis Notatka C00113858 latch plinth cover C00115798 plinth cover catch C00113859 air duct seal C00255284 bearing pad grooved mod.IS70C page 5...
- Page 6 12721-20 rysunki mod.IS70C page 6...
- Page 7 C00115748 drum shaft C00250836 screw m5 x 8 t25 C00095585 1 x C00268451 filtr tłumiący zakł. radiowe C00095586 1 x C00250888 screw C00112186 drum lifter long SN1156 C00141607 drum lifter SN1155 C00250835 screw 5 x 23 mod.IS70C page 7...
- Page 8 1 x C00193521 water container C00113897 water cont inlet C00113898 container adaptor C00122256 śruba 6x3/8 C00112144 bearing pad C00113901 1 x C00118058 drum support wheel - see n4408l02 C00116358 pas (1991mm fitted) C00113902 side strut angled right mod.IS70C page 8...
- Page 9 12721-25 rysunki mod.IS70C page 9...
- Page 10 C00193187 60703... pump and float cover SN1177 C00113890 kondensator 'ale70cfr' C00113903 condensor front cover seal C00114866 1 x C00280681 stacking kit lvb-dryers condenser SN1122 n1040357 C00146932 energy label is70c C00149478 stacking kit shelf n1040357 C00161363 instruction booklet mod.IS70C page 10...
- Page 11 12721-25 Lista części Ref. Od S/N Do S/N Zamiennik opis Notatka C00194039 condenser quick guide C00221757 service manual mod.IS70C page 11...
- Page 12 12729-05 rysunki mod.IS70C page 12...
- Page 13 SN1180 C00195002 timer kit C00095621 1 x C00250894 śruba 8x1/2. C00114683 góra biał. C00113939 1 x C00199420 relay/led C00114684 start button C00114686 60327... light guide SN1173 C00199430 60327... neon lamp SN1173 C00207829 uchwyt zbiornika mod.IS70C page 13...
- Page 14 Notatki SN1122: Notice SN1122 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1138: Notice SN1138 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1155: Notice SN1155 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- mod.IS70C page 14...
- Page 15 SN1156: Notice SN1156 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1162: Notice SN1162 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1173: Notice SN1173 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1175: Notice SN1175 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- mod.IS70C page 15...
- Page 16 SN1176: Notice SN1176 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1177: Notice SN1177 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SN1180: Notice SN1180 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- mod.IS70C page 16...
- Page 17 With this change to the motor shaft a new version of cooling fan was introduced, the original and new versions of fan are not interchangeable. The original fan C00207723 (1703002) can only be fitted to a model produced before serial number 60907.0001 mod.IS70C page 17...
- Page 18 The Brace can be fitted to Machines before Serial Number 71210.0000 providing the Rear Panel is replaced as well. The Brace is secured to the Rear panel by 2 screws. See Parts List for required parts. n4408e00: CONDENSER DOOR CATCH/LATCH CHANGES ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- INTRODUCTION OF EMZ DOOR CATCH/LATCH mod.IS70C page 18...
- Page 19 FROM SERIAL NUMBER 01112.0000 (12th November 2010) A NEW HEATER WITH A COLOMBO CONNECTOR HAS BEEN USED IN PRODUCTION. THIS NEW HEATER IS NOT INTERCHANGEABLE WITH THE PREVIOUS ONE. CLICK "VIEW LIST" BELOW TO SELECT THE CORRECT PART REQUIRED. mod.IS70C page 19...
- Page 20 DRUM SUPPORT WHEELS ---------------------------------------------------------------------------------------------------------------------------------- ------------------------------------------------------------- THE DRUM SUPPORT WHEELS ARE NO LONGER USED IN PRODUCTION. IF THE DRUM SUPPORT WHEELS REQUIRE REPLACING, A KIT IS AVAILABLE, WHICH USES FRONT BEARING PADS TO SUPPORT THE DRUM FRONT. mod.IS70C page 20...
