DCR-PC330/PC330E
SERVICE MANUAL
Ver 1.1 2003. 11
Revision History
Revision History
How to use
How to use
Acrobat Reader
Acrobat Reader
Z MECHANISM
Link
Link
SPECIFICATIONS
SPECIFICATIONS
SERVICE NOTE
SERVICE NOTE
DISASSEMBLY
DISASSEMBLY
• For ADJUSTMENTS (SECTION 6), refer to SERVICE MANUAL, ADJ (987627251.pdf).
• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987627241.pdf).
• For MECHANISM ADJUSTMENTS, refer to the "DV MECHANICAL ADJUSTMENT MANUAL
Z MECHANISM " (9-876-210-11).
• Reference No. search on printed wiring boards is available.
On the CD-452, VC-325 and BT-021 boards
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the CD-452, VC-325 and BT-021 boards.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the CD-452,
VC-325 and BT-021 boards are not shown.
The following pages are not shown.
Schematic diagram ............................. Pages 4-11 to 4-48
Printed wiring board ............................ Pages 4-75 to 4-82
Waveforms ........................................... Page 4-97 to 98

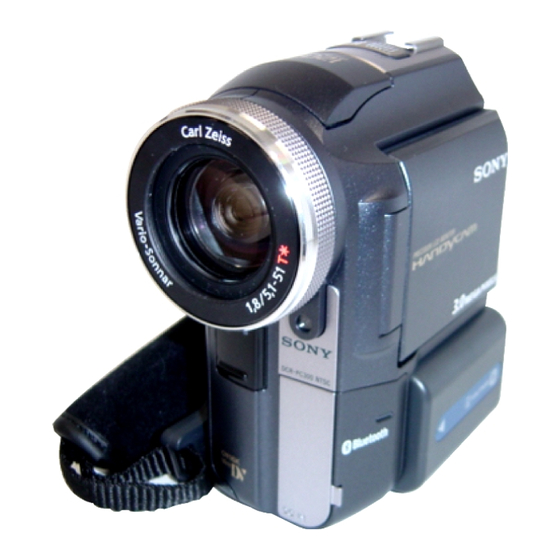

Photo : DCR-PC330
BLOCK DIAGRAMS
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Mounted parts location .................. Pages 4-101 to 4-103
Electrical parts list ......................... Pages 5-18 to 5-27
DIGITAL VIDEO CAMERA RECORDER
RMT-831
LEVEL
US Model
Canadian Model
Korea Model
AEP Model
UK Model
East European Model
Australian Model
Hong Kong Model
Chinese Model
E Model
Tourist Model
DCR-PC330/PC330E
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
REPAIR PARTS LIST
2
DCR-PC330
DCR-PC330E
